NSN 4730-00-563-6518 AE161976, AE16197-6, AFP2613T060606
Product Details | TUBE TEE
4730-00-563-6518 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: AE161976, AE16197-6, AFP2613T060606, AP378T06, ST7M230T6, TF378T060606, TF378T06-06-06, GT515AW6, LE27300480001, LE273-0048-0001, R44133T06, 10108421 , 4730-00-563-6518, 00-563-6518, 4730005636518, 005636518
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 19 NOV 1974 | 00-563-6518 | 03809 ( TEE, TUBE ) |

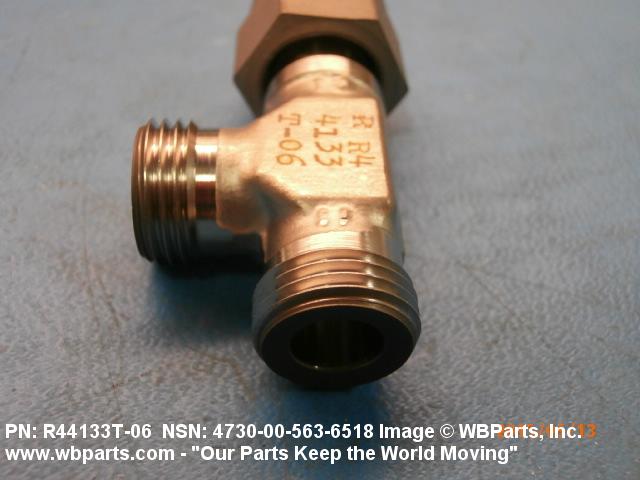

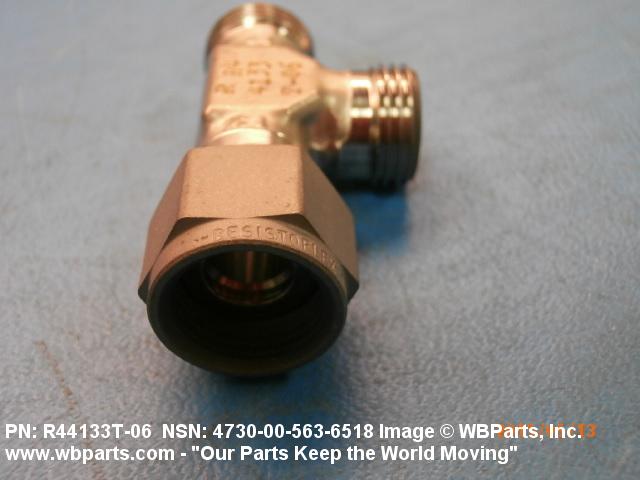

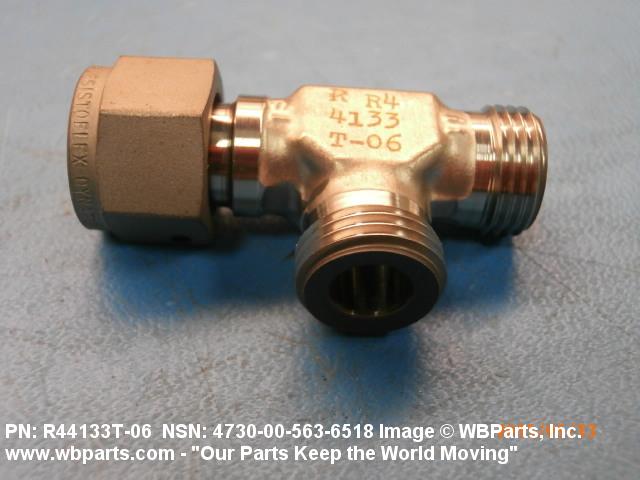

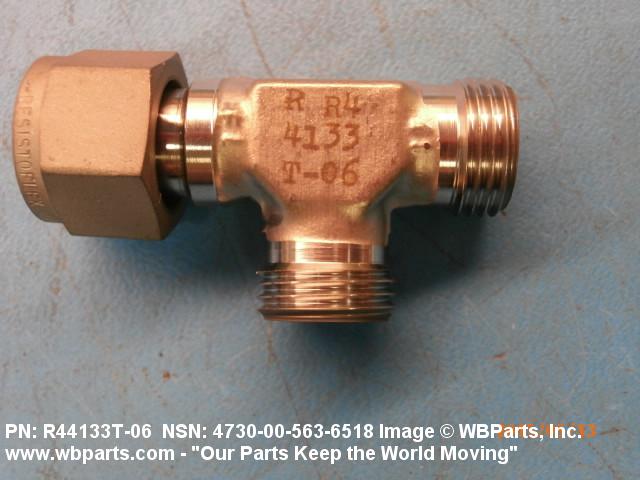

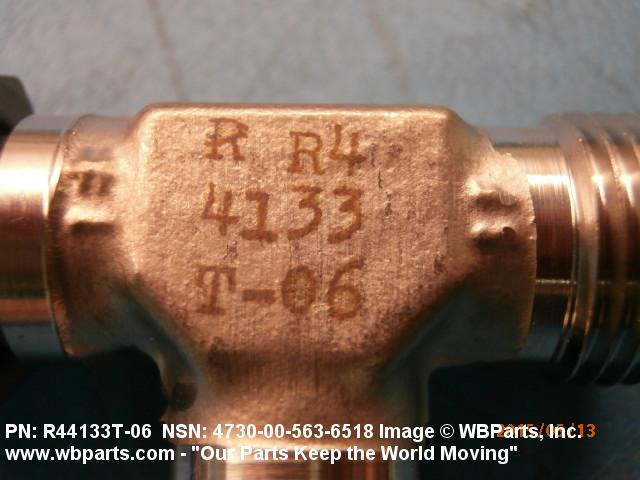

Drawings & Photos | NSN 4730-00-563-6518
Demand History | NSN 4730-00-563-6518
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AE16197-6 | 2020-03-77 | 9 | DIBBS |
| AFP2613T060606 | 2020-03-77 | 9 | DIBBS |
| AP378T06 | 2020-03-77 | 9 | DIBBS |
| LE273-0048-0001 | 2020-03-77 | 9 | DIBBS |
| R44133T06 | 2020-03-77 | 9 | DIBBS |
| ST7M230T6 | 2020-03-77 | 9 | DIBBS |
| TF378T06-06-06 | 2020-03-77 | 9 | DIBBS |
| AE16197-6 | 2020-03-76 | 9 | DIBBS |
| AFP2613T060606 | 2020-03-76 | 9 | DIBBS |
| AP378T06 | 2020-03-76 | 9 | DIBBS |
| LE273-0048-0001 | 2020-03-76 | 9 | DIBBS |
| R44133T06 | 2020-03-76 | 9 | DIBBS |
| ST7M230T6 | 2020-03-76 | 9 | DIBBS |
| TF378T06-06-06 | 2020-03-76 | 9 | DIBBS |
| AE16197-6 | 2019-09-272 | 3 | DIBBS |
| AFP2613T060606 | 2019-09-272 | 3 | DIBBS |
| AP378T06 | 2019-09-272 | 3 | DIBBS |
| GT515AW6 | 2019-09-272 | 3 | DIBBS |
| LE273-0048-0001 | 2019-09-272 | 3 | DIBBS |
| R44133T06 | 2019-09-272 | 3 | DIBBS |
| TF378T06-06-06 | 2019-09-272 | 3 | DIBBS |
| AE16197-6 | 2019-08-213 | 3 | DIBBS |
| AFP2613T060606 | 2019-08-213 | 3 | DIBBS |
| AP378T06 | 2019-08-213 | 3 | DIBBS |
| GT515AW6 | 2019-08-213 | 3 | DIBBS |
| LE273-0048-0001 | 2019-08-213 | 3 | DIBBS |
| R44133T06 | 2019-08-213 | 3 | DIBBS |
| TF378T06-06-06 | 2019-08-213 | 3 | DIBBS |
| LE27300480001 | 2019-05-143 | 3 | United States |
| 4730-00-563-6518 | 2018-12-360 | 3 | DIBBS |
| 4730-00-563-6518 | 2018-12-347 | 3 | DIBBS |
| R44133T06 | 2015-04-107 | 3 | United States |
Cross Reference | NSN 4730-00-563-6518
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AE16197-6 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AFP2613T060606 | 30974 | AEROFIT, LLC |
| AP378T06 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| GT515AW6 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| LE273-0048-0001 | 43999 | BOEING COMPANY, THE DBA BOEING |
| R44133T06 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| ST7M230T6 | 76301 | BOEING COMPANY, THE DBA BOEING |
| TF378T06-06-06 | 78570 | SMITHS TUBULAR SYSTEMS-LACONIA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-563-6518
Related Products | NSN 4730-00-563-6518
Technical Data | NSN 4730-00-563-6518
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4965,6AL-4V ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END THREADED EXTERNAL TUBE 3RD END |
| CONNECTION STYLE | B4A SWIVEL NUT INVERTED FLARE 1ST END B63A INVERTED FLARE 2ND END B63A INVERTED FLARE 3RD END |
| SEAT ANGLE | 8.5 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS |

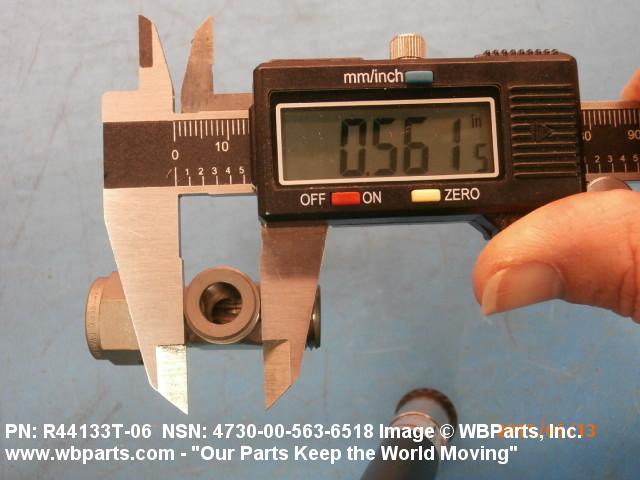

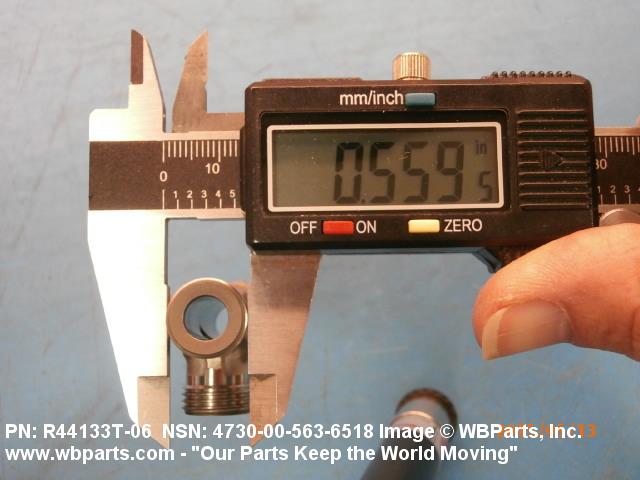

| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 20 ALL ENDS |
| THREAD CLASS | 3B 1ST END 3A 2ND END 3A 3RD END |

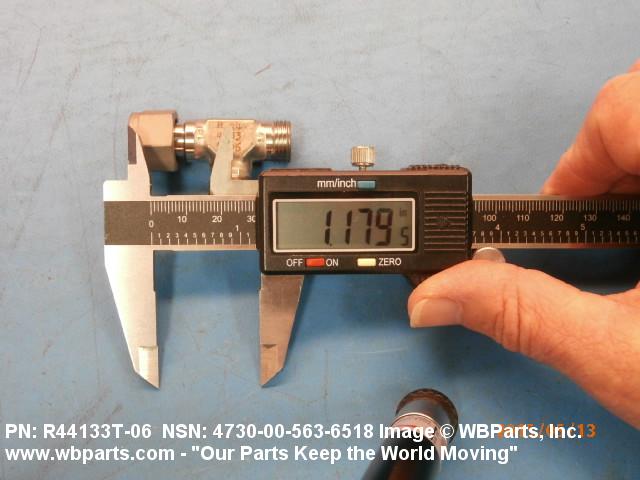

| LEG LENGTH | 1.178 INCHES NOMINAL 1ST END 0.704 INCHES NOMINAL 2ND END 0.704 INCHES NOMINAL 3RD END |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | F-18 AIRCRAFT, F-15 AIRCRAFT, B-1B AIRCRAFT, AND B-2 BOMBER (ATB); SUPPORT EQUIPMENT: B-2 BOMBER |
Restrictions/Controls & Freight Information | NSN 4730-00-563-6518
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-563-6518
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
