NSN 4730-00-555-7804 MS21913D16, MS21913D6, AS18280

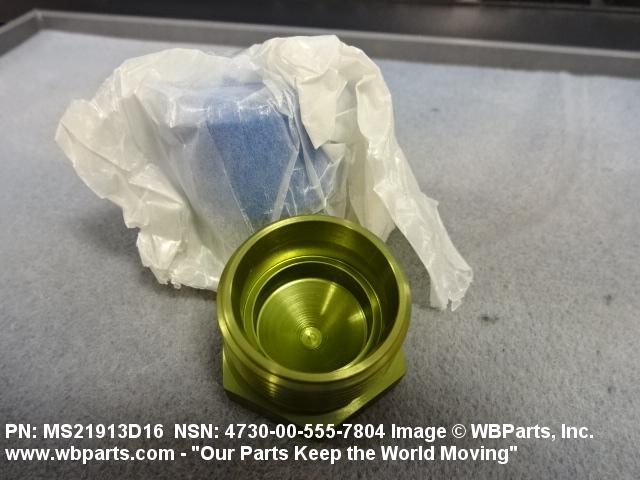

Product Details | THREADED TUBE FITTING PLUG
4730-00-555-7804 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: MS21913D16, MS21913D6, AS18280, AS21913, 10108420 , 4730-00-555-7804, 00-555-7804, 4730005557804, 005557804
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-555-7804 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

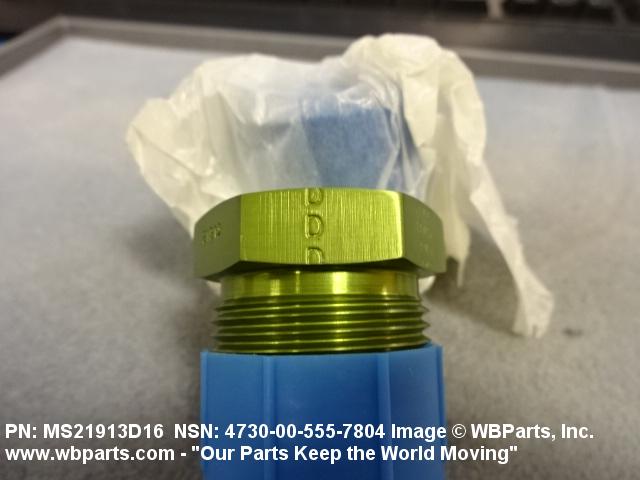

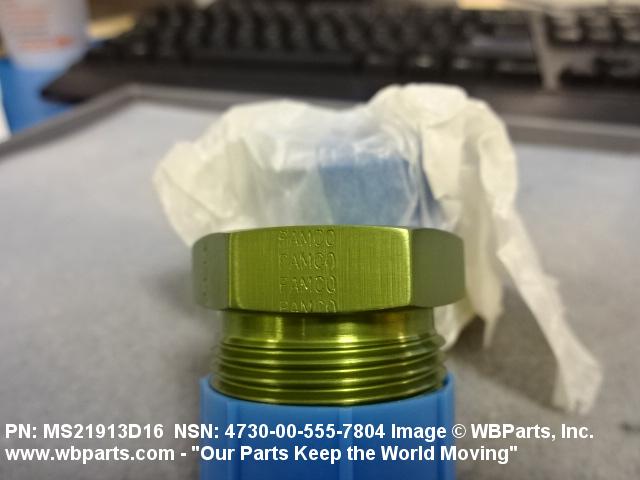

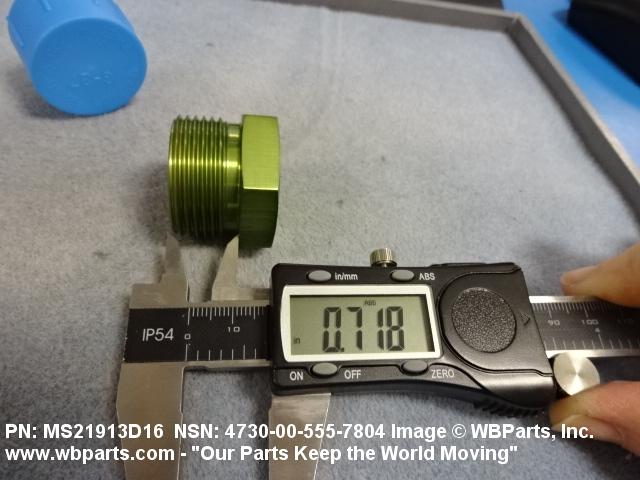

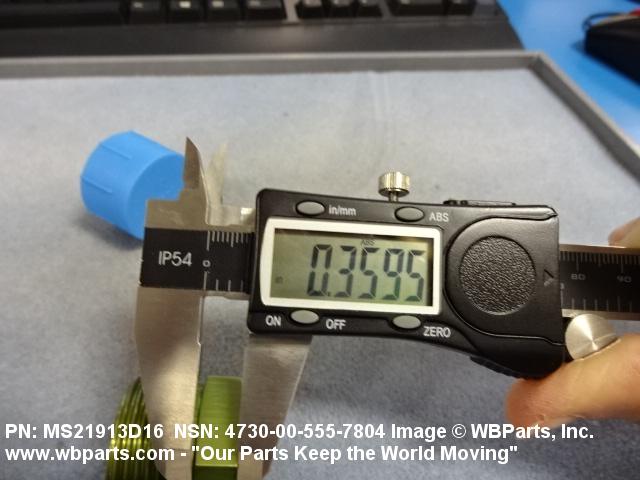

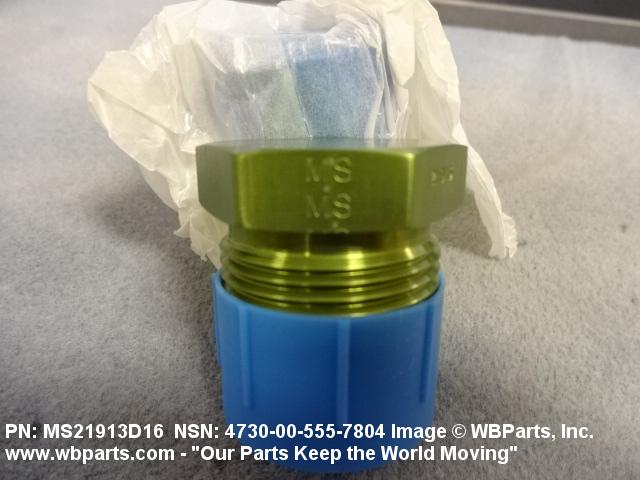

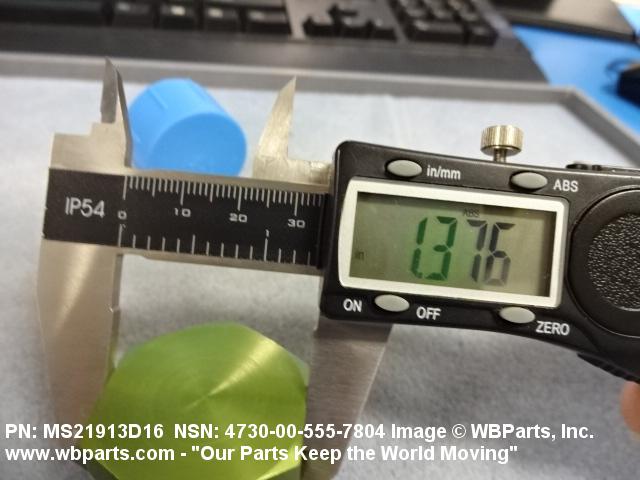

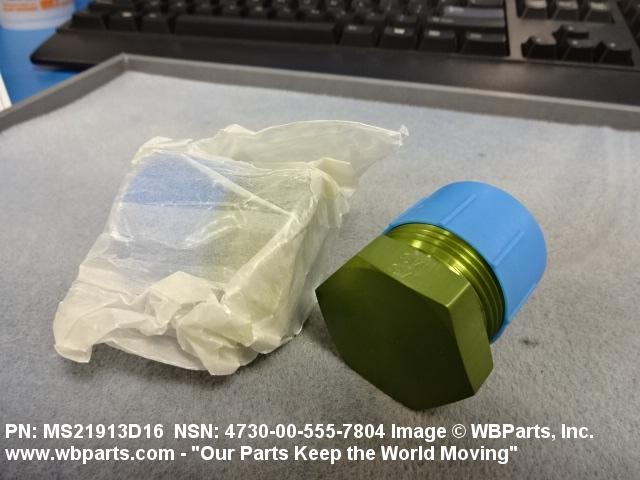

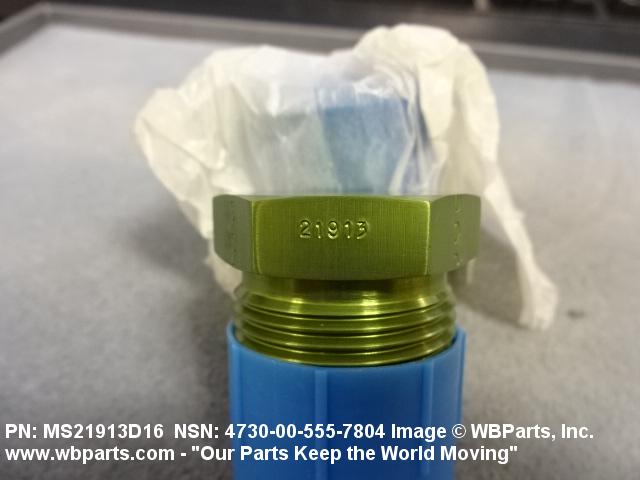

Drawings & Photos | NSN 4730-00-555-7804
Demand History | NSN 4730-00-555-7804
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-555-7804 | 2017-11-327 | 25 | DIBBS |
| AS18280 | 2014-10-280 | 1 | US |
| AS21913 | 2012-12-360 | 1 | CN |
| MS21913D6 | 2012-06-160 | 300 | US |
Cross Reference | NSN 4730-00-555-7804
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21913 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21913D16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21913D6 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21913D6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-555-7804
Related Products | NSN 4730-00-555-7804
Technical Data | NSN 4730-00-555-7804
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-225/6,T6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-B-225/6,T6 FED SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| STYLE DESIGNATOR | C43 PLUG, TUBE FITTING FLARELESS |
| HEAD HEIGHT | 0.260 INCHES MINIMUM AND 0.334 INCHES MAXIMUM |
| OVERALL LENGTH | 0.718 INCHES MINIMUM AND 0.728 INCHES MAXIMUM |
| CONNECTION STYLE | J5 FLARELESS |
| THREAD SERIES DESIGNATOR | UNJF EXTERNAL |
| NOMINAL THREAD SIZE | 0.562 INCHES EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| SEAT ANGLE | 12.0 DEGREES |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL;AAJD WAS 3A |
| SPECIFICATION/STANDARD DATA | 96906-MS21913 GOVERNMENT STANDARD |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | FAN VIRGINIA CLASS CGN (41) |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 225.0 DEG FAHRENHEIT HYDRAULIC FLUID |
