NSN 4730-00-555-0896 C162616, C1626-16, ST48D1098

Product Details | QUICK DISCONNECT COUPLING HALF

4730-00-555-0896 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: C162616, C1626-16, ST48D1098, ST48D109-8, 9081908, 155S516D, 155-S5-16D, 216-01023-4, 3991018, 3991-018, 4401616AN1, 44016-16A-N1, 4730-00-555-0896, 00-555-0896, 4730005550896, 005550896, 216010234

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-555-0896	18681 ( COUPLING HALF, QUICK DISCONNECT )

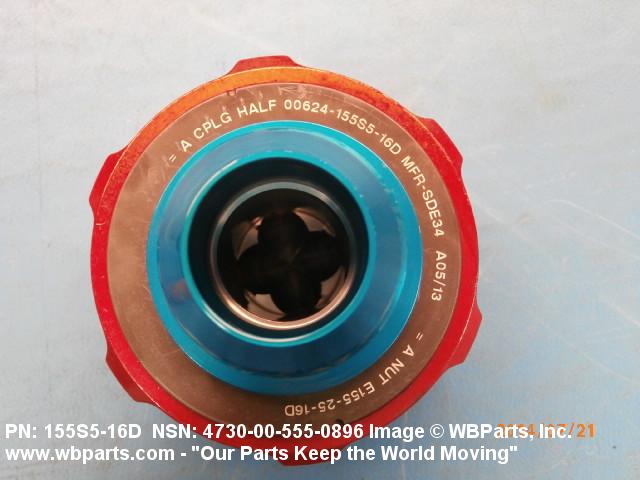

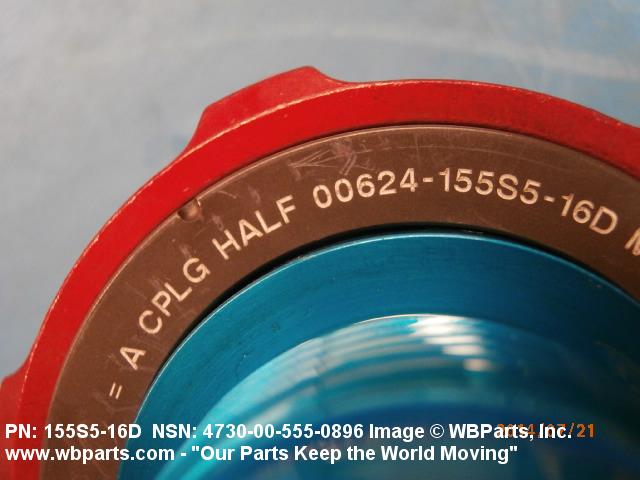

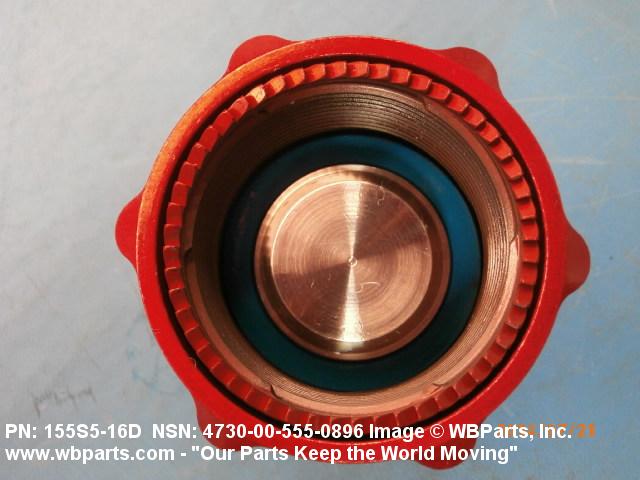

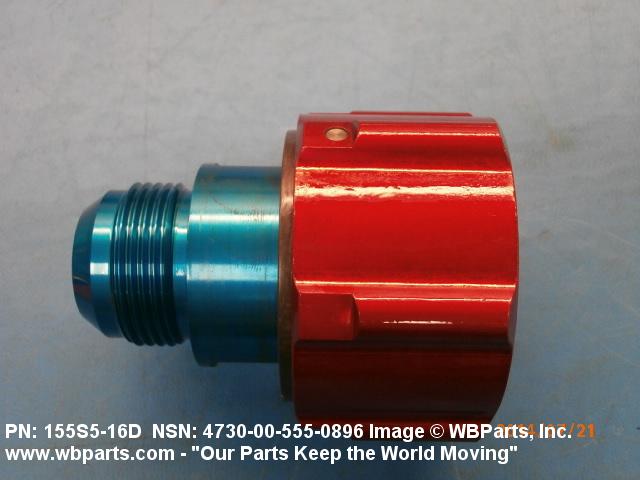

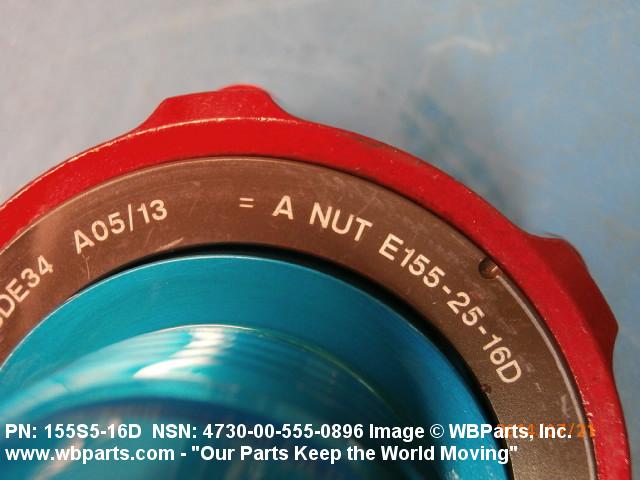

Drawings & Photos | NSN 4730-00-555-0896

Part Number	Request Date	QTY	Origin
4730-00-555-0896	2024-11-312	1	US
155-S5-16D	2024-10-302	186	DIBBS
44016-16A-N1	2024-10-302	186	DIBBS
155-S5-16D	2024-10-291	186	DIBBS
44016-16A-N1	2024-10-291	186	DIBBS
155-S5-16D	2024-07-190	449	DIBBS
44016-16A-N1	2024-07-190	449	DIBBS
155-S5-16D	2024-06-179	449	DIBBS
44016-16A-N1	2024-06-179	449	DIBBS
155-S5-16D	2024-06-168	449	DIBBS
44016-16A-N1	2024-06-168	449	DIBBS
155S516D	2023-11-333	3	US
155S516D	2023-04-110	1	US
155S516D	2023-04-110	1	US
4730-00-555-0896	2023-02-40	20	DE
4730-00-555-0896	2023-01-30	7	US
155S516D	2023-01-26	7	US
4730-00-555-0896	2022-07-195	1	US
4730-00-555-0896	2022-05-151	2	TW
155S516D	2021-11-321	32	United States
4730-00-555-0896	2021-09-251	20	DE
4730-00-555-0896	2021-06-168	30	DE
4730-00-555-0896	2021-03-63	4	United States
155S516D	2021-02-57	6	SA
4730-00-555-0896	2021-02-56	4	United States
155-S5-16D	2019-02-50	335	DIBBS
44016-16A-N1	2019-02-50	335	DIBBS
155-S5-16D	2019-02-38	335	DIBBS
44016-16A-N1	2019-02-38	335	DIBBS
155-S5-16D	2019-01-22	383	DIBBS
44016-16A-N1	2019-01-22	383	DIBBS
155-S5-16D	2019-01-10	383	DIBBS
44016-16A-N1	2019-01-10	383	DIBBS
4730-00-555-0896	2018-12-347	109	DIBBS
4730-00-555-0896	2018-11-312	247	DIBBS
4730-00-555-0896	2018-05-138	1	DIBBS-RFPs
155S516D	2018-05-131	2	NZ
155S516D	2017-03-74	100	US
4730-00-555-0896	2017-03-72	100	CN
4730-00-555-0896	2016-05-124	12	Thailand
155S516D	2016-01-12	1	US
4730-00-555-0896	2014-10-282	150	United States
4730-00-555-0896	2014-07-206	2	United States
4730-00-555-0896	2014-07-206	2	United States
155S516D	2014-07-196	4	United States
4730-00-555-0896	2013-05-125	307	DIBBS
4730-00-555-0896	2011-07-196	1	US
4401616AN1	2011-06-158	2	US
4730-00-555-0896	2010-09-250	6	United States
155S516D	2010-03-89	4	United States
155S516D	2008-10-282	1	us

Cross Reference | NSN 4730-00-555-0896

Part Number	Cage Code	Manufacturer
155-S5-16D	00624	EATON CORPORATION DBA AEROSPACE DIV
155-S5-16D	R1120	SATAIR A/S
216-01023-4	80378	TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT
3991-018	82386	JAIDINGER MFG. CO., INC. DBA JAICO PRODUCTS
44016-16A-N1	11362	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION
9081908	18876	U S ARMY AVIATION AND MISSILE COMMAND
C1626-16	00624	EATON CORPORATION DBA AEROSPACE DIV
ST48D109-8	04236	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN SPACE SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-555-0896

Compare

Related Products | NSN 4730-00-555-0896

4730-00-555-0899, 4730-00-555-0901, 4730-00-555-0923, 4730-00-555-0931, 4730-00-555-0932

Technical Data | NSN 4730-00-555-0896

Characteristic	Specifications
BODY MATERIAL	ALUMINUM ALLOY
BODY SURFACE TREATMENT	ANODIZE
BODY SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE
BODY STYLE	1 COUPLING HALF

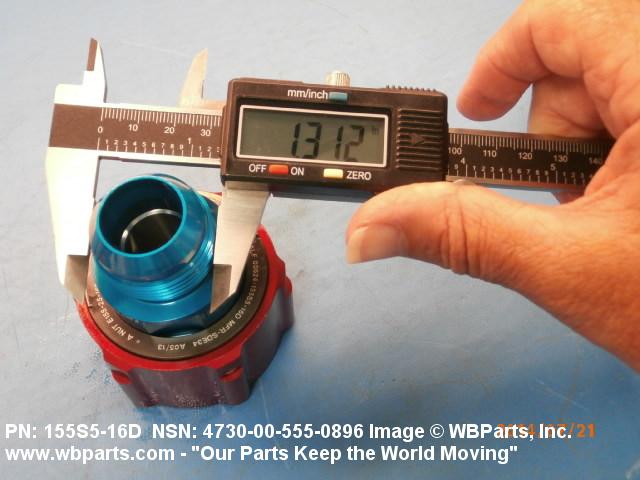

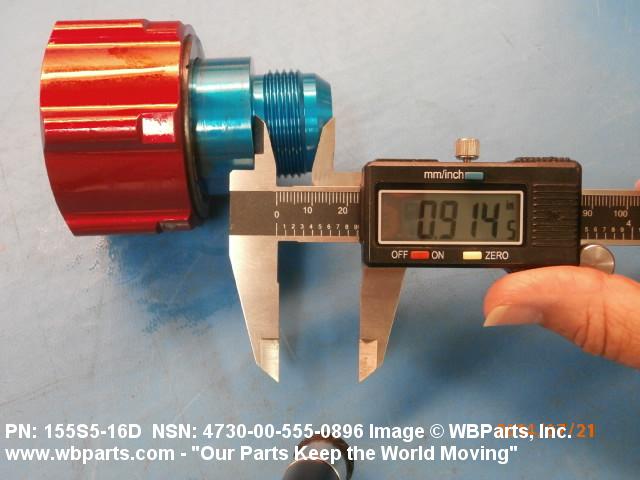

FIRST LEG LENGTH	0.911 INCHES NOMINAL
MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED	3000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, PETROLEUM BASE
MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED	-54.0 DEG CELSIUS HYDRAULIC FLUID, PETROLEUM BASE 71.1 DEG CELSIUS HYDRAULIC FLUID, PETROLEUM BASE

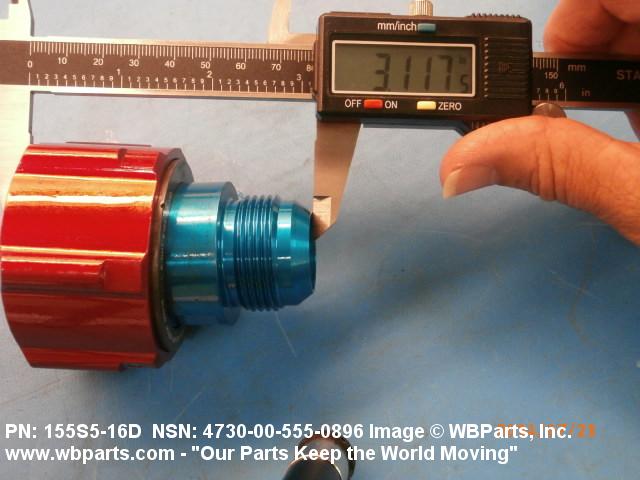

OVERALL LENGTH	3.116 INCHES NOMINAL
FIRST FLUID END CONNECTION TYPE	THREADED EXTERNAL TUBE
FIRST END STYLE DESIGNATOR	D6 FLARED
FIRST END SEAT ANGLE	37.0 DEGREES NOMINAL
FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED	1.000 INCHES NOMINAL
FIRST END THREAD SERIES DESIGNATOR	UN
FIRST END NOMINAL THREAD SIZE	1.312 INCHES
FIRST END THREAD QUANTITY PER INCH	12
FIRST END THREAD CLASS	3A
QUICK DISCONNECT METHOD	TWIST-LOCK ALL ENDS
QUICK DISCONNECT END CONNECTION TYPE	INTERNAL ALL ENDS
FEATURES PROVIDED	SELF-SEALING
SPECIAL FEATURES	WEAPON SYSTEM ESSENTIAL. GRUMMAN AEROSPACE CORP. A-10 AIRCRAFT
CRITICALITY CODE JUSTIFICATION	FEAT
III END ITEM IDENTIFICATION	AIRCRAFT APPLICATION,F18 AND FB111
