NSN 4730-00-546-9872 P5A14, P-5A14, P5H14
Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-546-9872 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: P5A14, P-5A14, P5H14, P-5H14, PP155, PP15-5, TP155, TP15-5, 5PP15, PC45, 4730-00-546-9872, 00-546-9872, 4730005469872, 005469872
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 OCT 1974 | 00-546-9872 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-00-546-9872
Demand History | NSN 4730-00-546-9872
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5PP15 | 2020-02-42 | 1 | DIBBS |
| P-5A14 | 2020-02-42 | 1 | DIBBS |
| P-5H14 | 2020-02-42 | 1 | DIBBS |
| PP15-5 | 2020-02-42 | 1 | DIBBS |
| 5PP15 | 2019-10-289 | 1 | DIBBS |
| P-5A14 | 2019-10-289 | 1 | DIBBS |
| P-5H14 | 2019-10-289 | 1 | DIBBS |
| PP15-5 | 2019-10-289 | 1 | DIBBS |
| 4730-00-546-9872 | 2010-05-121 | 57 | DIBBS |
| 4730-00-546-9872 | 2009-03-71 | 16 | DIBBS |
| 4730-00-546-9872 | 2009-03-68 | 13 | DIBBS |
| 4730-00-546-9872 | 2009-01-30 | 1 | DIBBS |
| 4730-00-546-9872 | 2009-01-30 | 5 | DIBBS |
Cross Reference | NSN 4730-00-546-9872
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5PP15 | 73992 | TUTHILL CORP HANSEN COUPLING DIV |
| P-5A14 | 11978 | ALLIED HEALTHCARE PRODUCTS INC CHEMETRON MEDICAL DIV |
| P-5A14 | 62842 | ALLIED HEALTHCARE PRODUCTS, INC. |
| P-5H14 | 11978 | ALLIED HEALTHCARE PRODUCTS INC CHEMETRON MEDICAL DIV |
| P-5H14 | 62842 | ALLIED HEALTHCARE PRODUCTS, INC. |
| PC45 | 14233 | HOFMANN ENGINEERING CO INC |
| PP15-5 | 14127 | FOSTER MANUFACTURING CO. INC. |
| TP15-5 | 05958 | TOMCO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-546-9872
Related Products | NSN 4730-00-546-9872
Technical Data | NSN 4730-00-546-9872
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |
| SURFACE TREATMENT | CADMIUM BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| LEG LENGTH | 1.550 INCHES MINIMUM AND 2.130 INCHES MAXIMUM |
| OVERALL LENGTH | 3.141 INCHES MINIMUM AND 3.630 INCHES MAXIMUM |
| CONNECTION TYPE | THREADED EXTERNAL HOSE GRIPPING FIRST FLUID END CONNECTION EXTERNAL QUICK DISCONNECT ALL ENDS |

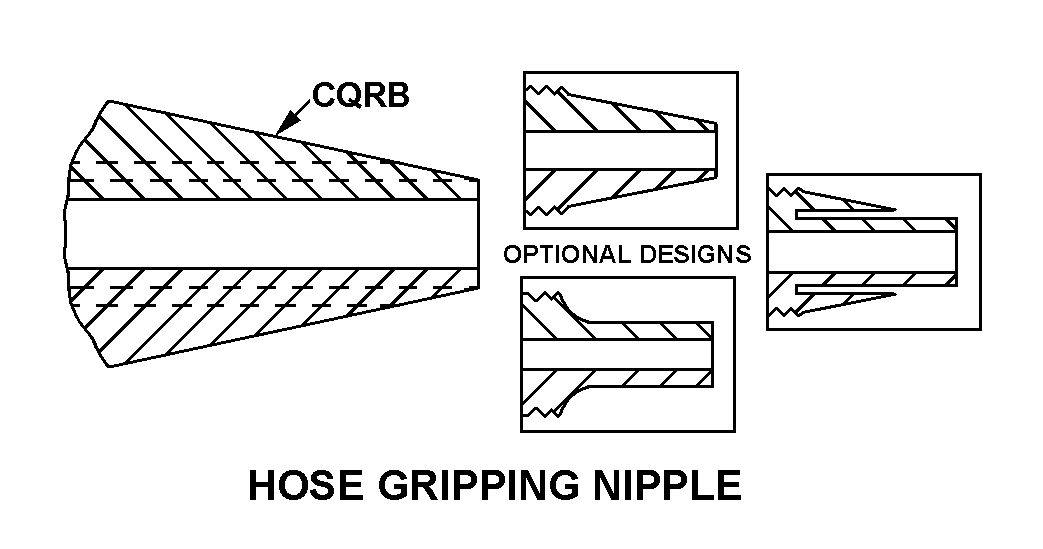

| CONNECTION STYLE | D4 HOSE GRIPPING NIPPLE ALL ENDS |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |
| QUICK DISCONNECT NOMINAL SIZE | 0.578 INCHES ALL ENDS |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.4845 INCHES ALL ENDS |
| FURNISHED ITEMS AND QUANTITY | 1 PREFORMED PACKING |
| (NON-CORE DATA) FIRST END OUTSIDE DIAMETER HOSE ACCOMMODATED | 0.875 INCHES MINIMUM AND 0.891 INCHES MAXIMUM |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 250.0 DEG FAHRENHEIT FUEL/OIL, HYDROCARBON -40.0 DEG FAHRENHEIT FUEL/OIL, HYDROCARBON 250.0 DEG FAHRENHEIT HYDRAULIC FLUID, PETROLEUM BASE -65.0 DEG FAHRENHEIT HYDRAULIC FLUID, PETROLEUM BASE 250.0 DEG FAHRENHEIT AIR -40.0 DEG FAHRENHEIT AIR |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 1500.0 POUNDS PER SQUARE INCH FUEL/OIL, HYDROCARBON 1500.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, PETROLEUM BASE 1500.0 POUNDS PER SQUARE INCH AIR |
