NSN 4730-00-540-3851 AN8245J, AN824-5J, AS1035
Product Details | TUBE TEE

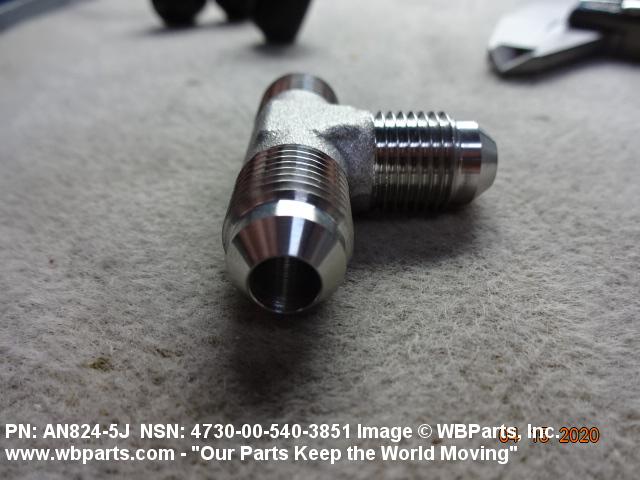

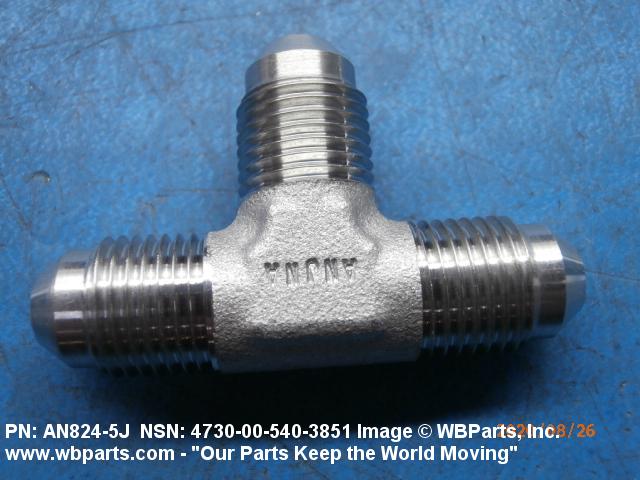

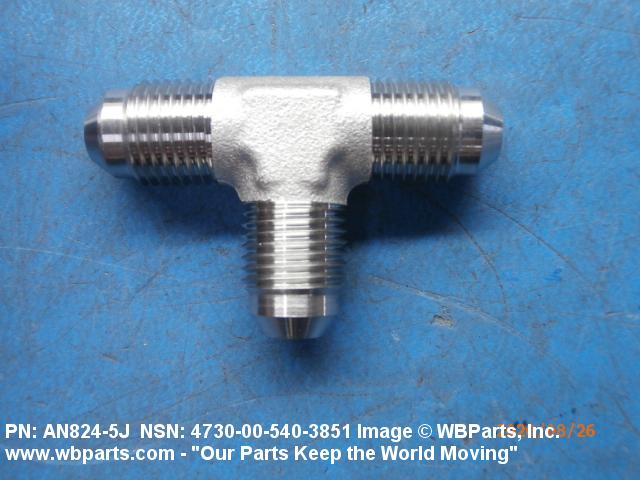

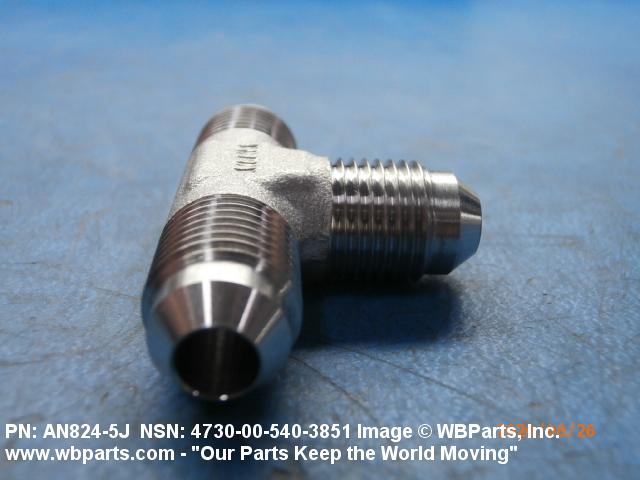

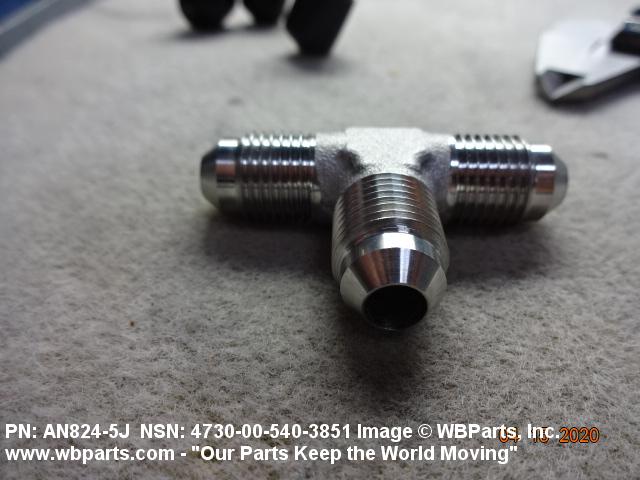

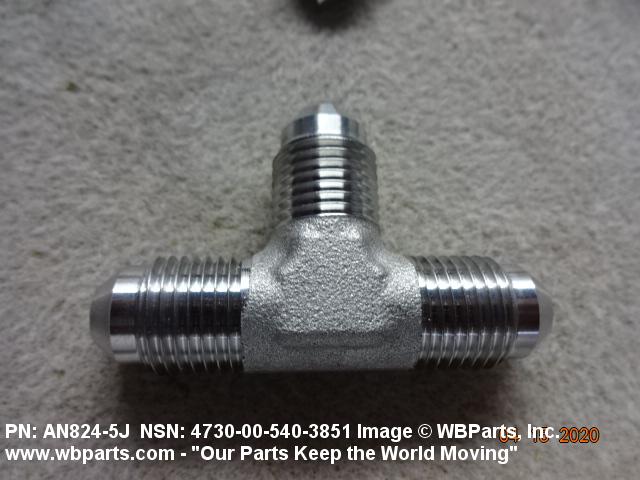

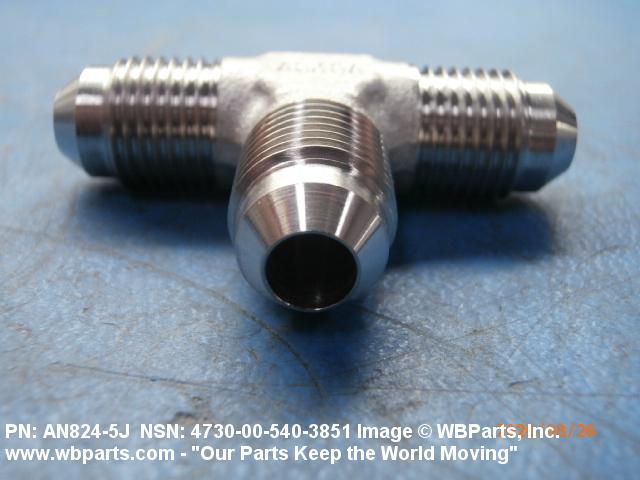

4730-00-540-3851 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: AN8245J, AN824-5J, AS1035 , AS1035J050505, AS4841 , 4730-00-540-3851, 00-540-3851, 4730005403851, 005403851
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-540-3851 | 03809 ( TEE, TUBE ) |

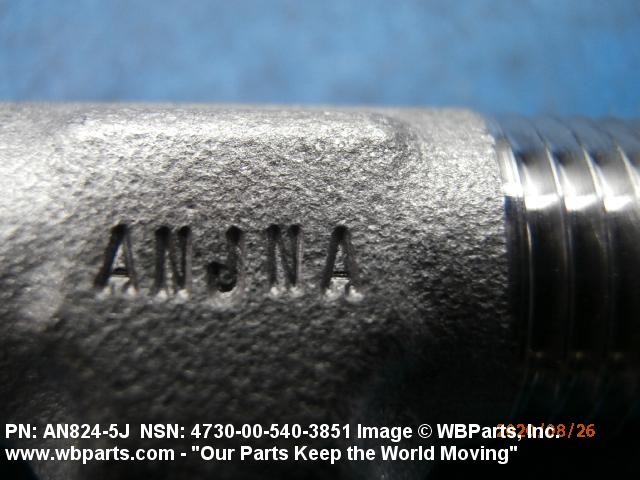

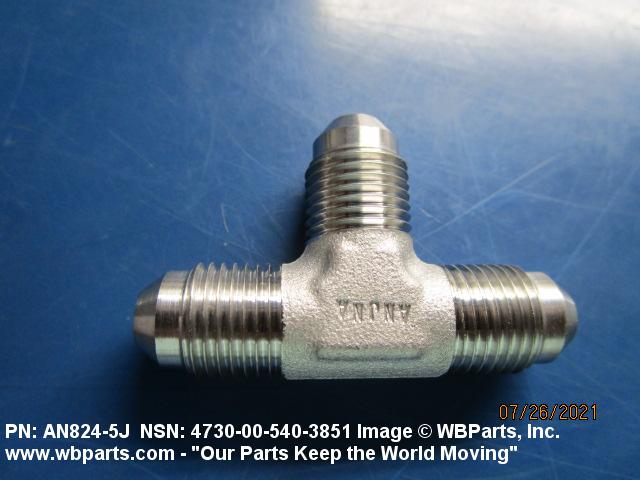

Drawings & Photos | NSN 4730-00-540-3851
Demand History | NSN 4730-00-540-3851
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-540-3851 | 2023-02-44 | 85 | United States |
| 4730-00-540-3851 | 2022-10-300 | 40 | United States |
| 4730-00-540-3851 | 2022-10-300 | 80 | United States |
| 4730-00-540-3851 | 2022-10-300 | 100 | United States |
| 4730-00-540-3851 | 2022-10-300 | 125 | United States |
| AS1035J050505 | 2022-10-300 | 100 | United States |
| 4730-00-540-3851 | 2021-06-173 | 5 | United States |
| 4730-00-540-3851 | 2021-06-173 | 25 | United States |
| 4730-00-540-3851 | 2021-06-173 | 50 | United States |
| 4730-00-540-3851 | 2020-06-178 | 10 | United States |
| 4730-00-540-3851 | 2020-02-50 | 50 | United States |
| 4730-00-540-3851 | 2019-03-63 | 74 | DIBBS |
| 4730-00-540-3851 | 2019-02-52 | 74 | DIBBS |
| AS4841 | 2011-03-69 | 8 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-540-3851
Related Products | NSN 4730-00-540-3851
Technical Data | NSN 4730-00-540-3851

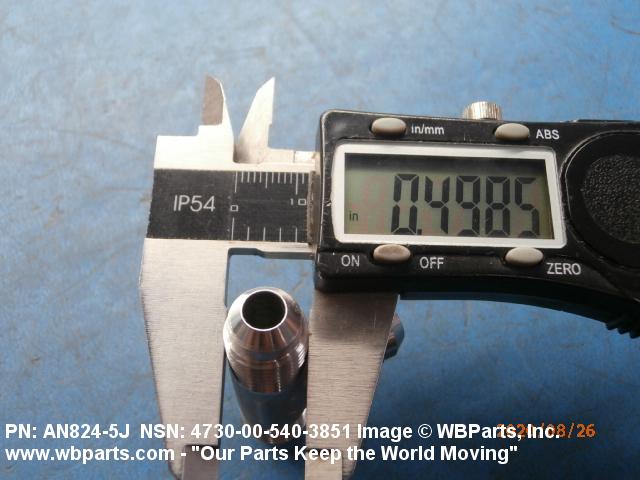

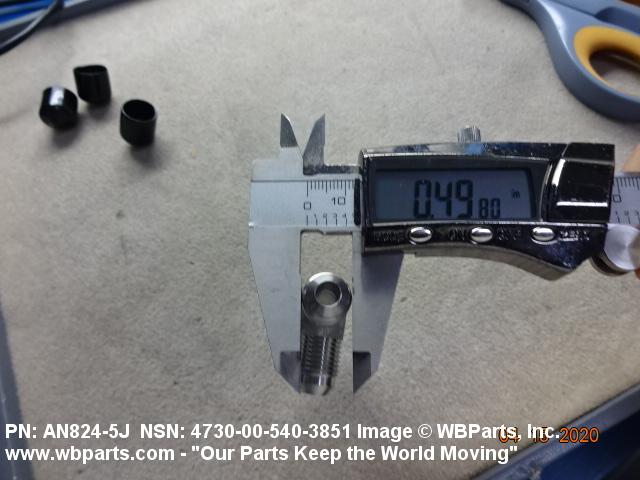

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.312 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.500 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |

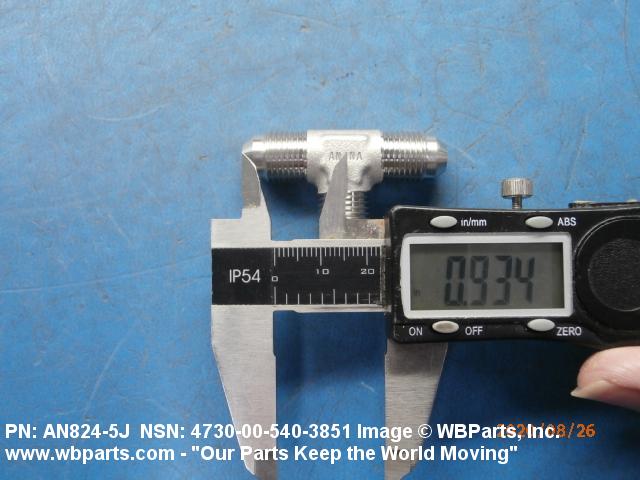

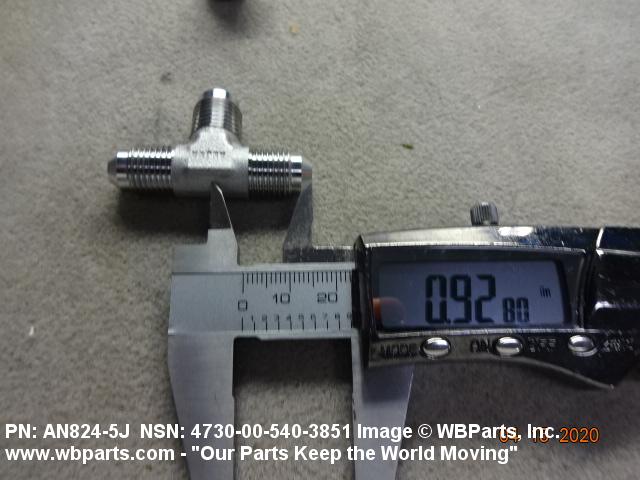

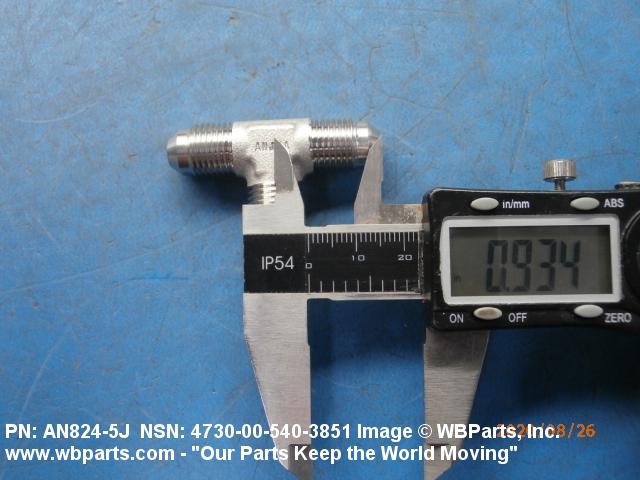

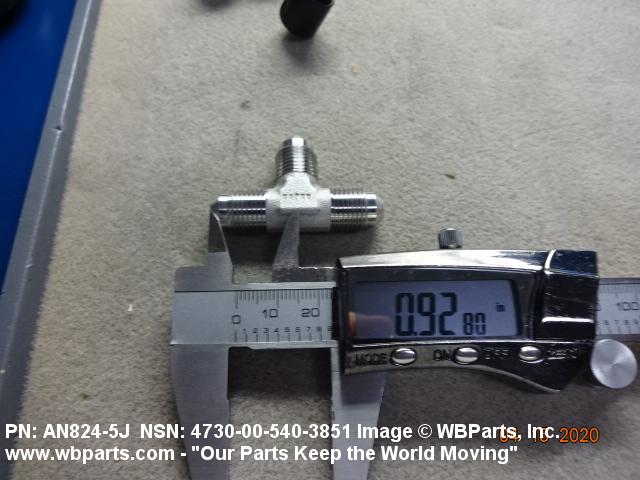

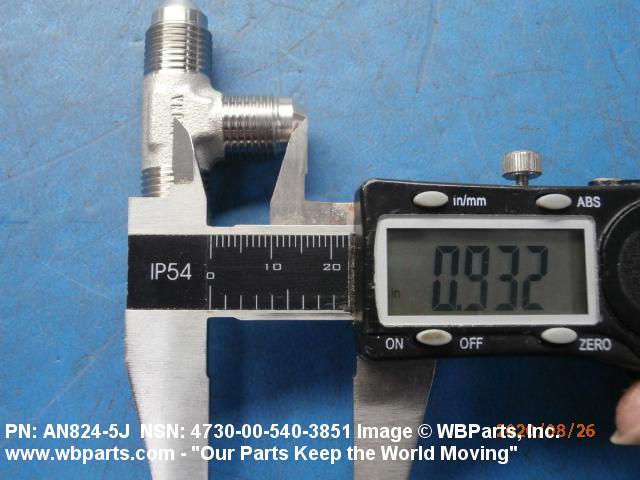

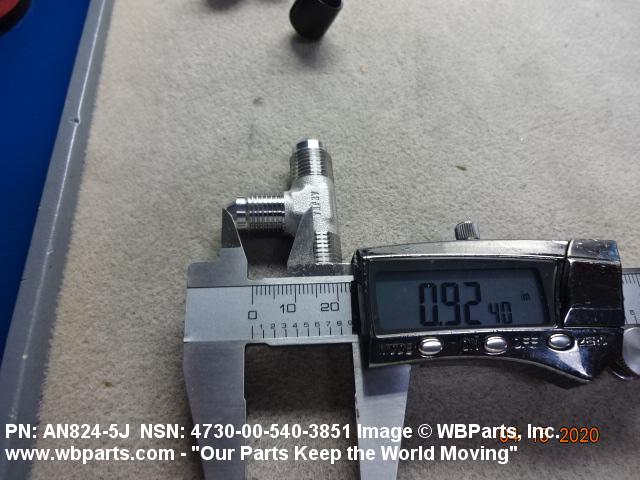

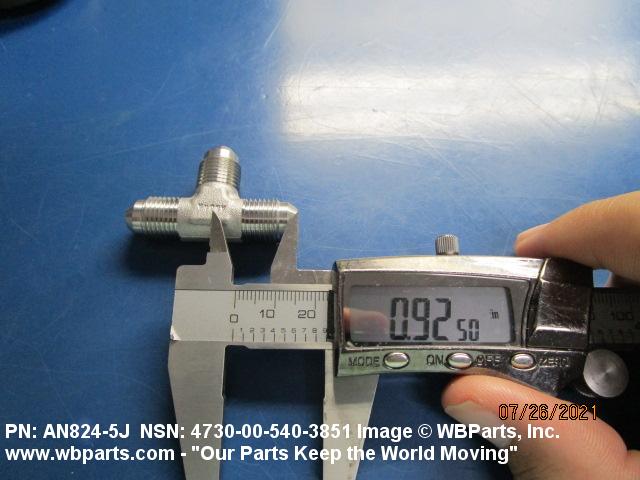

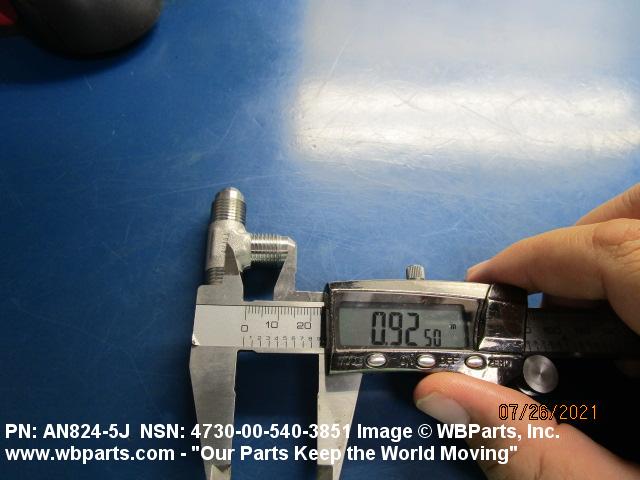

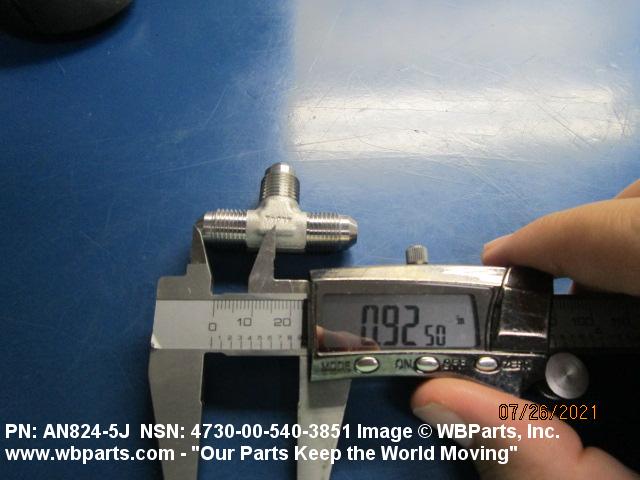

| LEG LENGTH | 0.922 INCHES NOMINAL ALL ENDS |
