NSN 4730-00-540-0393 T150S18D, T150S1-8D, 633S245

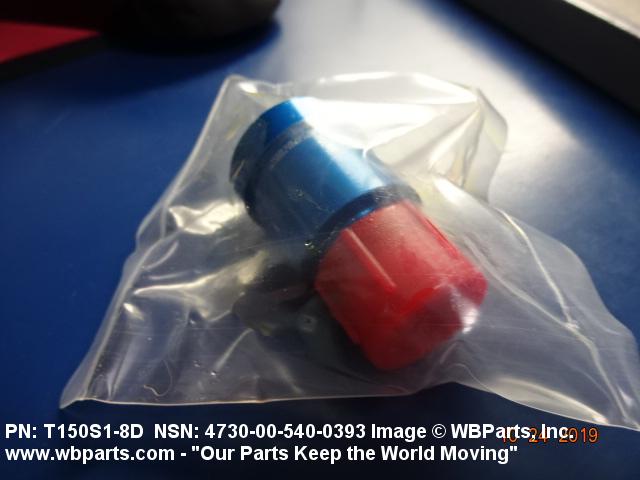

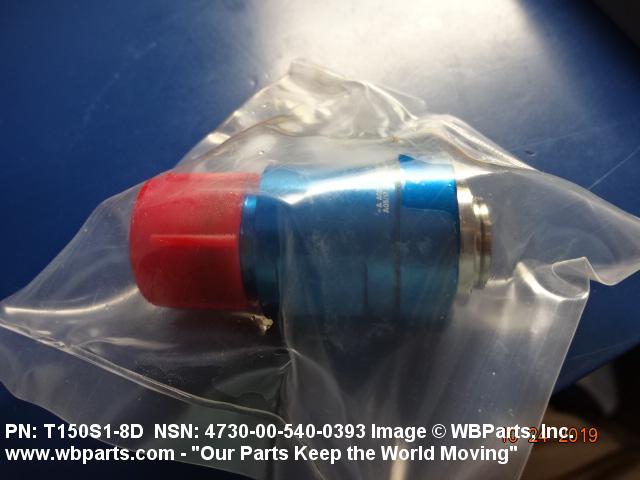

Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-540-0393 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: T150S18D, T150S1-8D, 633S245, 633S24-5, 150S18D, 150S1-8D, 4730-00-540-0393, 00-540-0393, 4730005400393, 005400393
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-540-0393 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-00-540-0393
Demand History | NSN 4730-00-540-0393
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| T150S18D | 2019-10-15 | 2 | us |
| T150S18D | 2018-11-05 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-540-0393
Technical Data | NSN 4730-00-540-0393
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY |
| BODY SURFACE TREATMENT | ANODIZE |
| BODY STYLE | 1 COUPLING HALF |
| FIRST LEG LENGTH | ANY ACCEPTABLE |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | NOT RATED |
| OVERALL LENGTH | 1.790 INCHES NOMINAL |
| FIRST FLUID END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | D6 FLARED |
| FIRST END SEAT ANGLE | 37.0 DEGREES NOMINAL |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD CLASS | 3A |
| QUICK DISCONNECT METHOD | TWIST-LOCK ALL ENDS |
| QUICK DISCONNECT END CONNECTION TYPE | INTERNAL ALL ENDS |
| FEATURES PROVIDED | SELF-SEALING |
| MANUFACTURERS CODE | 00624 |
| DESIGN CONTROL REFERENCE | T150S1-8D |
