NSN 4730-00-436-7240 GN525AH2, PHN44F, PHN4-4F
Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-436-7240 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: GN525AH2, PHN44F, PHN4-4F, 4730-00-436-7240, 00-436-7240, 4730004367240, 004367240
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 FEB 1972 | 00-436-7240 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-00-436-7240
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-436-7240
Related Products | NSN 4730-00-436-7240
Technical Data | NSN 4730-00-436-7240
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |
| SURFACE TREATMENT | CADMIUM BODY |

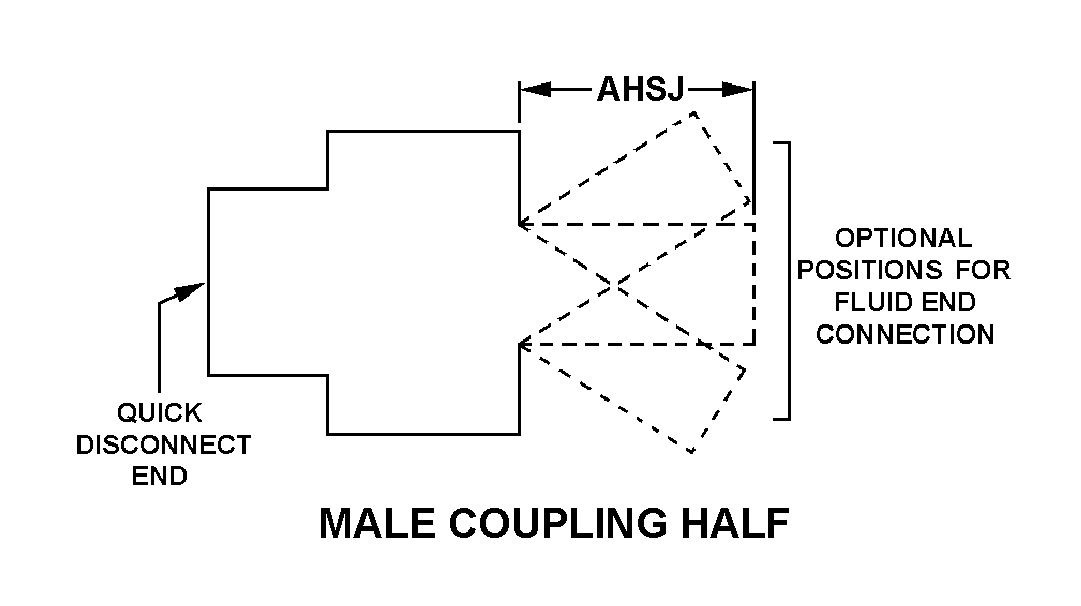

| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| OVERALL LENGTH | 1.320 INCHES NOMINAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE FIRST FLUID END CONNECTION EXTERNAL QUICK DISCONNECT FIRST QUICK DISCONNECT END |

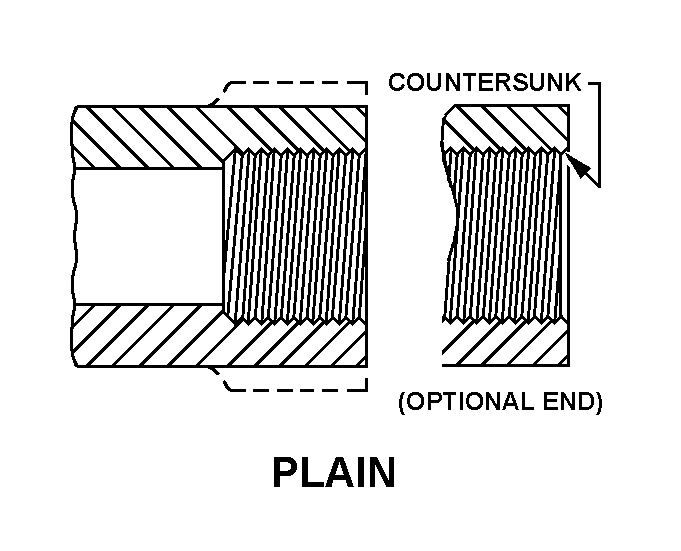

| CONNECTION STYLE | B14 PLAIN ALL ENDS |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.250 INCHES ALL ENDS |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 11000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, PETROLEUM BASE |
| MANUFACTURERS CODE | 78357 |
| DESIGN CONTROL REFERENCE | PHN4-4F |
