Product Details | QUICK DISCONNECT COUPLING HALF

4730-00-435-4398 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: K253880, 253880, 4730-00-435-4398, 00-435-4398, 4730004354398, 004354398

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 19 MAR 1969 00-435-4398

Drawings & Photos | NSN 4730-00-435-4398


Cross Reference | NSN 4730-00-435-4398

Part Number Cage Code Manufacturer
253880 0KDP7 KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS
253880 16004 DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC
253880 5RQL2 DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S
253880 96487 VALCOR ENGINEERING CORP
K253880 16004 DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC
K253880 5RQL2 DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-435-4398

Technical Data | NSN 4730-00-435-4398

Characteristic Specifications
MATERIAL STEEL BODY
STYLE DESIGNATOR A1 MALE COUPLING HALF
LEG LENGTH 1.000 INCHES NOMINAL
OVERALL LENGTH 2.500 INCHES NOMINAL
CONNECTION TYPE THREADED EXTERNAL BOSS FIRST FLUID END CONNECTION

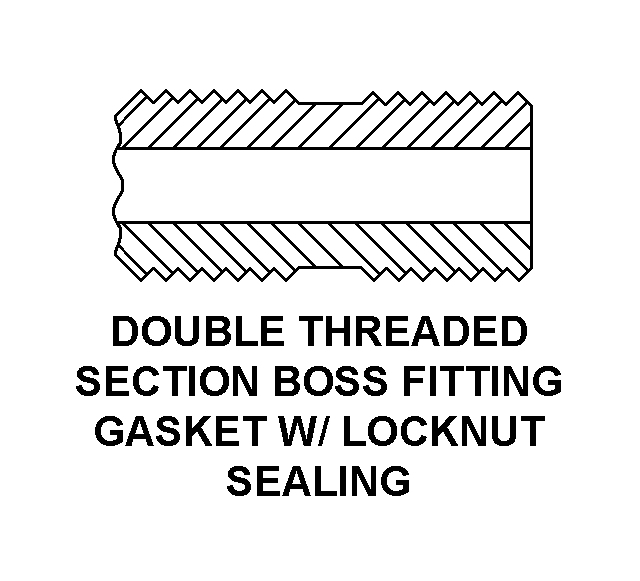

CONNECTION STYLE D14 DOUBLE THREADED SECTION BOSS FITTING GASKET W/LOCKNUT SEALING ALL ENDS
QUICK DISCONNECT METHOD PUSH-PULL ALL ENDS
THREAD SERIES DESIGNATOR UNF ALL ENDS
NOMINAL THREAD SIZE 0.437 INCHES ALL ENDS
THREAD CLASS 2A ALL ENDS
