NSN 4730-00-433-3375 MS208195, MS20819-5, MS208195D
Product Details | TUBE FITTING FLARED SLEEVE
4730-00-433-3375 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: MS208195, MS20819-5, MS208195D, MS20819-5D, AN8195, AN819-5, AS517605, AS5176-05, 50420, 55284, 4730-00-433-3375, 00-433-3375, 4730004333375, 004333375
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-433-3375 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

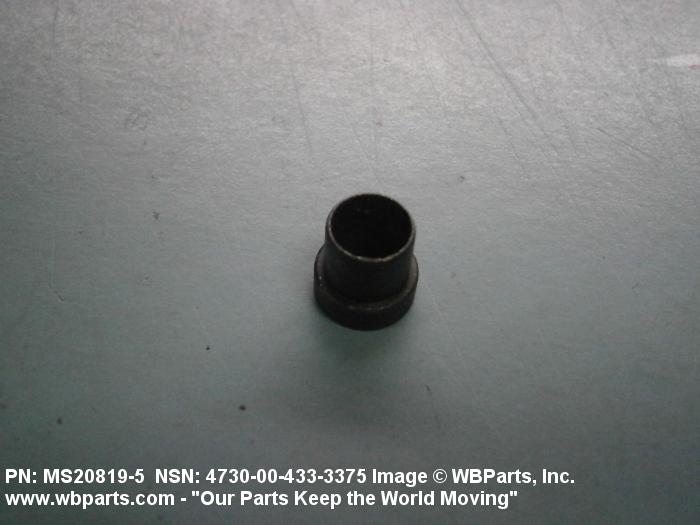

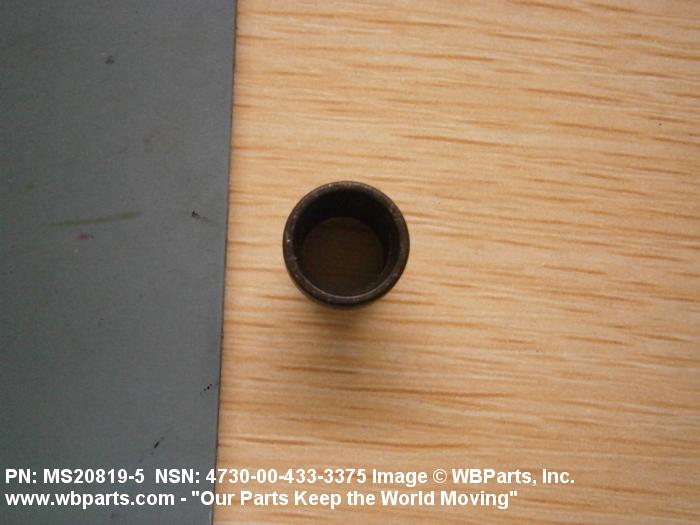

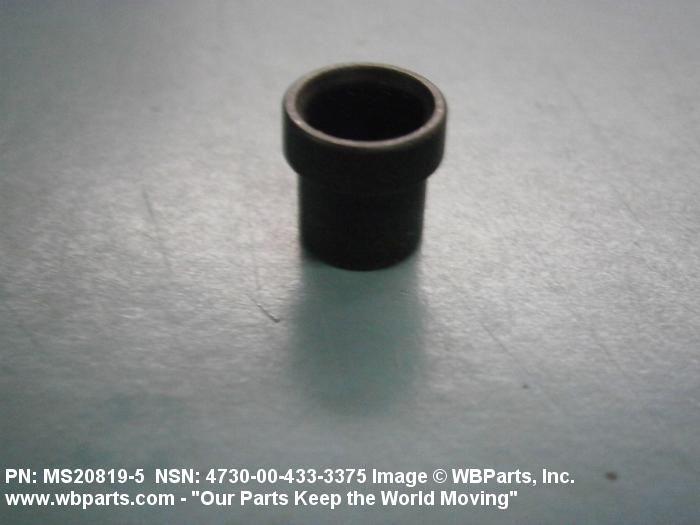

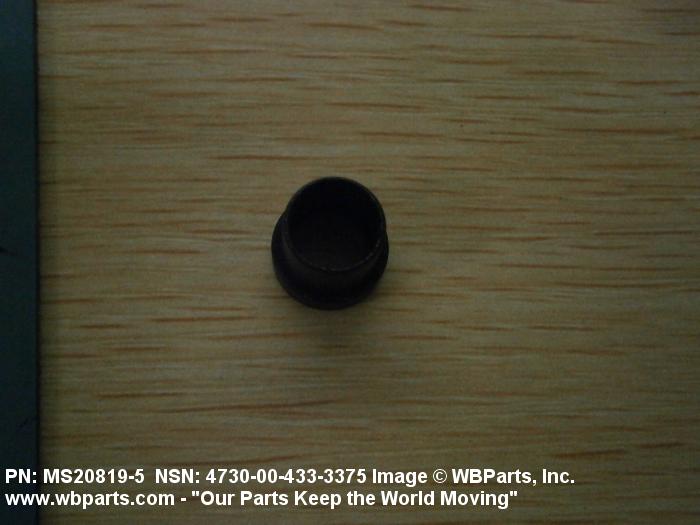

Drawings & Photos | NSN 4730-00-433-3375
Demand History | NSN 4730-00-433-3375
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-433-3375 | 2023-07-197 | 299 | DIBBS |
| 4730-00-433-3375 | 2022-05-129 | 299 | DIBBS |
| 4730-00-433-3375 | 2022-04-118 | 299 | DIBBS |
| MS208195 | 2017-10-299 | 5 | US |
| MS208195 | 2017-03-81 | 30 | Brazil |
| MS208195D | 2017-03-81 | 30 | Brazil |
| MS208195 | 2017-03-74 | 6 | United States |
| AS517605 | 2017-03-66 | 1350 | United States |
| MS208195D | 2017-03-66 | 1350 | United States |
| AS517605 | 2017-02-54 | 1400 | United States |
| MS208195D | 2015-08-240 | 20 | us |
| 4730-00-433-3375 | 2013-10-302 | 208 | United States |
| MS208195 | 2013-07-206 | 10 | United States |
| MS208195D | 2013-06-154 | 100 | United States |
| 4730-00-433-3375 | 2012-04-92 | 4 | Colombia |
| 4730-00-433-3375 | 2012-03-74 | 3900 | United States |
| 4730-00-433-3375 | 2012-02-39 | 1476 | DIBBS |
| MS208195D | 2011-09-256 | 50 | US |
| 4730-00-433-3375 | 2011-07-190 | 1532 | DIBBS |
| MS208195D | 2011-05-129 | 50 | US |
| 4730-00-433-3375 | 2011-05-123 | 1057 | DIBBS |
| 4730-00-433-3375 | 2009-04-99 | 2 | US |
Cross Reference | NSN 4730-00-433-3375
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50420 | 3H708 | ALLIED SPECIALTY PRECISION INC. |
| 50420 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 55284 | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 55284 | 50420 | PARKER-HANNIFIN CORPORATION DBA PARKER SERVICE CENTER |
| 55284 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| AN819-5 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS5176-05 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS20819-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20819-5D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-433-3375
Related Products | NSN 4730-00-433-3375
Technical Data | NSN 4730-00-433-3375
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.313 INCHES NOMINAL |
| STYLE DESIGNATOR | M1 SLEEVE |

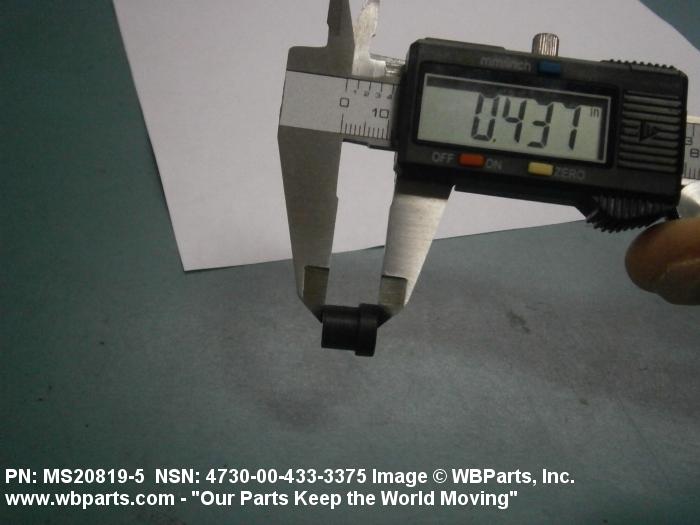

| OVERALL LENGTH | 0.438 INCHES NOMINAL |
| FLANGE WIDTH | 0.156 INCHES NOMINAL |

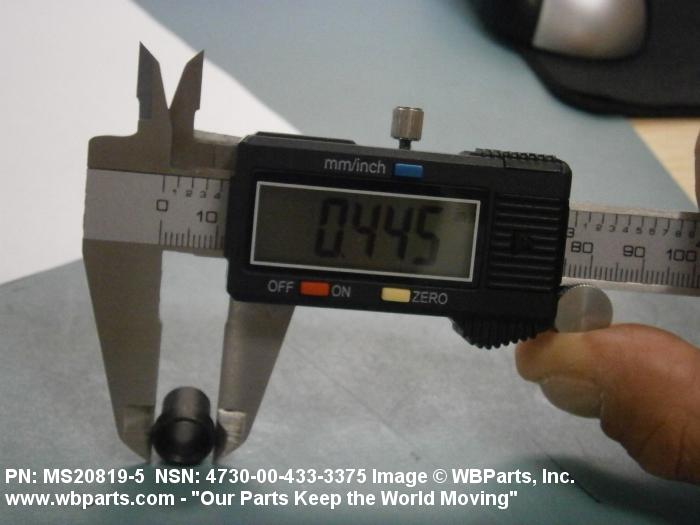

| FLANGE OUTSIDE DIAMETER | 0.445 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 33.0 |

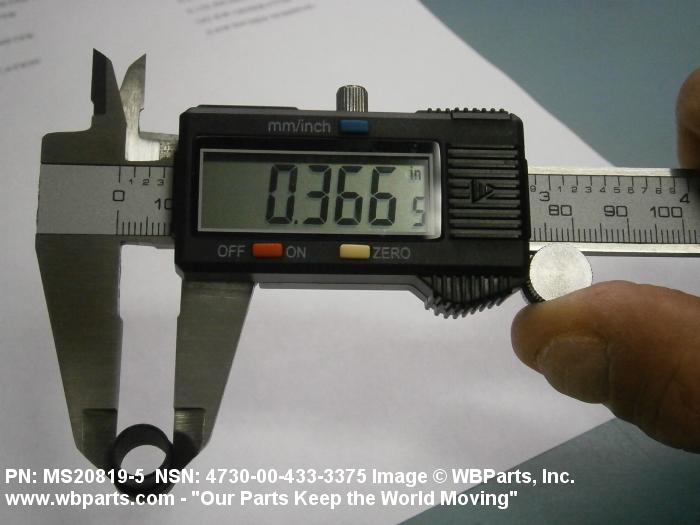

| SLEEVE OUTSIDE DIAMETER | 0.366 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | GO KW GENERATOR |
Restrictions/Controls & Freight Information | NSN 4730-00-433-3375
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-433-3375
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
