NSN 4730-01-089-6503 7M51, 7M518, 7M51-8
Product Details | TUBE FITTING FLARED SLEEVE
4730-01-089-6503 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: 7M51, 7M518, 7M51-8, 4730-01-089-6503, 01-089-6503, 4730010896503, 010896503
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 05 FEB 1980 | 01-089-6503 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

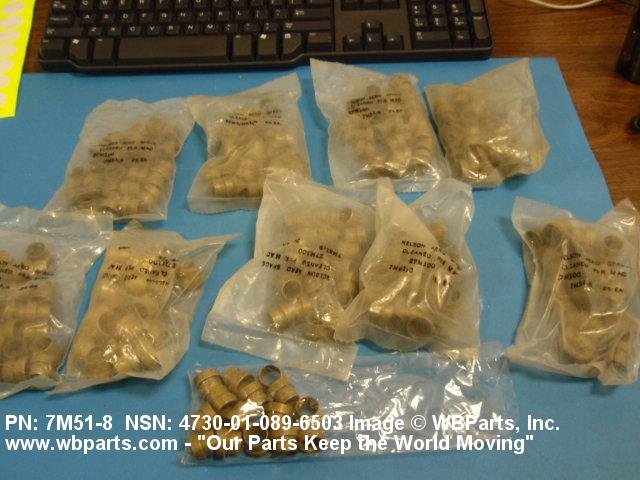

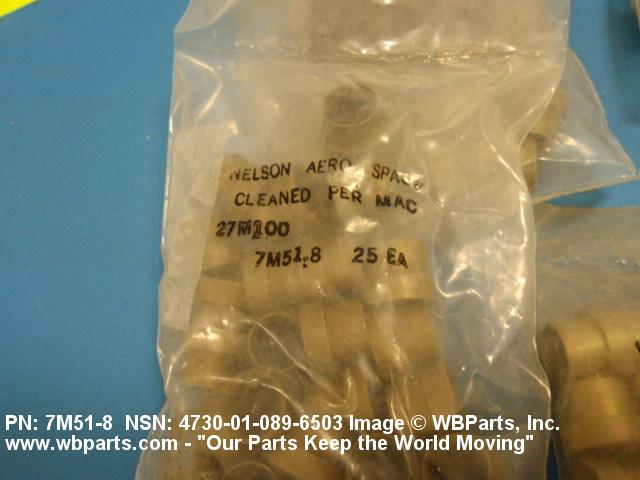

Drawings & Photos | NSN 4730-01-089-6503
Demand History | NSN 4730-01-089-6503
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-089-6503 | 2022-04-97 | 3 | DE |
| 4730-01-089-6503 | 2014-09-255 | 25 | DIBBS |
| 4730-01-089-6503 | 2009-10-302 | 240 | United States |
Cross Reference | NSN 4730-01-089-6503
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7M51 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 7M51-8 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| 7M51-8 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| 7M51-8 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| 7M51-8 | 22995 | CROWN FITTING CO INC |
| 7M51-8 | 52930 | NELSON AERO SPACE, INC. |
| 7M51-8 | 58985 | AVIARMS SUPPORT CORP |
| 7M51-8 | 59945 | BAILEY HOSE INC |
| 7M51-8 | 76301 | BOEING COMPANY, THE DBA BOEING |
