NSN 4730-00-433-3376 MS208198, MS20819-8, AN8198

Product Details | TUBE FITTING FLARED SLEEVE

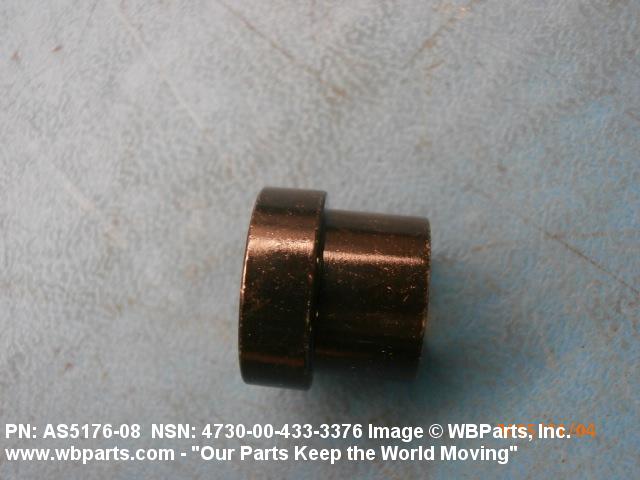

4730-00-433-3376 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.

Part Alternates: MS208198, MS20819-8, AN8198, AN819-8, AS517608, AS5176-08, 2801486, 332C294P6, 7744717, 4730-00-433-3376, 00-433-3376, 4730004333376, 004333376

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-433-3376	18027 ( SLEEVE, FLARED, TUBE FITTING )

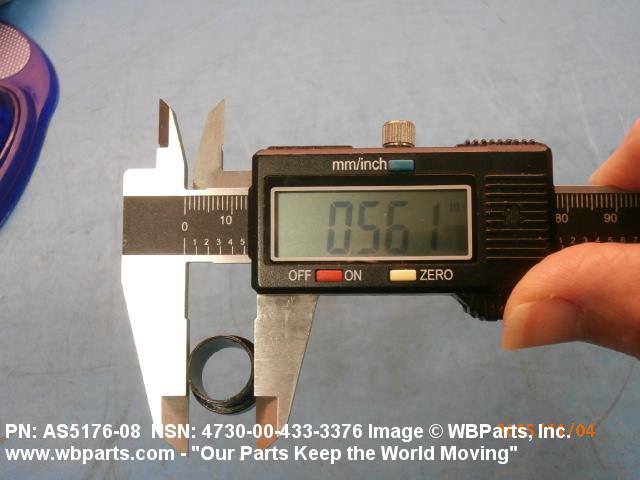

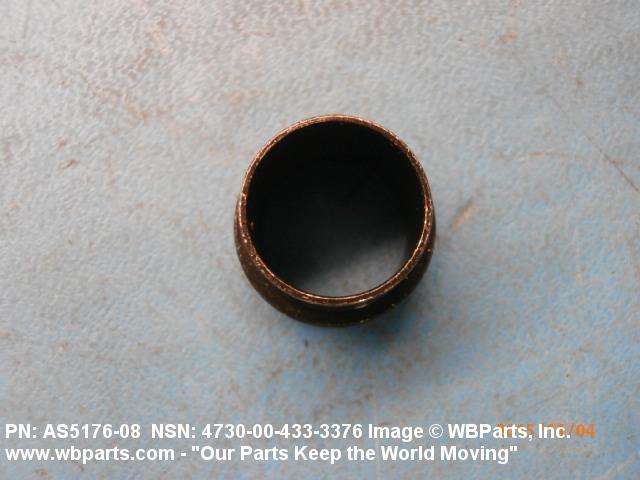

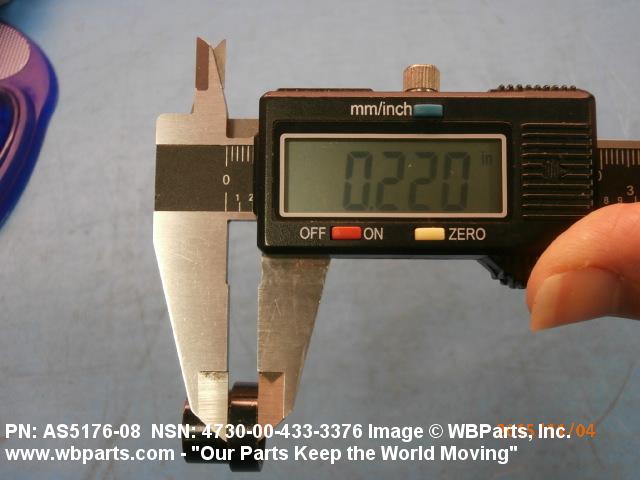

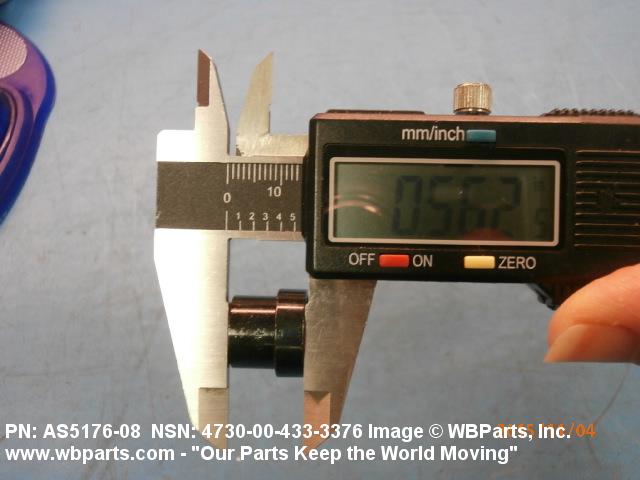

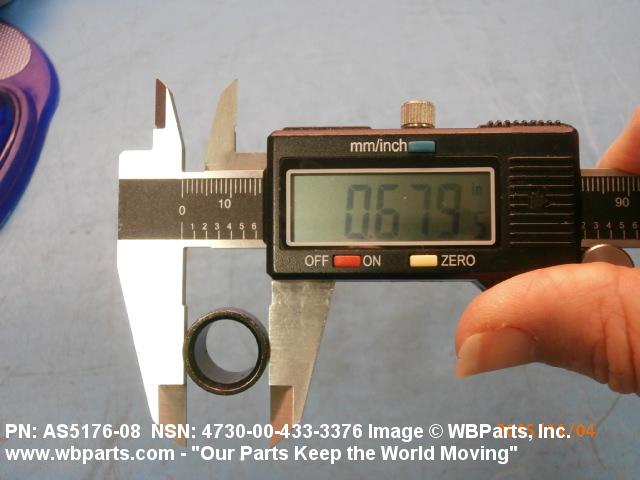

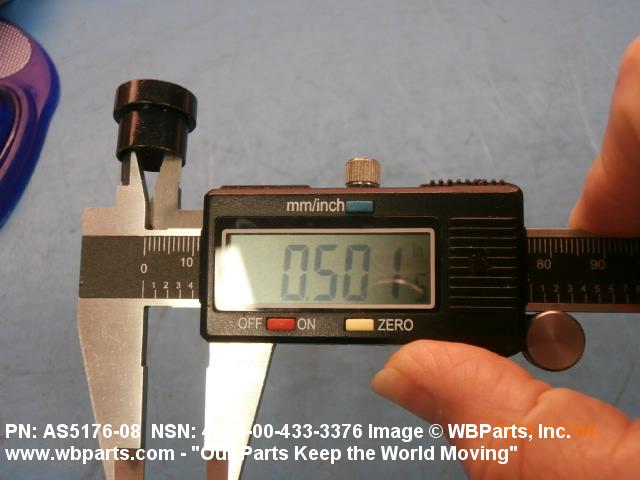

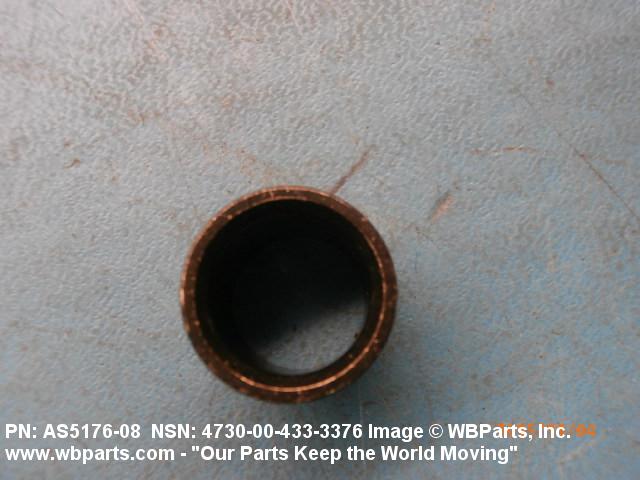

Drawings & Photos | NSN 4730-00-433-3376

Part Number	Request Date	QTY	Origin
AN8198	2023-08-221	33	United States
4730-00-433-3376	2023-06-156	562	DIBBS
MS208198	2022-03-62	75	IT
4730-00-433-3376	2021-09-266	1187	DIBBS
4730-00-433-3376	2021-02-52	440	DIBBS
4730-00-433-3376	2019-01-08	232	DIBBS
4730-00-433-3376	2018-11-333	1030	DIBBS
4730-00-433-3376	2018-01-26	1	DIBBS-RFPs
AS517608	2016-05-139	5	US
AS517608	2015-10-301	10	United States
AS517608	2015-10-300	10	us
AN8198	2013-04-106	100	us
MS208198	2012-03-79	50	United States
4730-00-433-3376	2011-03-70	1699	DIBBS
AS517608	2011-01-04	10	US
AN8198	2010-12-350	90	United States
4730-00-433-3376	2010-02-53	2661	DIBBS
4730-00-433-3376	2009-12-351	426	DIBBS
4730-00-433-3376	2009-12-351	2426	DIBBS
4730-00-433-3376	2009-08-216	2426	DIBBS
4730-00-433-3376	2009-01-07	426	DIBBS
AS517608	2008-12-336	8	us
MS208198	2008-06-177	104	Singapore
AN8198	2006-08-216	18	Brazil

Cross Reference | NSN 4730-00-433-3376

Part Number	Cage Code	Manufacturer
2801486	001JK	EMBRAER S/A
2801486	FB459	EMBRAER AVIATION INTERNATIONAL
2801486	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
332C294P6	07482	GENERAL ELECTRIC COMPANY DBA GE
7744717	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
AN819-8	14397	FABER ENTERPRISES, INC.
AN819-8	88041	AIR CORPS STANDARDS UNDER CUSTODIANISHIP OF THE
AN819-8	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS5176-08	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS20819-8	00624	EATON CORPORATION DBA AEROSPACE DIV
MS20819-8	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
MS20819-8	07482	GENERAL ELECTRIC COMPANY DBA GE
MS20819-8	14397	FABER ENTERPRISES, INC.
MS20819-8	14728	PRECISION FORM RIVET INC
MS20819-8	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
MS20819-8	22995	CROWN FITTING CO INC
MS20819-8	30327	IMPERIAL
MS20819-8	30974	AEROFIT, LLC
MS20819-8	62983	EATON AEROSPACE LLC
MS20819-8	71563	COLLINS ENGINEERING CORP
MS20819-8	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
MS20819-8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS20819-8	R1120	SATAIR A/S
