NSN 4730-00-380-0426 734913, 7349131, 734913-1
Product Details | THREADED TUBE FITTING PLUG
4730-00-380-0426 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: 734913, 7349131, 734913-1, 734913PC1, 4730-00-380-0426, 00-380-0426, 4730003800426, 003800426
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-380-0426 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

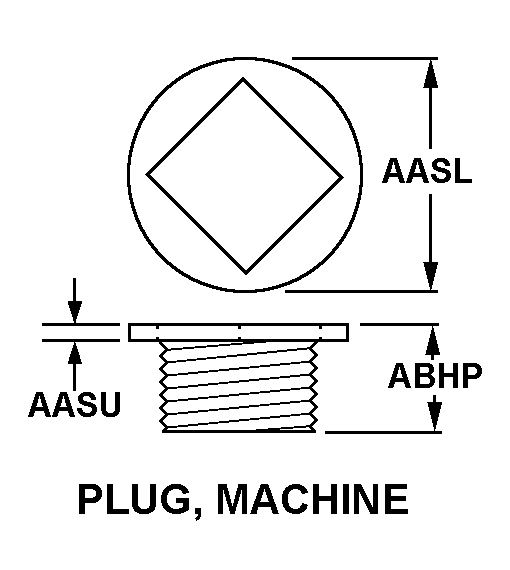

Drawings & Photos | NSN 4730-00-380-0426
Demand History | NSN 4730-00-380-0426
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-380-0426 | 2018-01-04 | 100 | DIBBS |
| 4730-00-380-0426 | 2017-11-306 | 2 | DIBBS-KIT |
| 734913-1 | 2017-11-306 | 2 | |
| 4730-00-380-0426 | 2015-03-68 | 432 | DIBBS |
| 4730-00-380-0426 | 2013-10-282 | 163 | DIBBS |
| 4730-00-380-0426 | 2013-10-275 | 259 | DIBBS |
| 4730-00-380-0426 | 2013-09-255 | 52 | DIBBS |
| 4730-00-380-0426 | 2013-09-252 | 16 | DIBBS |
| 4730-00-380-0426 | 2013-07-190 | 137 | DIBBS |
| 4730-00-380-0426 | 2013-04-107 | 114 | DIBBS |
| 4730-00-380-0426 | 2013-04-92 | 114 | DIBBS |
| 4730-00-380-0426 | 2012-11-331 | 64 | DIBBS |
| 4730-00-380-0426 | 2012-09-248 | 35 | DIBBS |
| 4730-00-380-0426 | 2012-05-146 | 39 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-380-0426
Technical Data | NSN 4730-00-380-0426
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OIL OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-16232,TYPE M,CLASS 1,GRADE 4 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C17 PLUG, MACHINE |
| HEAD DIAMETER | 0.562 INCHES NOMINAL |
| HEAD HEIGHT | 0.063 INCHES NOMINAL |
| OVERALL LENGTH | 0.406 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNF EXTERNAL |
| NOMINAL THREAD SIZE | 0.375 INCHES EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
Restrictions/Controls & Freight Information | NSN 4730-00-380-0426
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 040500 | CAP/PLUG (PROTECTOR) |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-380-0426
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
