NSN 4730-00-293-7184 M4109040820B, M4109-04-08-20-B, AA59439

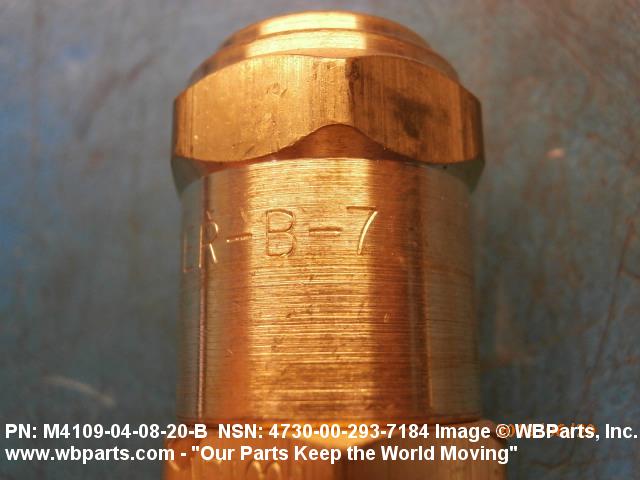

Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-293-7184 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: M4109040820B, M4109-04-08-20-B, AA59439, A-A-59439, AA59439040820B, AA59439-04-08-20B , AA59439-04-08-20-B, MILC4109, MILC4109 0.25ID, MILC4109025ID, 3SB7, 4730-00-293-7184, 00-293-7184, 4730002937184, 002937184
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-293-7184 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

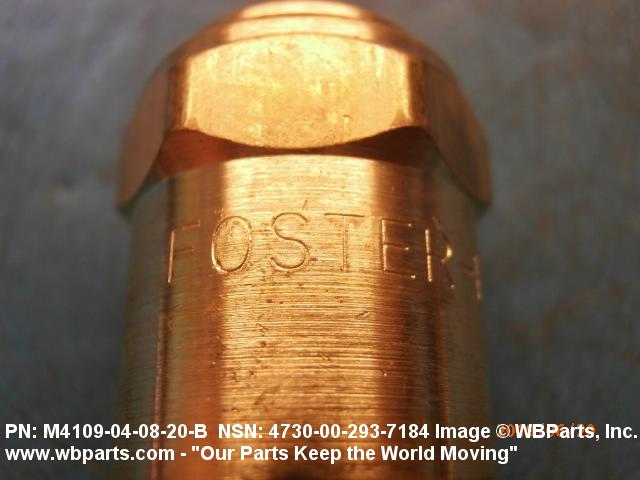

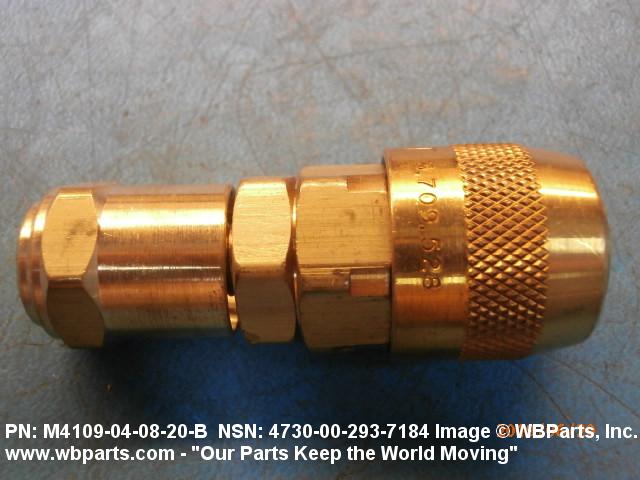

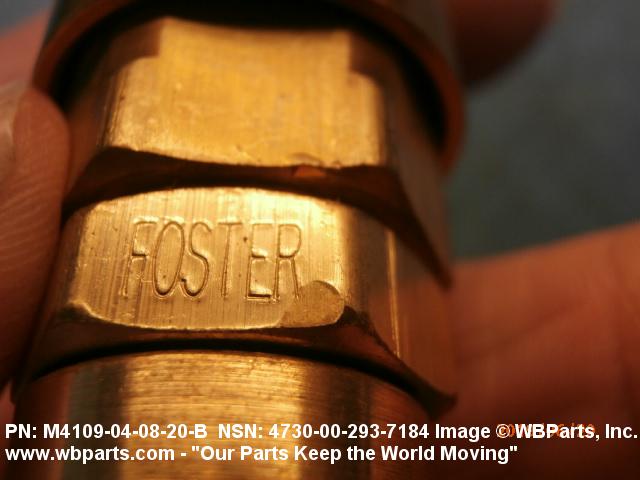

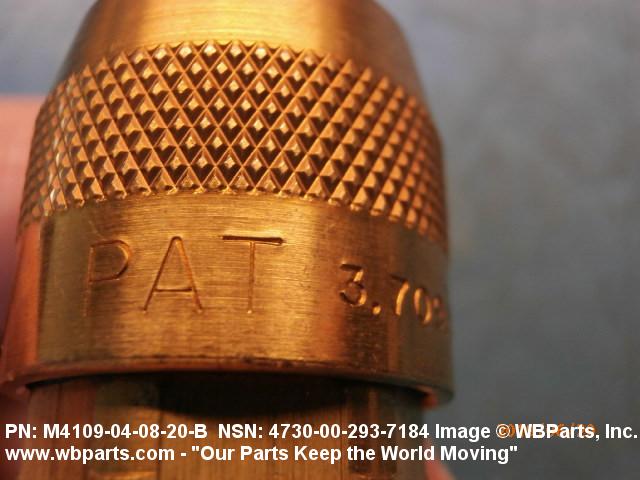

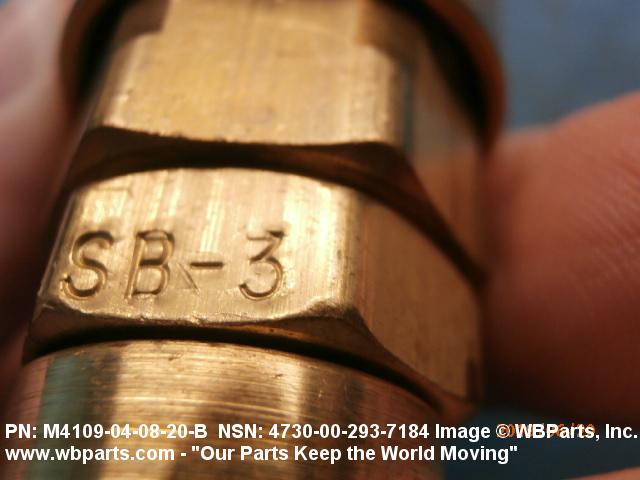

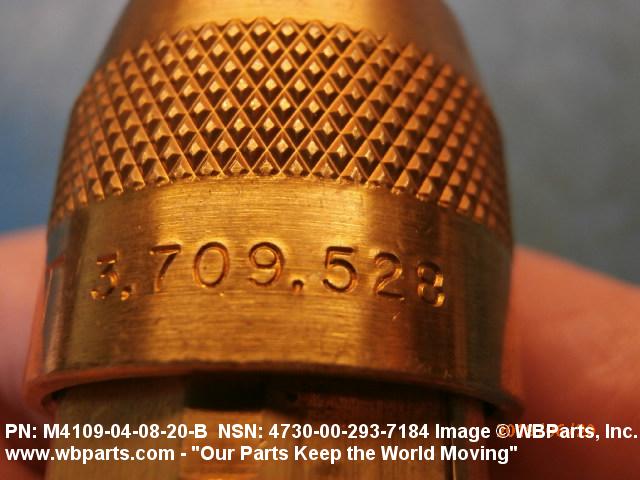

Drawings & Photos | NSN 4730-00-293-7184
Demand History | NSN 4730-00-293-7184
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-293-7184 | 2022-04-104 | 198 | DIBBS |
| AA59439 | 2020-04-104 | 1 | US |
| 4730-00-293-7184 | 2019-06-164 | 4 | us |
| 4730-00-293-7184 | 2019-02-43 | 700 | DIBBS |
| 4730-00-293-7184 | 2018-02-46 | 4 | us |
| 4730-00-293-7184 | 2017-02-51 | 600 | DIBBS |
| 4730-00-293-7184 | 2015-08-237 | 233 | DIBBS |
| 4730-00-293-7184 | 2015-08-223 | 233 | DIBBS |
| 4730-00-293-7184 | 2014-07-208 | 1056 | DIBBS |
| 4730-00-293-7184 | 2013-05-139 | 663 | DIBBS |
| 4730-00-293-7184 | 2013-05-134 | 639 | DIBBS |
| 4730-00-293-7184 | 2013-02-57 | 0 | DIBBS |
| 4730-00-293-7184 | 2012-07-185 | 617 | DIBBS |
| 4730-00-293-7184 | 2010-11-330 | 576 | DIBBS |
| 4730-00-293-7184 | 2010-04-120 | 457 | DIBBS |
| 4730-00-293-7184 | 2009-01-08 | 1967 | DIBBS |
| AA59439 | 2007-11-334 | 1 | US |
Cross Reference | NSN 4730-00-293-7184
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3SB7 | 73992 | TUTHILL CORP HANSEN COUPLING DIV |
| A-A-59439 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59439-04-08-20B | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| M4109-04-08-20-B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC4109 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC4109 0.25ID | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-293-7184
Related Products | NSN 4730-00-293-7184
Technical Data | NSN 4730-00-293-7184

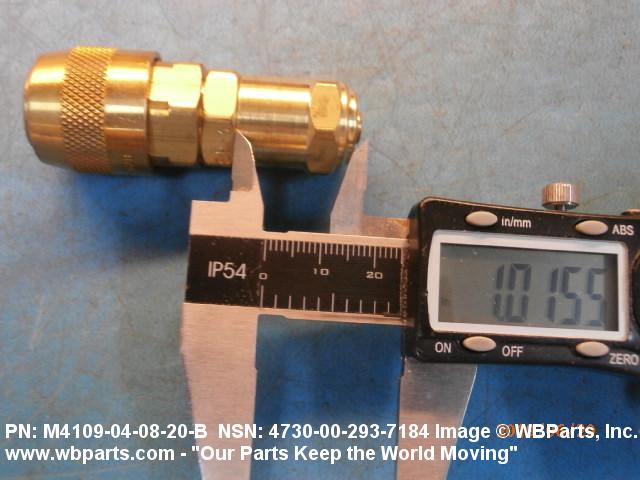

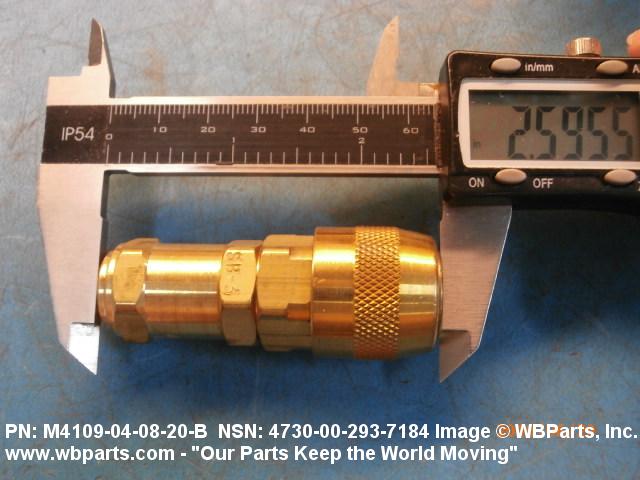

| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| LEG LENGTH | 1.032 INCHES NOMINAL |
| OVERALL LENGTH | 2.578 INCHES MINIMUM AND 2.781 INCHES MAXIMUM |
| CONNECTION TYPE | UNTHREADED EXTERNAL HOSE FIRST FLUID END CONNECTION INTERNAL QUICK DISCONNECT ALL ENDS |
| CONNECTION STYLE | E2 BARBED OR SERRATED END ALL ENDS |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |

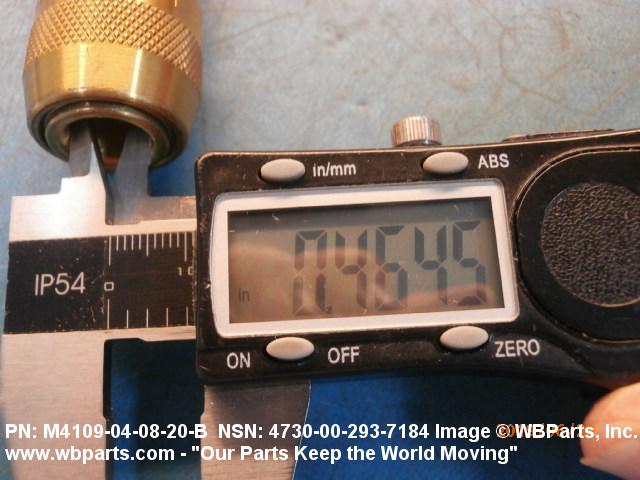

| QUICK DISCONNECT NOMINAL SIZE | 0.453 INCHES ALL ENDS |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| FEATURES PROVIDED | SELF-SEALING |
| SPECIFICATION/STANDARD DATA | 58536-A-A-59439 PROFESSIONAL/INDUSTRIAL ASSOCIATION SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | A CLASS AND 4 STYLE AND 1 TYPE |
| END ITEM IDENTIFICATION | GRUMMAN A10 AIRCRAFT |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 150.0 POUNDS PER SQUARE INCH AIR |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59439 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA59439-04-08-20-B |
