NSN 4730-00-289-8618 MS219223, MS21922-3, MS219228

Product Details | TUBE FITTING CLINCH SLEEVE

4730-00-289-8618 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.

Part Alternates: MS219223, MS21922-3, MS219228, MS21922-8, MS21922B, MS21922-B, AS18280, AS21922, AS219223, AS21922-3, 4182022, 418202-2, 4730-00-289-8618, 00-289-8618, 4730002898618, 002898618

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-289-8618	18025 ( SLEEVE, CLINCH, TUBE FITTING )

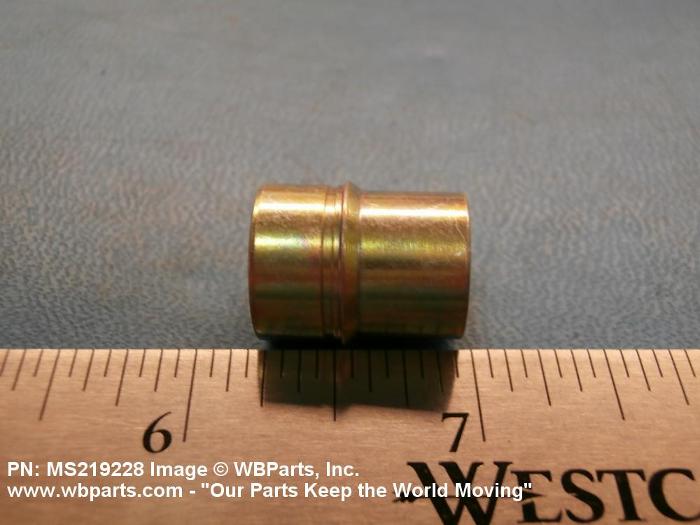

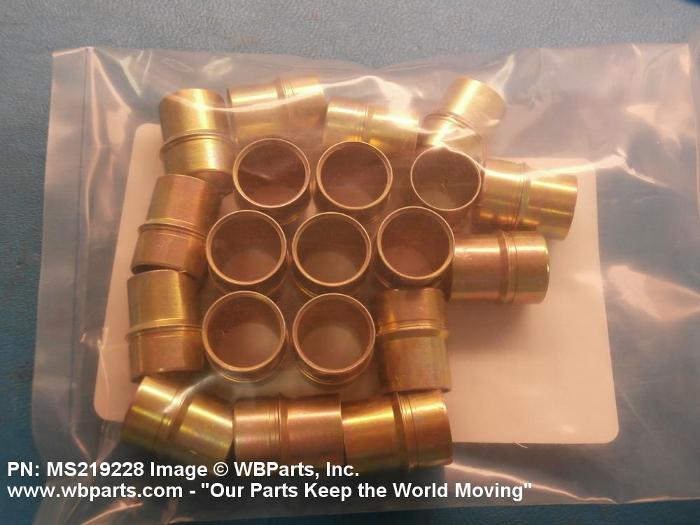

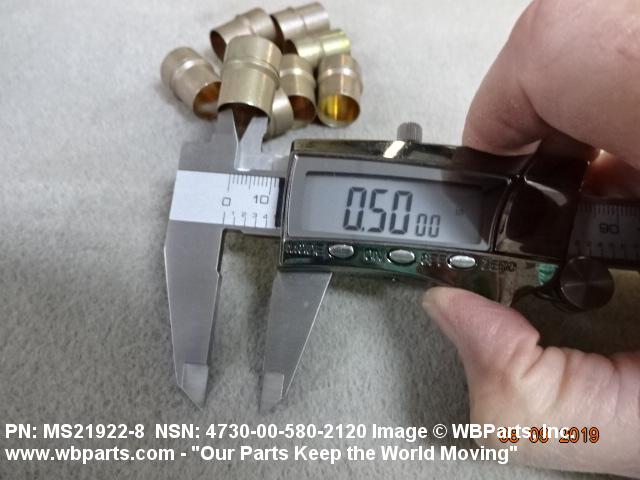

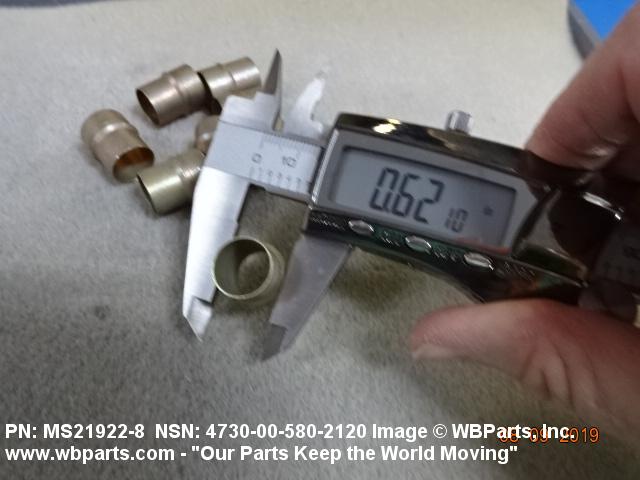

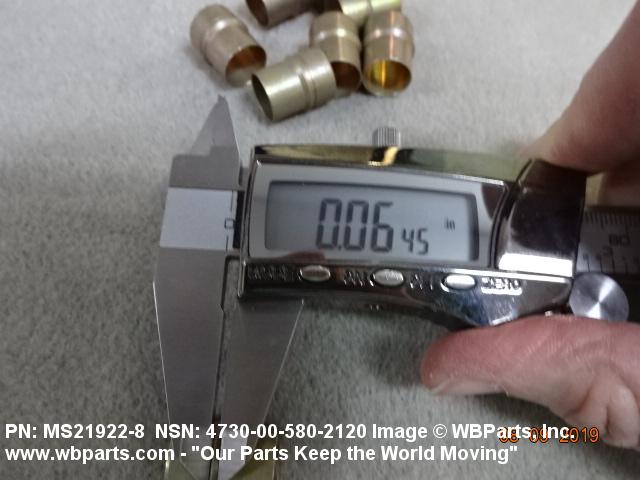

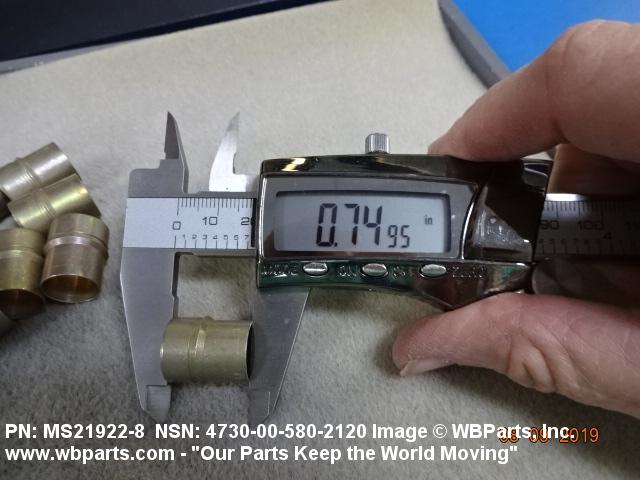

Drawings & Photos | NSN 4730-00-289-8618

Part Number	Request Date	QTY	Origin
MS219228	2024-03-66	20	United States
MS219228	2023-10-278	42	US
MS219228	2023-03-74	15	Canada
MS219228	2022-07-201	146	IN
MS219228	2022-05-140	146	IN
4730-00-289-8618	2022-04-118	200	us
MS21922B	2021-05-126	1	Italy
4730-00-289-8618	2018-05-130	789	DIBBS
MS21922-8	2017-07-192	267	PK
MS219228	2017-05-135	2	US
4730-00-289-8618	2017-04-100	447	DIBBS
MS219228	2015-11-323	6	US
MS219228	2015-09-265	200	IT
AS18280	2014-10-280	1	US
MS219228	2014-06-176	10	US
MS219228	2012-12-354	20	US
MS219228	2012-10-304	25	US
4730-00-289-8618	2011-11-320	150	US
MS219228	2011-09-273	300	US
MS21922-8	2011-06-155	10	PK
MS21922-8	2011-06-155	10	PK
MS219228	2010-12-350	30	United States
MS219228	2010-08-235	20	US
MS219223	2010-06-176	90	Italy
MS219228	2010-06-176	28	Italy
4730-00-289-8618	2009-11-313	1932	DIBBS
MS219228	2009-06-153	4	Australia
4730-00-289-8618	2009-03-83	136	United States
MS219228	2008-09-273	50	US
AS21922	2008-08-219	5	United States
AS219223	2008-01-04	15	United States

Cross Reference | NSN 4730-00-289-8618

Part Number	Cage Code	Manufacturer
418202-2	96214	RAYTHEON COMPANY DBA RAYTHEON
AS18280	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS21922	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS21922-3	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21922-3	00624	EATON CORPORATION DBA AEROSPACE DIV
MS21922-3	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21922-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21922-8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21922-B	30974	AEROFIT, LLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-289-8618

Compare

Related Products | NSN 4730-00-289-8618

4730-00-289-8619, 4730-00-289-8620, 4730-00-289-8621, 4730-00-289-8622, 4730-00-289-8623

Technical Data | NSN 4730-00-289-8618

Characteristic	Specifications
MATERIAL	STEEL, MIL-S-13433, TYPE 1-CANCELED
SURFACE TREATMENT	CADMIUM
METALLIC HARDNESS RATING	NOT RATED
CASEHARDENING INDICATOR	NOT CASEHARDENED
HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED	0.188 INCHES NOMINAL
STYLE DESIGNATOR	L5 FLARELESS
OVERALL LENGTH	0.440 INCHES MINIMUM AND 0.460 INCHES MAXIMUM
FLANGE WIDTH	0.060 INCHES MINIMUM AND 0.065 INCHES MAXIMUM
FLANGE OUTSIDE DIAMETER	0.312 INCHES NOMINAL
SEAT ANGLE IN DEG	37.0
SLEEVE OUTSIDE DIAMETER	0.252 INCHES MINIMUM AND 0.256 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 4730-00-289-8618

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-289-8618

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
