NSN 4730-01-120-8710 AFP1646, AFP164-6, BACS13AP

Product Details | TUBE FITTING CLINCH SLEEVE

4730-01-120-8710 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.

Part Alternates: AFP1646, AFP164-6, BACS13AP, BACS13AP6, BC9226, BC922-6, DB0S13AP6, DB0S13AP-6, 2010336, 2-01033-6, 4730-01-120-8710, 01-120-8710, 4730011208710, 011208710

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	24 OCT 1981	01-120-8710	18025 ( SLEEVE, CLINCH, TUBE FITTING )

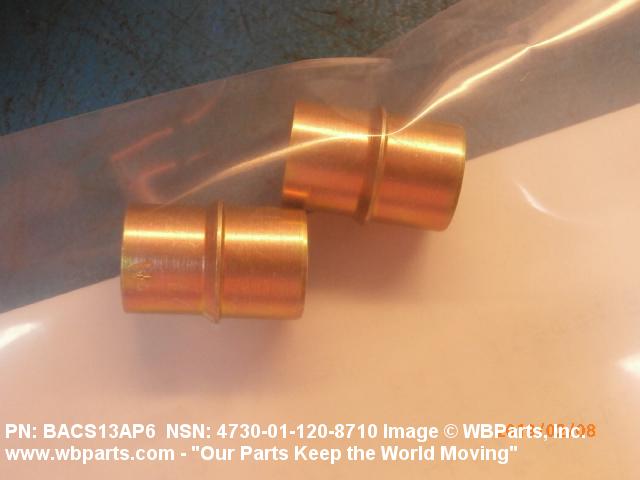

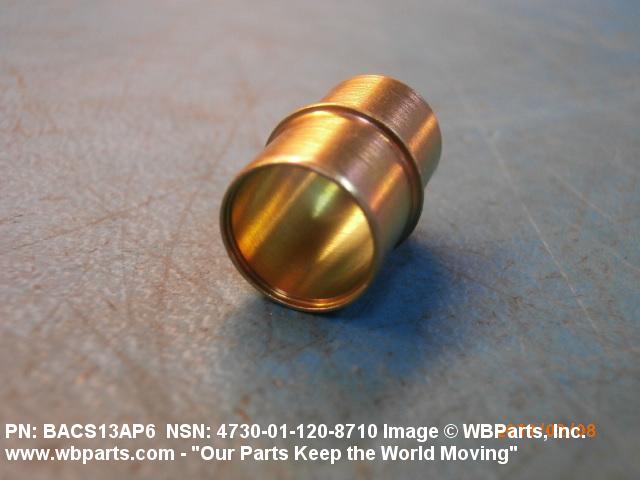

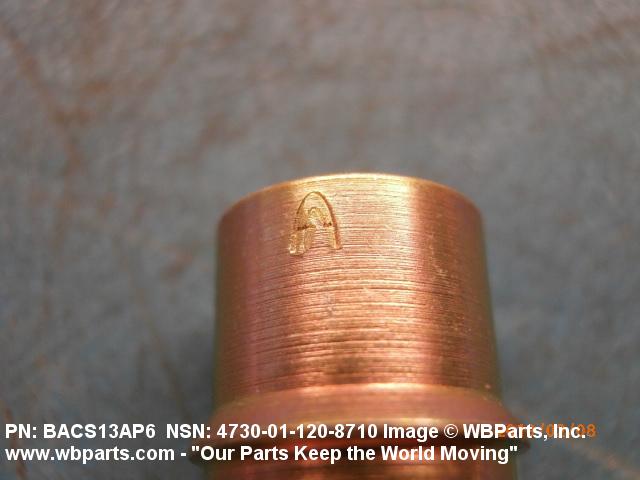

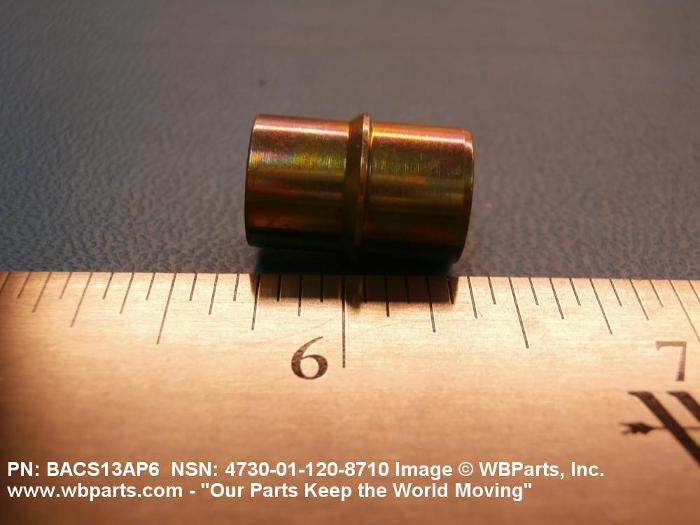

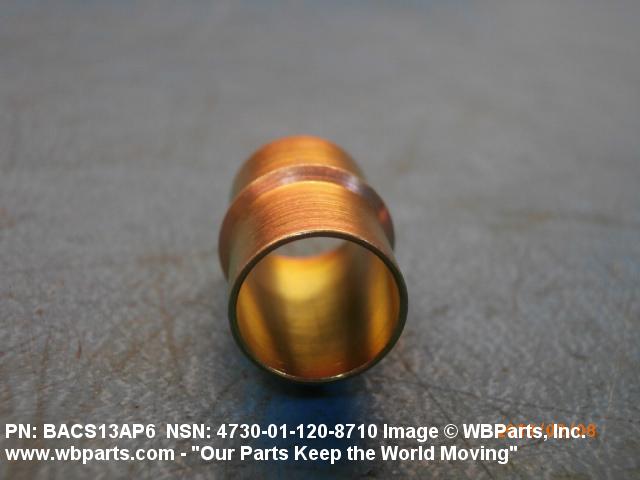

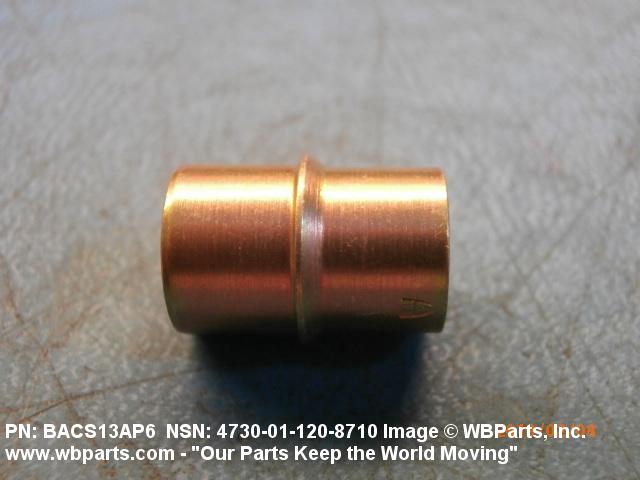

Drawings & Photos | NSN 4730-01-120-8710

Part Number	Request Date	QTY	Origin
4730-01-120-8710	2023-08-223	30	TW
4730-01-120-8710	2023-08-220	30	TW
BACS13AP6	2023-05-137	1500	IN
BACS13AP6	2023-04-111	1	Singapore
BACS13AP6	2020-08-218	1500	Singapore
BACS13AP6	2019-03-64	4	United States
BACS13AP6	2019-02-51	5	United States
BACS13AP6	2019-02-50	5	United States
BACS13AP6	2019-02-32	2	United States
BACS13AP6	2017-09-271	425	United States
BACS13AP6	2017-03-83	3000	Singapore
4730-01-120-8710	2017-01-25	24	United States
BACS13AP6	2015-05-148	1000	Singapore
BACS13AP6	2012-05-137	1037	Singapore
BACS13AP6	2012-03-89	1500	Singapore
BACS13AP6	2011-05-131	450	US
4730-01-120-8710	2011-05-125	450	US
4730-01-120-8710	2011-05-122	450	Singapore
4730-01-120-8710	2011-01-31	500	Singapore
4730-01-120-8710	2009-10-277	500	Malta
4730-01-120-8710	2009-06-161	52	DIBBS
4730-01-120-8710	2009-06-161	89	DIBBS
4730-01-120-8710	2009-06-161	142	DIBBS

Cross Reference | NSN 4730-01-120-8710

Part Number	Cage Code	Manufacturer
2-01033-6	00624	EATON CORPORATION DBA AEROSPACE DIV
AFP164-6	30974	AEROFIT, LLC
BACS13AP	81205	THE BOEING COMPANY DBA BOEING
BACS13AP6	81205	THE BOEING COMPANY DBA BOEING
BC922-6	50948	PARKER HANNIFIN CORP STRATOFLEX DIV AIRCRAFT FITTINGS OPN
DB0S13AP-6	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-120-8710

Compare

Related Products | NSN 4730-01-120-8710

4730-01-120-9239, 4730-01-120-9244, 4730-01-120-9287, 4730-01-120-9478, 4730-01-120-9861

Technical Data | NSN 4730-01-120-8710

Characteristic	Specifications
MATERIAL	STEEL
SURFACE TREATMENT	CADMIUM
METALLIC HARDNESS RATING	NOT RATED
CASEHARDENING INDICATOR	NOT CASEHARDENED

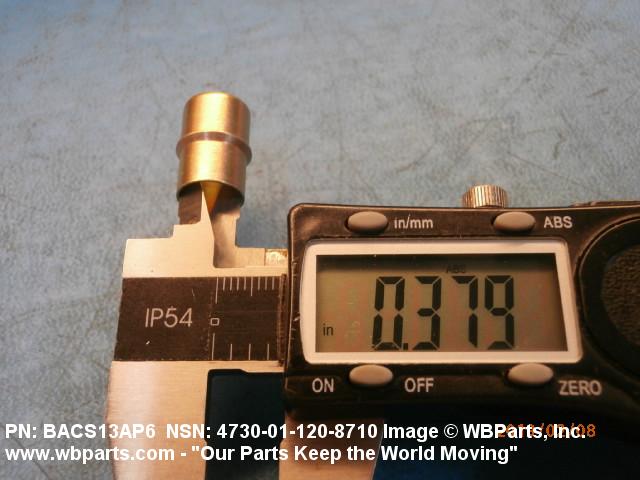

HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED	0.375 INCHES NOMINAL
STYLE DESIGNATOR	L5 FLARELESS

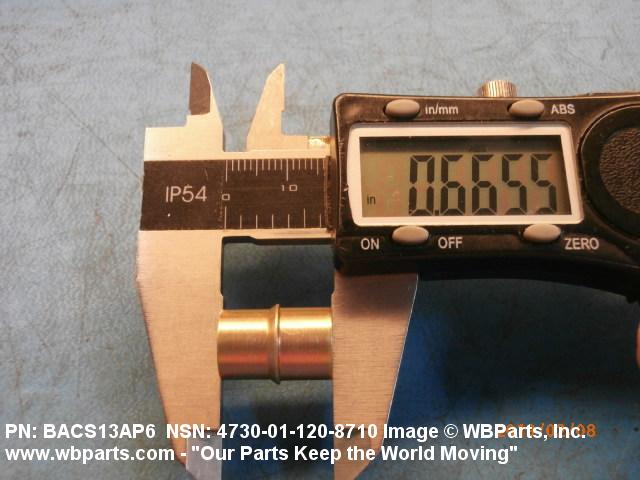

OVERALL LENGTH	0.660 INCHES NOMINAL

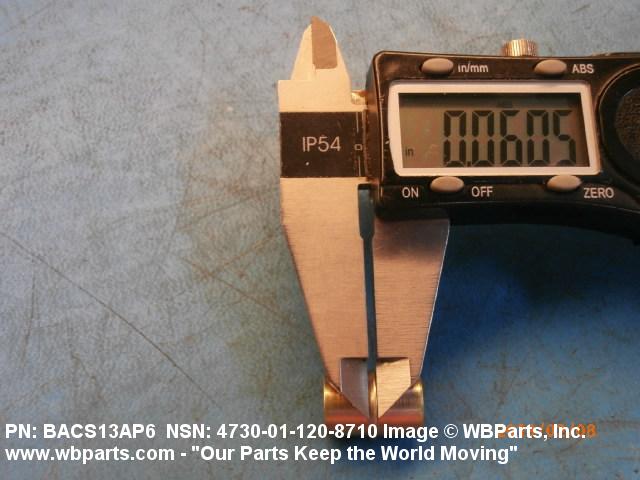

FLANGE WIDTH	0.060 INCHES MINIMUM

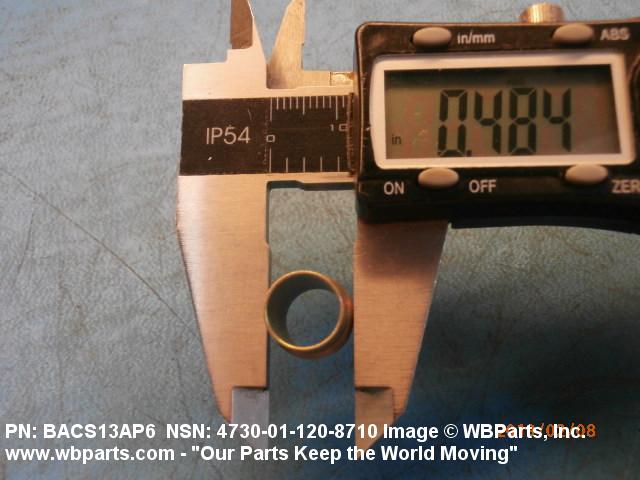

FLANGE OUTSIDE DIAMETER	0.484 INCHES NOMINAL
SEAT ANGLE IN DEG	35.0

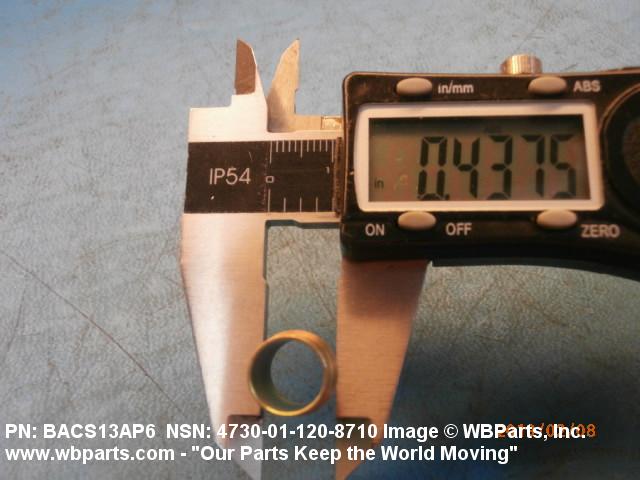

SLEEVE OUTSIDE DIAMETER	0.435 INCHES MINIMUM AND 0.439 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 4730-01-120-8710

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-120-8710

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
