NSN 4730-00-541-7725 MS2192210, MS21922-10, AS18280

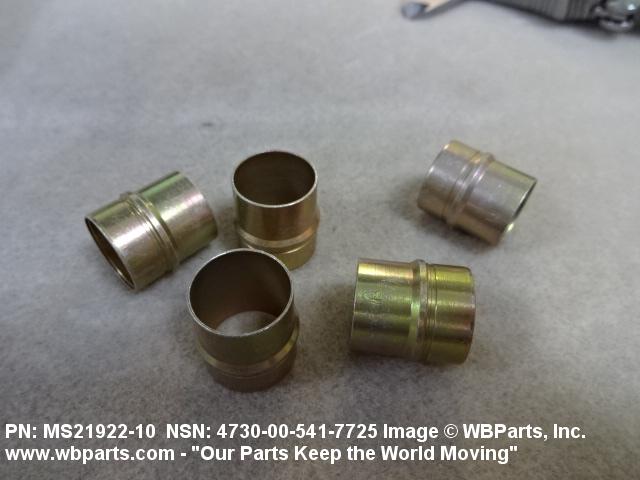

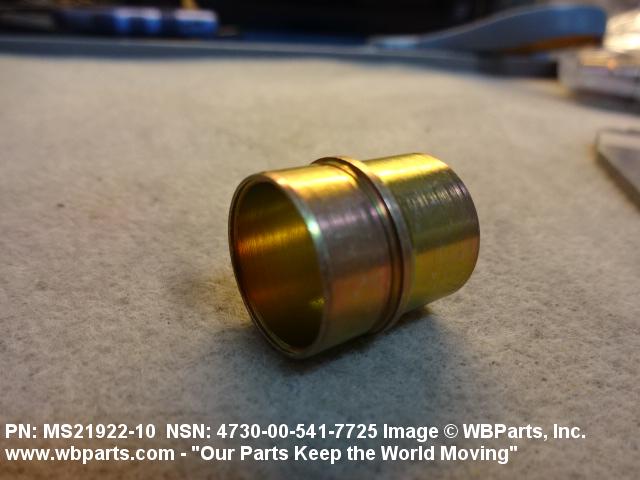

Product Details | TUBE FITTING CLINCH SLEEVE

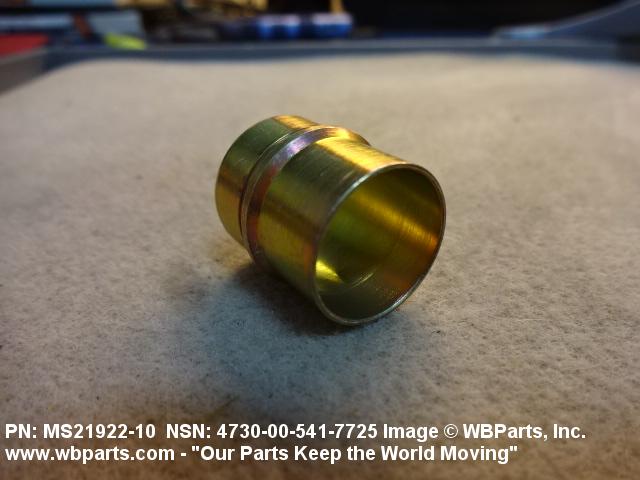

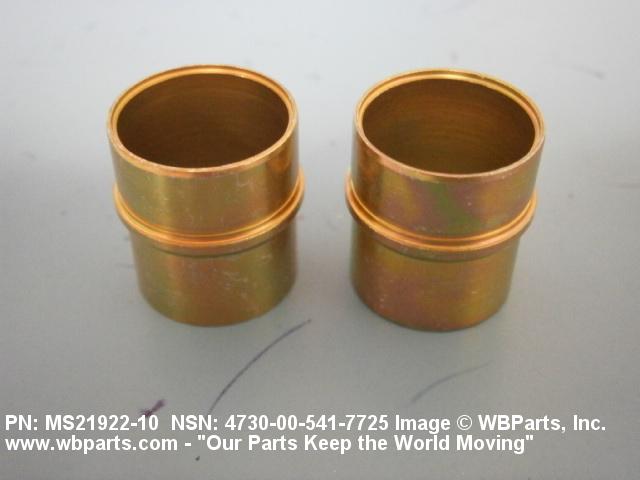

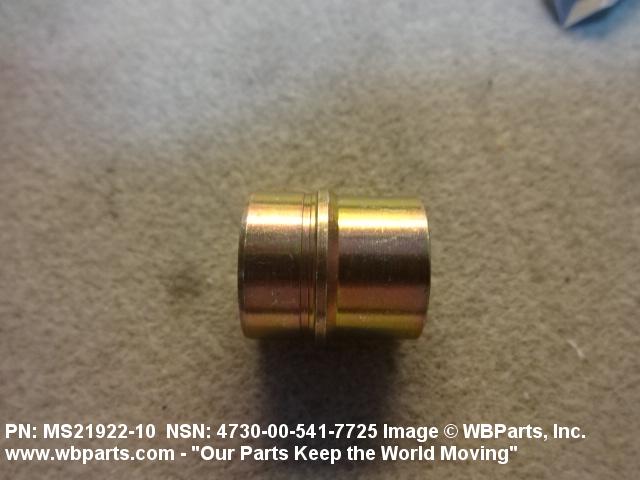

4730-00-541-7725 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.
Part Alternates: MS2192210, MS21922-10, AS18280, AS21922, 4730-00-541-7725, 00-541-7725, 4730005417725, 005417725
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-541-7725 | 18025 ( SLEEVE, CLINCH, TUBE FITTING ) |
Drawings & Photos | NSN 4730-00-541-7725
Demand History | NSN 4730-00-541-7725
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-541-7725 | 2024-07-204 | 1007 | DIBBS |
| 4730-00-541-7725 | 2024-07-193 | 1007 | DIBBS |
| 4730-00-541-7725 | 2024-06-179 | 1007 | DIBBS |
| MS2192210 | 2024-03-66 | 15 | United States |
| MS2192210 | 2024-02-32 | 10 | US |
| MS2192210 | 2023-10-278 | 18 | US |
| MS2192210 | 2023-05-125 | 5 | United States |
| MS2192210 | 2023-04-107 | 120 | IN |
| 4730-00-541-7725 | 2023-02-44 | 1007 | DIBBS |
| 4730-00-541-7725 | 2023-02-33 | 1007 | DIBBS |
| MS2192210 | 2022-10-292 | 32 | United States |
| MS2192210 | 2022-07-201 | 260 | IN |
| MS2192210 | 2022-05-140 | 260 | IN |
| 4730-00-541-7725 | 2022-04-110 | 56 | India |
| MS2192210 | 2022-04-102 | 56 | India |
| 4730-00-541-7725 | 2022-04-94 | 1836 | DIBBS |
| 4730-00-541-7725 | 2022-03-82 | 1836 | DIBBS |
| 4730-00-541-7725 | 2022-03-80 | 60 | India |
| MS2192210 | 2022-02-53 | 56 | IN |
| 4730-00-541-7725 | 2022-02-39 | 1 | Canada |
| MS2192210 | 2019-08-239 | 60 | United States |
| 4730-00-541-7725 | 2019-03-80 | 25 | United States |
| MS2192210 | 2019-02-42 | 12 | United States |
| MS2192210 | 2019-02-42 | 24 | United States |
| MS2192210 | 2018-11-311 | 1 | US |
| MS2192210 | 2017-09-248 | 50 | United States |
| AS18280 | 2014-10-280 | 1 | US |
| MS2192210 | 2014-01-10 | 12 | US |
| 4730-00-541-7725 | 2013-08-226 | 4205 | DIBBS |
| 4730-00-541-7725 | 2013-06-156 | 1053 | DIBBS |
| 4730-00-541-7725 | 2012-12-352 | 0 | DIBBS |
| 4730-00-541-7725 | 2012-11-310 | 915 | DIBBS |
| 4730-00-541-7725 | 2012-07-206 | 915 | DIBBS |
| MS2192210 | 2012-03-76 | 2 | United Kingdom |
| 4730-00-541-7725 | 2010-12-356 | 24 | FR |
| 4730-00-541-7725 | 2010-12-341 | 24 | FR |
| 4730-00-541-7725 | 2010-11-306 | 1449 | DIBBS |
| MS2192210 | 2010-08-235 | 20 | US |
| 4730-00-541-7725 | 2010-08-223 | 950 | DIBBS |
| 4730-00-541-7725 | 2009-10-303 | 867 | DIBBS |
| 4730-00-541-7725 | 2008-12-338 | 1110 | DIBBS |
| MS2192210 | 2008-09-273 | 50 | US |
| AS21922 | 2008-08-219 | 5 | United States |
| 4730-00-541-7725 | 2007-09-255 | 50 | DE |
Cross Reference | NSN 4730-00-541-7725
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4730005417725 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21922 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21922-10 | 30974 | AEROFIT, LLC |
| MS21922-10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21922-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-541-7725
Related Products | NSN 4730-00-541-7725
Technical Data | NSN 4730-00-541-7725
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-637, COMP 1213 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 2 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | CASEHARDENED |

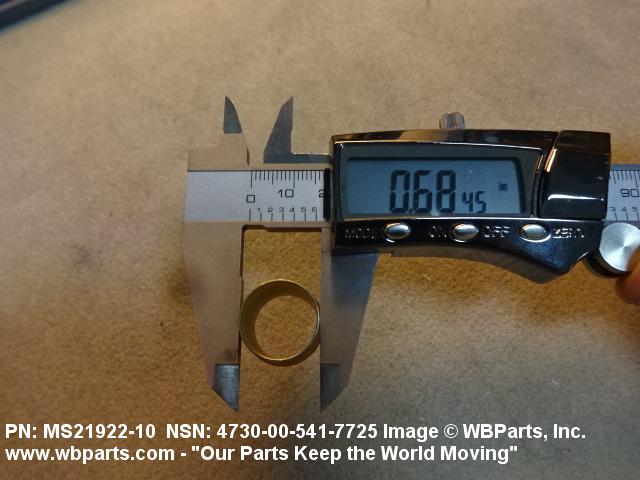

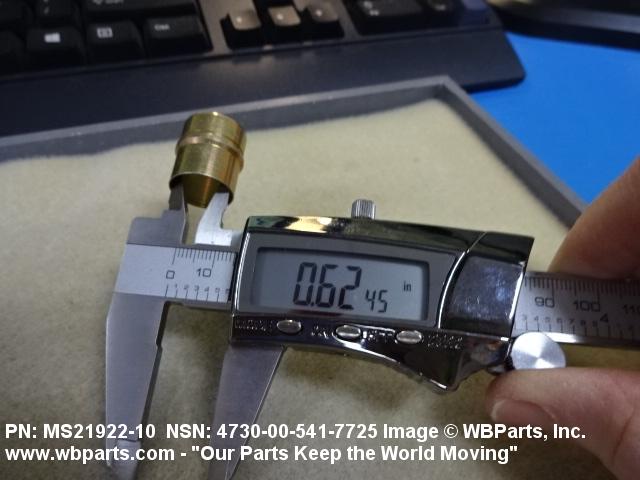

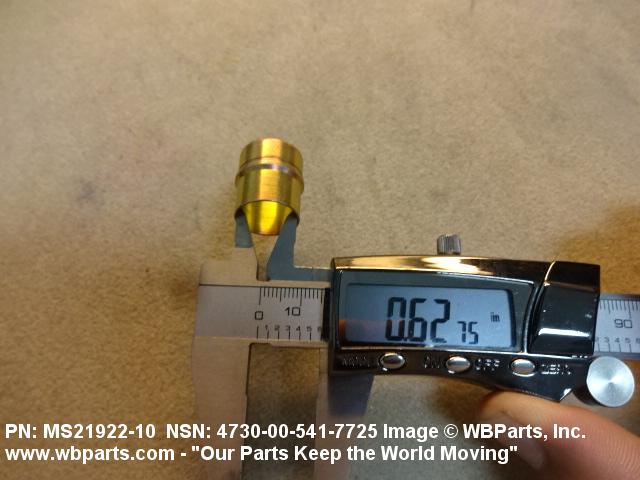

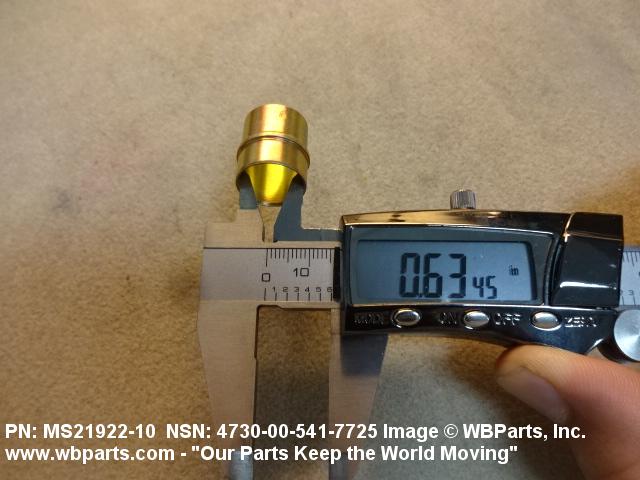

| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.625 INCHES NOMINAL |
| STYLE DESIGNATOR | L5 FLARELESS |

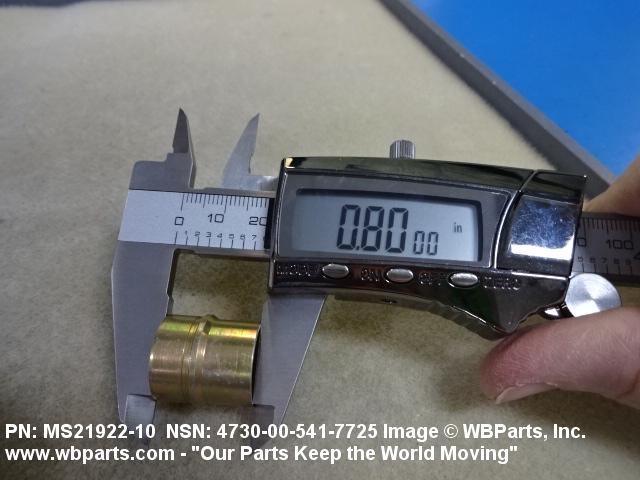

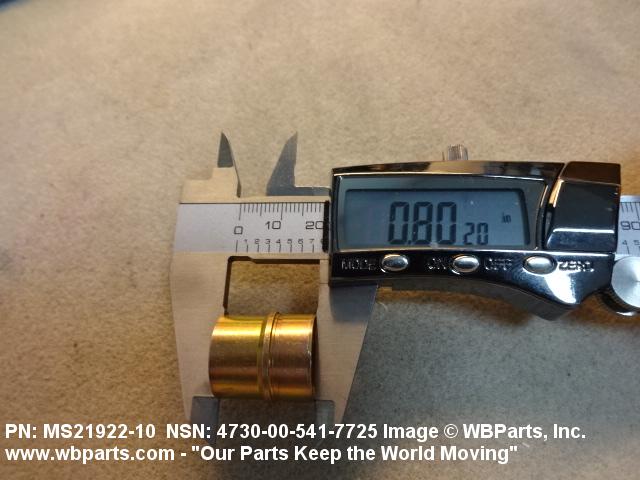

| OVERALL LENGTH | 0.800 INCHES NOMINAL |

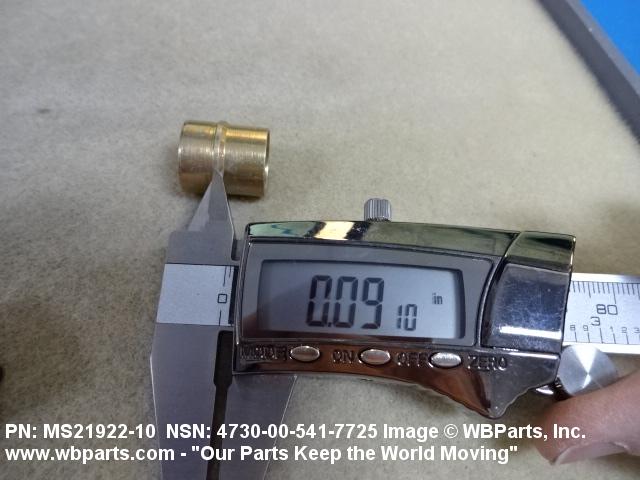

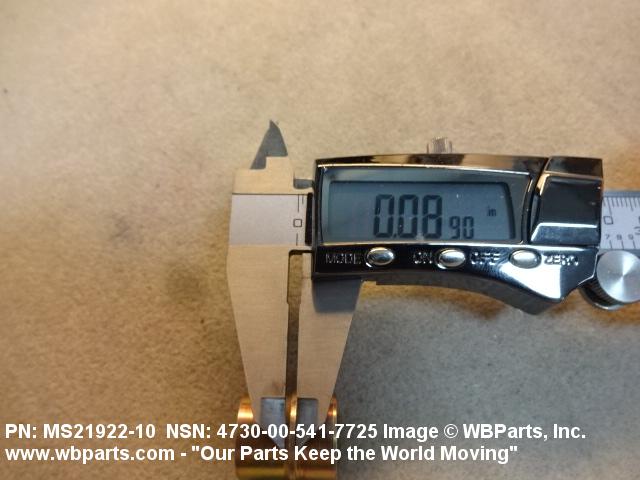

| FLANGE WIDTH | 0.090 INCHES NOMINAL |

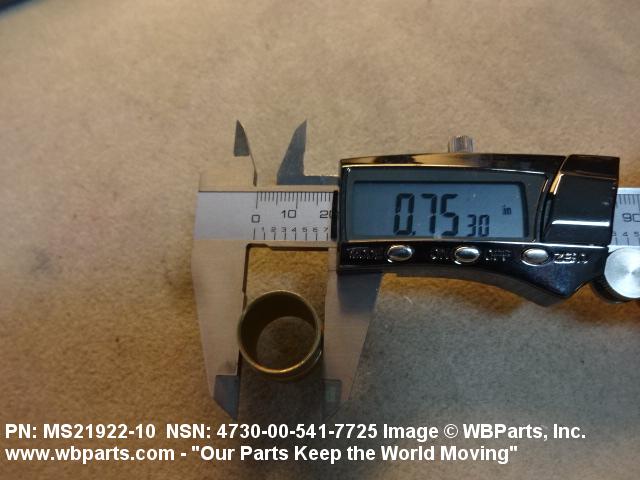

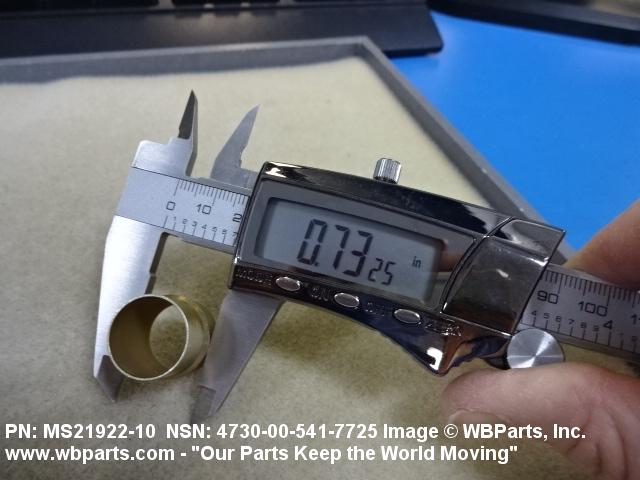

| FLANGE OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 35.0 |

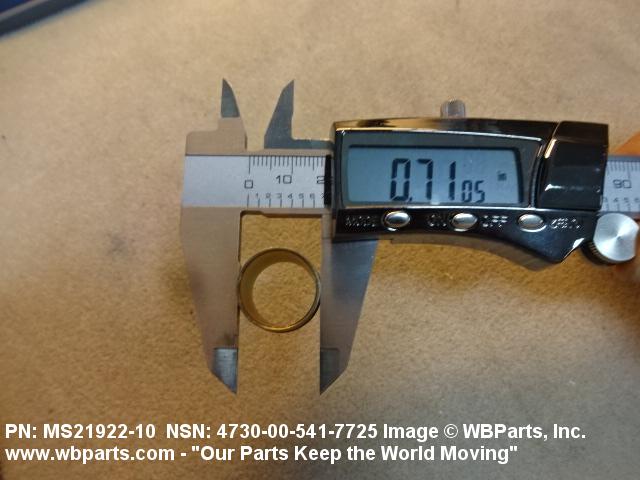

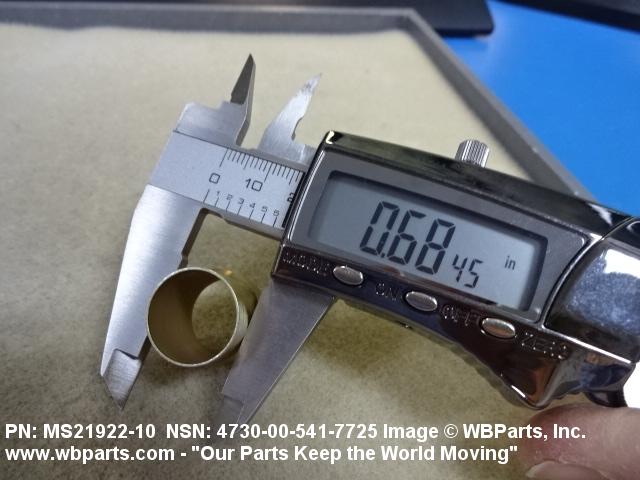

| SLEEVE OUTSIDE DIAMETER | 0.707 INCHES NOMINAL |
