NSN 4730-00-289-8622 MS2192212, MS21922-12, AS18280
Product Details | TUBE FITTING CLINCH SLEEVE
4730-00-289-8622 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.
Part Alternates: MS2192212, MS21922-12, AS18280, AS2192212, AS21922-12, 5703, 570-3 , 4730-00-289-8622, 00-289-8622, 4730002898622, 002898622
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-289-8622 | 18025 ( SLEEVE, CLINCH, TUBE FITTING ) |
Drawings & Photos | NSN 4730-00-289-8622
Demand History | NSN 4730-00-289-8622
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-289-8622 | 2024-06-157 | 10 | US |
| MS2192212 | 2024-01-30 | 36 | Spain |
| 4730-00-289-8622 | 2023-11-320 | 4 | United States |
| MS2192212 | 2023-10-278 | 20 | US |
| MS2192212 | 2023-03-86 | 70 | United States |
| 4730-00-289-8622 | 2021-09-259 | 50 | Netherlands |
| 4730-00-289-8622 | 2021-05-146 | 12 | Netherlands |
| MS2192212 | 2018-02-59 | 2 | United States |
| 4730-00-289-8622 | 2017-10-278 | 1357 | DIBBS |
| 5703 | 2017-10-276 | 8 | SA |
| 4730-00-289-8622 | 2017-09-248 | 142 | DIBBS |
| 4730-00-289-8622 | 2017-08-234 | 142 | DIBBS |
| 4730-00-289-8622 | 2017-08-226 | 51 | DIBBS |
| 4730-00-289-8622 | 2017-08-220 | 10 | DIBBS |
| 4730-00-289-8622 | 2015-06-161 | 1857 | DIBBS |
| AS2192212 | 2014-12-336 | 2 | US |
| AS18280 | 2014-10-280 | 1 | US |
| MS2192212 | 2014-06-177 | 1 | IT |
| 4730-00-289-8622 | 2012-12-352 | 0 | DIBBS |
| 4730-00-289-8622 | 2012-11-321 | 4 | US |
| 4730-00-289-8622 | 2010-08-231 | 965 | DIBBS |
| 4730-00-289-8622 | 2010-03-67 | 937 | DIBBS |
| 4730-00-289-8622 | 2009-11-314 | 911 | DIBBS |
| 4730-00-289-8622 | 2009-08-238 | 48 | United States |
Cross Reference | NSN 4730-00-289-8622
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4730002898622 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21922-12 | 30974 | AEROFIT, LLC |
| MS21922-12 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21922-12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-289-8622
Related Products | NSN 4730-00-289-8622
Technical Data | NSN 4730-00-289-8622
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-637, COMP 1213 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 2 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.750 INCHES NOMINAL |
| STYLE DESIGNATOR | L5 FLARELESS |

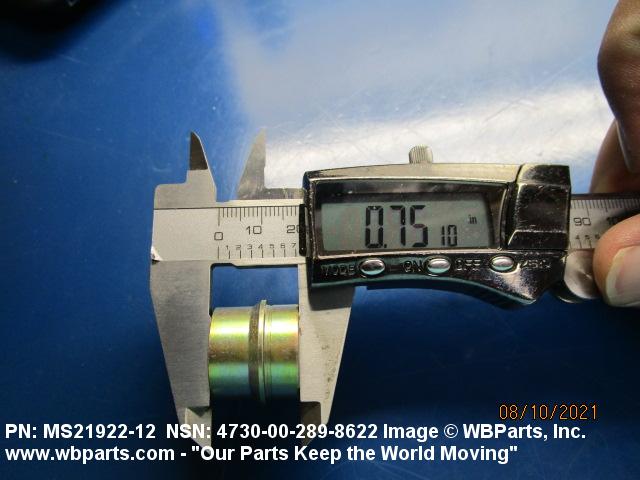

| OVERALL LENGTH | 0.750 INCHES NOMINAL |

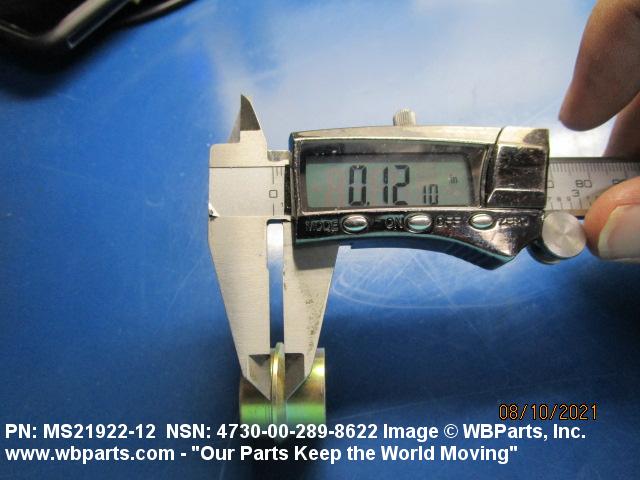

| FLANGE WIDTH | 0.120 INCHES NOMINAL |

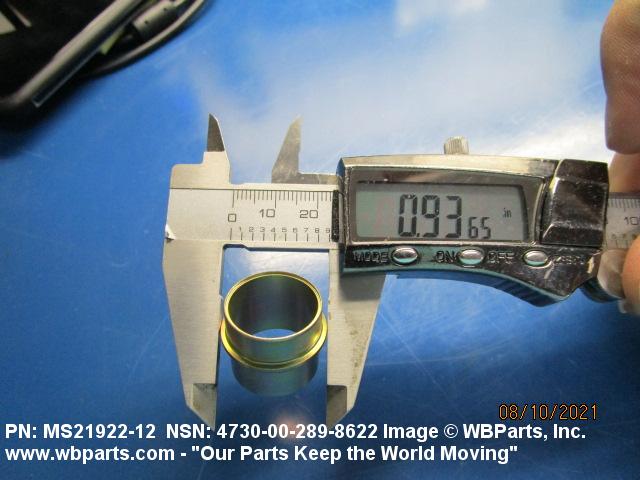

| FLANGE OUTSIDE DIAMETER | 0.938 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 35.0 |

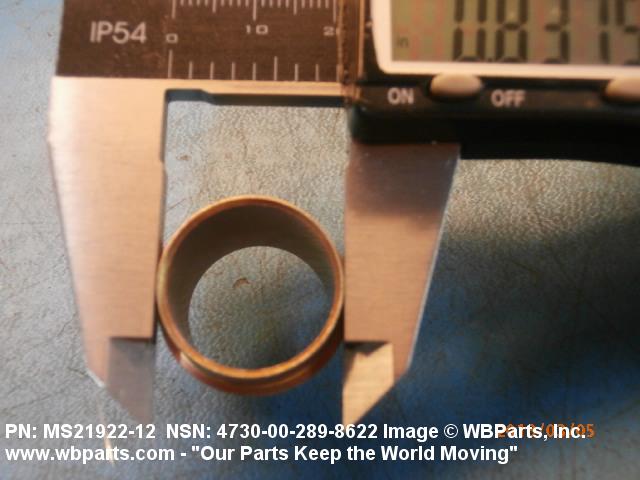

| SLEEVE OUTSIDE DIAMETER | 0.836 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | GRUMMAN AEROSPACE INC SUPPORTS A10 AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 4730-00-289-8622
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094420 | CUTLERY NOI FINGERNAIL CLIPPERS ETC |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-289-8622
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | 0 | GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration. |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
