NSN 4730-00-289-0430 AN8063, AN806-3, AS4841

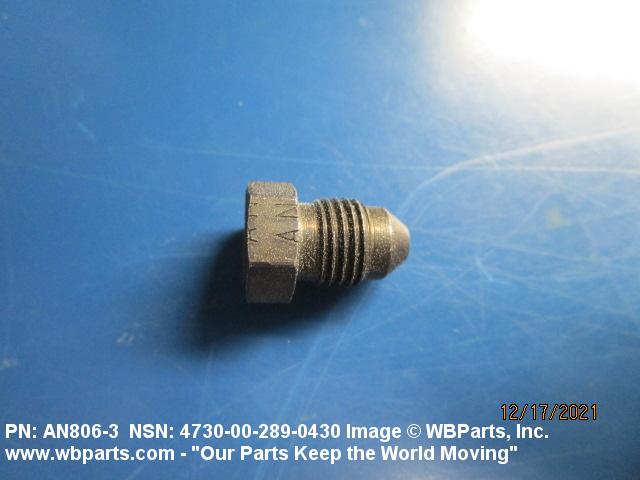

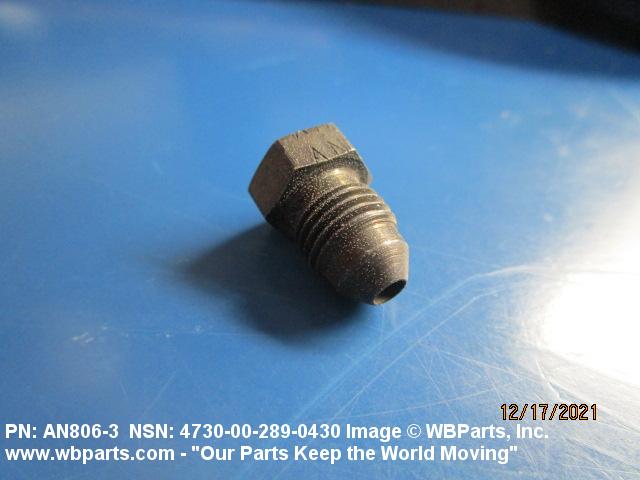

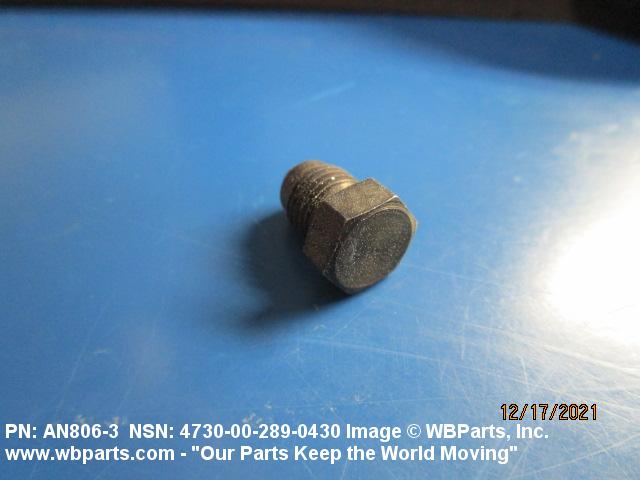

Product Details | THREADED TUBE FITTING PLUG
4730-00-289-0430 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: AN8063, AN806-3, AS4841, AS5168, AS516803, AS5168-03, MILF5509, 4730-00-289-0430, 00-289-0430, 4730002890430, 002890430
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-289-0430 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

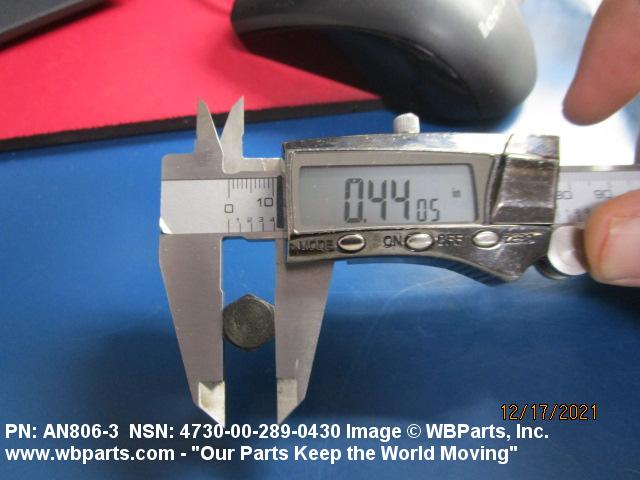

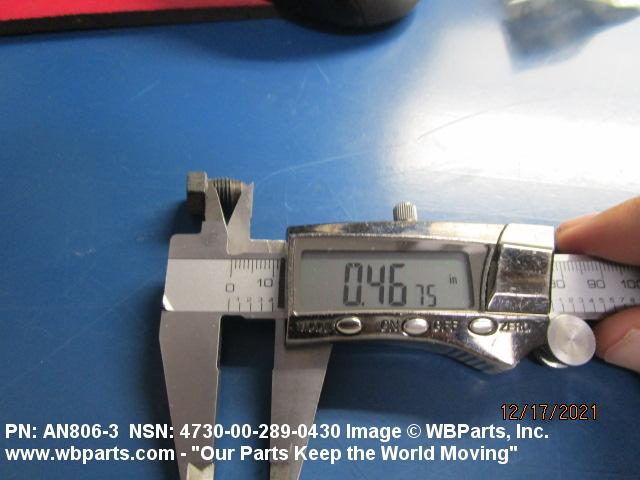

Drawings & Photos | NSN 4730-00-289-0430
Demand History | NSN 4730-00-289-0430
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-289-0430 | 2023-04-110 | 2387 | DIBBS |
| 4730-00-289-0430 | 2023-04-96 | 1601 | DIBBS |
| 4730-00-289-0430 | 2023-02-33 | 837 | DIBBS |
| 4730-00-289-0430 | 2022-03-76 | 291 | DIBBS |
| MILF5509 | 2018-07-201 | 6 | United States |
| 4730-00-289-0430 | 2017-07-183 | 3411 | DIBBS |
| 4730-00-289-0430 | 2017-06-163 | 2484 | DIBBS |
| 4730-00-289-0430 | 2017-03-89 | 751 | DIBBS |
| 4730-00-289-0430 | 2012-01-30 | 1141 | DIBBS |
| 4730-00-289-0430 | 2011-07-211 | 1851 | DIBBS |
| AS4841 | 2011-03-69 | 8 | |
| 4730-00-289-0430 | 2011-02-41 | 1649 | DIBBS |
| 4730-00-289-0430 | 2010-08-222 | 1082 | DIBBS |
| 4730-00-289-0430 | 2010-04-113 | 2193 | DIBBS |
| 4730-00-289-0430 | 2010-03-85 | 1122 | DIBBS |
| MILF5509 | 2009-10-301 | 1 | PK |
| 4730-00-289-0430 | 2009-08-233 | 1610 | DIBBS |
| MILF5509 | 2009-02-55 | 100 | US |
| 4730-00-289-0430 | 2009-02-49 | 1149 | DIBBS |
Cross Reference | NSN 4730-00-289-0430
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN806-3 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5168 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5168-03 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MILF5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-289-0430
Related Products | NSN 4730-00-289-0430
Technical Data | NSN 4730-00-289-0430
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1137 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C42 PLUG, TUBE FITTING FLARED |

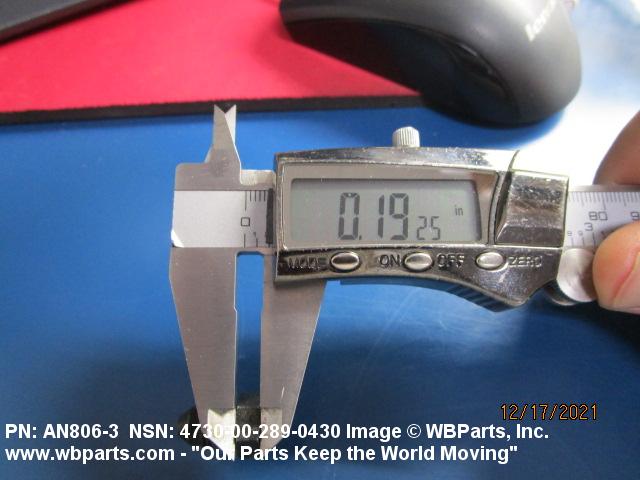

| HEAD HEIGHT | 0.193 INCHES NOMINAL |

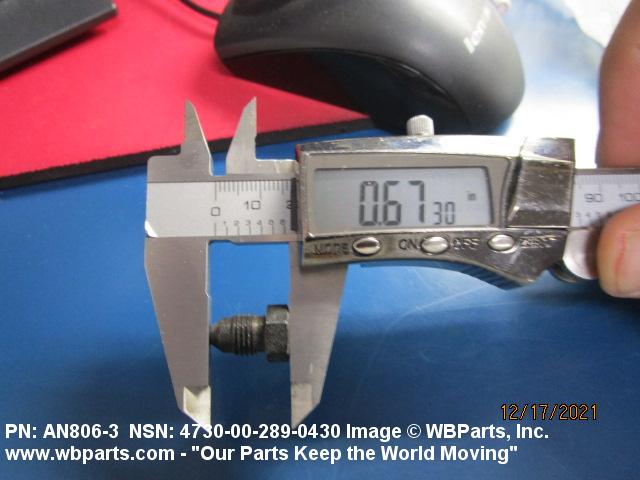

| OVERALL LENGTH | 0.672 INCHES NOMINAL |
