NSN 4730-00-287-0118 MS24404D16, AN806D16, AS5168D16

Product Details | THREADED TUBE FITTING PLUG

4730-00-287-0118 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.

Part Alternates: MS24404D16, AN806D16, AS5168D16, AS5168W16 , MILF5509A, 4730-00-287-0118, 00-287-0118, 4730002870118, 002870118

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-287-0118	28613 ( PLUG, TUBE FITTING, THREADED )

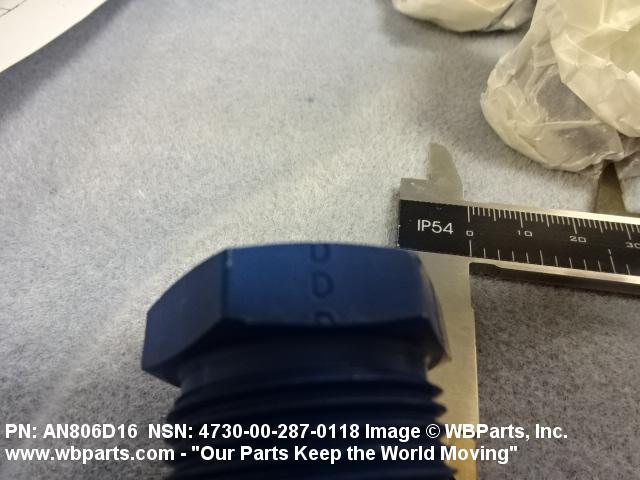

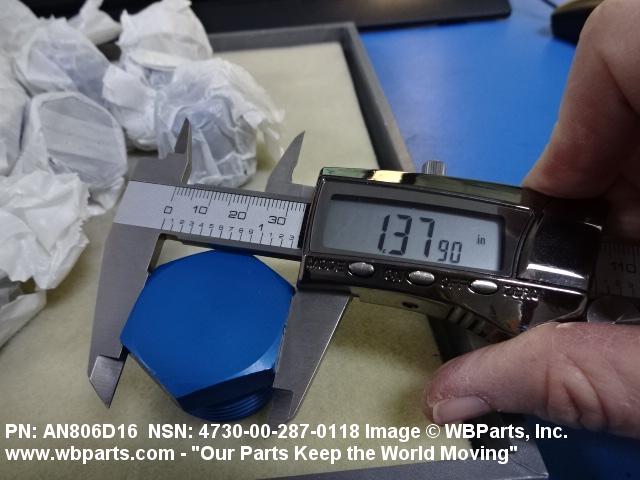

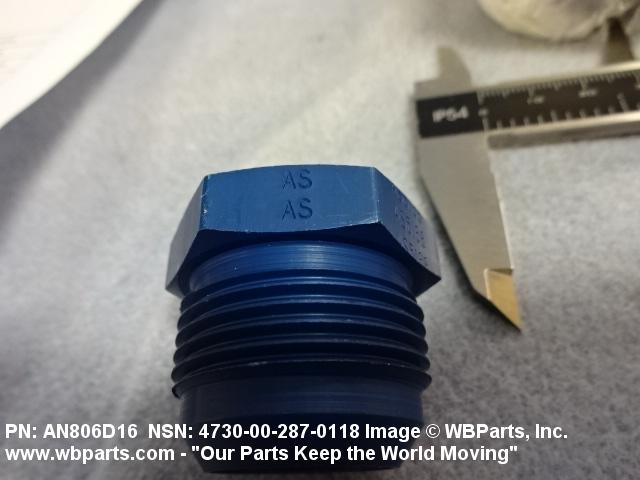

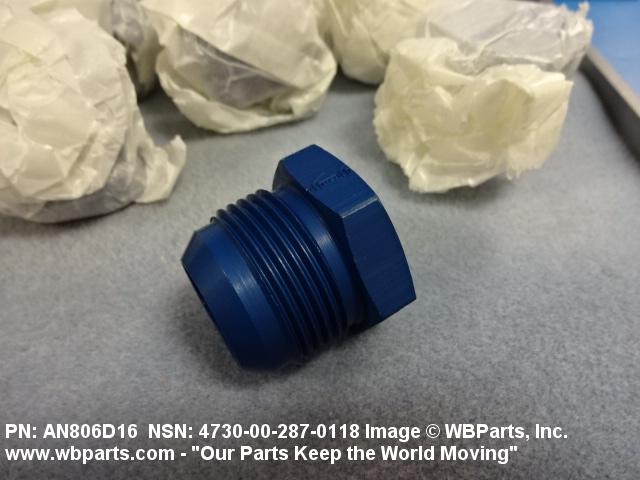

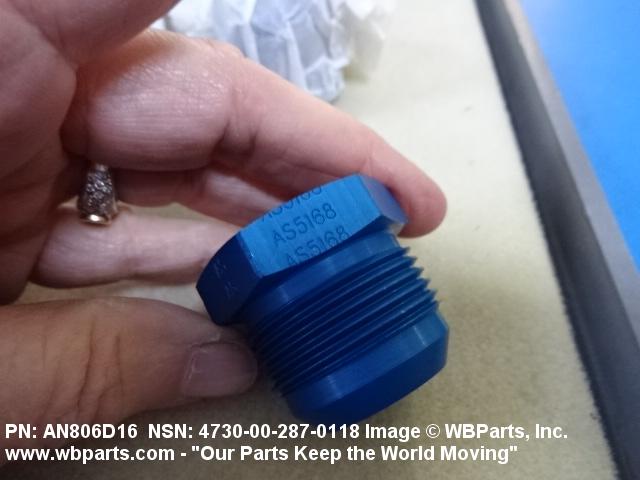

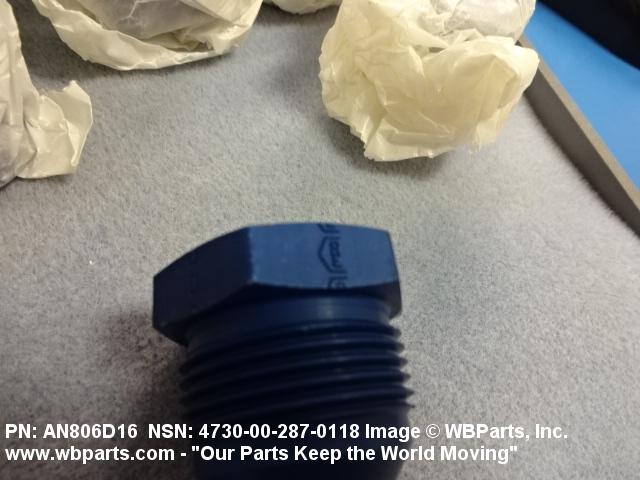

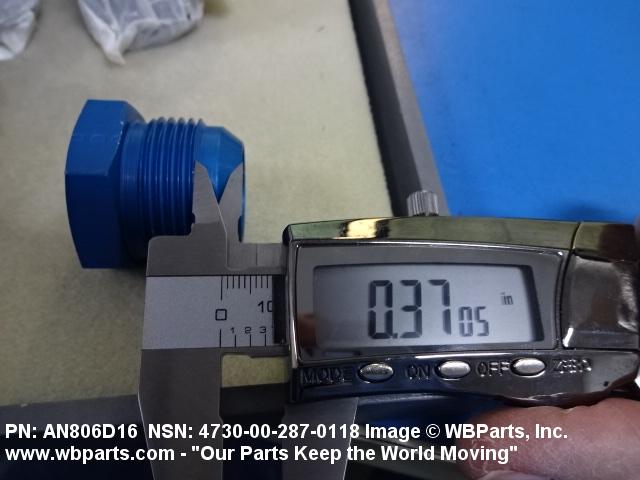

Drawings & Photos | NSN 4730-00-287-0118

Part Number	Request Date	QTY	Origin
4730-00-287-0118	2024-02-36	25	DIBBS
AS5168W16	2023-06-172	40	US
4730-00-287-0118	2023-04-96	25	DIBBS
AS5168W16	2023-03-76	2	US
AS5168W16	2023-03-76	2	US
4730-00-287-0118	2023-03-61	65	DIBBS
4730-00-287-0118	2023-02-40	30	DIBBS
4730-00-287-0118	2022-10-283	687	DIBBS
4730-00-287-0118	2022-09-255	379	DIBBS
4730-00-287-0118	2022-08-230	354	DIBBS
4730-00-287-0118	2022-03-82	416	DIBBS
4730-00-287-0118	2022-02-41	3	UK
4730-00-287-0118	2021-05-132	127	DIBBS
4730-00-287-0118	2019-11-318	551	DIBBS
AS5168W16	2019-10-303	8	United States
4730-00-287-0118	2019-08-233	314	DIBBS
4730-00-287-0118	2019-05-122	22	DIBBS
4730-00-287-0118	2019-02-45	793	DIBBS
4730-00-287-0118	2018-07-193	1581	DIBBS
4730-00-287-0118	2017-11-317	558	DIBBS
4730-00-287-0118	2017-11-306	558	DIBBS
4730-00-287-0118	2017-04-113	748	DIBBS
4730-00-287-0118	2017-04-100	748	DIBBS
4730-00-287-0118	2017-03-78	716	DIBBS
4730-00-287-0118	2017-02-41	1100	US
4730-00-287-0118	2017-02-41	1100	DIBBS
4730-00-287-0118	2016-12-354	500	DIBBS
4730-00-287-0118	2016-04-112	1	United States
AS5168D16	2016-04-112	1	United States
AS5168D16	2014-07-191	50	United States
4730-00-287-0118	2013-11-325	1	DIBBS-RFPs
4730-00-287-0118	2013-10-291	1	DIBBS-RFPs
4730-00-287-0118	2013-09-246	1	DIBBS-RFPs
4730-00-287-0118	2010-08-215	1233	DIBBS
4730-00-287-0118	2010-04-102	731	DIBBS
4730-00-287-0118	2009-12-365	653	DIBBS
AS5168W16	2009-10-286	12	US
4730-00-287-0118	2009-01-29	405	DIBBS
4730-00-287-0118	2008-01-10	1	PT

Cross Reference | NSN 4730-00-287-0118

Part Number	Cage Code	Manufacturer
AN806D16	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS5168D16	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5168W16	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-287-0118

Compare

Related Products | NSN 4730-00-287-0118

4730-00-287-0119, 4730-00-287-0120, 4730-00-287-0121, 4730-00-287-0125, 4730-00-287-0126

Technical Data | NSN 4730-00-287-0118

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/4,T6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-225/6,T6 FED SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TY 2 CL 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	C42 PLUG, TUBE FITTING FLARED
HEAD HEIGHT	0.328 INCHES MINIMUM AND 0.370 INCHES MAXIMUM

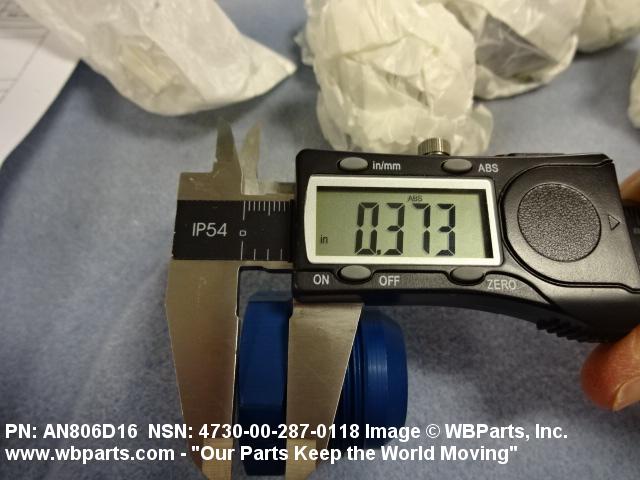

OVERALL LENGTH	0.370 INCHES MINIMUM AND 0.391 INCHES MAXIMUM
CONNECTION STYLE	J4 FLARED
THREAD SERIES DESIGNATOR	UN EXTERNAL

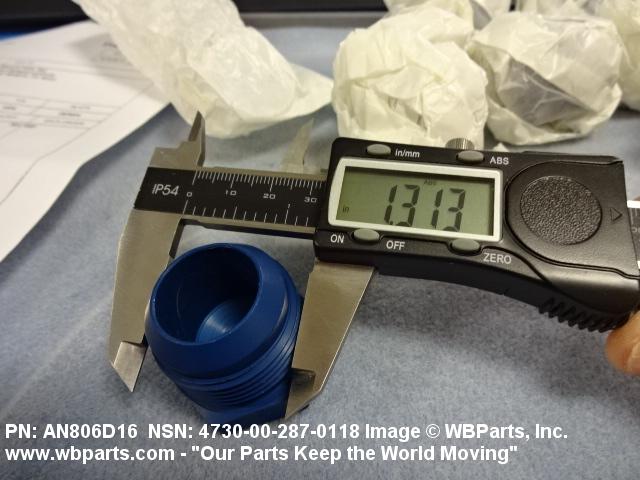

NOMINAL THREAD SIZE	1.312 INCHES EXTERNAL
THREAD QUANTITY PER INCH	12 EXTERNAL
THREAD CLASS	3A EXTERNAL
THREAD DIRECTION	RIGHT-HAND EXTERNAL
SEAT ANGLE	37.0 DEGREES
SPECIAL FEATURES	DRILLED HOLE,0.828 IN.ID BY 0.391 IN.DEEP AT BOTTOM
III END ITEM IDENTIFICATION	GRUMMAN A-10 AIRCRAFT
(NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED	3000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID
(NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED	225.0 DEG FAHRENHEIT HYDRAULIC FLUID
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILF5509A

Restrictions/Controls & Freight Information | NSN 4730-00-287-0118

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013120	ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-287-0118

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
