NSN 4730-00-287-0110 AN806D4, AN806-D4, AS4841

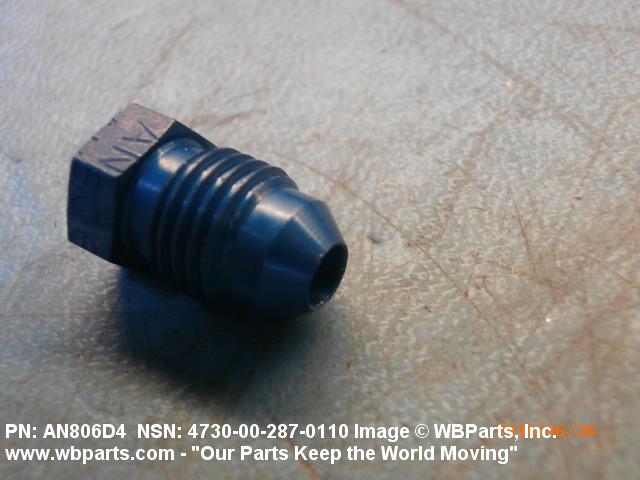

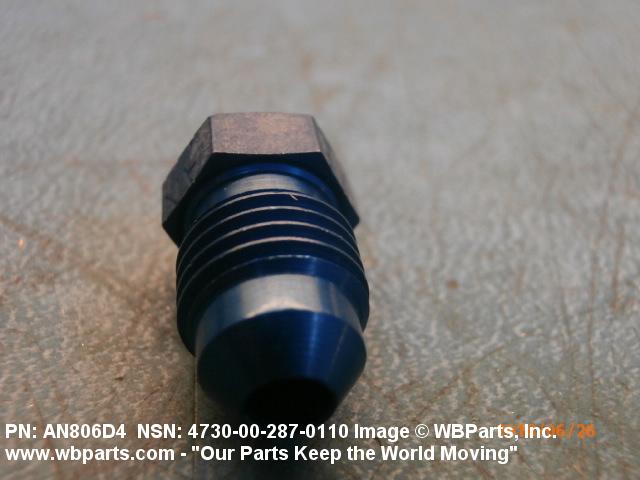

Product Details | THREADED TUBE FITTING PLUG
4730-00-287-0110 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: AN806D4, AN806-D4, AS4841, AS5168D04, MILF5509, Z00.N7079061052, Z00N7079061052, 219-2-1/2 , 219212, 3117212, 400612, 4730-00-287-0110, 00-287-0110, 4730002870110, 002870110
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-287-0110 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

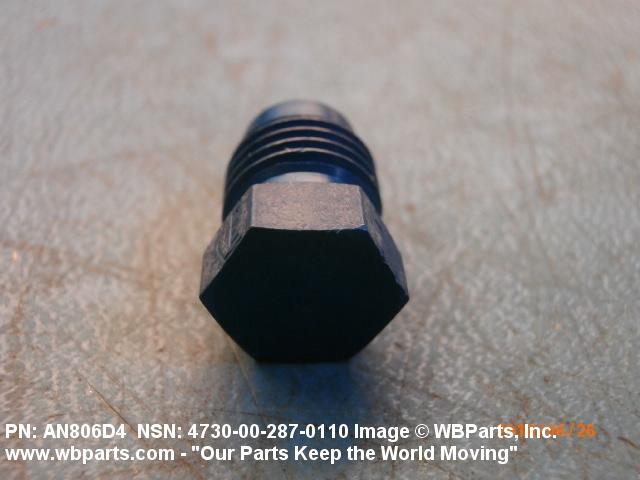

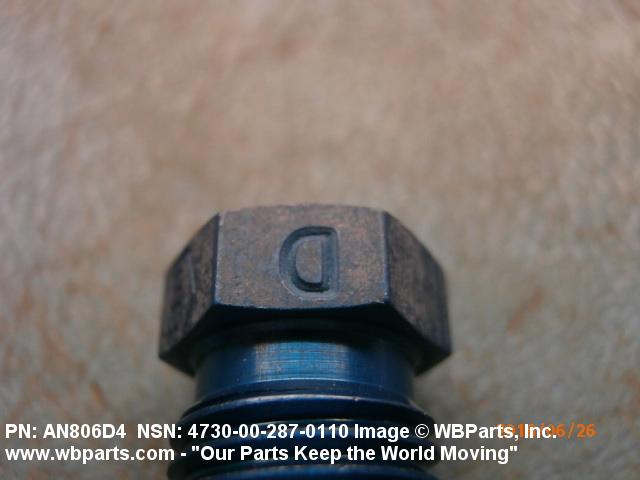

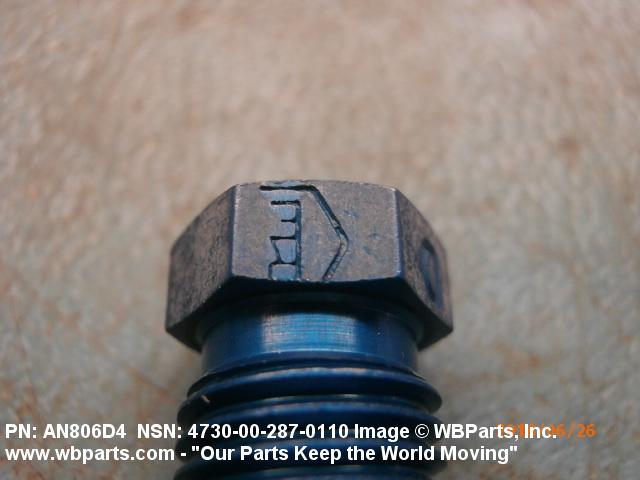

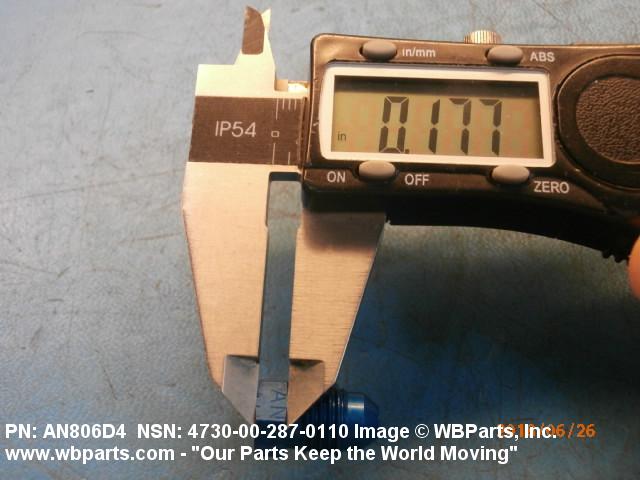

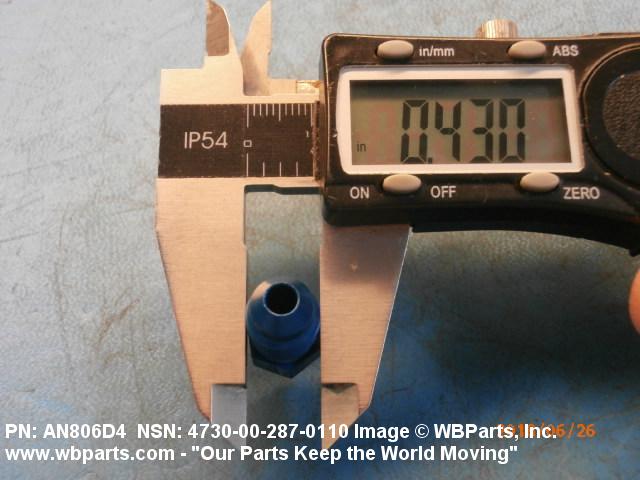

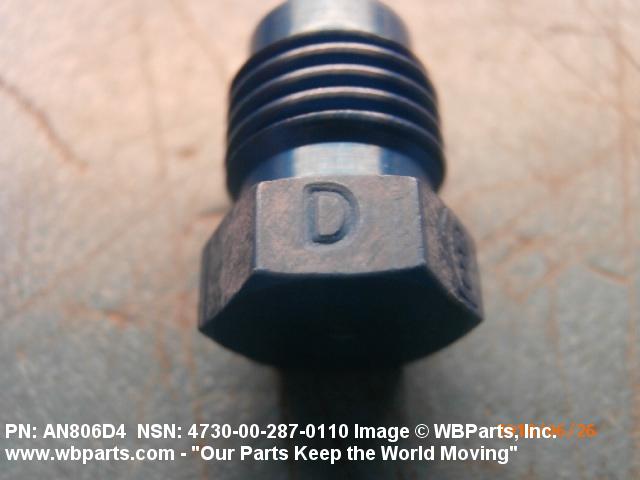

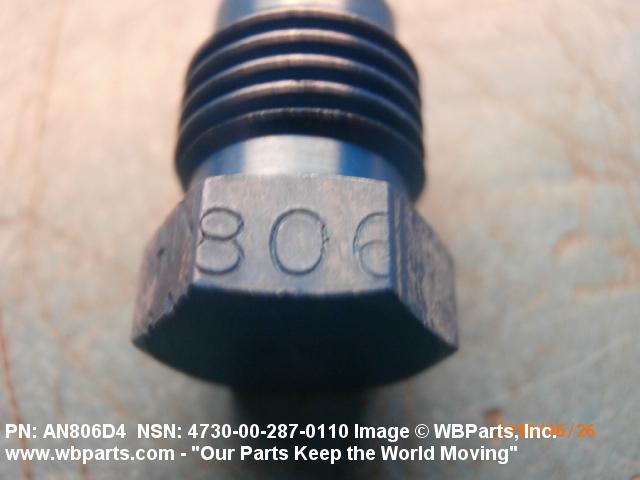

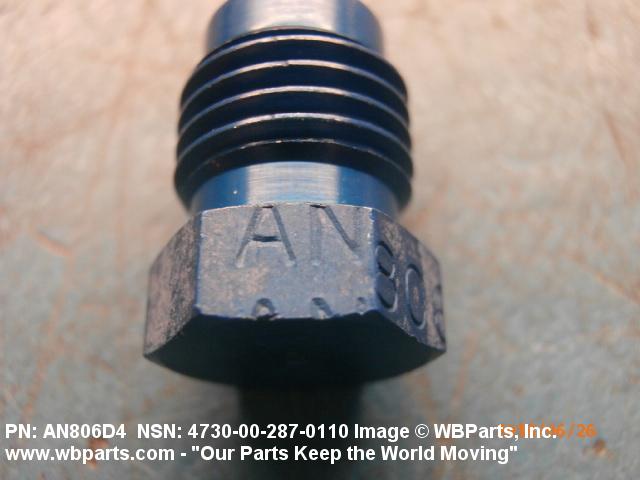

Drawings & Photos | NSN 4730-00-287-0110
Demand History | NSN 4730-00-287-0110
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN806D4 | 2023-05-122 | 20 | US |
| AS5168D04 | 2022-10-286 | 1 | US |
| AN806D4 | 2021-03-67 | 2 | United States |
| 4730-00-287-0110 | 2018-09-270 | 16225 | DIBBS |
| MILF5509 | 2018-07-201 | 6 | United States |
| AN806D4 | 2018-05-141 | 16 | United States |
| 4730-00-287-0110 | 2018-01-30 | 11301 | DIBBS |
| AN806D4 | 2017-09-257 | 12 | US |
| 4730-00-287-0110 | 2017-03-72 | 156 | United States |
| 4730-00-287-0110 | 2013-09-255 | 181 | NL |
| AS4841 | 2011-03-69 | 8 | |
| 4730-00-287-0110 | 2010-01-06 | 5601 | DIBBS |
| 4730-00-287-0110 | 2009-11-323 | 4129 | DIBBS |
| MILF5509 | 2009-10-301 | 1 | PK |
| 4730-00-287-0110 | 2009-10-292 | 5438 | DIBBS |
| 4730-00-287-0110 | 2009-05-127 | 33843 | DIBBS |
| MILF5509 | 2009-02-55 | 100 | US |
| AS5168D04 | 2008-05-135 | 50 | United States |
| AS5168D04 | 2007-09-254 | 100 | IT |
Cross Reference | NSN 4730-00-287-0110
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3117212 | 001JK | EMBRAER S/A |
| 3117212 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 3117212 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 400612 | 77948 | SINGER CO THE |
| AN806-D4 | 97499 | BELL HELICOPTER TEXTRON INC. |
| AN806D4 | 22995 | CROWN FITTING CO INC |
| AN806D4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5168 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5168D04 | 59680 | B. & E. MANUFACTURING CO., INC. |
| AS5168D04 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MILF5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| Z00.N7079061052 | F0086 | SOCATA |
