NSN 4730-00-279-0456 MS208254D, MS20825-4D, AN8254D
Product Details | PIPE TO TUBE TEE
4730-00-279-0456 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The pipe connection(s) has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The tube connection(s) has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of pipe or pipe fitting and a tube or tube fitting.
Part Alternates: MS208254D, MS20825-4D, AN8254D, AN825-4D, AS4842/1 , AS48421, AS5197, AS5197W040402, 01813, 04SBTXD, 24836, 2736984D, 273698-4D, 4SBTXD, 933222286010, 93322-2286-010, 982504, 4730-00-279-0456, 00-279-0456, 4730002790456, 002790456
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 JUL 1966 | 00-279-0456 | 03807 ( TEE, PIPE TO TUBE ) |

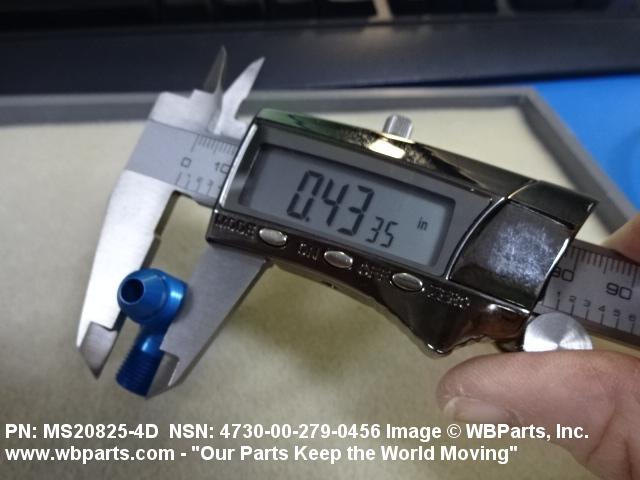

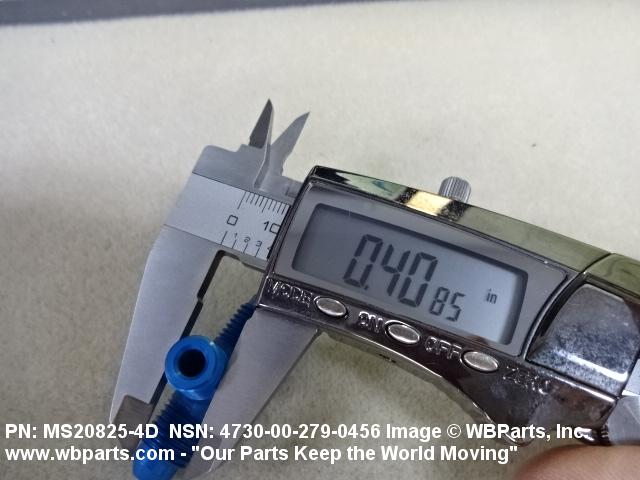

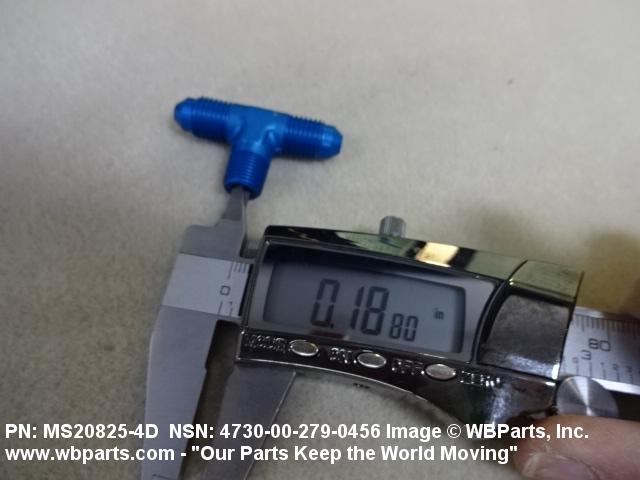

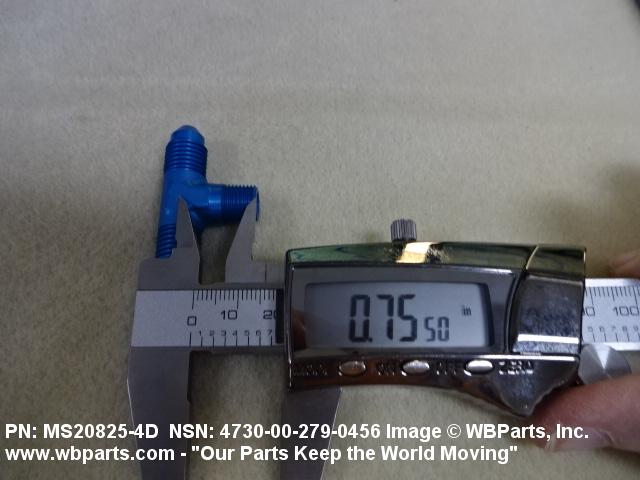

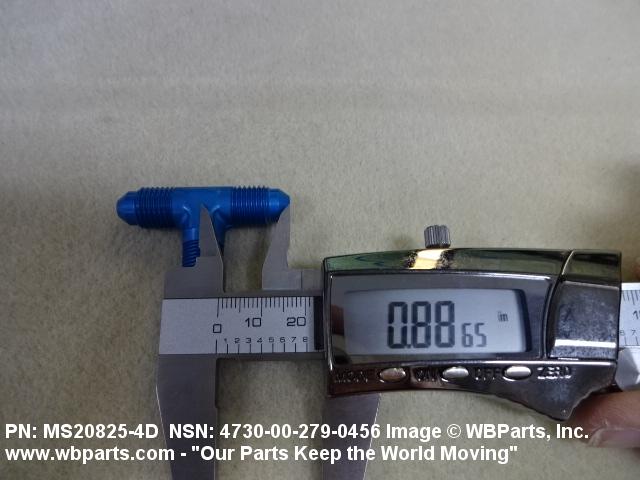

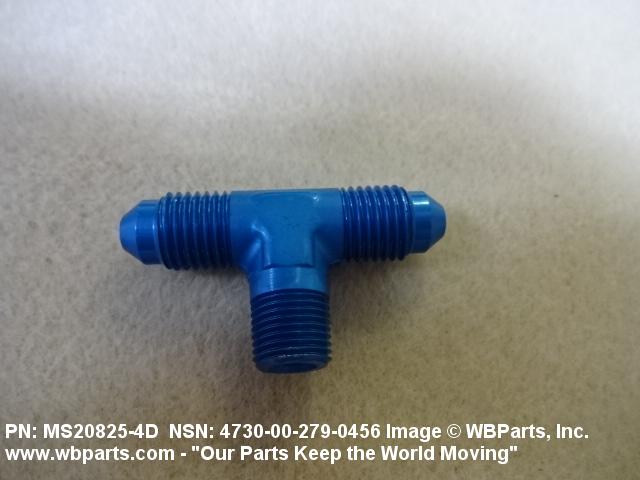

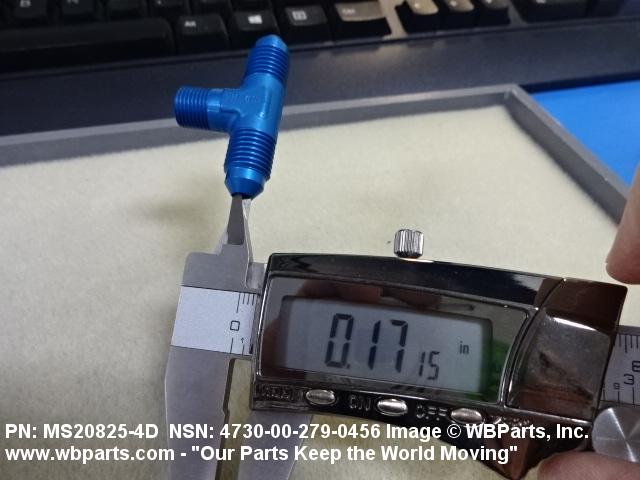

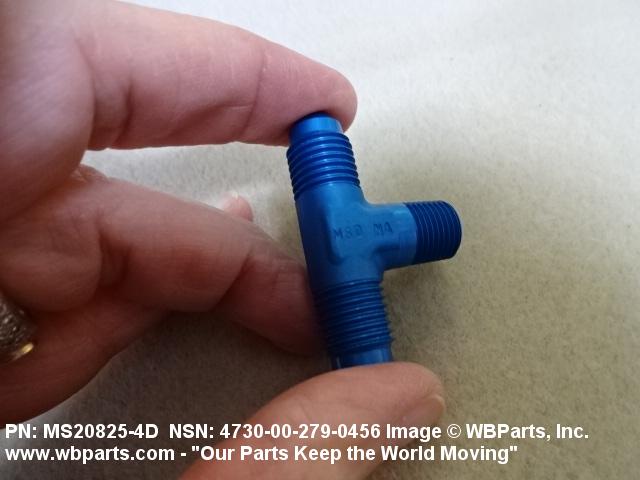

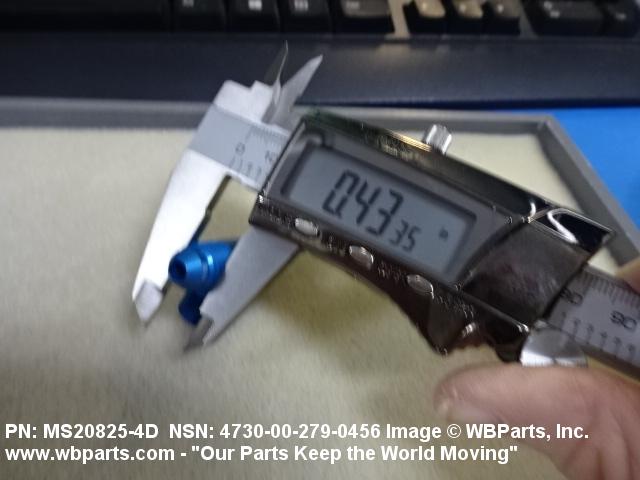

Drawings & Photos | NSN 4730-00-279-0456
Demand History | NSN 4730-00-279-0456
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-279-0456 | 2024-03-81 | 311 | DIBBS |
| 4730-00-279-0456 | 2022-10-303 | 312 | DIBBS |
| 4730-00-279-0456 | 2021-03-60 | 157 | DIBBS |
| MS208254D | 2021-02-49 | 100 | United States |
| 4730-00-279-0456 | 2020-11-322 | 1 | United States |
| 4730-00-279-0456 | 2019-08-213 | 291 | DIBBS |
| 4730-00-279-0456 | 2018-12-347 | 42 | DIBBS |
| 4730-00-279-0456 | 2018-11-318 | 58 | DIBBS |
| MS208254D | 2015-11-328 | 1 | United States |
| AS48421 | 2015-05-132 | 1 | CA |
| 4730-00-279-0456 | 2014-11-307 | 150 | DIBBS |
| MS208254D | 2011-05-147 | 60 | US |
| MS208254D | 2011-05-147 | 115 | US |
| 4730-00-279-0456 | 2011-01-07 | 108 | DIBBS |
Cross Reference | NSN 4730-00-279-0456
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01813 | 75547 | LAWRENCE AERONAUTICAL CORP |
| 04SBTXD | 63078 | ALLIED FARM EQUIPMENT INC VIKING DIV |
| 24836 | 0KDP7 | KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS |
| 24836 | 16004 | DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC |
| 273698-4D | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 4SBTXD | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 93322-2286-010 | 61349 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| 982504 | 65023 | EARLS SUPPLY CO |
| AN825-4D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS5197W040402 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS20825-4D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-279-0456
Related Products | NSN 4730-00-279-0456
Technical Data | NSN 4730-00-279-0456
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4,TEMPER T6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-225/6,TEMPER T6 OR T851 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-367,TEMPER T6 FED SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE INSIDE ANODIZE OUTSIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END THREADED EXTERNAL PIPE 3RD END |
| CONNECTION STYLE | B64 FLARED 1ST END B64 FLARED 2ND END B67B PLAIN 3RD END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END NPT 3RD END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.438 INCHES 2ND END 0.125 INCHES 3RD END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |
| LEG LENGTH | 0.859 INCHES NOMINAL 1ST END 0.750 INCHES NOMINAL 3RD END |
| SPECIAL FEATURES | GRUMMAN A-10 AIRCRAFT;WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | AIRCRAFT, EAGLE F-15 |
Restrictions/Controls & Freight Information | NSN 4730-00-279-0456
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | 98 | DLIS-LFF Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
