NSN 4730-00-279-0457 MS208253D, MS20825-3D , MS208255D
Product Details | PIPE TO TUBE TEE
4730-00-279-0457 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The pipe connection(s) has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The tube connection(s) has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of pipe or pipe fitting and a tube or tube fitting.
Part Alternates: MS208253D, MS20825-3D , MS208255D, MS20825-5D, AN8255D, AN825-5D, AS4842/1, AS48421, AS5197, AS5197D030302 , AS5197D050502, AS5197W050502, 2136983D, 213698-3D , 2136985D, 213698-5D, 805368, 4730-00-279-0457, 00-279-0457, 4730002790457, 002790457
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-279-0457 | 03807 ( TEE, PIPE TO TUBE ) |

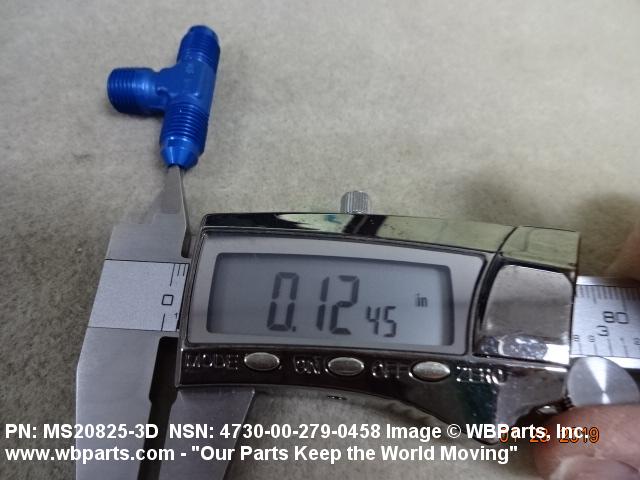

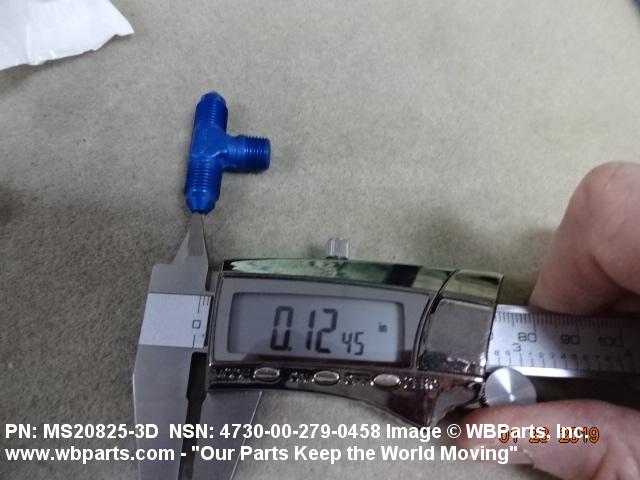

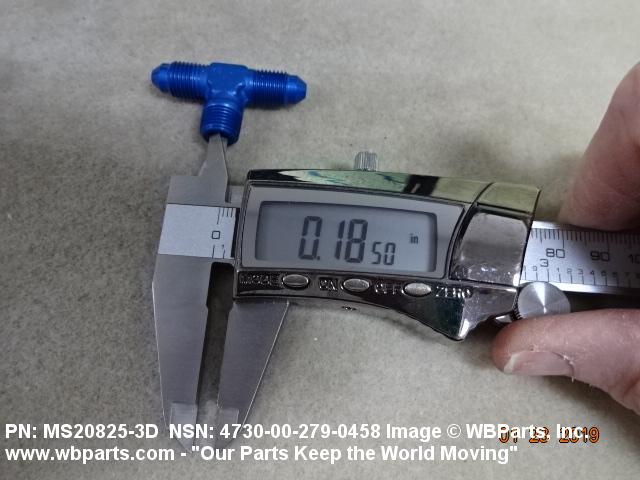

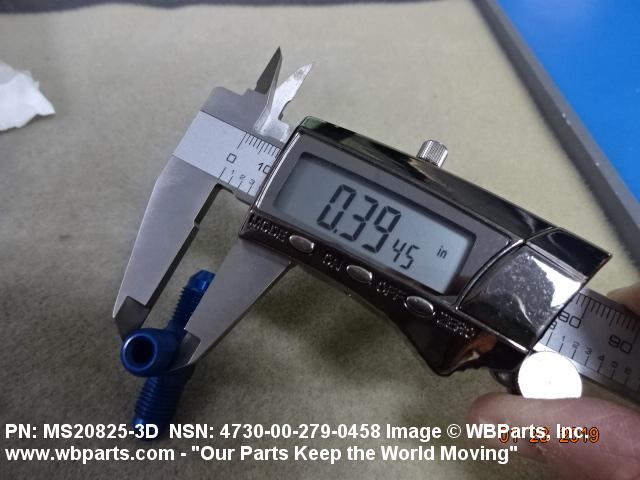

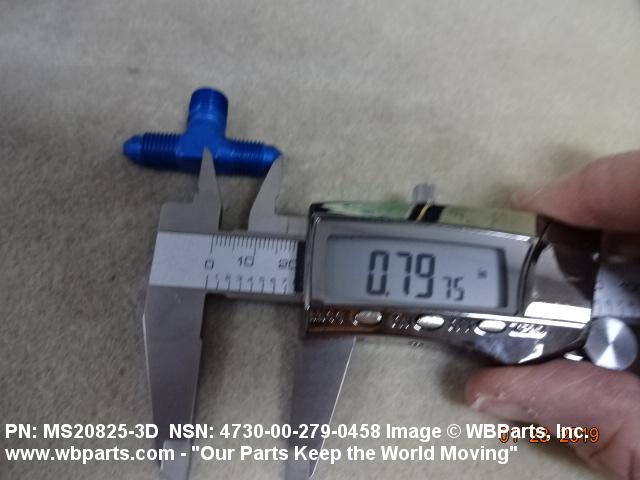

Drawings & Photos | NSN 4730-00-279-0457
Demand History | NSN 4730-00-279-0457
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-279-0457 | 2016-08-224 | 133 | DIBBS |
| 4730-00-279-0457 | 2016-07-213 | 133 | DIBBS |
| 4730-00-279-0457 | 2015-10-277 | 158 | DIBBS |
| 4730-00-279-0457 | 2015-08-215 | 31 | DIBBS |
| 4730-00-279-0457 | 2015-05-147 | 31 | DIBBS |
| AS48421 | 2015-05-132 | 1 | CA |
| 4730-00-279-0457 | 2012-09-262 | 171 | DIBBS |
| 4730-00-279-0457 | 2011-01-18 | 112 | DIBBS |
Cross Reference | NSN 4730-00-279-0457
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 213698-5D | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 805368 | 19203 | PICATINNY ARSENAL |
| AN825-5D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5197 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5197D050502 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5197W050502 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| E21296-01 | D1379 | B/E AEROSPACE SYSTEMS GMBH DIV OXYGEN & PSU SYSTEMS |
| MS20825-5D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-279-0457
Related Products | NSN 4730-00-279-0457
Technical Data | NSN 4730-00-279-0457
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE INSIDE ANODIZE OUTSIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END THREADED EXTERNAL PIPE 3RD END |
| CONNECTION STYLE | B64 FLARED 1ST END B64 FLARED 2ND END B67B PLAIN 3RD END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.312 INCHES 1ST END 0.312 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END ANPT 3RD END |
| NOMINAL THREAD SIZE | 0.500 INCHES 1ST END 0.500 INCHES 2ND END 0.125 INCHES 3RD END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |
| LEG LENGTH | 0.922 INCHES NOMINAL 1ST END 0.750 INCHES NOMINAL 3RD END |
Restrictions/Controls & Freight Information | NSN 4730-00-279-0457
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-279-0457
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
