NSN 4730-00-278-5126 MS208264D, MS20826-4D, AS4842/1

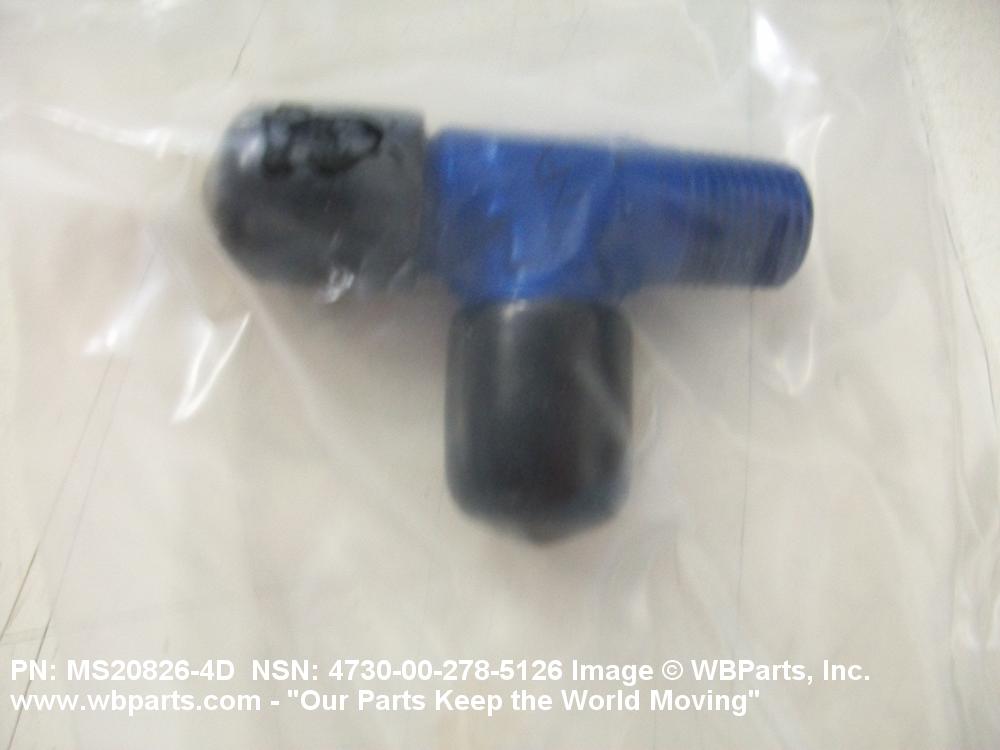

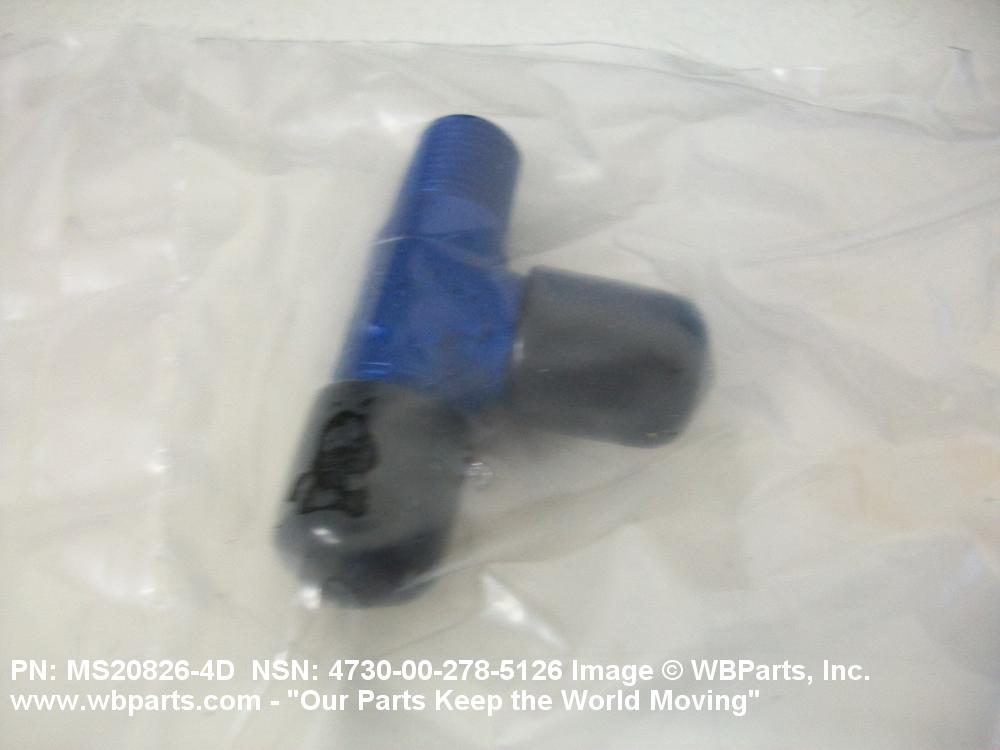

Product Details | PIPE TO TUBE TEE
4730-00-278-5126 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The pipe connection(s) has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The tube connection(s) has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of pipe or pipe fitting and a tube or tube fitting.
Part Alternates: MS208264D, MS20826-4D, AS4842/1, AS48421, AS5198, AS5198W040204, 2136994D, 213699-4D, 3320228000, 332-0228-000, 6700357, 4730-00-278-5126, 00-278-5126, 4730002785126, 002785126
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-278-5126 | 03807 ( TEE, PIPE TO TUBE ) |
Drawings & Photos | NSN 4730-00-278-5126
Demand History | NSN 4730-00-278-5126
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-278-5126 | 2017-04-117 | 380 | DIBBS |
| AS48421 | 2015-05-132 | 1 | CA |
| MS20826-4D | 2012-08-235 | 1 | TW |
| 4730-00-278-5126 | 2011-08-217 | 296 | United States |
| 4730-00-278-5126 | 2011-08-217 | 70 | United States |
| 4730-00-278-5126 | 2011-06-180 | 366 | DIBBS |
| 4730-00-278-5126 | 2011-03-70 | 298 | DIBBS |
Cross Reference | NSN 4730-00-278-5126
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 213699-4D | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 332-0228-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 6700357 | 24617 | GENERAL MOTORS CORP |
| 6700357 | 73342 | ALLISON TRANSMISSION, INC. |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5198 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5198W040204 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS20826-4D | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| MS20826-4D | 30974 | AEROFIT, LLC |
| MS20826-4D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-278-5126
Related Products | NSN 4730-00-278-5126
Technical Data | NSN 4730-00-278-5126
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367,T6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-367,T73 FED SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID 1ST RESPONSE OXYGEN, GASEOUS 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 225.0 DEG FAHRENHEIT 1ST RESPONSE -65.0 DEG FAHRENHEIT 2ND RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END THREADED EXTERNAL TUBE 3RD END |
| CONNECTION STYLE | B64 FLARED 1ST END B67B PLAIN 2ND END B64 FLARED 3RD END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 3RD END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END 0.250 INCHES 3RD END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END ANPT 2ND END UNJF 3RD END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.125 INCHES 2ND END 0.438 INCHES 3RD END |
| THREAD CLASS | 3A 1ST END 3A 3RD END |
| LEG LENGTH | 0.848 INCHES MINIMUM AND 0.866 INCHES MAXIMUM 1ST END 0.742 INCHES MINIMUM AND 0.758 INCHES MAXIMUM 2ND END 0.848 INCHES MINIMUM AND 0.866 INCHES MAXIMUM 3RD END |
| SPECIAL FEATURES | END ITEM: GRUMMAN A10 AIRCRAFT |
| SPECIFICATION/STANDARD DATA | 96906-MS20826 GOVERNMENT STANDARD |
