Product Details | PIPE TO TUBE TEE

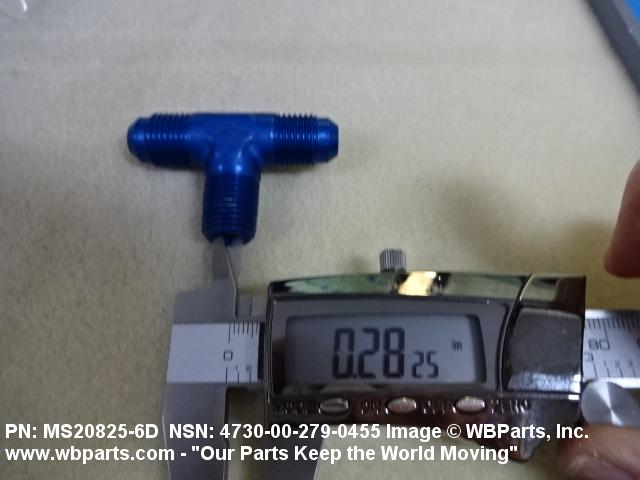

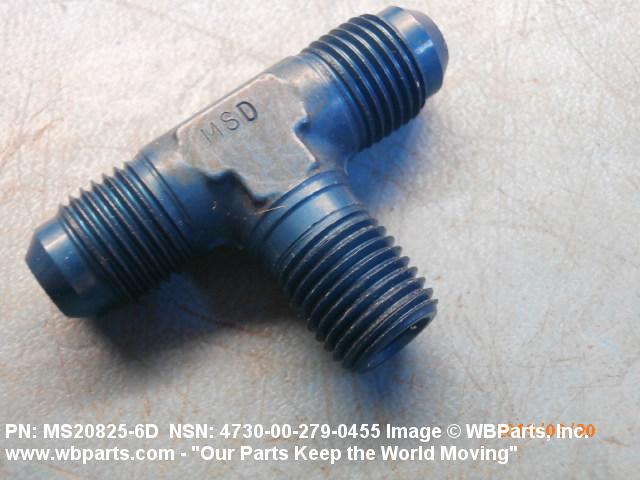

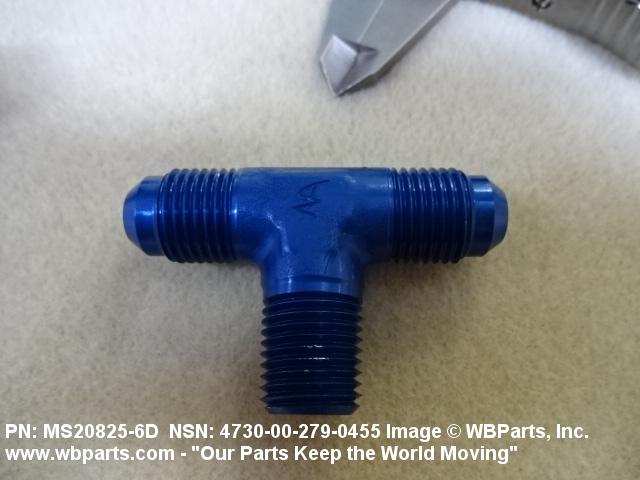

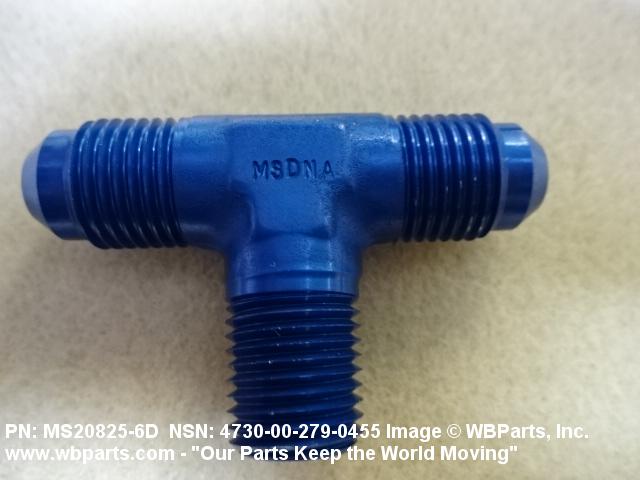

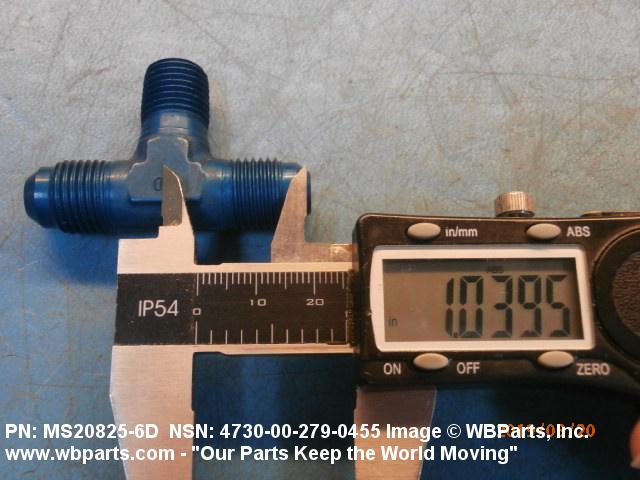

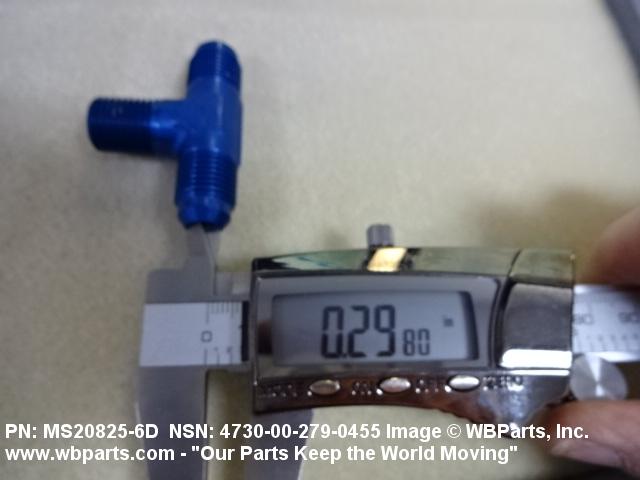

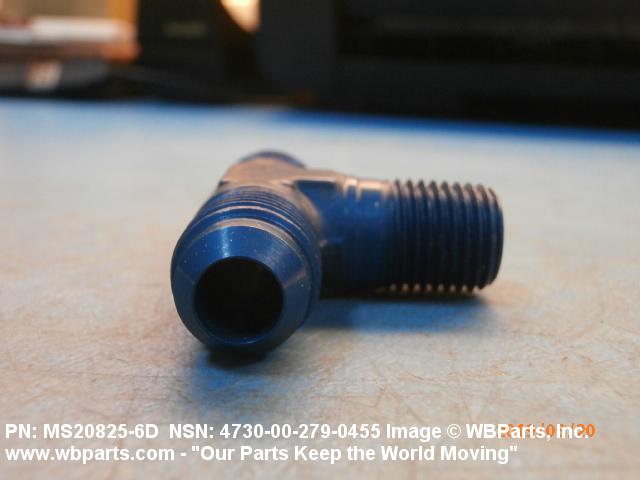

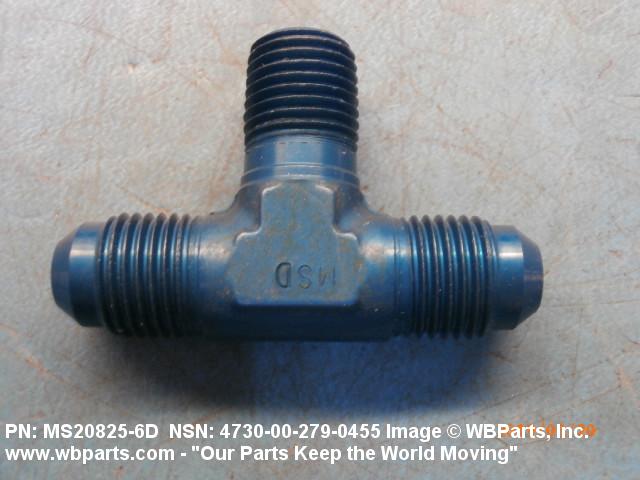

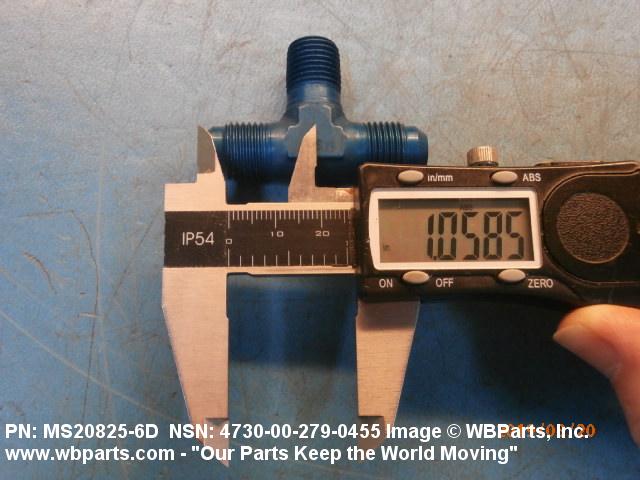

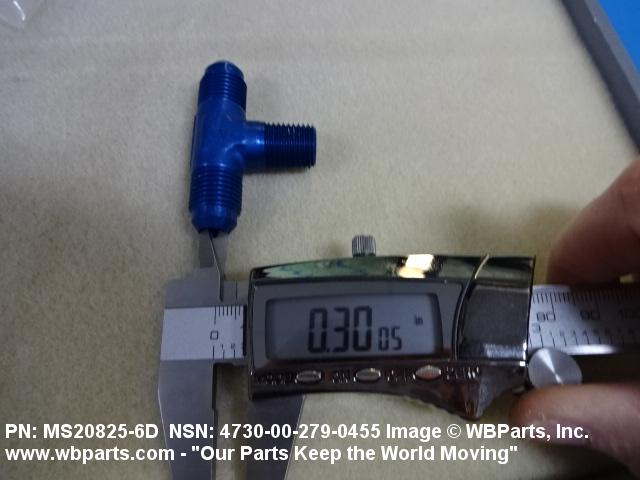

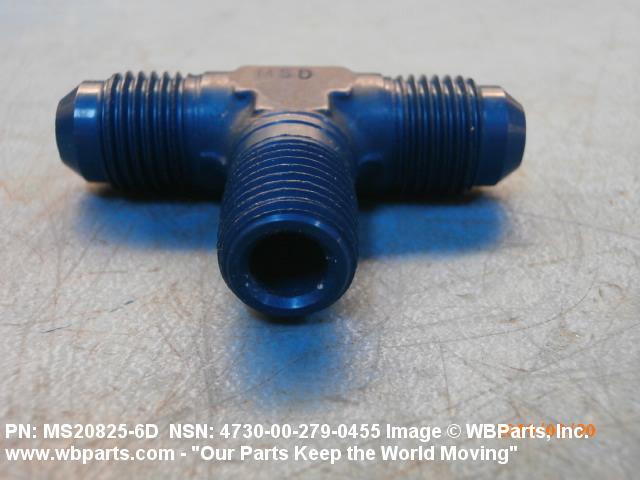

4730-00-279-0455 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The pipe connection(s) has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The tube connection(s) has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of pipe or pipe fitting and a tube or tube fitting.
Part Alternates: MS208255D, MS20825-5D , MS208256D, MS20825-6D, AN8256D, AN825-6D, AS4842/1, AS48421, AS5197, AS5197W060604, B47609501, B47609-501, E2129601, E21296-01 , Z00.N7730060006, Z00N7730060006, 805368, 8537203, 2136985D, 213698-5D , 2136986D, 213698-6D, 4730-00-279-0455, 00-279-0455, 4730002790455, 002790455, 314220845
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-279-0455 | 03807 ( TEE, PIPE TO TUBE ) |

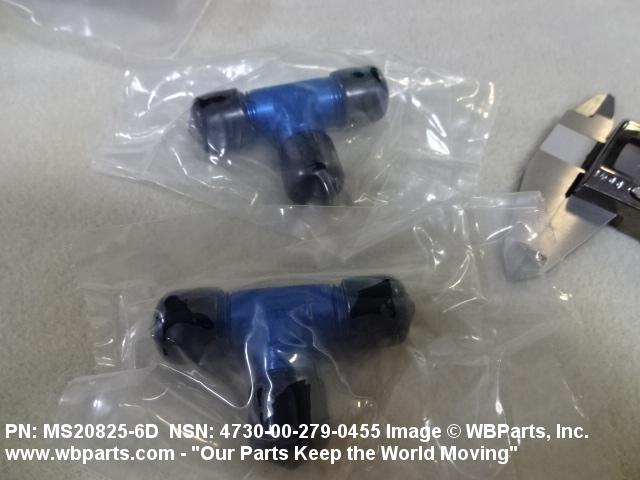

Drawings & Photos | NSN 4730-00-279-0455
Demand History | NSN 4730-00-279-0455
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS208256D | 2019-03-63 | 7 | China |
| MS208256D | 2019-03-63 | 7 | China |
| AS48421 | 2015-05-132 | 1 | CA |
| MS208256D | 2011-02-42 | 10 | HK |
| 4730-00-279-0455 | 2009-10-299 | 91 | DIBBS |
| AS5197W060604 | 2009-10-286 | 54 | US |
| 4730-00-279-0455 | 2009-07-208 | 51 | DIBBS |
Cross Reference | NSN 4730-00-279-0455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 213698-6D | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 314220845 | U0625 | B-N GROUP LTD |
| 8537203 | 19203 | PICATINNY ARSENAL |
| AN825-6D | 09098 | UNITED MCGILL CORP |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5197 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5197W060604 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| B47609-501 | 08441 | SPX CORPORATION DBA DIELECTRIC COMMUNICATIONS |
| MS20825-6D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS20825-6D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| MS20825-6D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| MS20825-6D | 14397 | FABER ENTERPRISES, INC. |
| MS20825-6D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| MS20825-6D | 22995 | CROWN FITTING CO INC |
| MS20825-6D | 30974 | AEROFIT, LLC |
| MS20825-6D | 71563 | COLLINS ENGINEERING CORP |
| MS20825-6D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| Z00.N7730060006 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-279-0455
Related Products | NSN 4730-00-279-0455
Technical Data | NSN 4730-00-279-0455
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4,TEMPER6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-225/6,TEMPER T6 OR T851 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-367,TEMPER T6 FED SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END THREADED EXTERNAL PIPE 3RD END |
| CONNECTION STYLE | B64 FLARED 1ST END B64 FLARED 2ND END B67B PLAIN 3RD END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 2ND END |

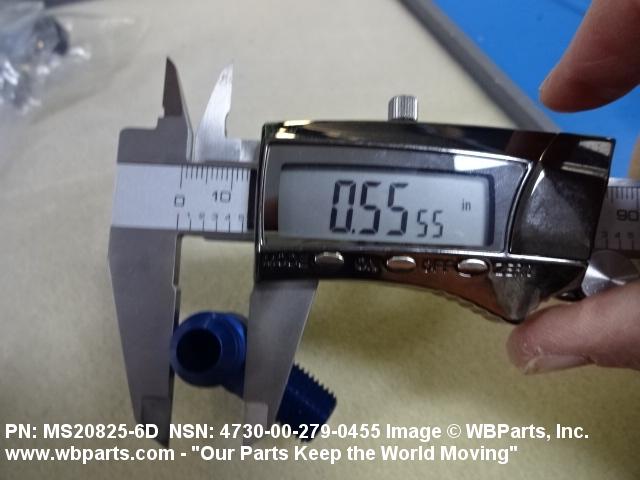

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END 0.375 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END UNJF 2ND END ANPT 3RD END |

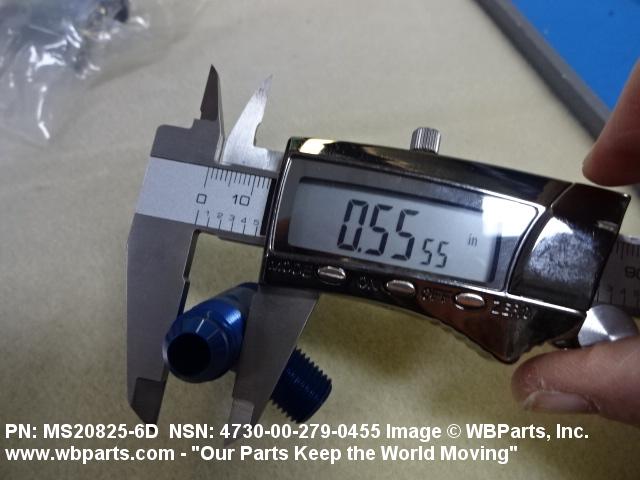

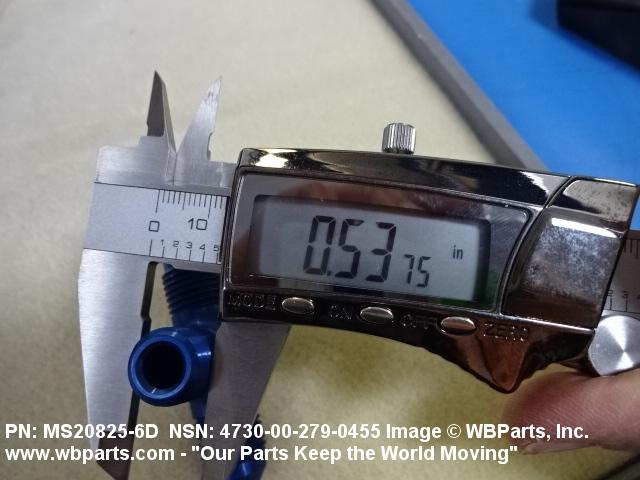

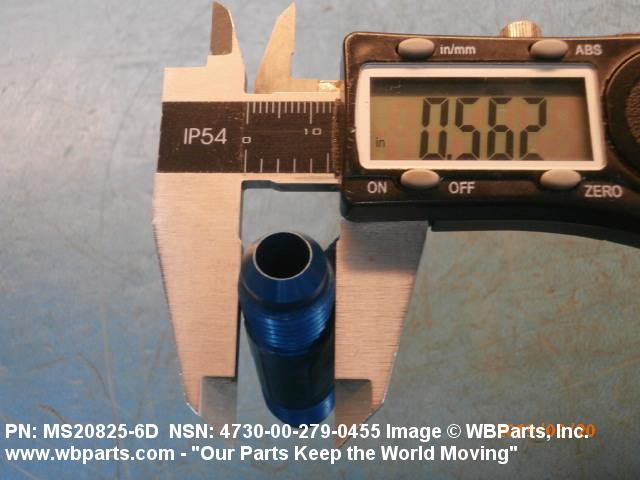

| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END 0.562 INCHES 2ND END 0.250 INCHES 3RD END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |
| LEG LENGTH | 1.031 INCHES NOMINAL 1ST END 1.062 INCHES NOMINAL 3RD END |
| SPECIAL FEATURES | GRUMMAN A-10 AIRCRAFT |
| SPECIFICATION/STANDARD DATA | 96906-MS20825 GOVERNMENT STANDARD |
