NSN 4730-00-274-4650 AE164076610, AE16407-6-6-10, AP379T060610
Product Details | TUBE TEE
4730-00-274-4650 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: AE164076610, AE16407-6-6-10, AP379T060610, ST7M233T060610, R45132T060610, 4730-00-274-4650, 00-274-4650, 4730002744650, 002744650
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 AUG 1973 | 00-274-4650 | 03809 ( TEE, TUBE ) |

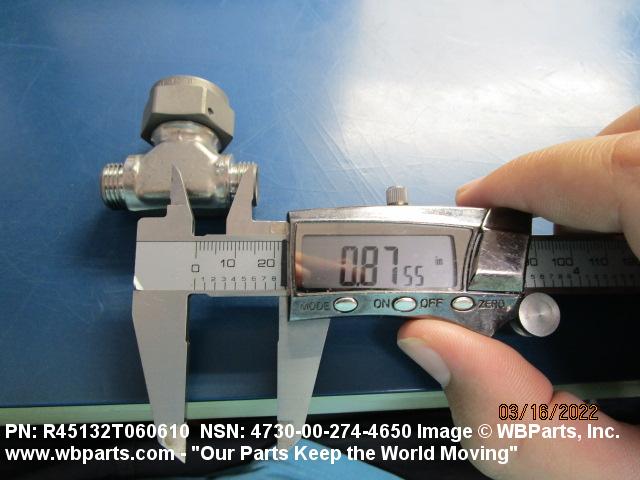

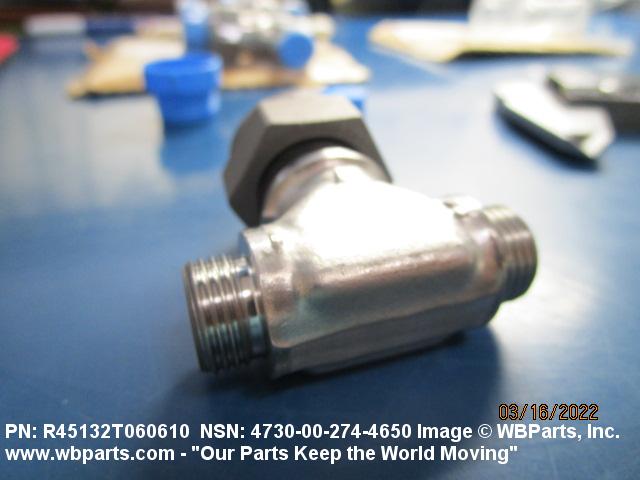

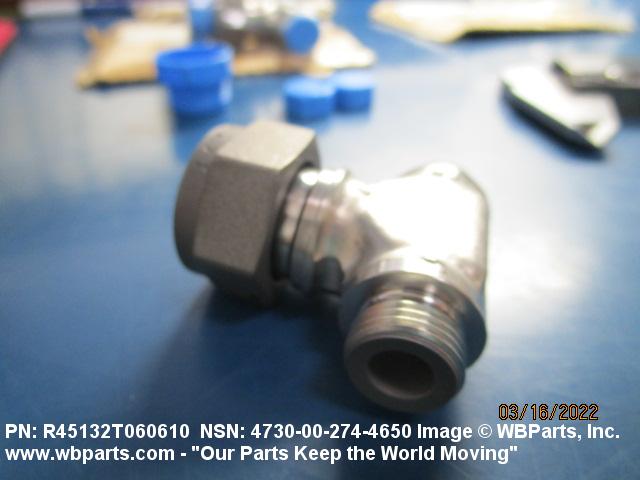

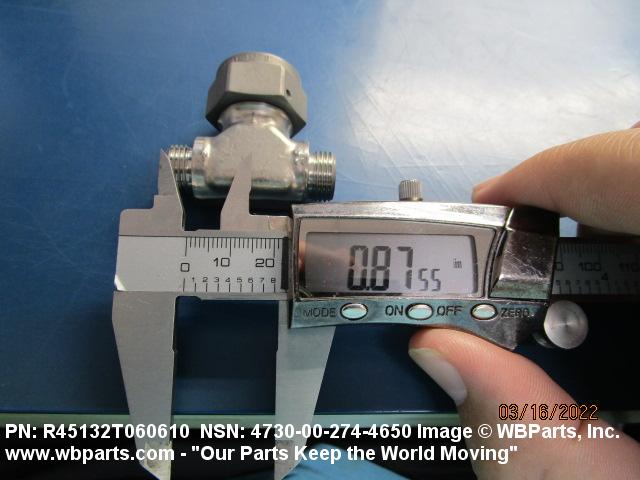

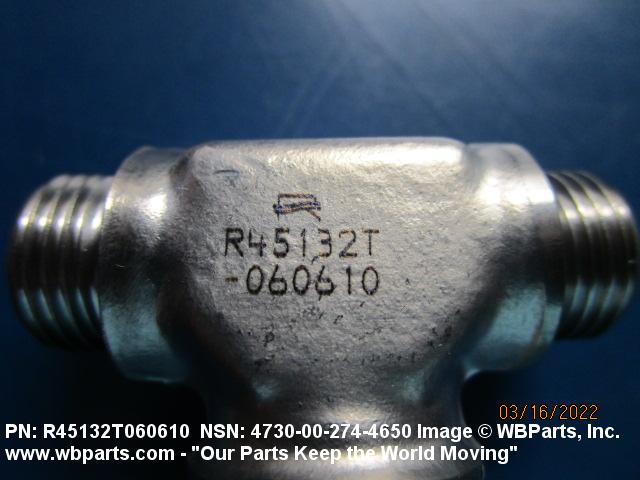

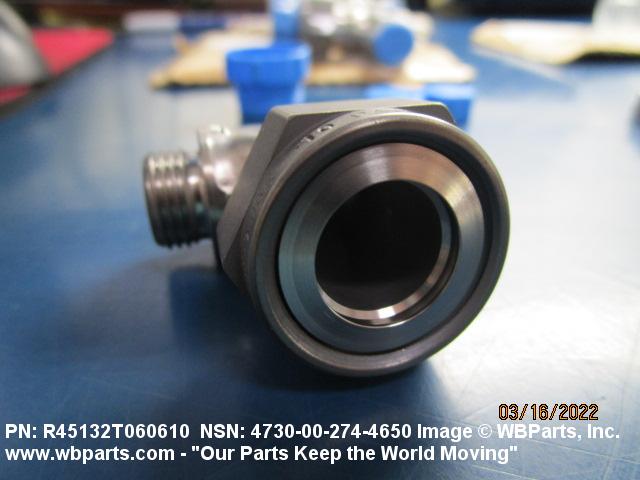

Drawings & Photos | NSN 4730-00-274-4650
Demand History | NSN 4730-00-274-4650
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-274-4650 | 2022-01-12 | 3 | Singapore |
| AE16407-6-6-10 | 2019-05-127 | 3 | DIBBS |
| AP379T060610 | 2019-05-127 | 3 | DIBBS |
| R45132T060610 | 2019-05-127 | 3 | DIBBS |
| ST7M233T060610 | 2019-05-127 | 3 | DIBBS |
| AE16407-6-6-10 | 2019-04-115 | 3 | DIBBS |
| AP379T060610 | 2019-04-115 | 3 | DIBBS |
| R45132T060610 | 2019-04-115 | 3 | DIBBS |
| ST7M233T060610 | 2019-04-115 | 3 | DIBBS |
Cross Reference | NSN 4730-00-274-4650
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-274-4650
Related Products | NSN 4730-00-274-4650
Technical Data | NSN 4730-00-274-4650
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4965,6AL-4V ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END THREADED INTERNAL TUBE 3RD END |
| CONNECTION STYLE | B63A INVERTED FLARE 1ST END B63A INVERTED FLARE 2ND END B4A SWIVEL NUT INVERTED FLARE 3RD END |
| SEAT ANGLE | 8.5 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END 0.375 INCHES 2ND END 0.625 INCHES 3RD END |
| THREAD SERIES DESIGNATOR | UNJS ALL ENDS |
| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END 0.562 INCHES 2ND END 0.843 INCHES 3RD END |
| THREAD QUANTITY PER INCH | 20 1ST END 20 2ND END 18 3RD END |
| THREAD CLASS | 3A 1ST END 3A 2ND END 3B 3RD END |
| LEG LENGTH | 0.878 INCHES NOMINAL 1ST END 0.878 INCHES NOMINAL 2ND END 1.485 INCHES NOMINAL 3RD END |
| SPECIFICATION/STANDARD DATA | 76301-ST7M233 MANUFACTURERS STANDARD |
| III END ITEM IDENTIFICATION | AIRCRAFT APPLICATION |
Restrictions/Controls & Freight Information | NSN 4730-00-274-4650
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-274-4650
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
