NSN 4730-00-257-0236 FD4511911212, FD45-1191-12-12, 6H31CSCD
Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-257-0236 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: FD4511911212, FD45-1191-12-12, 6H31CSCD, 6HP31 , 6HP31SCD, 13211E3213, 4730-00-257-0236, 00-257-0236, 4730002570236, 002570236
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 26 MAR 1971 | 00-257-0236 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

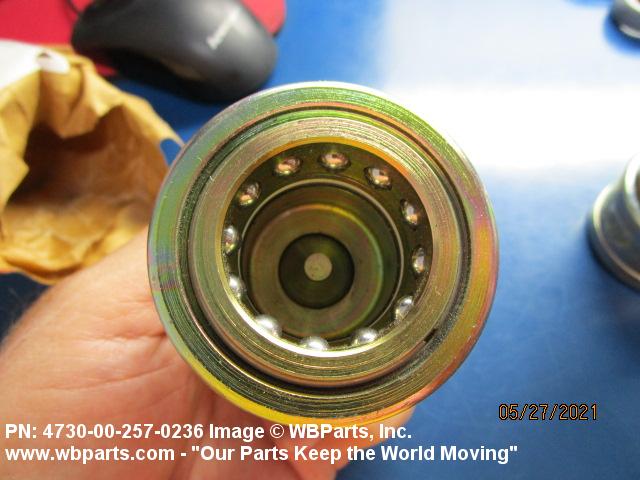

Drawings & Photos | NSN 4730-00-257-0236
Demand History | NSN 4730-00-257-0236
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6HP31S14 | 2022-11-312 | 850 | DIBBS |
| 6HP31S14 | 2022-10-278 | 850 | DIBBS |
| 6HP31S14 | 2022-05-123 | 850 | DIBBS |
| 6HP31S14 | 2022-03-90 | 850 | DIBBS |
| 4730-00-257-0236 | 2021-05-130 | 2 | South Korea |
| 6HP31S14 | 2021-02-42 | 94 | DIBBS |
| 6HP31S14 | 2021-01-31 | 94 | DIBBS |
| 6HP31S14 | 2021-01-28 | 1065 | DIBBS |
| 4730-00-257-0236 | 2016-06-154 | 694 | DIBBS |
| 4730-00-257-0236 | 2015-06-159 | 514 | DIBBS |
| 4730-00-257-0236 | 2013-10-304 | 567 | DIBBS |
| 4730-00-257-0236 | 2013-07-189 | 232 | DIBBS |
| 4730-00-257-0236 | 2013-06-174 | 232 | DIBBS |
| 4730-00-257-0236 | 2010-10-293 | 63 | DIBBS |
| 4730-00-257-0236 | 2010-10-280 | 426 | DIBBS |
| 4730-00-257-0236 | 2010-02-36 | 194 | DIBBS |
| 4730-00-257-0236 | 2009-10-302 | 350 | DIBBS |
| 4730-00-257-0236 | 2009-07-205 | 432 | DIBBS |
Cross Reference | NSN 4730-00-257-0236
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13211E3213 | 97403 | CECOM LR CENTER |
| 6H31CSCD | 09971 | STURGIS M B INC |
| 6H31CSCD | 73992 | TUTHILL CORP HANSEN COUPLING DIV |
| 6HP31 | 73992 | TUTHILL CORP HANSEN COUPLING DIV |
| 6HP31(S)CD | 09971 | STURGIS M B INC |
| 6HP31SCD | 73992 | TUTHILL CORP HANSEN COUPLING DIV |
| FD45-1191-12-12 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-257-0236
Related Products | NSN 4730-00-257-0236
Technical Data | NSN 4730-00-257-0236
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL |
| BODY SURFACE TREATMENT | CADMIUM |
| BODY STYLE | 1 COUPLING HALF |
| FIRST LEG LENGTH | ANY ACCEPTABLE |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3800.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | NOT RATED |
| OVERALL LENGTH | 3.484 INCHES NOMINAL |
| FIRST FLUID END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | B14 PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES |
| FIRST END THREAD SERIES DESIGNATOR | NPT |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |
| QUICK DISCONNECT END CONNECTION TYPE | INTERNAL ALL ENDS |
| FEATURES PROVIDED | SELF-SEALING |
| III MATING END IDENTIFICATION | ARMY ENGINEER RESEARCH AND DEVELOPEMENT LABORATORIES PLUG QUICK DISCONNECT PART NO. 13211E3212 |
| MANUFACTURERS CODE | 97403 |
| MFR SOURCE CONTROLLING REFERENCE | 13211E3213 |
