NSN 4730-00-251-8549 1305J12C, 00-251-8549, 002518549
Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-251-8549 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 1305J12C, 4730-00-251-8549, 00-251-8549, 4730002518549, 002518549
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 JUL 1969 | 00-251-8549 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

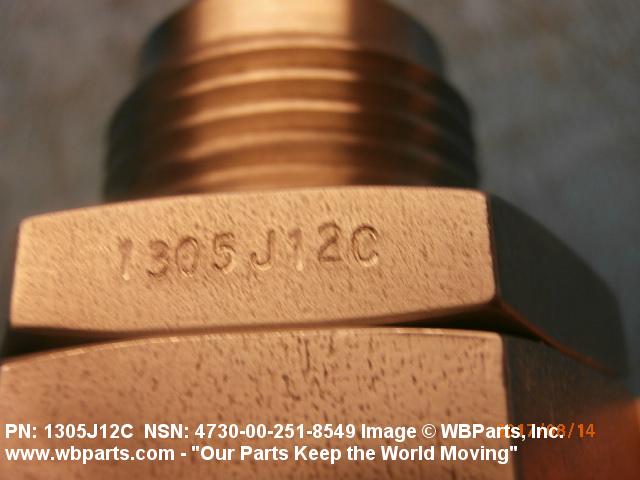

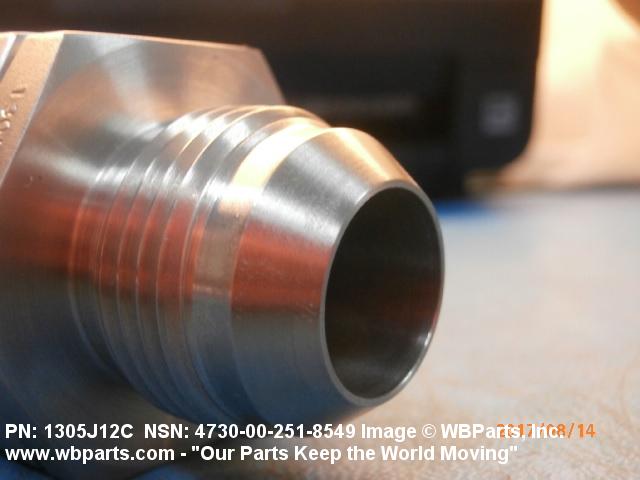

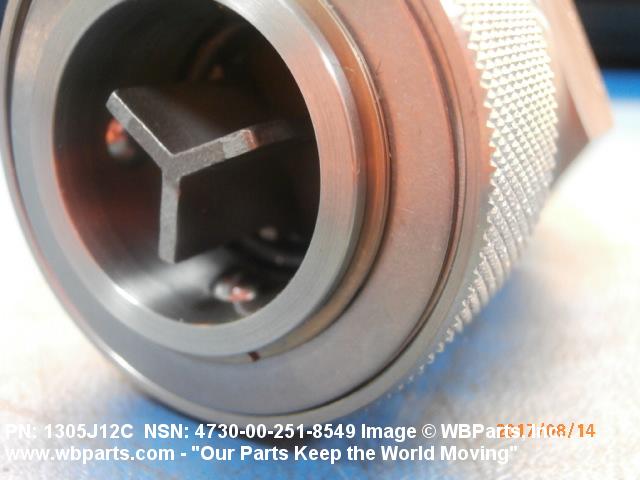

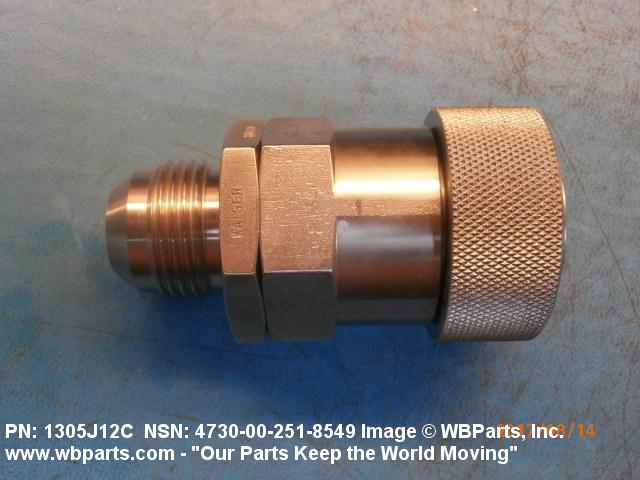

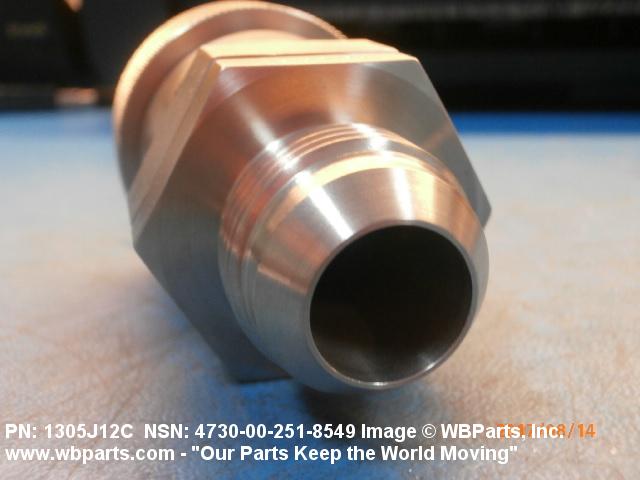

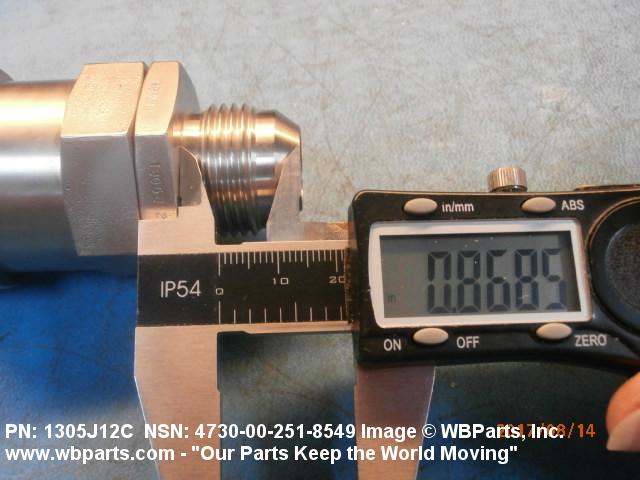

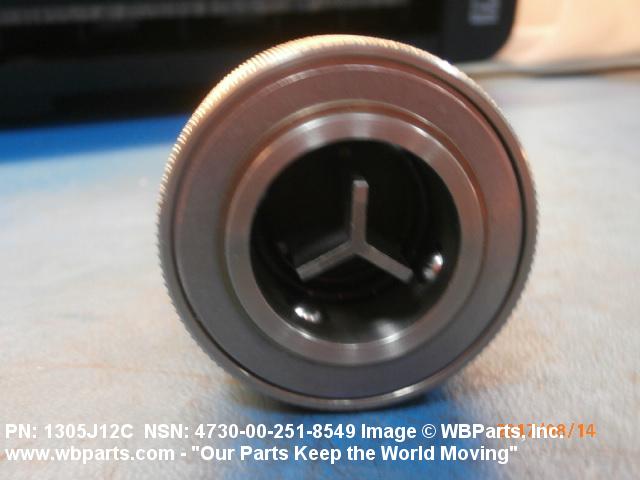

Drawings & Photos | NSN 4730-00-251-8549
Demand History | NSN 4730-00-251-8549
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1305J12C | 2017-06-172 | 2 | United States |
Cross Reference | NSN 4730-00-251-8549
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1305J12C | 86831 | ROCKWELL COLLINS ELECTROMECHANICAL SYSTEMS, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-251-8549
Technical Data | NSN 4730-00-251-8549
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY |
| SURFACE TREATMENT | PASSIVATE BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| LEG LENGTH | 0.864 INCHES NOMINAL |

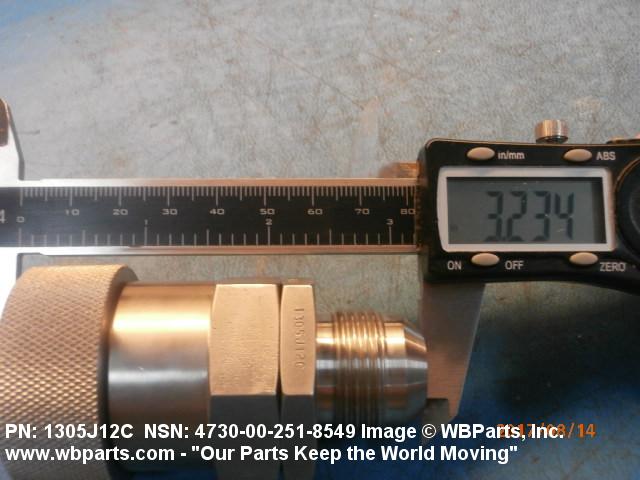

| OVERALL LENGTH | 3.220 INCHES NOMINAL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE FIRST FLUID END CONNECTION INTERNAL QUICK DISCONNECT ALL ENDS |
| CONNECTION STYLE | D6 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES |
| QUICK DISCONNECT METHOD | TWIST-LOCK ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UN ALL ENDS |

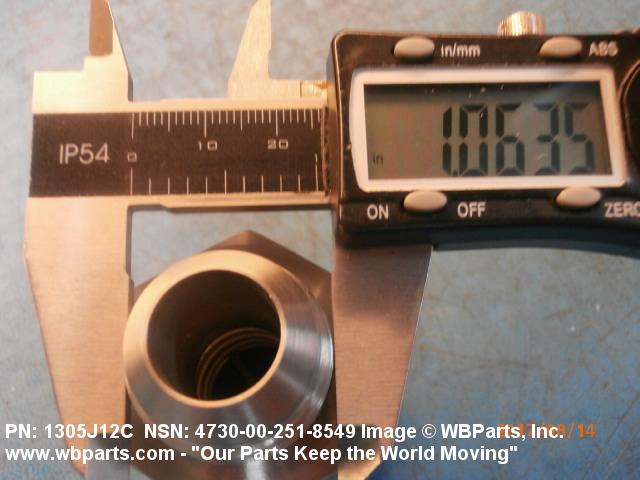

| NOMINAL THREAD SIZE | 1.062 INCHES ALL ENDS |

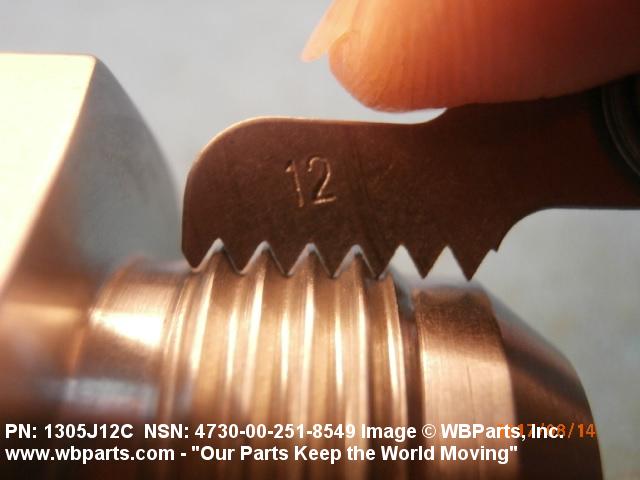

| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| FEATURES PROVIDED | SELF-SEALING |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 121.0 DEG CELSIUS ANY ACCEPTABLE |
| MANUFACTURERS CODE | 86831 |
| DESIGN CONTROL REFERENCE | 1305J12C |
Restrictions/Controls & Freight Information | NSN 4730-00-251-8549
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-251-8549
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
