NSN 4730-00-242-3002 GC550JF, GC550JF4B, 6811129

Product Details | QUICK DISCONNECT COUPLING HALF

4730-00-242-3002 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: GC550JF, GC550JF4B, 6811129, 6811-129, 71010084002, 4730-00-242-3002, 00-242-3002, 4730002423002, 002423002

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	19 MAR 1971	00-242-3002	18681 ( COUPLING HALF, QUICK DISCONNECT )

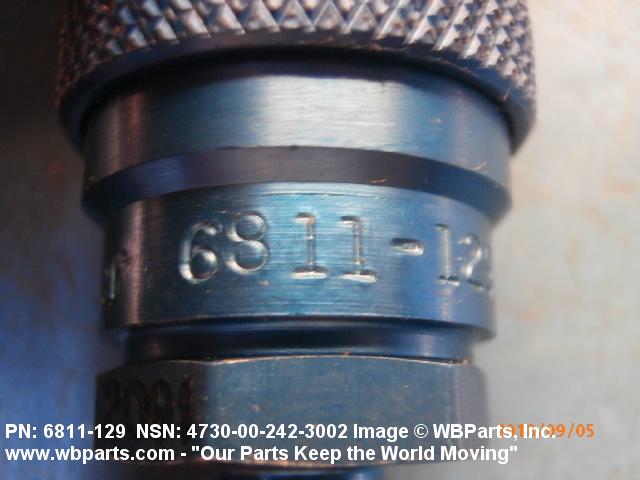

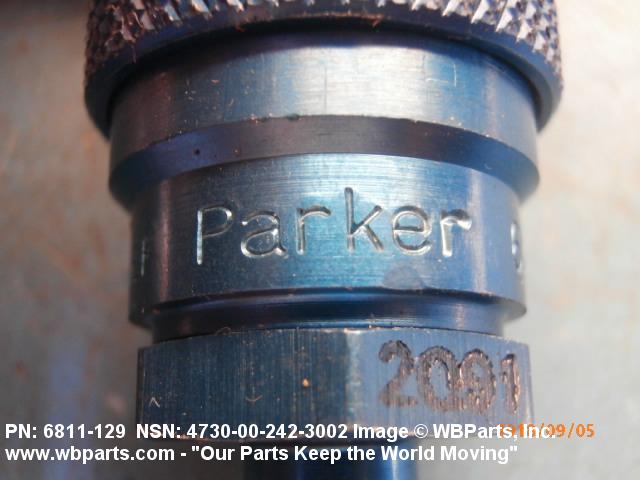

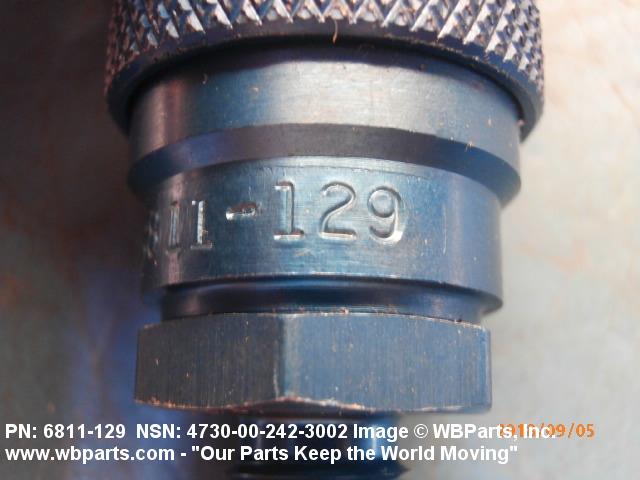

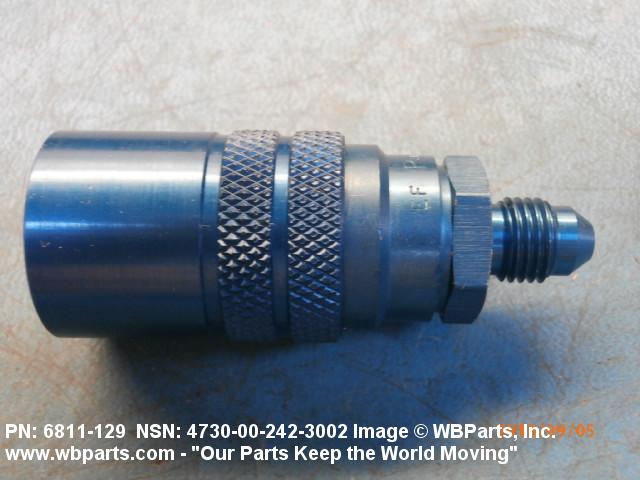

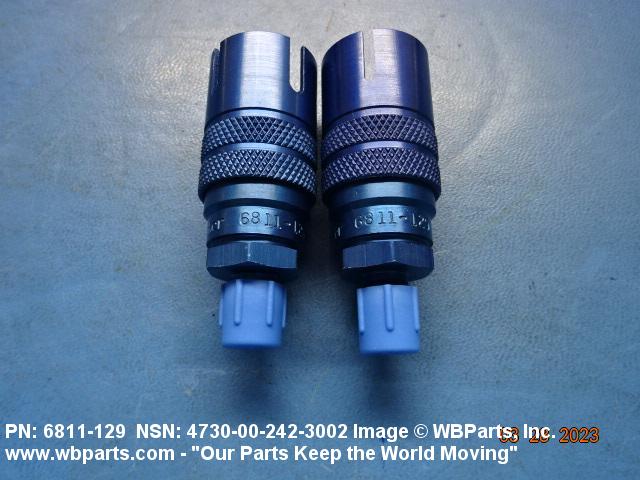

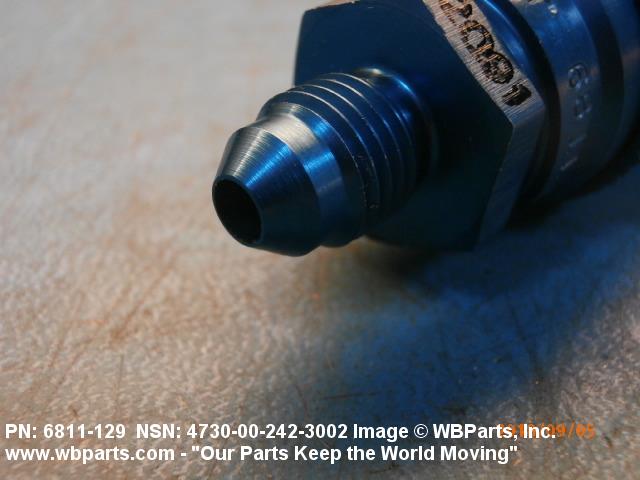

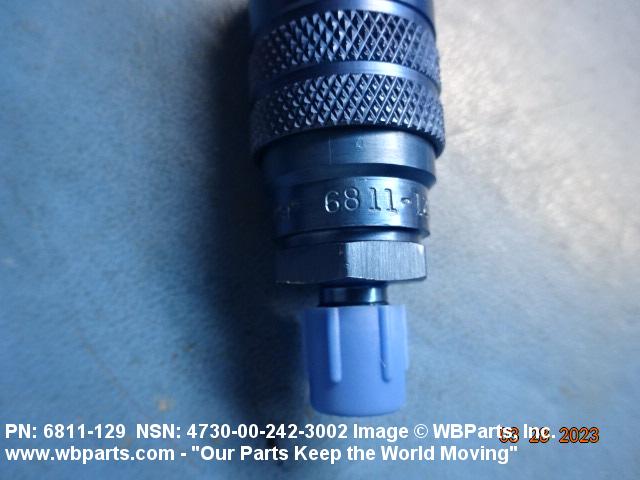

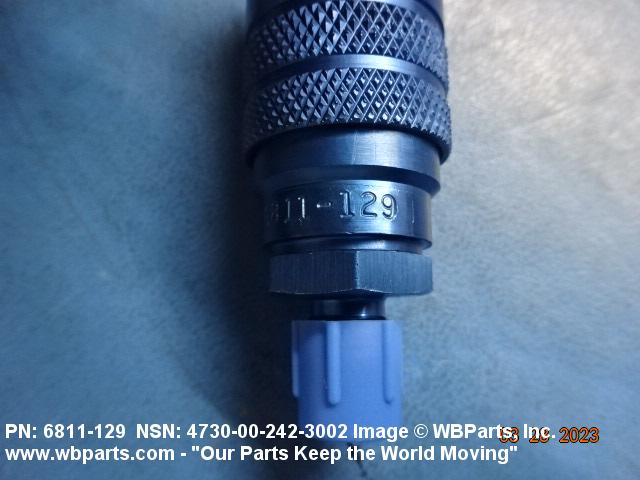

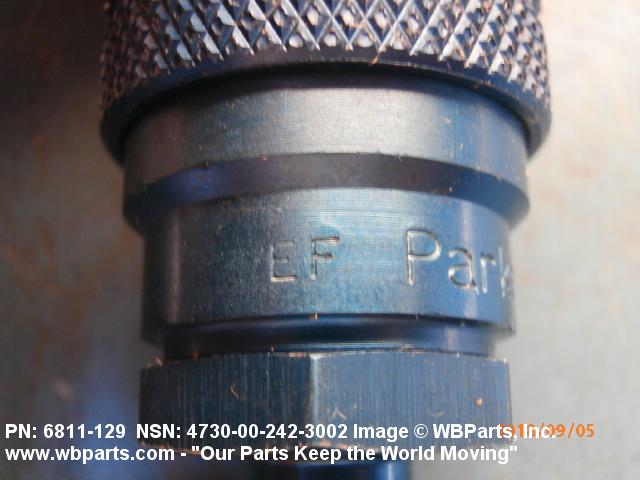

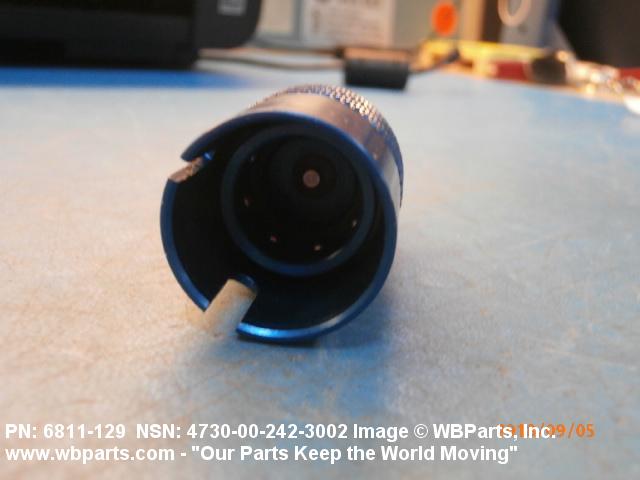

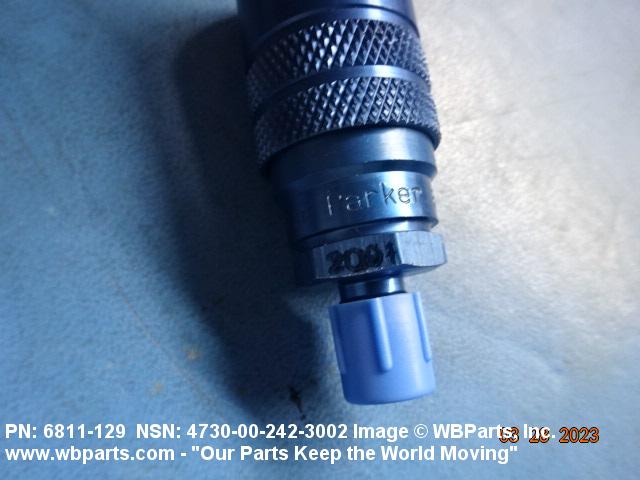

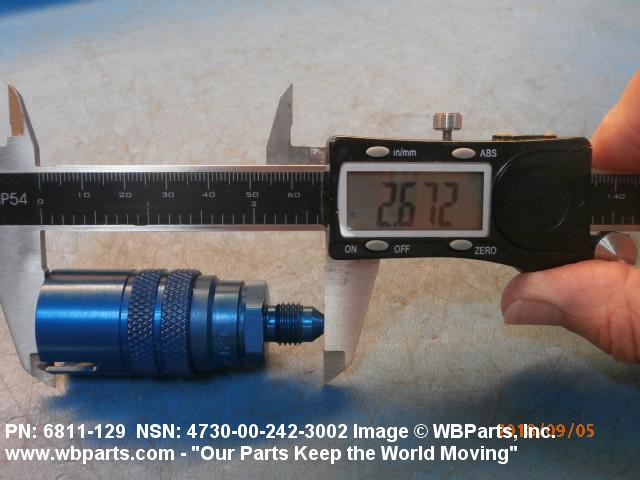

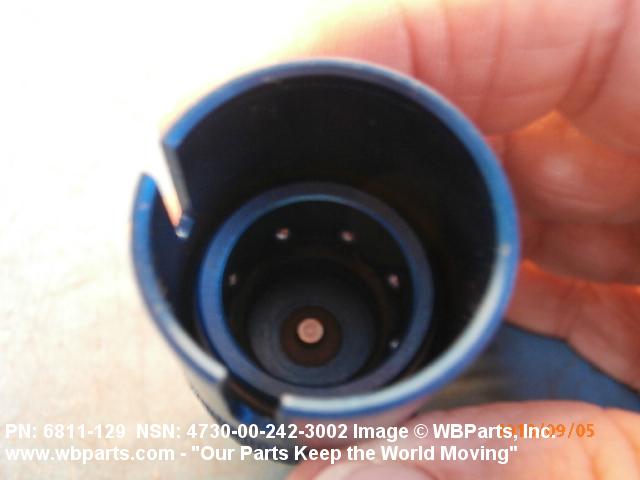

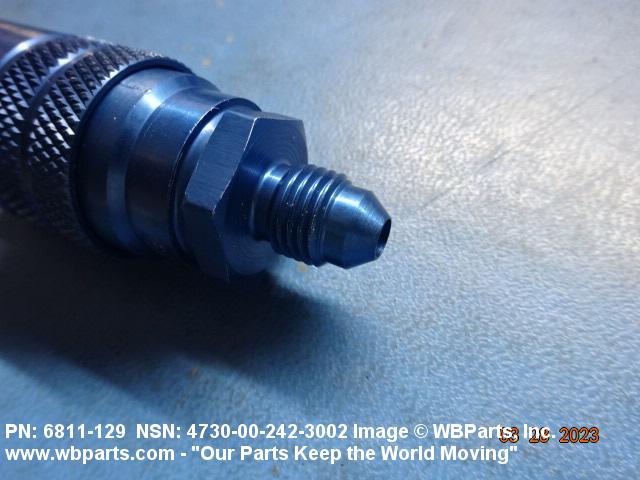

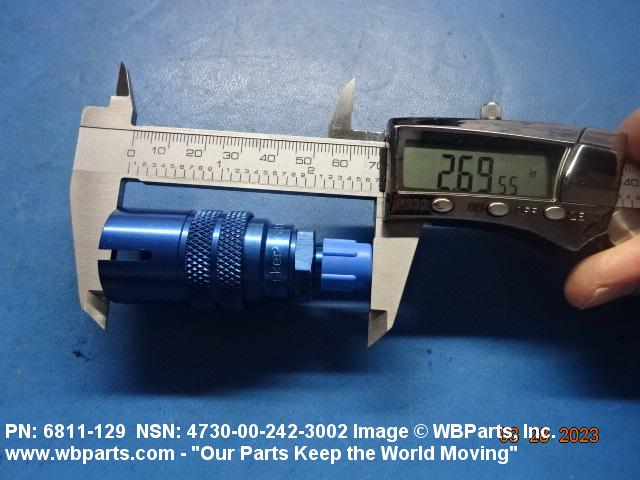

Drawings & Photos | NSN 4730-00-242-3002

Part Number	Request Date	QTY	Origin
4730-00-242-3002	2024-05-131	2	us
4730-00-242-3002	2024-05-128	1	US
4730-00-242-3002	2023-03-79	2	us
4730-00-242-3002	2021-07-193	1	us
6811129	2020-09-265	10	United States
4730-00-242-3002	2020-04-118	48	US
6811-129	2020-04-117	315	DIBBS
71010084002	2020-04-117	315	DIBBS
GC550JF4B	2020-04-117	315	DIBBS
6811-129	2019-09-258	108	DIBBS
71010084002	2019-09-258	108	DIBBS
GC550JF4B	2019-09-258	108	DIBBS
4730-00-242-3002	2019-08-240	2	US
6811-129	2019-08-219	87	DIBBS
71010084002	2019-08-219	87	DIBBS
GC550JF4B	2019-08-219	87	DIBBS
4730-00-242-3002	2019-05-121	1	US
6811129	2019-02-37	2	Greece
4730-00-242-3002	2019-02-37	2	Greece
4730-00-242-3002	2018-12-361	59	DIBBS
4730-00-242-3002	2018-09-270	56	DIBBS
6811129	2018-08-235	1	United States
4730-00-242-3002	2018-07-199	1	United States
4730-00-242-3002	2017-10-293	64	US
4730-00-242-3002	2017-10-291	92	DIBBS
4730-00-242-3002	2016-06-181	123	DIBBS
4730-00-242-3002	2015-12-341	79	DIBBS
4730-00-242-3002	2015-04-119	159	DIBBS
4730-00-242-3002	2015-02-47	81	DIBBS
4730-00-242-3002	2013-05-145	0	DIBBS
4730-00-242-3002	2012-07-198	0	DIBBS
4730-00-242-3002	2012-05-137	14	DIBBS
4730-00-242-3002	2011-12-354	38	DIBBS
4730-00-242-3002	2011-09-255	0	DIBBS
4730-00-242-3002	2011-08-216	46	DIBBS
4730-00-242-3002	2011-05-145	49	DIBBS
4730-00-242-3002	2010-10-299	3	United States
4730-00-242-3002	2009-11-322	26	DIBBS
4730-00-242-3002	2009-10-292	20	DIBBS
4730-00-242-3002	2009-09-245	83	DIBBS
4730-00-242-3002	2009-05-146	144	DIBBS
4730-00-242-3002	2008-09-247	64	DIBBS

Cross Reference | NSN 4730-00-242-3002

Part Number	Cage Code	Manufacturer
6811-129	91561	PARKER HANNIFIN CORPORATION DBA QUICK COUPLING DIV DIV QUICK
71010084002	89944	KOLLSMAN, INC.
GC550JF	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
GC550JF4B	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-242-3002

Compare

Related Products | NSN 4730-00-242-3002

4730-00-242-3003, 4730-00-242-3109, 4730-00-242-3110, 4730-00-242-3111, 4730-00-242-3112

Technical Data | NSN 4730-00-242-3002

Characteristic	Specifications
BODY MATERIAL	ALUMINUM ALLOY 2017
BODY MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-255/5,T4 FED SPEC SINGLE MATERIAL RESPONSE
BODY SURFACE TREATMENT	ANODIZE
BODY SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	595 NO15102 FED STD SINGLE TREATMENT RESPONSE
BODY STYLE	1 COUPLING HALF

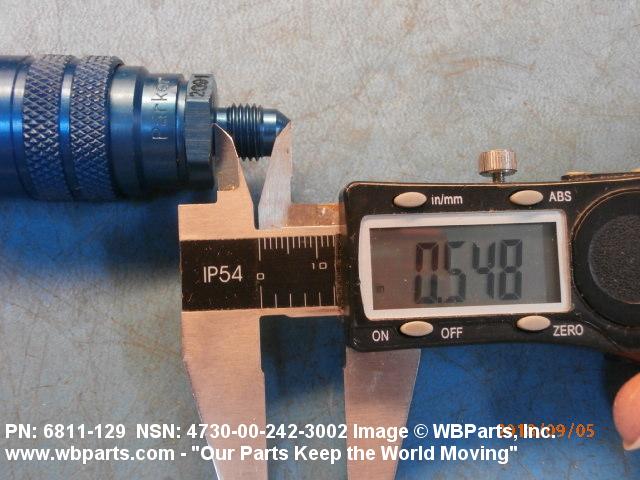

FIRST LEG LENGTH	0.550 INCHES NOMINAL
MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED	1500.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE
MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED	85.0 DEG CELSIUS ANY ACCEPTABLE
OVERALL LENGTH	2.670 INCHES MINIMUM AND 2.703 INCHES MAXIMUM

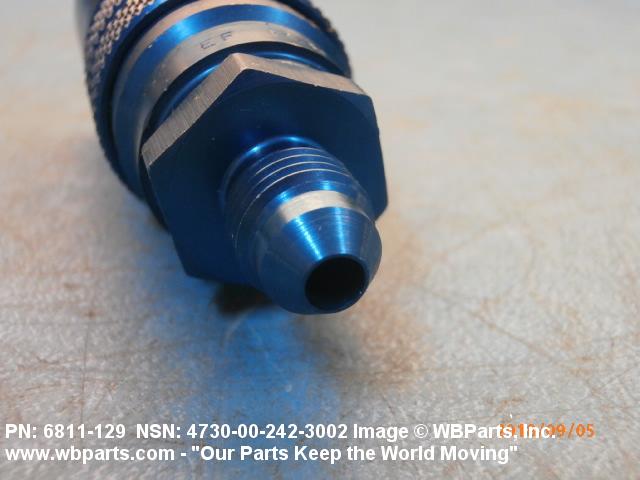

FIRST FLUID END CONNECTION TYPE	THREADED EXTERNAL TUBE
FIRST END STYLE DESIGNATOR	D6 FLARED
FIRST END SEAT ANGLE	37.0 DEGREES NOMINAL
FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES NOMINAL
FIRST END THREAD SERIES DESIGNATOR	UNF

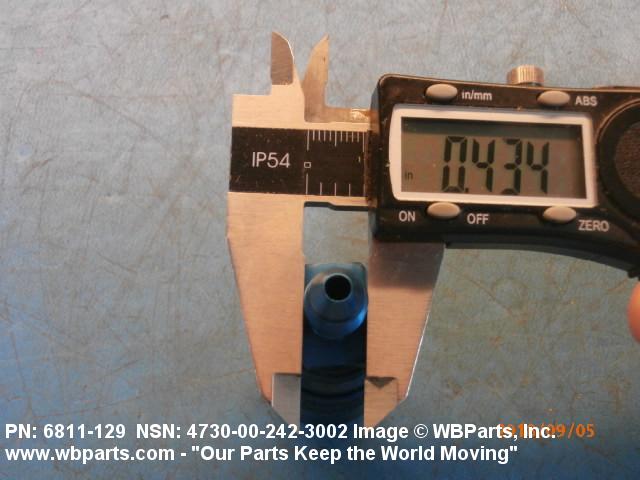

FIRST END NOMINAL THREAD SIZE	0.438 INCHES
FIRST END THREAD CLASS	3A
QUICK DISCONNECT METHOD	PUSH-PULL ALL ENDS
QUICK DISCONNECT END CONNECTION TYPE	INTERNAL ALL ENDS

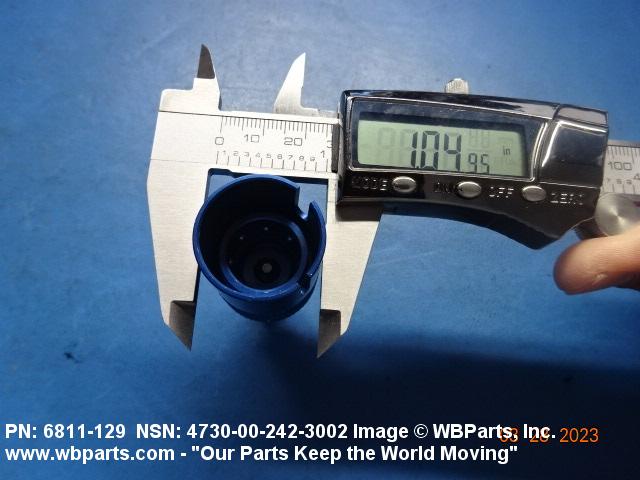

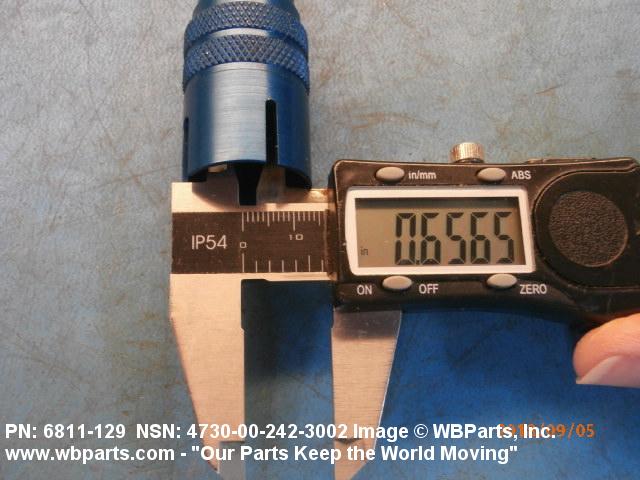

QUICK DISCONNECT NOMINAL SIZE	0.656 INCHES ALL ENDS
FEATURES PROVIDED	SELF-SEALING
SPECIAL FEATURES	GRUMMAN AEROSPACE A-10 AIRCRAFT
TEST DATA DOCUMENT	89944-71010084 DRAWING

Restrictions/Controls & Freight Information | NSN 4730-00-242-3002

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-242-3002

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
