NSN 4730-00-200-0264 A71783, AEA9233A, 10811205
Product Details | TUBE COUPLING NUT
4730-00-200-0264 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: A71783, AEA9233A, 10811205, 108-11205, 10811255, 108-11255, 8112X5, 83712S4105980669, 83712S4105-980669, 4730-00-200-0264, 00-200-0264, 4730002000264, 002000264
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-200-0264 | 03859 ( NUT, TUBE COUPLING ) |

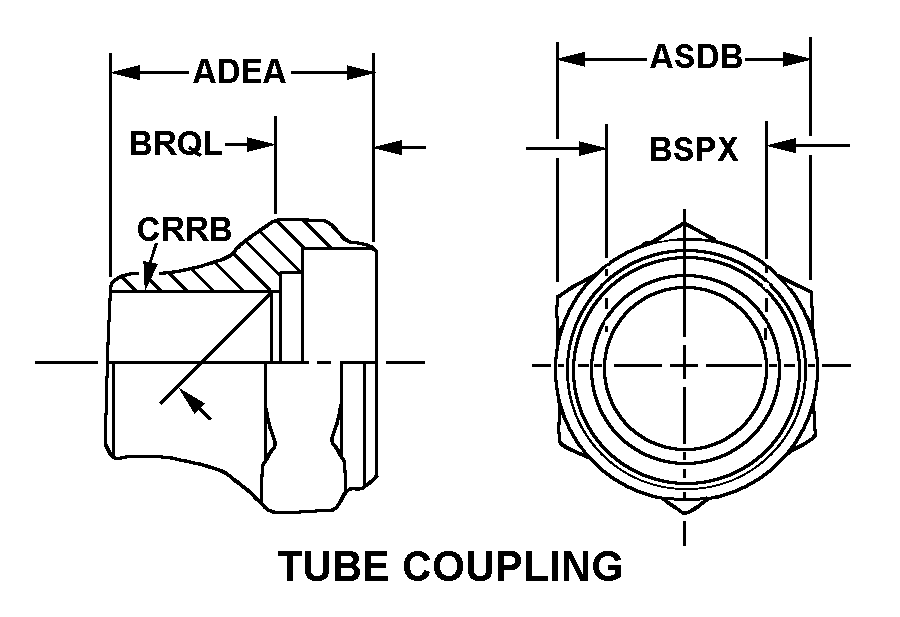

Drawings & Photos | NSN 4730-00-200-0264
Demand History | NSN 4730-00-200-0264
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-200-0264 | 2017-07-206 | 10 | DIBBS |
| 4730-00-200-0264 | 2016-12-348 | 10 | DIBBS |
Cross Reference | NSN 4730-00-200-0264
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 108-11205 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 108-11205 | 79470 | DANA CORP WEATHERHEAD DIV |
| 108-11255 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 8112X5 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 8112X5 | 79470 | DANA CORP WEATHERHEAD DIV |
| 83712S4105-980669 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| A71783 | 58275 | SASCO INC CANADIAN DIV |
| AEA9233A | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-200-0264
Technical Data | NSN 4730-00-200-0264
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1213 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| NUT STYLE | A352 TUBE COUPLING |
| NUT HEIGHT | 1.000 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.813 INCHES NOMINAL |
| LENGTH TO SHOULDER | 0.500 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 0.318 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| SEAT ANGLE | 45.00 DEGREES NOMINAL |
| FABRICATION METHOD | MACHINED |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.312 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-00-200-0264
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-200-0264
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
