NSN 4730-00-194-4777 32258, 3225-8, 00-194-4777
Product Details | TUBE COUPLING NUT
4730-00-194-4777 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: 32258, 3225-8, 4730-00-194-4777, 00-194-4777, 4730001944777, 001944777
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 MAR 1973 | 00-194-4777 | 03859 ( NUT, TUBE COUPLING ) |

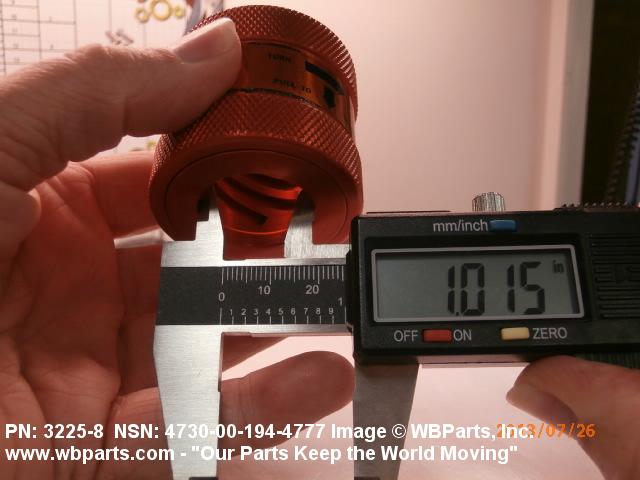

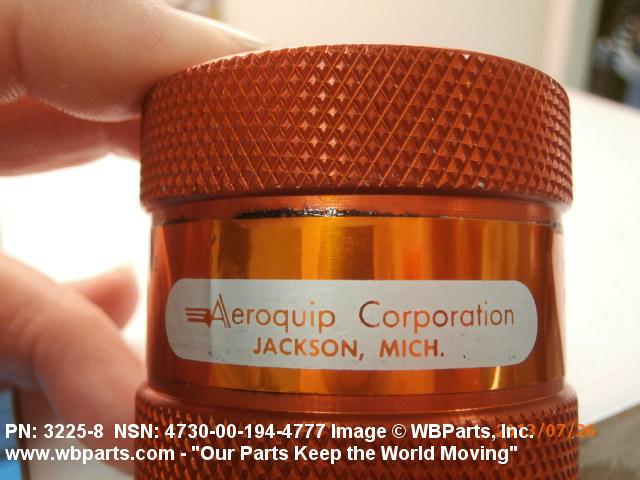

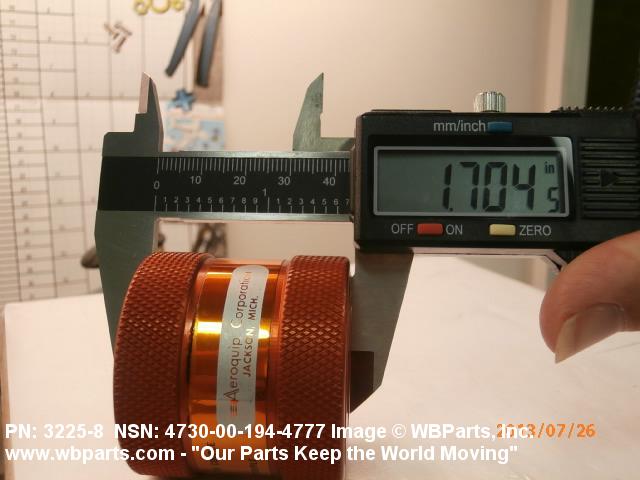

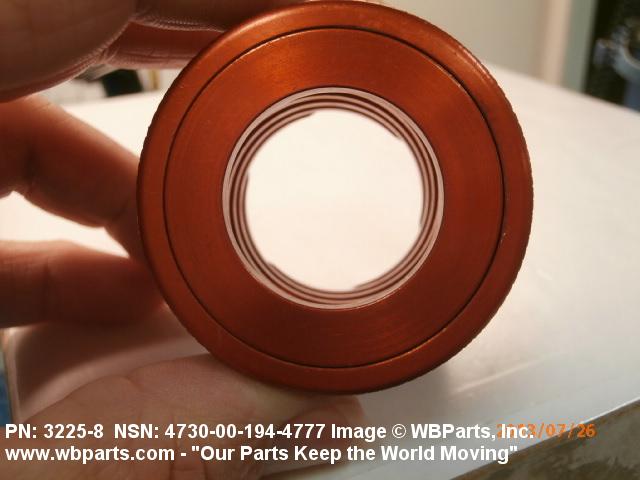

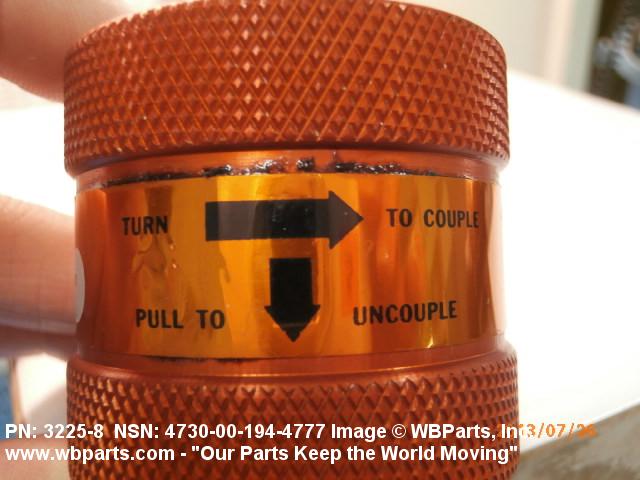

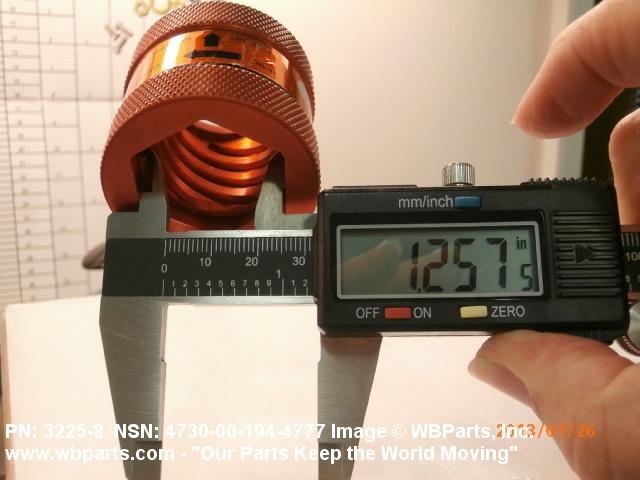

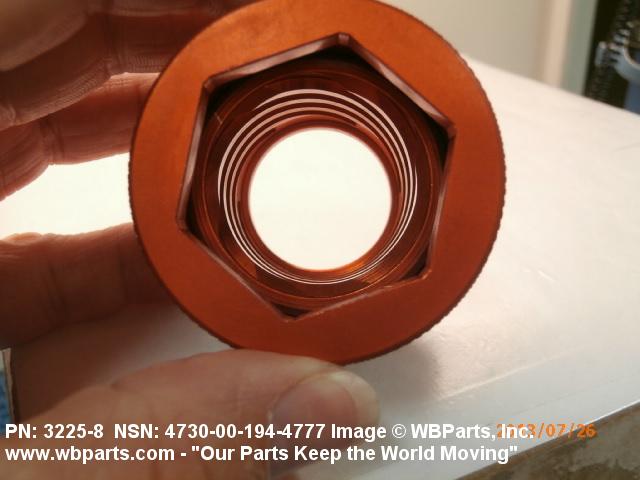

Drawings & Photos | NSN 4730-00-194-4777
Demand History | NSN 4730-00-194-4777
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-194-4777 | 2019-01-03 | 1 | US |
| 32258 | 2019-01-03 | 1 | US |
| 4730-00-194-4777 | 2018-11-330 | 1 | United States |
| 32258 | 2015-03-71 | 1 | United States |
| 4730-00-194-4777 | 2013-07-198 | 1 | Argentina |
| 32258 | 2012-07-192 | 1 | Argentina |
Cross Reference | NSN 4730-00-194-4777
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3225-8 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-194-4777
Technical Data | NSN 4730-00-194-4777
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SPECIAL FEATURES | COLOR ORANGE |
Restrictions/Controls & Freight Information | NSN 4730-00-194-4777
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
