NSN 4730-00-194-6717 AN8161612J, AN816-16-12J, AS4842/1

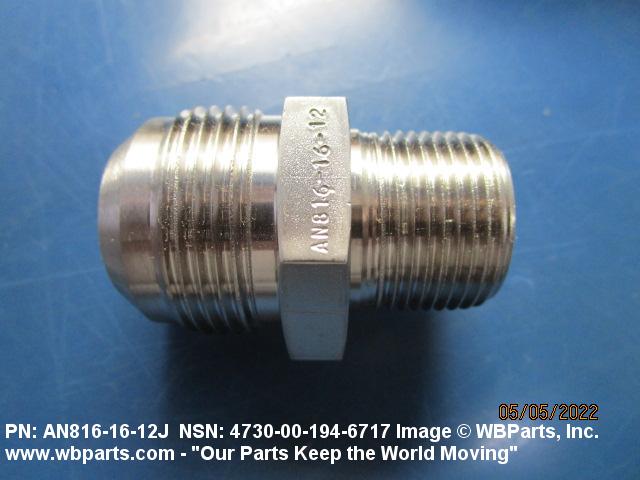

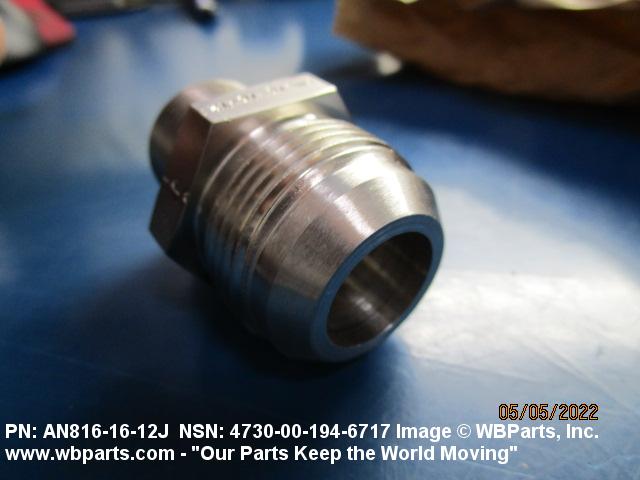

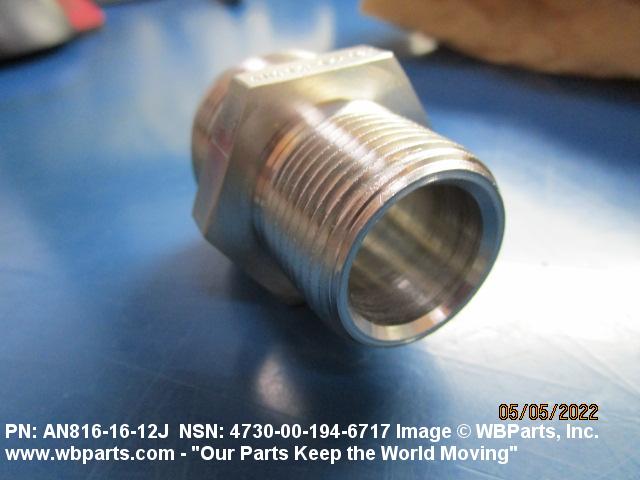

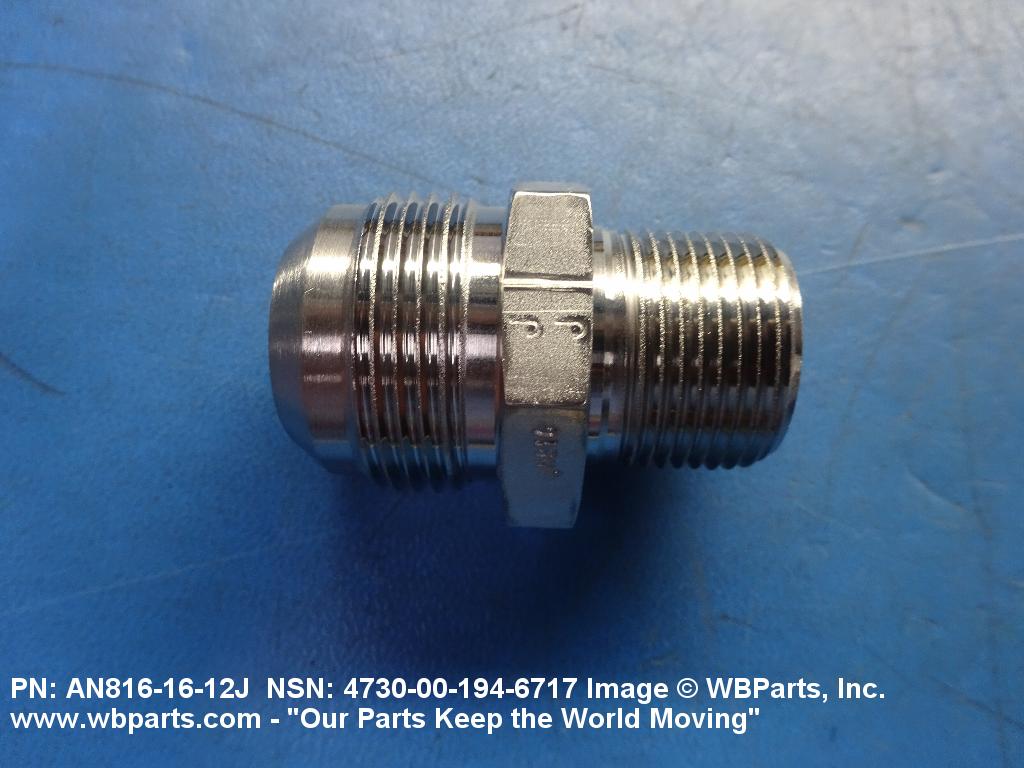

Product Details | PIPE TO BOSS STRAIGHT ADAPTER
4730-00-194-6717 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a pipe or pipe fitting to a boss or boss fitting in a straight line on items such as tanks, housing, valve fittings, or the like. See also ADAPTER BUSHING and COUPLING, PIPE.
Part Alternates: AN8161612J, AN816-16-12J, AS4842/1, AS48421, AS5194J1612, MILF5509, MIL-F-5509, 4730-00-194-6717, 00-194-6717, 4730001946717, 001946717
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 16 MAR 1973 | 00-194-6717 | 22674 ( ADAPTER, STRAIGHT, PIPE TO BOSS ) |

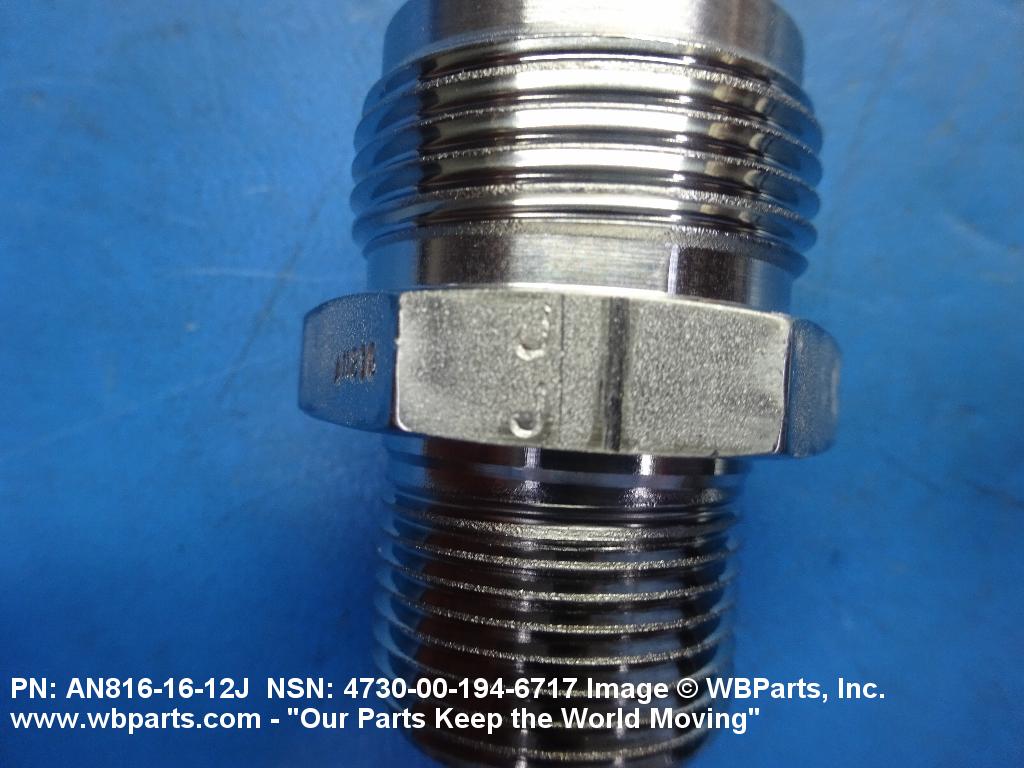

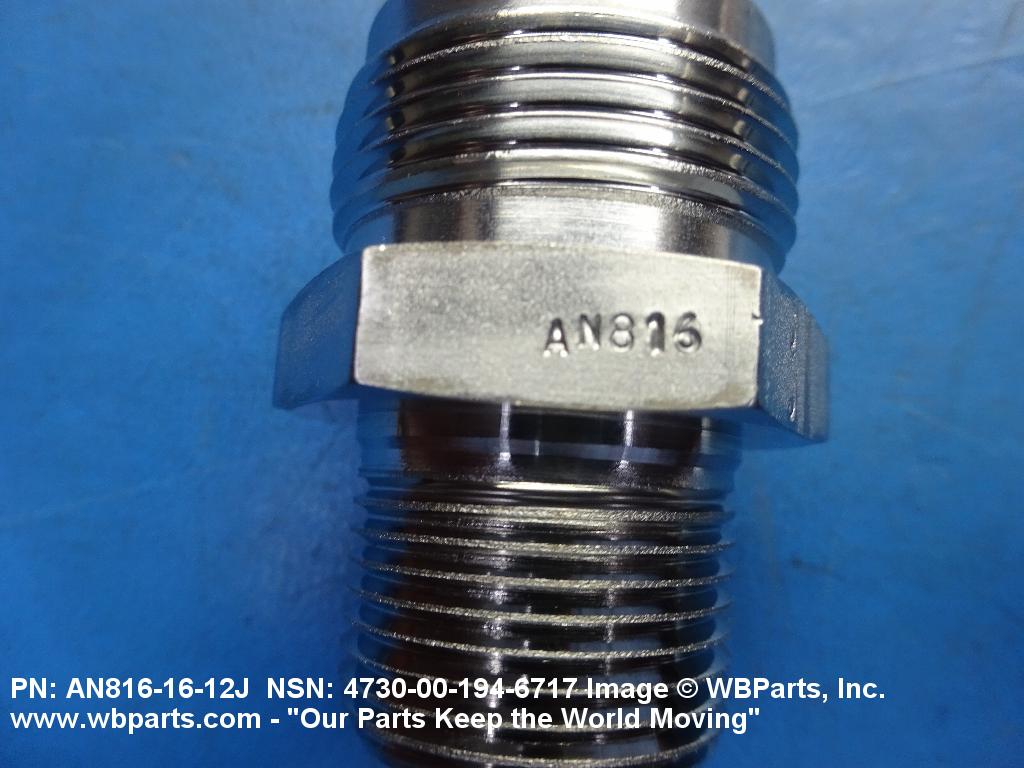

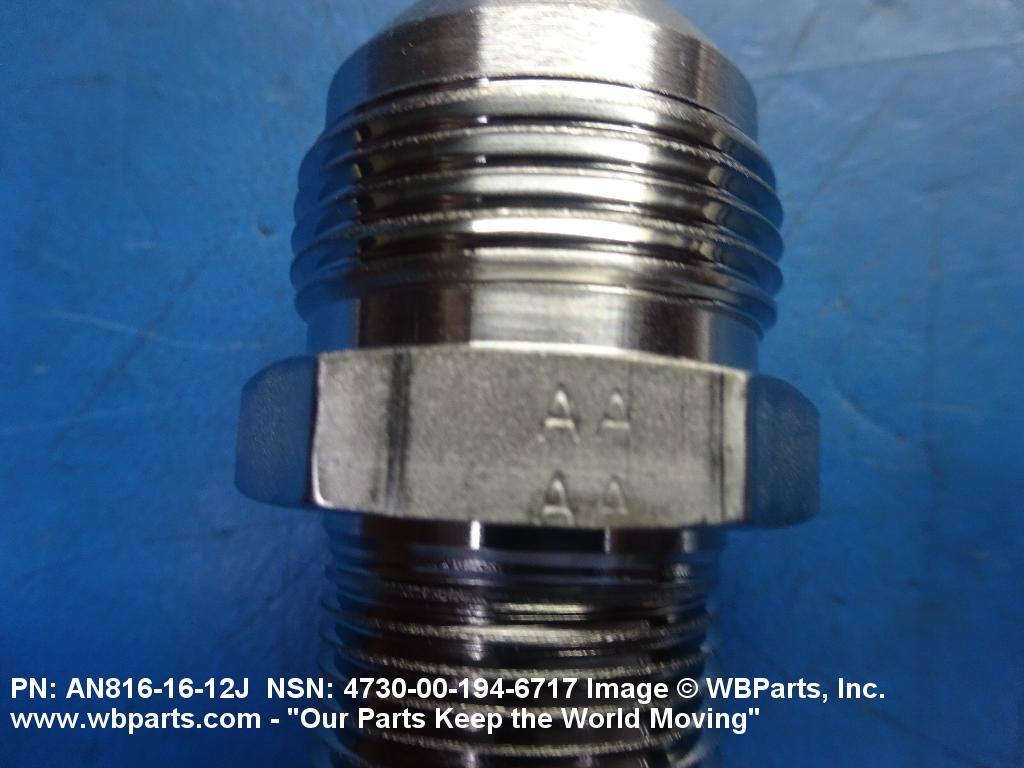

Drawings & Photos | NSN 4730-00-194-6717
Demand History | NSN 4730-00-194-6717
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-194-6717 | 2024-05-151 | 18 | DIBBS |
| 4730-00-194-6717 | 2024-05-140 | 18 | DIBBS |
| AS5194J1612 | 2022-05-131 | 5 | United States |
| 4730-00-194-6717 | 2022-04-111 | 4 | United States |
| AS5194J1612 | 2022-03-89 | 1 | US |
| 4730-00-194-6717 | 2021-08-235 | 6 | United States |
| MILF5509 | 2018-07-201 | 6 | United States |
| AN8161612J | 2018-06-158 | 24 | United States |
| AS48421 | 2015-05-132 | 1 | CA |
| 4730-00-194-6717 | 2015-02-39 | 59 | DIBBS |
| 4730-00-194-6717 | 2015-01-16 | 59 | DIBBS |
| 4730-00-194-6717 | 2015-01-05 | 59 | DIBBS |
| AN8161612J | 2012-12-341 | 1 | US |
| MILF5509 | 2009-10-301 | 1 | PK |
| MILF5509 | 2009-02-55 | 100 | US |
Cross Reference | NSN 4730-00-194-6717
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN816-16-12J | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN816-16-12J | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN816-16-12J | 22995 | CROWN FITTING CO INC |
| AN816-16-12J | 34724 | ACRA AEROSPACE INC |
| AN816-16-12J | 71563 | COLLINS ENGINEERING CORP |
| AN816-16-12J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-194-6717
Related Products | NSN 4730-00-194-6717
Technical Data | NSN 4730-00-194-6717
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,CL 304 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-F-14072,E300,TY2 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| MEDIA FOR WHICH DESIGNED | FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B67B PLAIN 1ST END B81 FLARED W/GASKET SEAL 2ND END |
| THREAD SERIES DESIGNATOR | ANPT 1ST END UNJ 2ND END |

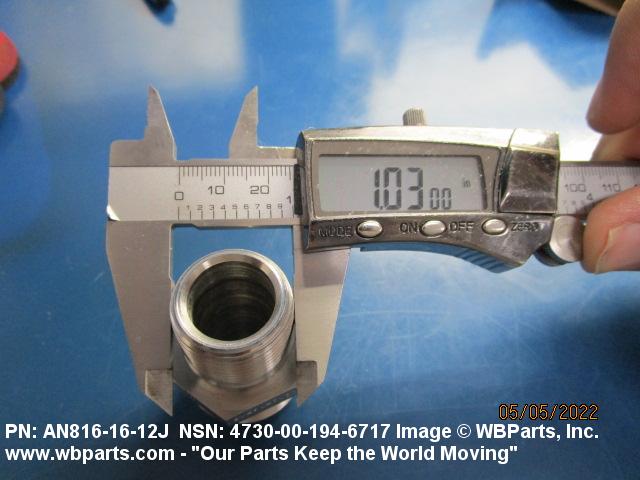

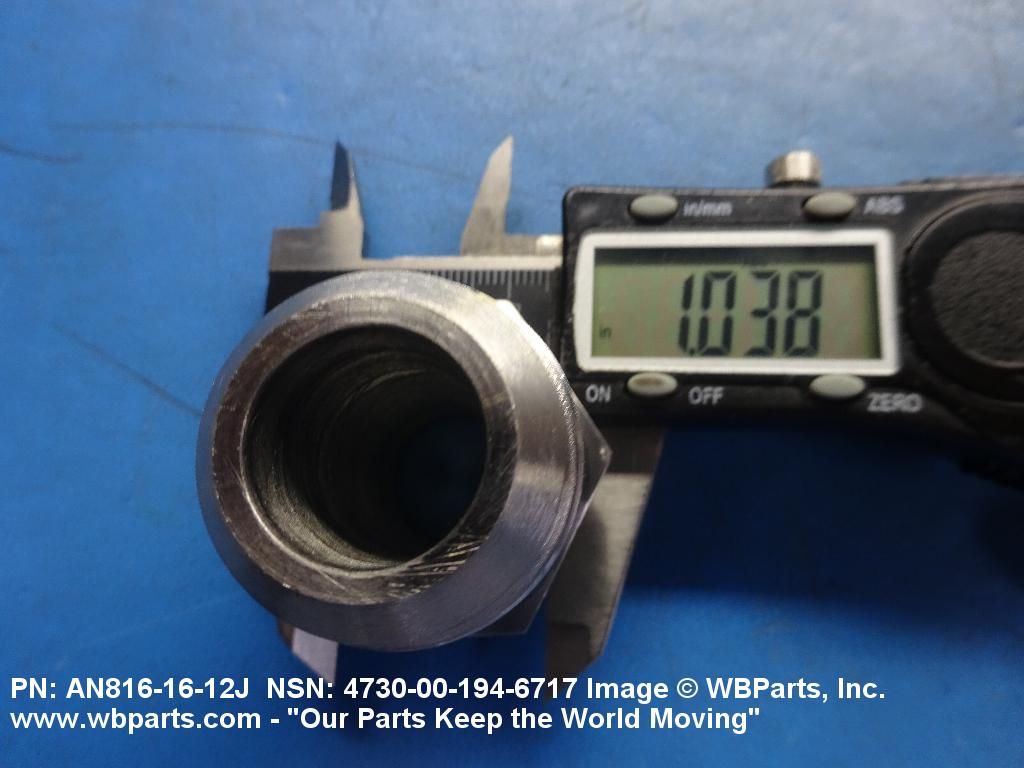

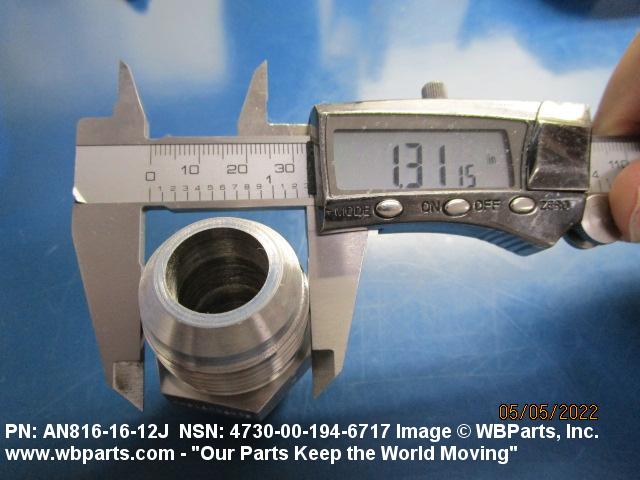

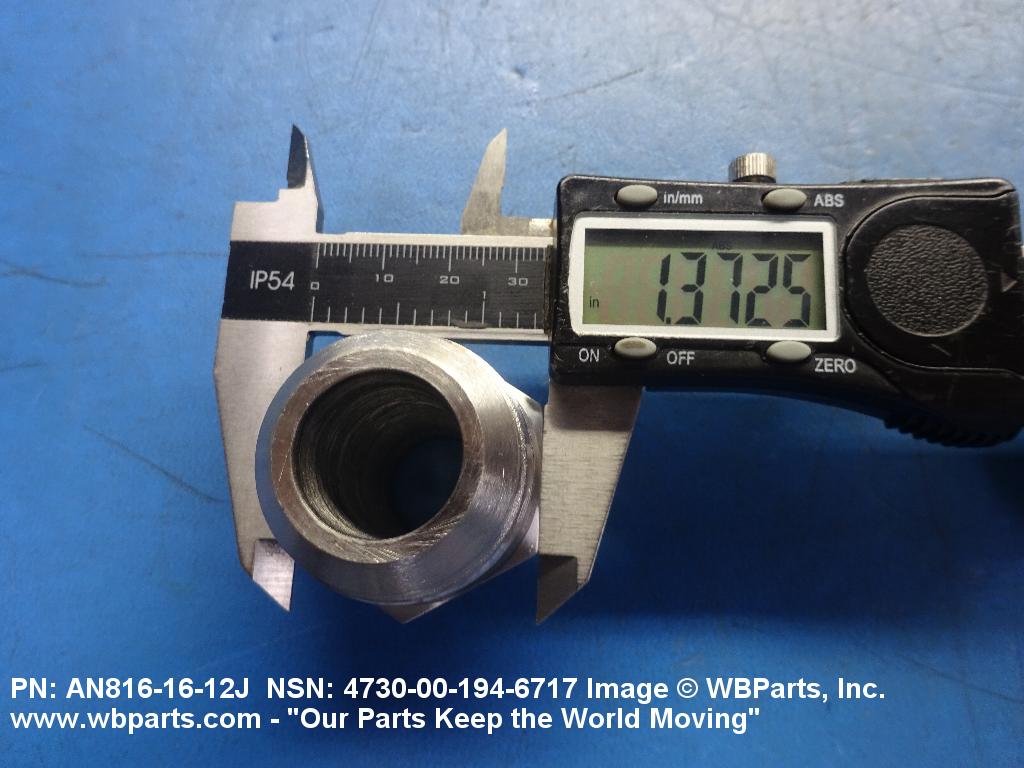

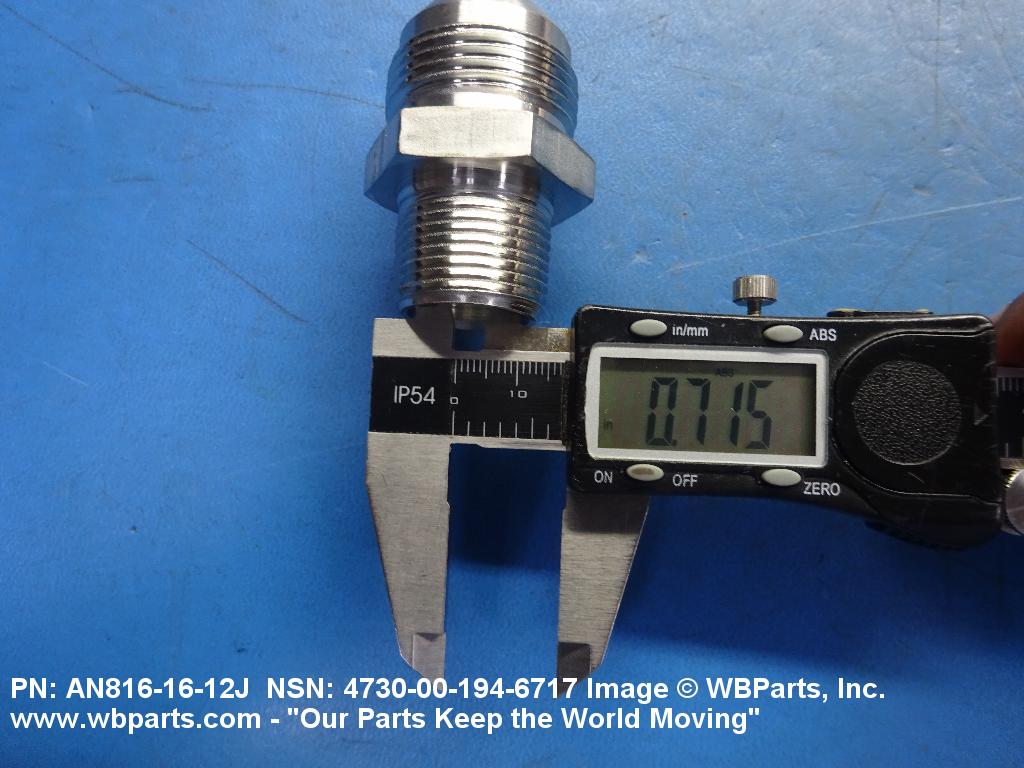

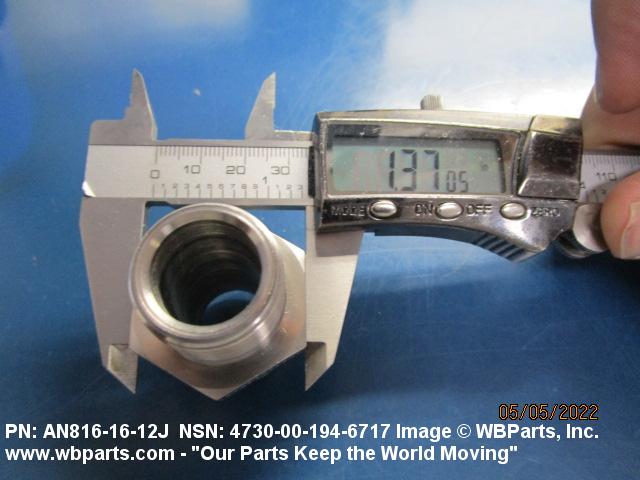

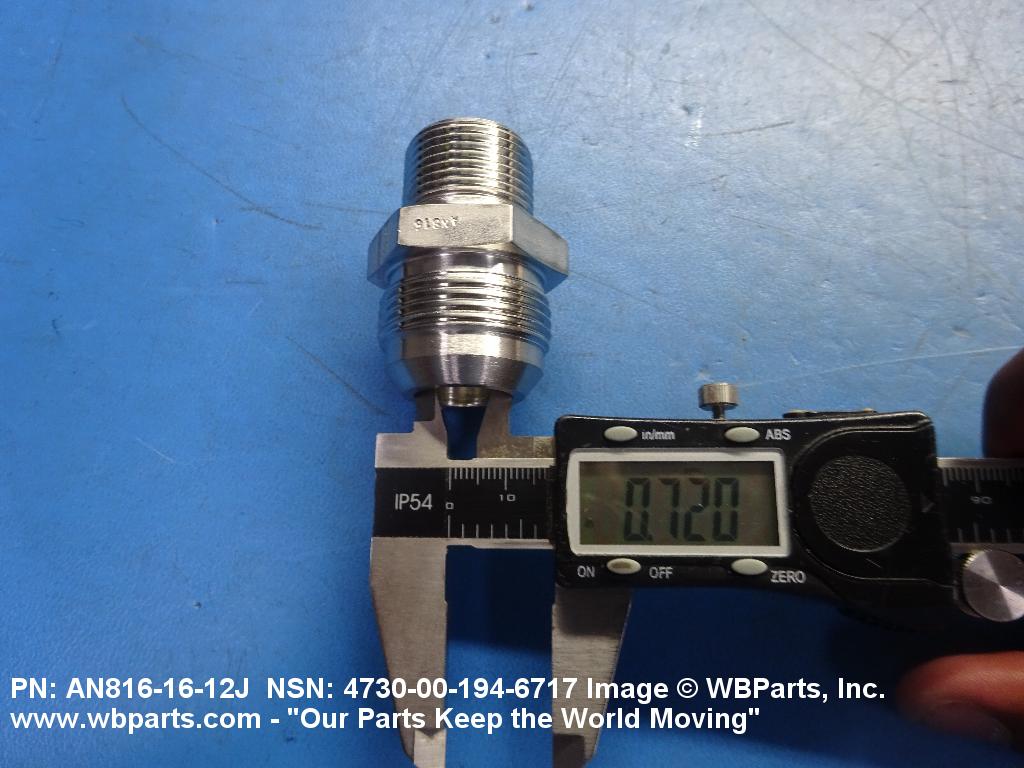

| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END 1.312 INCHES 2ND END |

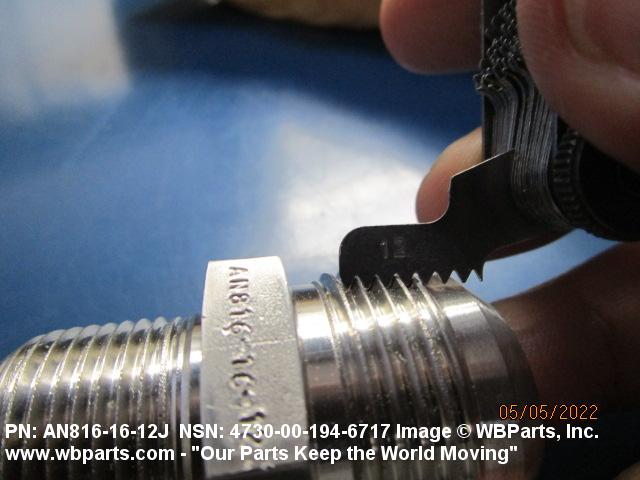

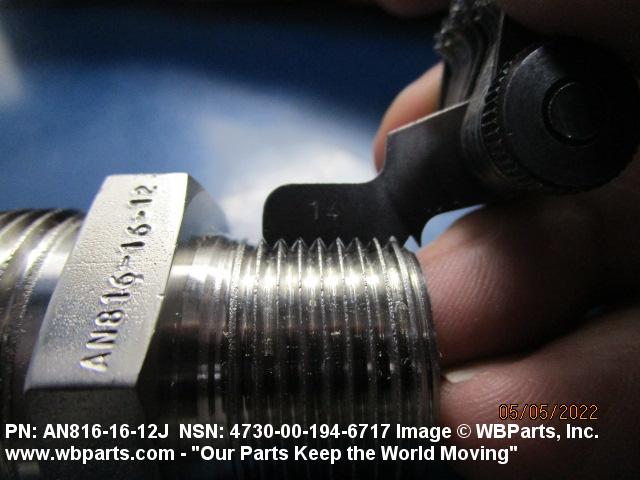

| THREAD QUANTITY PER INCH | 12 2ND END |
| THREAD CLASS | 3A 2ND END |

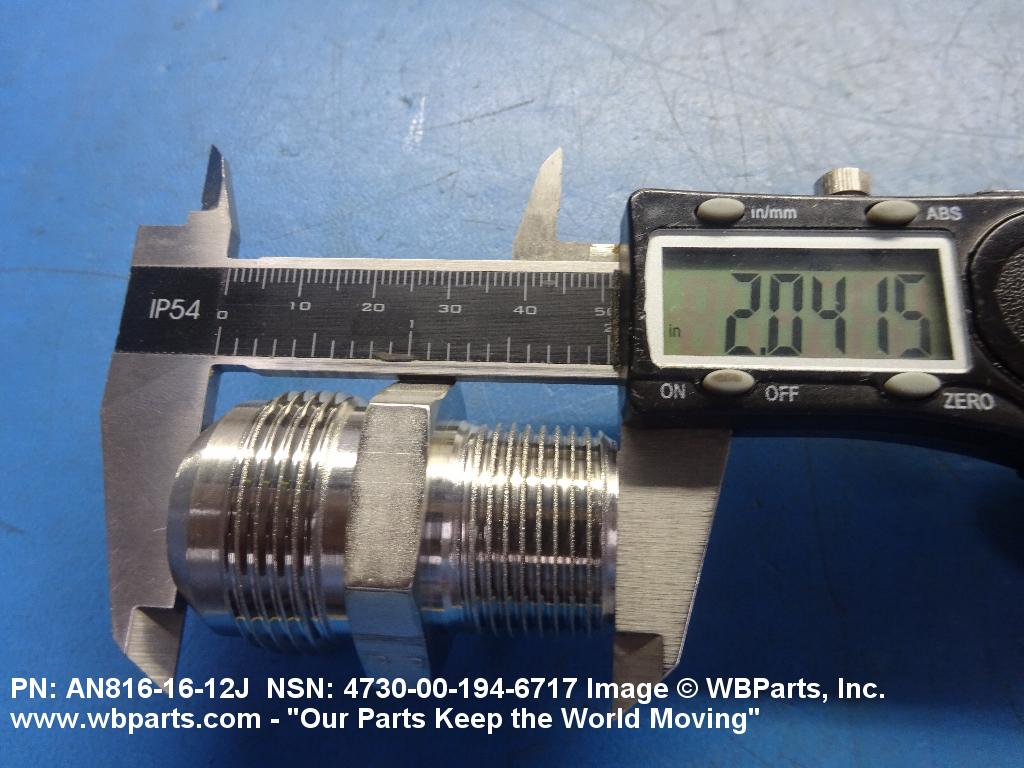

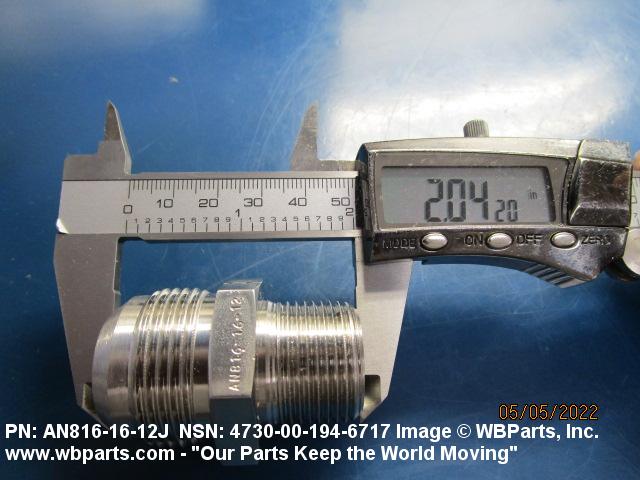

| NOMINAL OVERALL LENGTH | 2.031 INCHES |
