NSN 4730-00-200-0273 60F, 60F516, 60F5-16
Product Details | TUBE-HOSE FITTING COMPRESSION SLEEVE
4730-00-200-0273 A ring-shaped item whose outer surface is so shaped as to form a seat for the coupling nut and the fitting between which it is assembled. It is designed to be slipped over tubing or hose so that tightening of the coupling nut to the fitting compresses the sleeve against the circumference of the tubing or hose thereby effecting a tight seal between the tubing, or hose fitting and coupling nut.
Part Alternates: 60F, 60F516, 60F5-16, 4730-00-200-0273, 00-200-0273, 4730002000273, 002000273
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-200-0273 | 18026 ( SLEEVE, COMPRESSION, TUBE-HOSE FITTING ) |
Drawings & Photos | NSN 4730-00-200-0273
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-200-0273
Technical Data | NSN 4730-00-200-0273
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS, SAE 72 OR BRASS, SAE 88 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.313 INCHES NOMINAL |

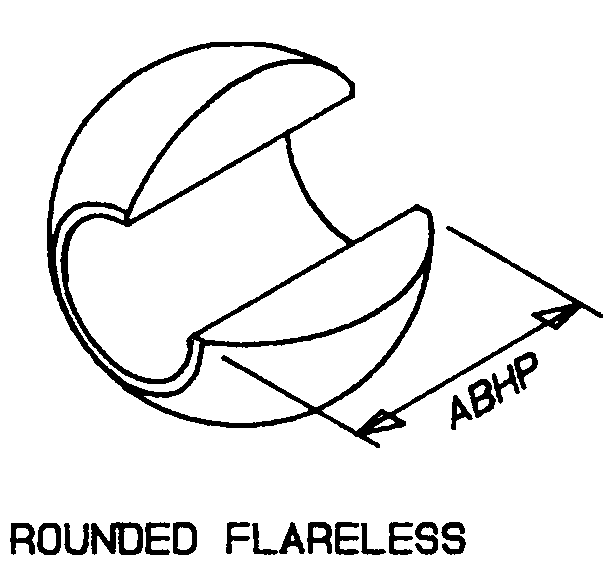

| STYLE DESIGNATOR | K3 ROUNDED FLARELESS |
| OVERALL LENGTH | 0.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-00-200-0273
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
