Product Details | TUBE-HOSE FITTING COMPRESSION SLEEVE

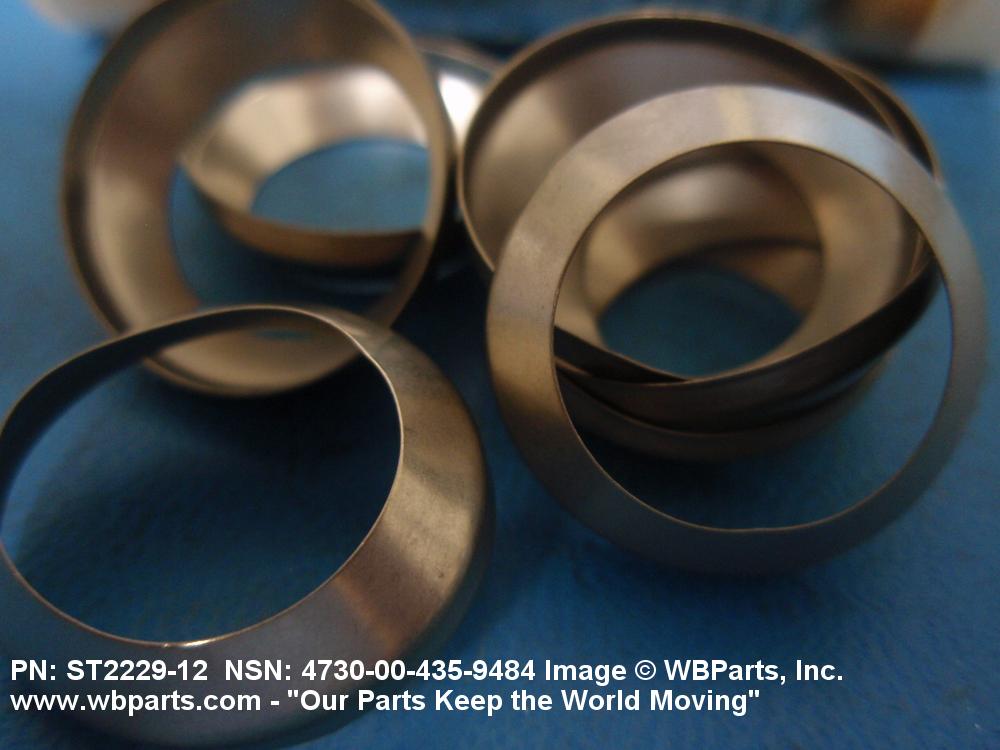

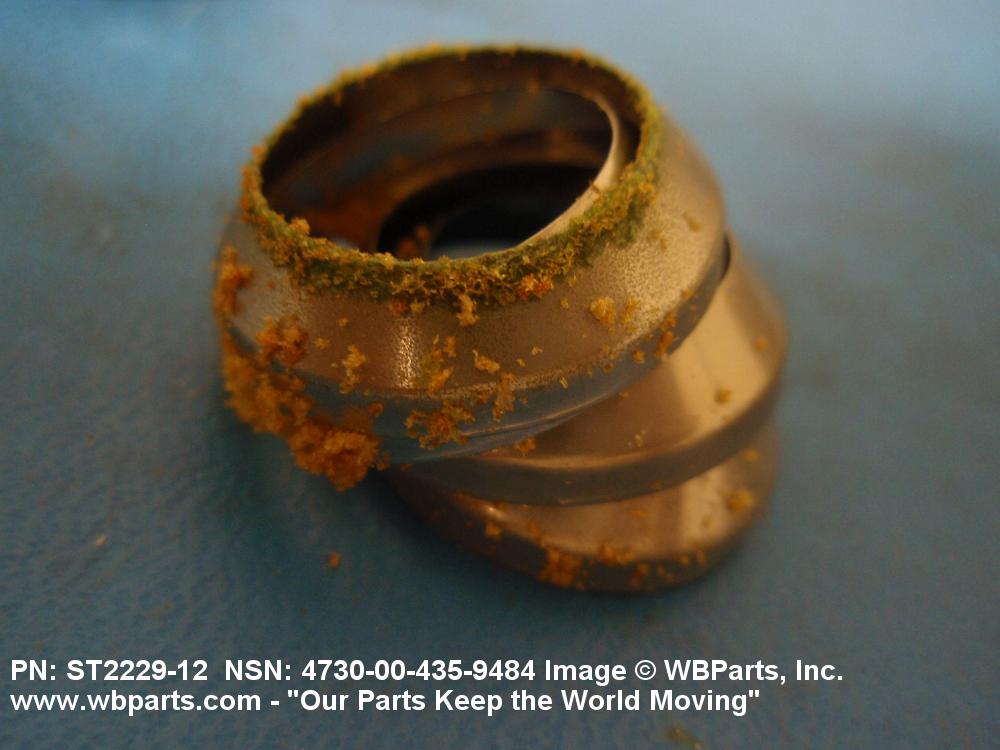

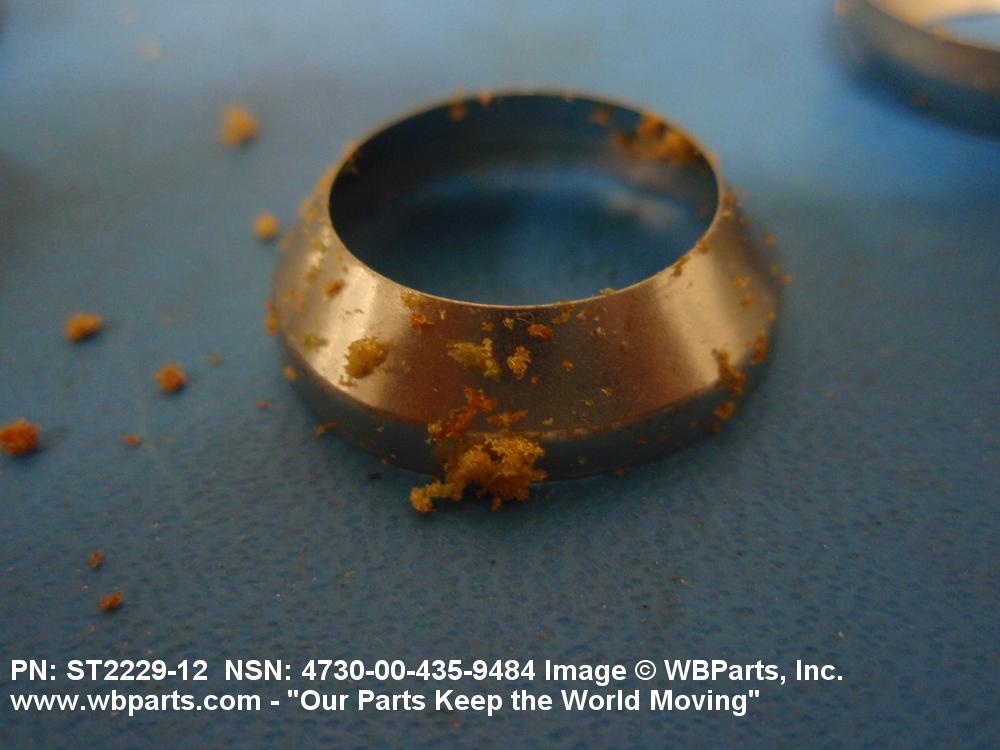

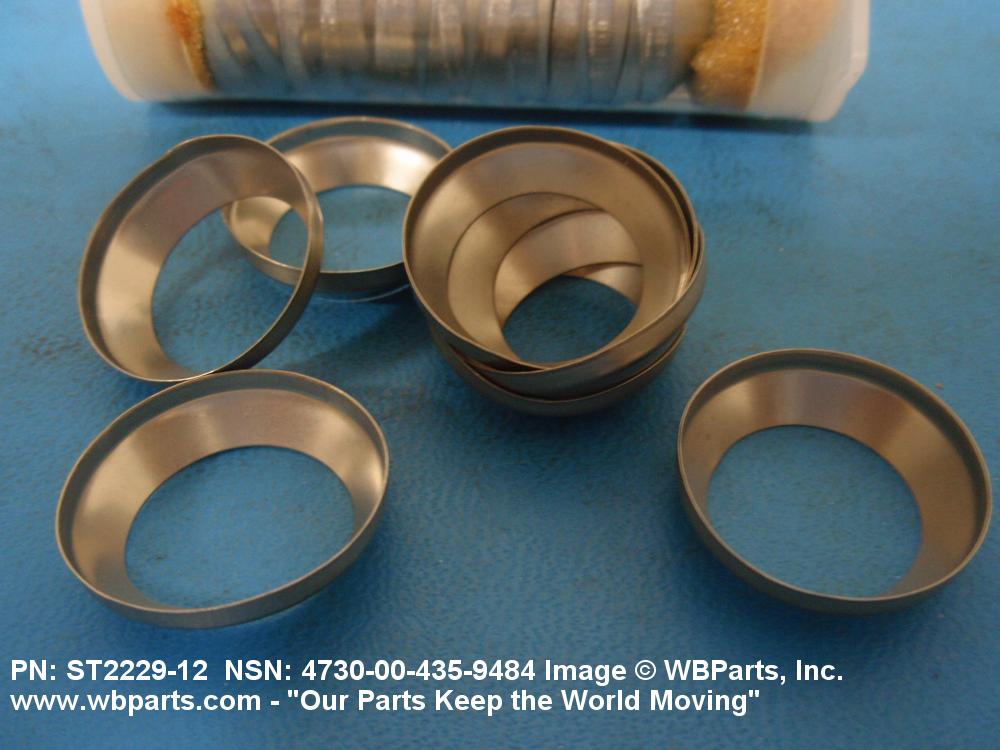

4730-00-435-9484 A ring-shaped item whose outer surface is so shaped as to form a seat for the coupling nut and the fitting between which it is assembled. It is designed to be slipped over tubing or hose so that tightening of the coupling nut to the fitting compresses the sleeve against the circumference of the tubing or hose thereby effecting a tight seal between the tubing, or hose fitting and coupling nut.

Part Alternates: AP50N12, AS307412, AS3074-12, AS307512, AS3075-12, AS4824N12 , ST200112, ST2001-12, ST222912, ST2229-12, ST228412, ST2284-12, ST228512, ST2285-12 , ST228612, ST2286-12 , T.O.2J-F-100-14FIGURE 57 ITEM 32, TO2JF10014FIGURE57ITEM32, 2056909, 4730-00-435-9484, 00-435-9484, 4730004359484, 004359484

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 20 MAY 1974 00-435-9484

Drawings & Photos | NSN 4730-00-435-9484


Demand History | NSN 4730-00-435-9484

Part Number Request Date QTY Origin
4730-00-435-9484 2024-07-194 994 United States
4730-00-435-9484 2024-05-138 766 US
4730-00-435-9484 2023-12-348 267 DIBBS
4730-00-435-9484 2023-11-333 1164 DIBBS
4730-00-435-9484 2022-10-277 35 United States
AS4824N12 2020-02-42 1217 DIBBS
ST2284-12 2020-02-42 1217 DIBBS
ST2285-12 2020-02-42 1217 DIBBS
ST2286-12 2020-02-42 1217 DIBBS
AS4824N12 2020-01-30 1217 DIBBS
ST2284-12 2020-01-30 1217 DIBBS
ST2285-12 2020-01-30 1217 DIBBS
ST2286-12 2020-01-30 1217 DIBBS
AS4824N12 2019-04-101 451 DIBBS
ST2284-12 2019-04-101 451 DIBBS
ST2285-12 2019-04-101 451 DIBBS
ST2286-12 2019-04-101 451 DIBBS
4730-00-435-9484 2018-11-322 337 DIBBS
AS4824N12 2016-09-251 25 US
AP50N12 2014-11-314 12 US
AS307412 2012-04-102 2 Germany
AS307512 2012-04-102 2 Germany
ST228412 2011-10-293 80 US
4730-00-435-9484 2011-02-35 80 Indonesia
ST228412 2011-02-35 80 Indonesia
4730-00-435-9484 2011-02-35 80 Indonesia
4730-00-435-9484 2010-07-193 11189 DIBBS
4730-00-435-9484 2010-06-152 3985 DIBBS
4730-00-435-9484 2010-04-93 7797 DIBBS
4730-00-435-9484 2008-03-77 6 US

Cross Reference | NSN 4730-00-435-9484

Part Number Cage Code Manufacturer
2056909 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
AP50N12 01673 SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
AS3074-12 77445 UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
AS3074-12 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS3075-12 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS4824N12 66776 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
ST2001-12 77445 UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
ST2229-12 77445 UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
ST2284-12 52661 UNITED TECHNOLOGIES CORPORATION DBA PRATT & WHITNEY
ST2284-12 77445 UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
ST2285-12 01673 SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
ST2286-12 33447 SECO SEALS, INC.
T.O.2J-F-100-14FIGURE 57 ITEM 32 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-435-9484

Technical Data | NSN 4730-00-435-9484

Characteristic Specifications
MATERIAL STEEL, AMS 5553
METALLIC HARDNESS RATING NOT RATED
CASEHARDENING INDICATOR NOT CASEHARDENED
HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED 0.750 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 4730-00-435-9484

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
