NSN 4730-00-185-0985 2588789, 25887897, 2588789-7
Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-185-0985 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

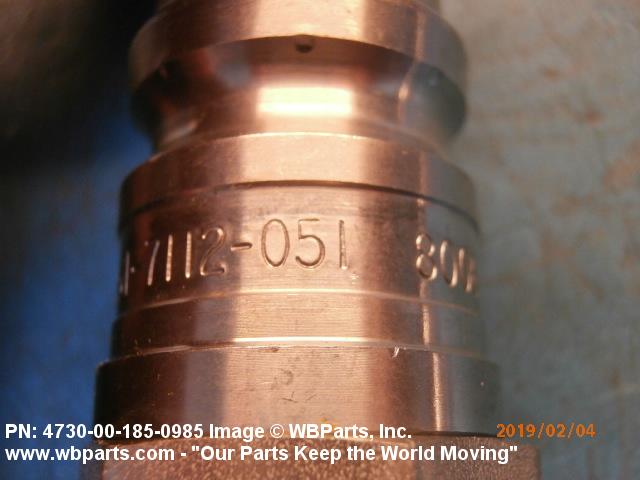

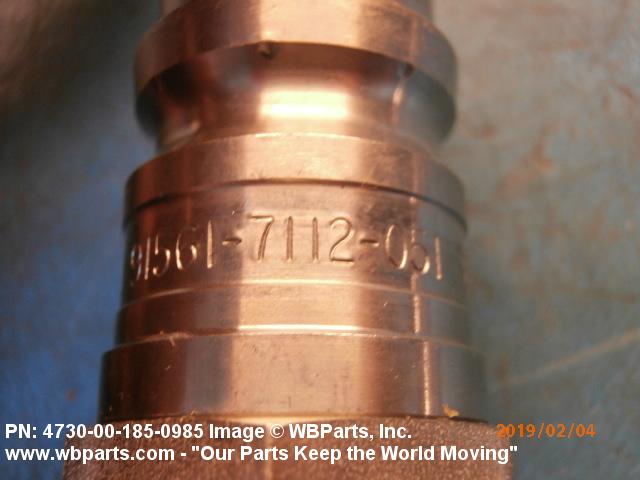

Part Alternates: 2588789, 25887897, 2588789-7, 7112051, 7112-051, 4730-00-185-0985, 00-185-0985, 4730001850985, 001850985
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 07 MAR 1973 | 00-185-0985 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

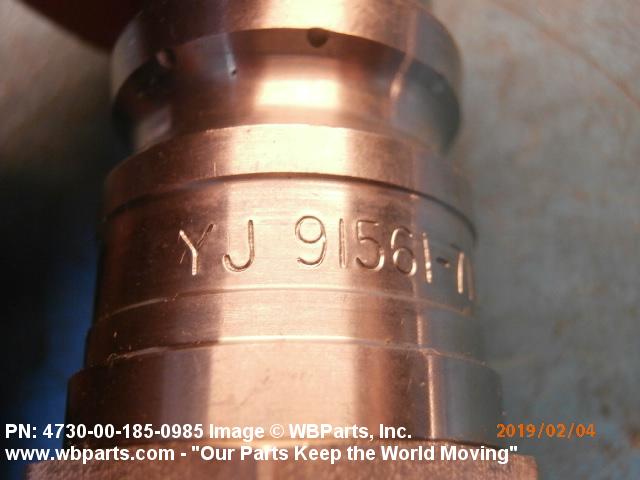

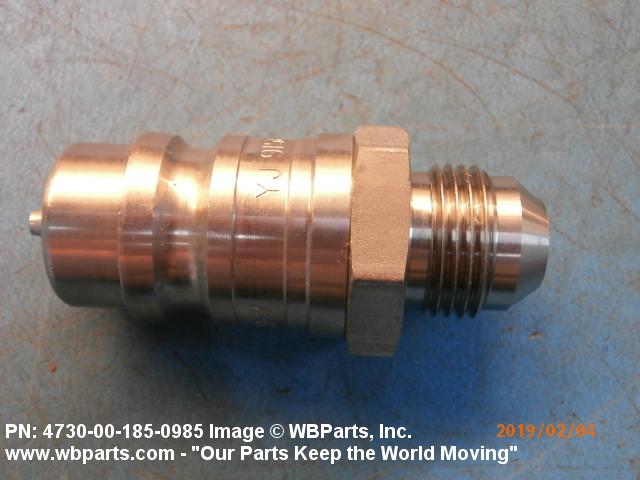

Drawings & Photos | NSN 4730-00-185-0985
Demand History | NSN 4730-00-185-0985
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7112-051 | 2024-09-249 | 112 | DIBBS |
| 7112-051 | 2024-08-238 | 112 | DIBBS |
| 4730-00-185-0985 | 2022-10-278 | 2 | South Korea |
| 25887897 | 2021-02-42 | 1 | CA |
| 7112-051 | 2019-12-356 | 275 | DIBBS |
| 7112-051 | 2019-10-276 | 175 | DIBBS |
| 7112-051 | 2019-09-262 | 14 | DIBBS |
| 7112-051 | 2019-08-241 | 11 | DIBBS |
| 7112-051 | 2019-08-219 | 13 | DIBBS |
| 7112-051 | 2019-07-192 | 11 | DIBBS |
| 4730-00-185-0985 | 2018-11-312 | 53 | DIBBS |
| 4730-00-185-0985 | 2018-10-291 | 1 | Thailand |
| 4730-00-185-0985 | 2017-10-299 | 189 | DIBBS |
| 4730-00-185-0985 | 2017-09-271 | 247 | DIBBS |
| 4730-00-185-0985 | 2017-08-236 | 93 | DIBBS |
| 4730-00-185-0985 | 2017-06-163 | 55 | DIBBS |
| 4730-00-185-0985 | 2017-03-80 | 67 | DIBBS |
| 4730-00-185-0985 | 2017-01-23 | 26 | DIBBS |
| 4730-00-185-0985 | 2016-04-104 | 69 | DIBBS |
| 4730-00-185-0985 | 2016-03-82 | 133 | DIBBS |
| 4730-00-185-0985 | 2015-12-354 | 131 | DIBBS |
| 4730-00-185-0985 | 2015-08-219 | 125 | DIBBS |
| 4730-00-185-0985 | 2015-07-208 | 125 | DIBBS |
| 4730-00-185-0985 | 2014-10-275 | 343 | DIBBS |
| 4730-00-185-0985 | 2014-06-153 | 81 | DIBBS |
| 4730-00-185-0985 | 2014-05-146 | 60 | DIBBS |
| 4730-00-185-0985 | 2013-10-275 | 124 | DIBBS |
| 4730-00-185-0985 | 2013-08-241 | 152 | DIBBS |
| 4730-00-185-0985 | 2013-08-239 | 65 | DIBBS |
| 4730-00-185-0985 | 2013-08-224 | 65 | DIBBS |
| 4730-00-185-0985 | 2013-03-64 | 0 | DIBBS |
| 4730-00-185-0985 | 2010-01-28 | 168 | DIBBS |
| 4730-00-185-0985 | 2010-01-19 | 175 | DIBBS |
| 4730-00-185-0985 | 2010-01-13 | 168 | DIBBS |
| 4730-00-185-0985 | 2010-01-05 | 19 | DIBBS |
| 4730-00-185-0985 | 2009-12-364 | 175 | DIBBS |
| 4730-00-185-0985 | 2009-12-348 | 10 | DIBBS |
| 4730-00-185-0985 | 2009-11-316 | 46 | DIBBS |
| 4730-00-185-0985 | 2009-11-313 | 252 | DIBBS |
| 4730-00-185-0985 | 2009-10-292 | 257 | DIBBS |
| 4730-00-185-0985 | 2009-08-222 | 8 | DIBBS |
| 4730-00-185-0985 | 2009-07-208 | 36 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-185-0985
Related Products | NSN 4730-00-185-0985
Technical Data | NSN 4730-00-185-0985
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY |
| SURFACE TREATMENT | PASSIVATE BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |

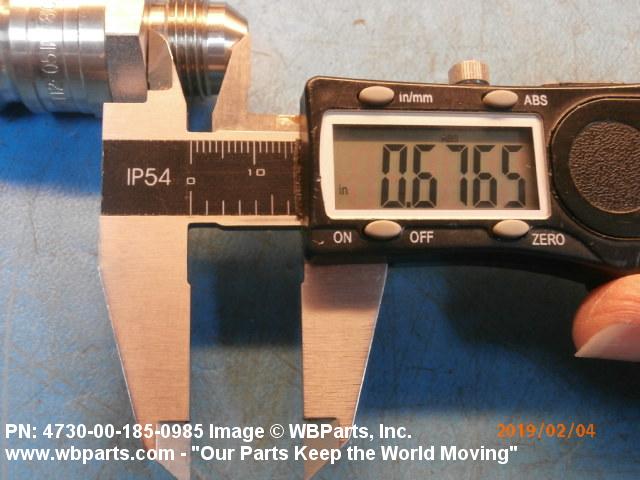

| LEG LENGTH | 0.657 INCHES NOMINAL |

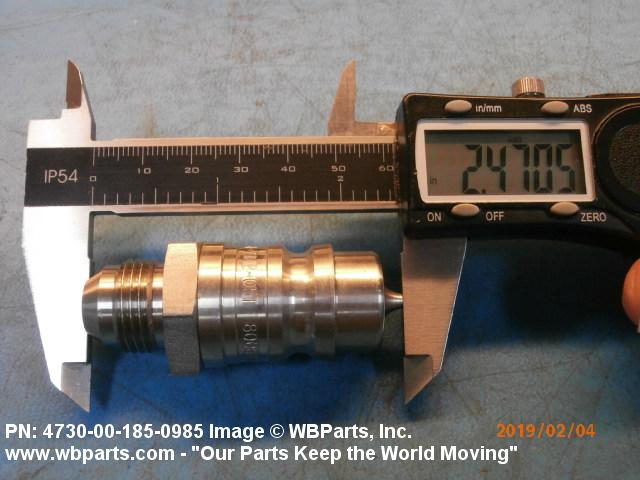

| OVERALL LENGTH | 2.487 INCHES NOMINAL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE FIRST FLUID END CONNECTION EXTERNAL QUICK DISCONNECT FIRST QUICK DISCONNECT END |

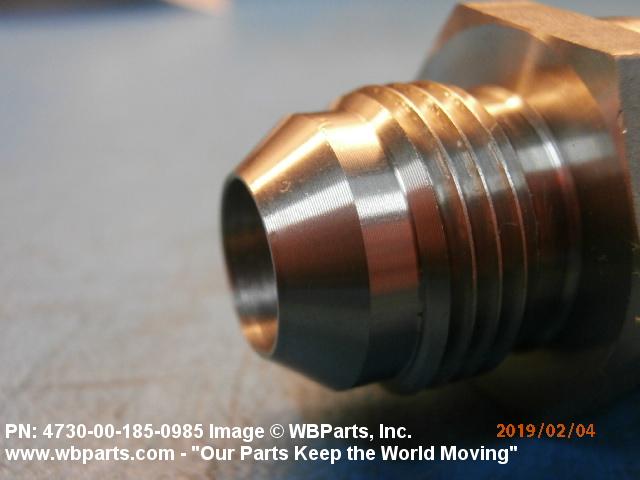

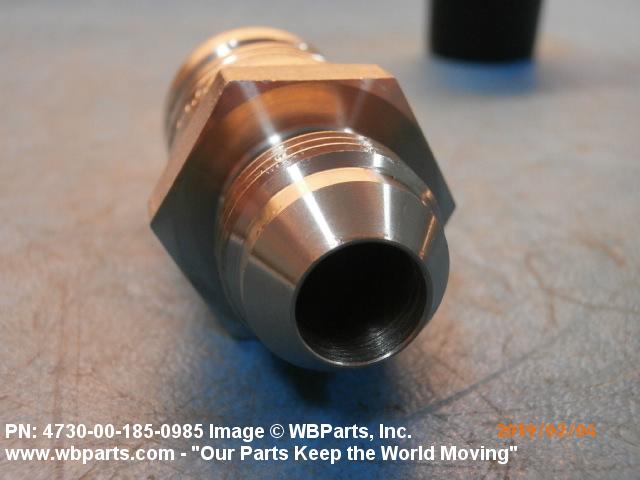

| CONNECTION STYLE | D6 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |

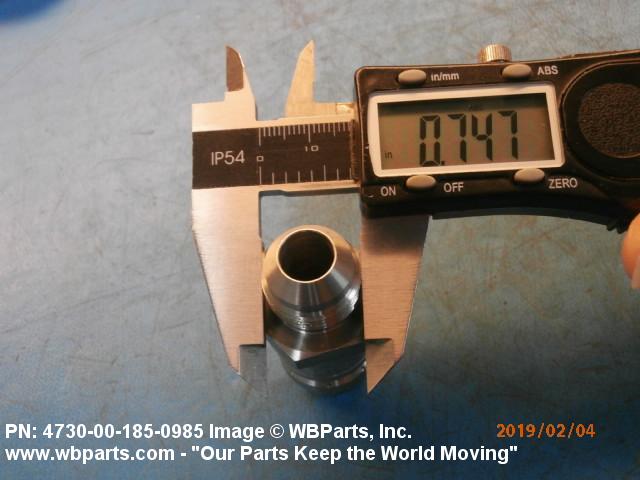

| NOMINAL THREAD SIZE | 0.750 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| MATING END IDENTIFICATION | BRUNING CO.COUPLING HALF,QUICK DISCONNECT,PART NO.7112-050 |
| FEATURES PROVIDED | SELF-SEALING |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 73.9 DEG CELSIUS HYDRAULIC FLUID, PETROLEUM BASE |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 2000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, PETROLEUM BASE |

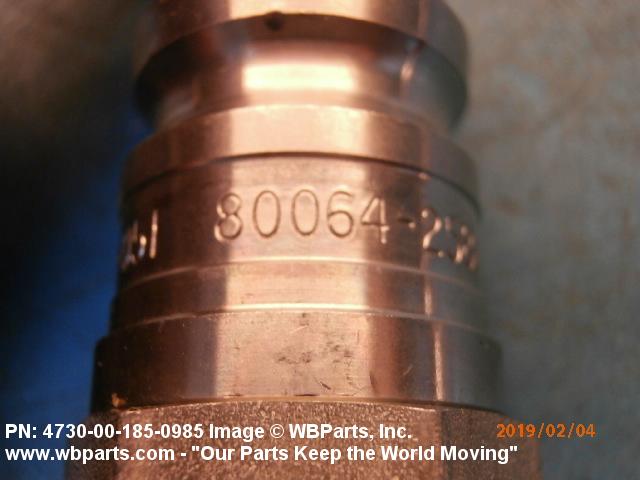

| MANUFACTURERS CODE | 80064 |

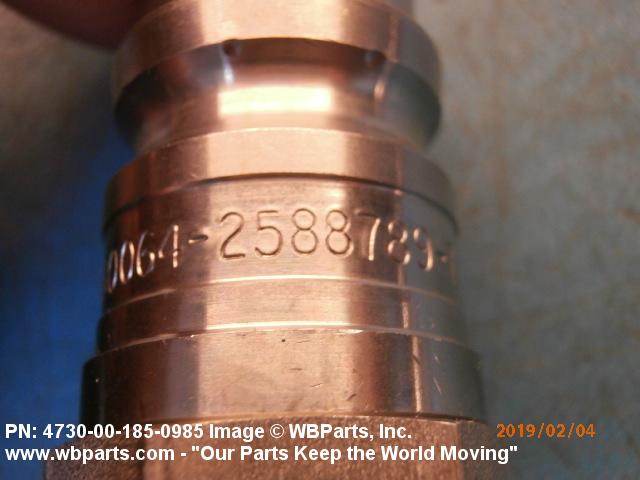

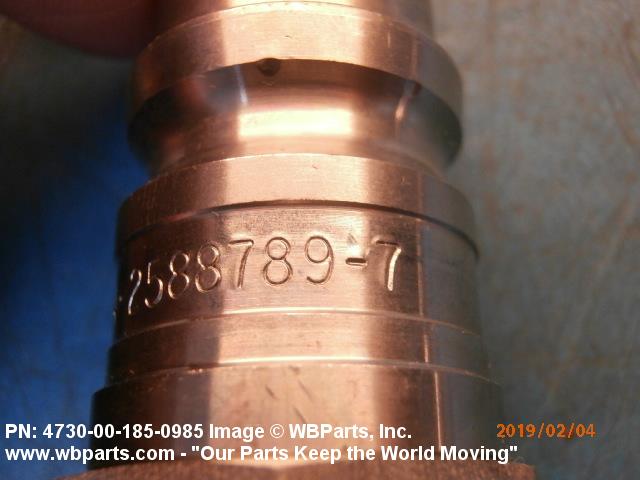

| MFR SOURCE CONTROLLING REFERENCE | 2588789-7 |
Restrictions/Controls & Freight Information | NSN 4730-00-185-0985
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-185-0985
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
