NSN 4730-00-080-4003 LEC200A8, 00-080-4003, 000804003
Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-080-4003 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: LEC200A8, 4730-00-080-4003, 00-080-4003, 4730000804003, 000804003
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 NOV 1972 | 00-080-4003 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

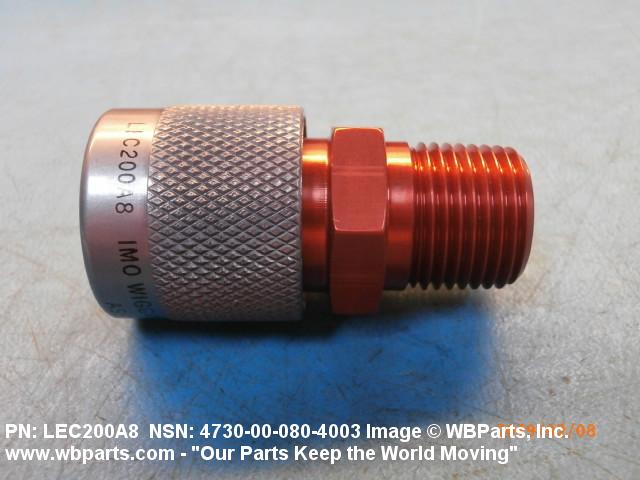

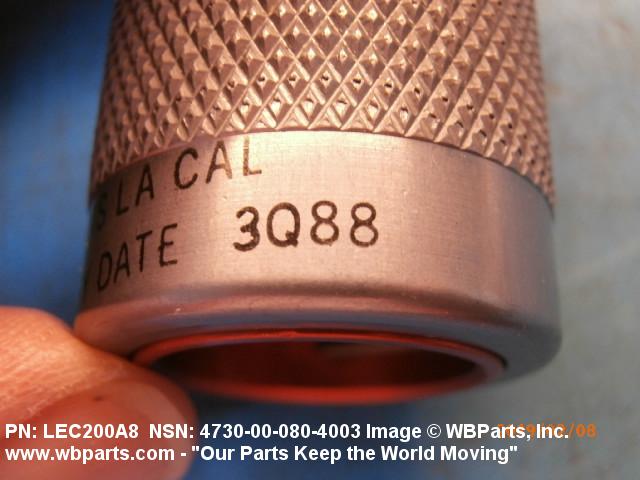

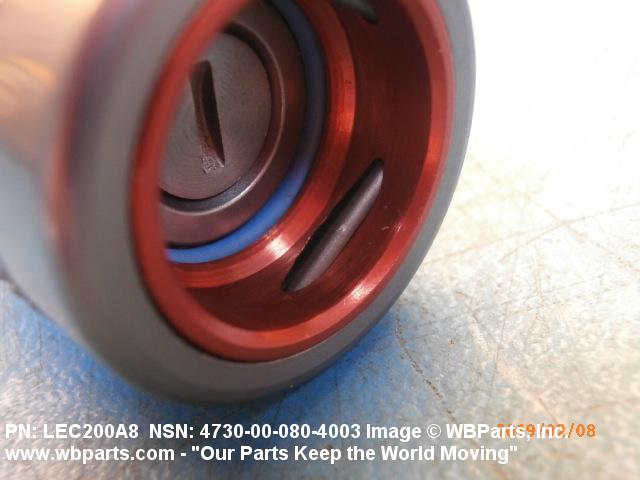

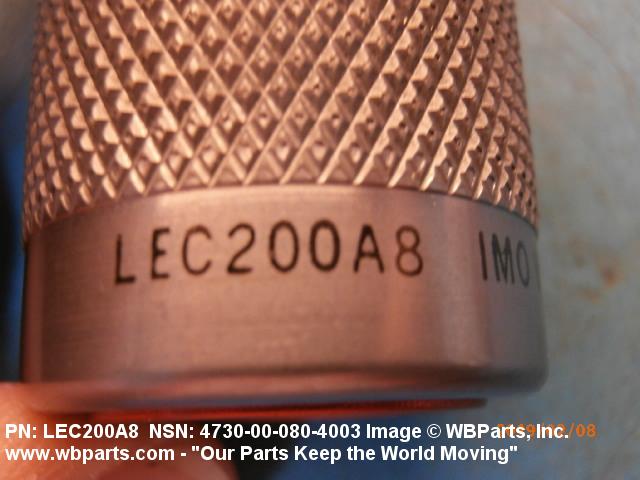

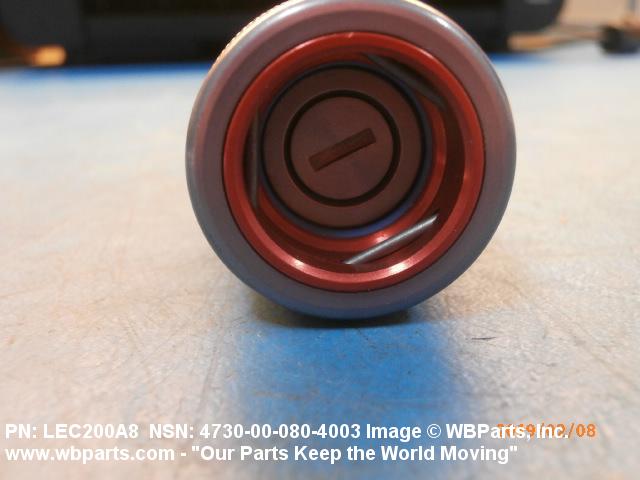

Drawings & Photos | NSN 4730-00-080-4003
Demand History | NSN 4730-00-080-4003
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LEC200A8 | 2024-12-347 | 6 | DIBBS |
| LEC200A8 | 2024-12-344 | 1 | DIBBS |
| LEC200A8 | 2024-12-344 | 3 | DIBBS |
| 4730-00-080-4003 | 2019-01-15 | 2 | United States |
| LEC200A8 | 2019-01-15 | 2 | United States |
Cross Reference | NSN 4730-00-080-4003

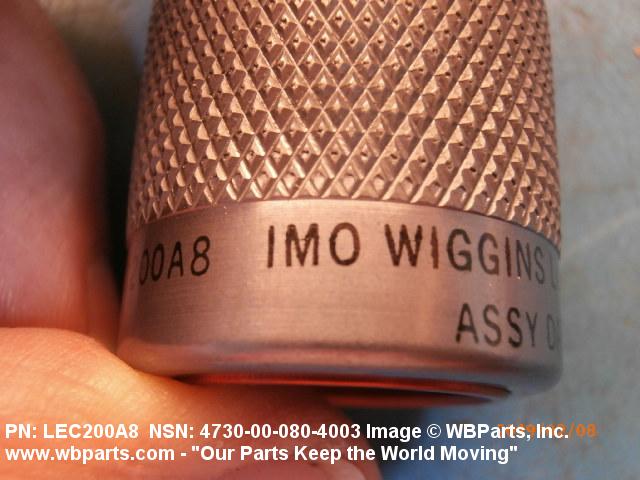

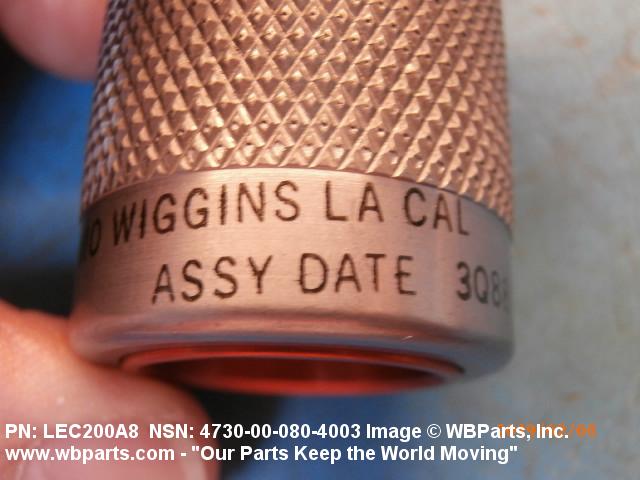

| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LEC200A8 | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-080-4003
Technical Data | NSN 4730-00-080-4003
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,T4 FED SPEC SINGLE MATERIAL RESPONSE BODY |
| SURFACE TREATMENT | ANODIZE BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |

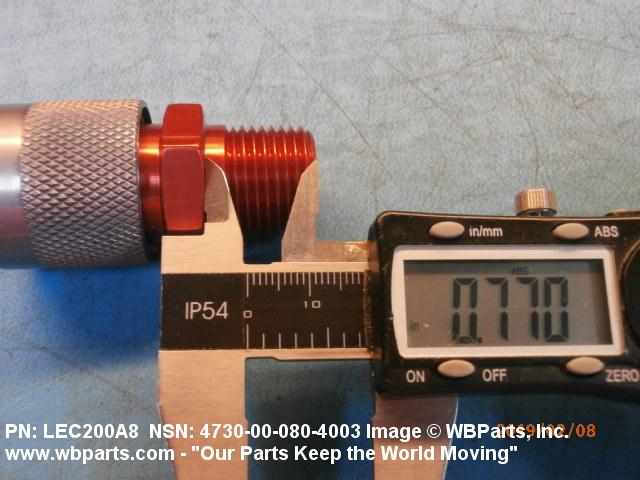

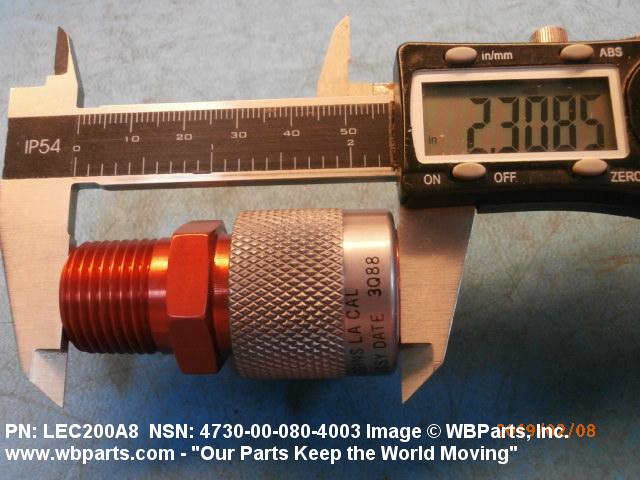

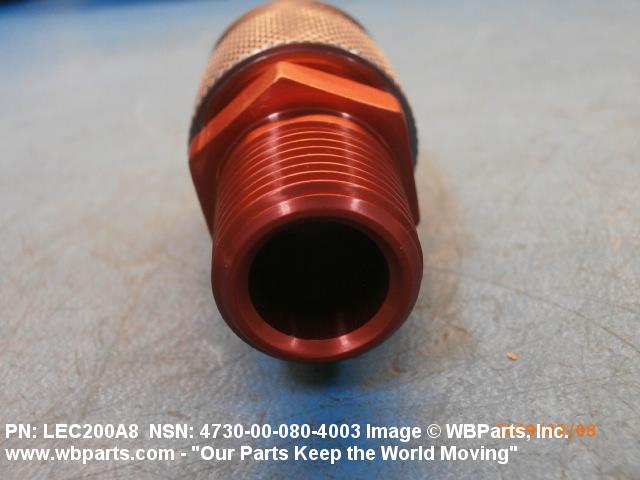

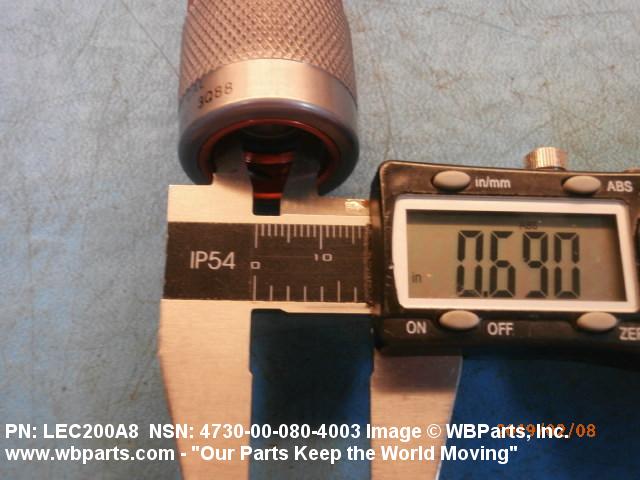

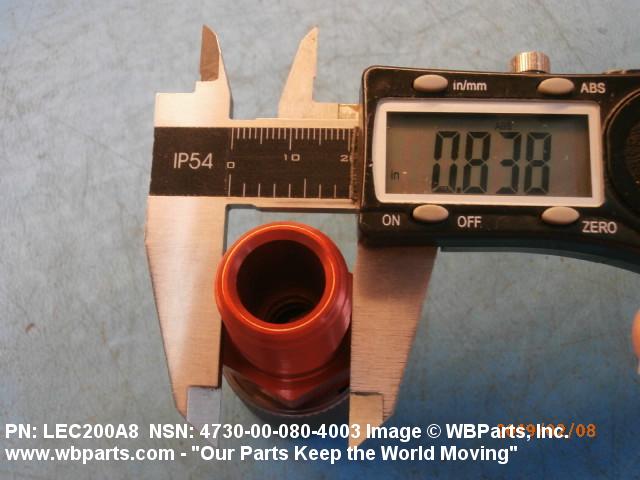

| LEG LENGTH | 0.766 INCHES MINIMUM AND 0.810 INCHES MAXIMUM |
| OVERALL LENGTH | 2.341 INCHES NOMINAL |
| CONNECTION TYPE | THREADED EXTERNAL PIPE FIRST FLUID END CONNECTION INTERNAL QUICK DISCONNECT ALL ENDS |
| CONNECTION STYLE | D2 PLAIN ALL ENDS |
| QUICK DISCONNECT METHOD | SPRING PUSH-PULL ALL ENDS |
| QUICK DISCONNECT NOMINAL SIZE | 0.672 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | ANPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.500 INCHES ALL ENDS |
| FEATURES PROVIDED | SELF-SEALING |
| SPECIAL FEATURES | GRUMMAN AEROSPACE CORP SUPPORTS A10 AIRCRAFT |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | -67.2 DEG FAHRENHEIT ETHYLENE GLYCOL/WATER MIXTURE 444.0 DEG FAHRENHEIT ETHYLENE GLYCOL/WATER MIXTURE -65.0 DEG FAHRENHEIT HYDRAULIC FLUID, WATER BASE 450.0 DEG FAHRENHEIT HYDRAULIC FLUID, WATER BASE |
