NSN 4730-00-080-3091 MS24404D12, AN806D12, AN806-D12

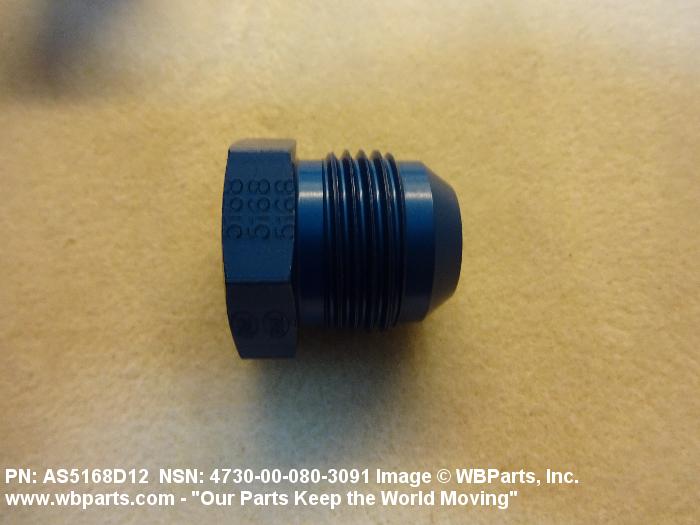

Product Details | THREADED TUBE FITTING PLUG
4730-00-080-3091 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: MS24404D12, AN806D12, AN806-D12, AS4841, AS516, AS5168, AS5168D12, 4730-00-080-3091, 00-080-3091, 4730000803091, 000803091
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 NOV 1972 | 00-080-3091 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

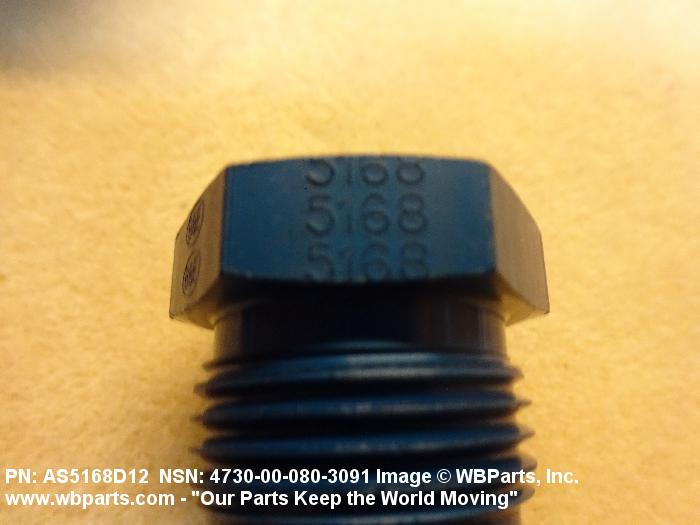

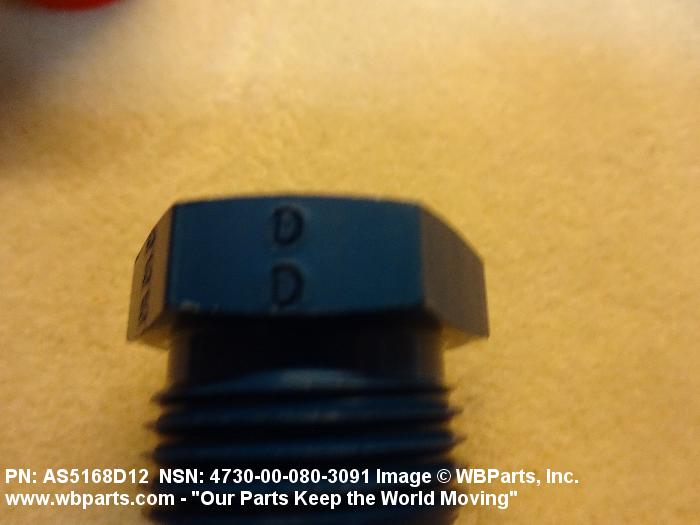

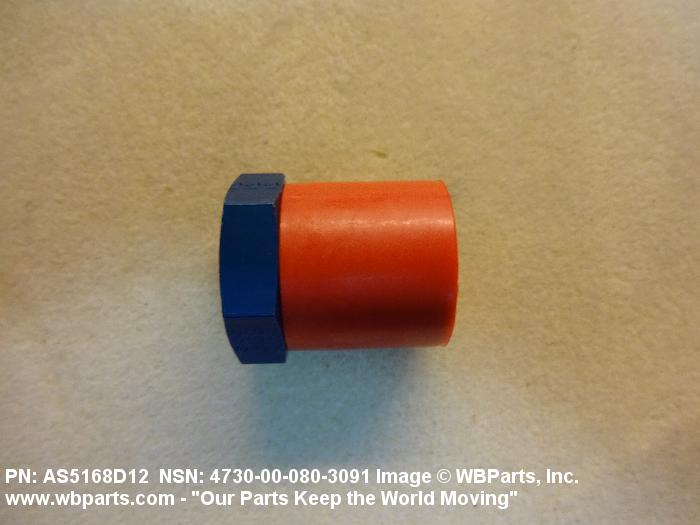

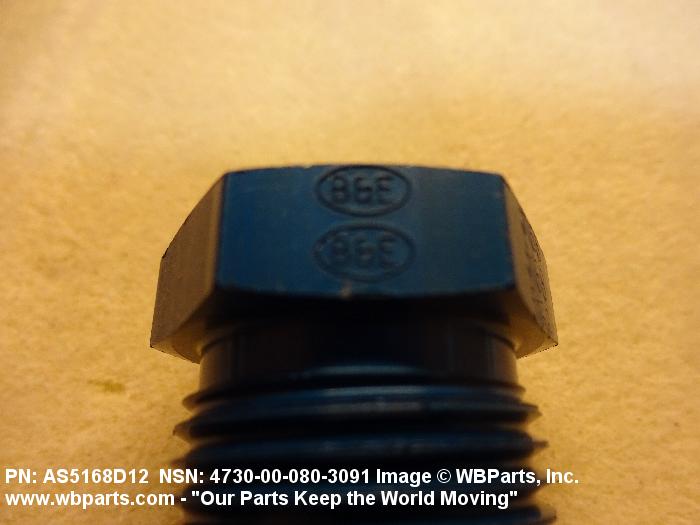

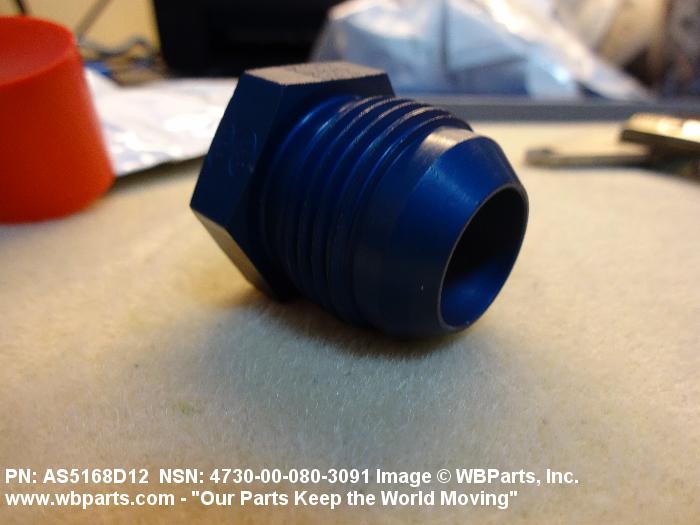

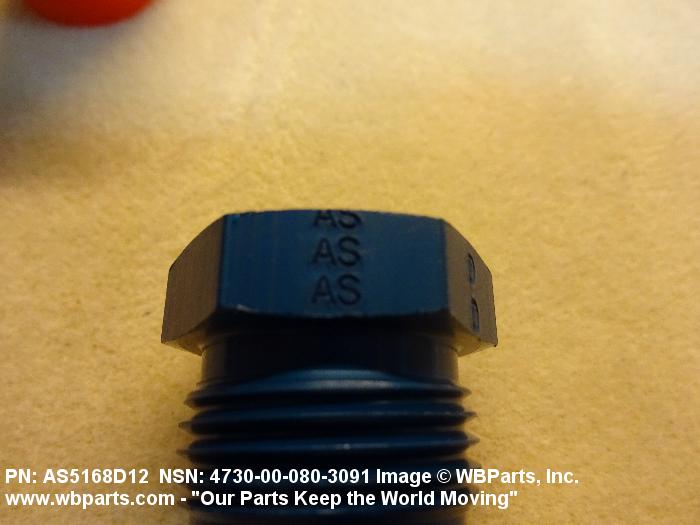

Drawings & Photos | NSN 4730-00-080-3091
Demand History | NSN 4730-00-080-3091
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-080-3091 | 2024-09-254 | 3024 | DIBBS |
| 4730-00-080-3091 | 2024-02-60 | 2033 | DIBBS |
| 4730-00-080-3091 | 2023-08-226 | 2088 | DIBBS |
| 4730-00-080-3091 | 2022-02-54 | 1201 | DIBBS |
| 4730-00-080-3091 | 2022-02-53 | 1201 | DIBBS |
| 4730-00-080-3091 | 2021-12-336 | 4245 | DIBBS |
| 4730-00-080-3091 | 2020-11-327 | 2158 | DIBBS |
| 4730-00-080-3091 | 2020-11-314 | 2158 | DIBBS |
| 4730-00-080-3091 | 2020-11-310 | 727 | DIBBS |
| AS5168D12 | 2020-02-48 | 20 | United States |
| AS5168D12 | 2020-02-48 | 5 | United States |
| 4730-00-080-3091 | 2018-01-01 | 3000 | DIBBS |
| 4730-00-080-3091 | 2017-11-309 | 3448 | DIBBS |
| 4730-00-080-3091 | 2017-04-110 | 3691 | DIBBS |
| 4730-00-080-3091 | 2017-04-93 | 2599 | DIBBS |
| AN806D12 | 2015-04-120 | 200 | China |
| AS4841 | 2011-03-69 | 8 | |
| 4730-00-080-3091 | 2010-01-07 | 1909 | DIBBS |
| 4730-00-080-3091 | 2009-11-321 | 501 | DIBBS |
| 4730-00-080-3091 | 2009-10-296 | 504 | DIBBS |
| 4730-00-080-3091 | 2009-07-212 | 420 | DIBBS |
| 4730-00-080-3091 | 2009-06-176 | 613 | DIBBS |
| 4730-00-080-3091 | 2009-01-20 | 159 | DIBBS |
| 4730-00-080-3091 | 2009-01-09 | 1789 | DIBBS |
| 4730-00-080-3091 | 2008-12-357 | 1223 | DIBBS |
Cross Reference | NSN 4730-00-080-3091
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN806-D12 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5168 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5168D12 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24404D12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-080-3091
Related Products | NSN 4730-00-080-3091
Technical Data | NSN 4730-00-080-3091
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367,T6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-367,T73 FED SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2,CL 2,BLUE MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C42 PLUG, TUBE FITTING FLARED |

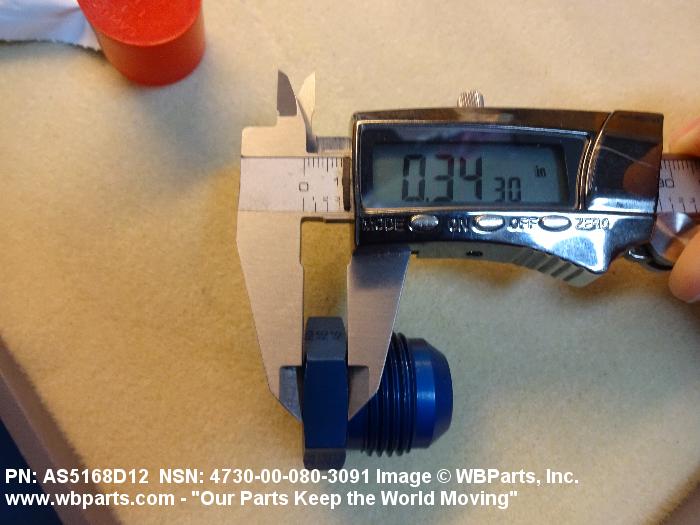

| HEAD HEIGHT | 0.341 INCHES NOMINAL |

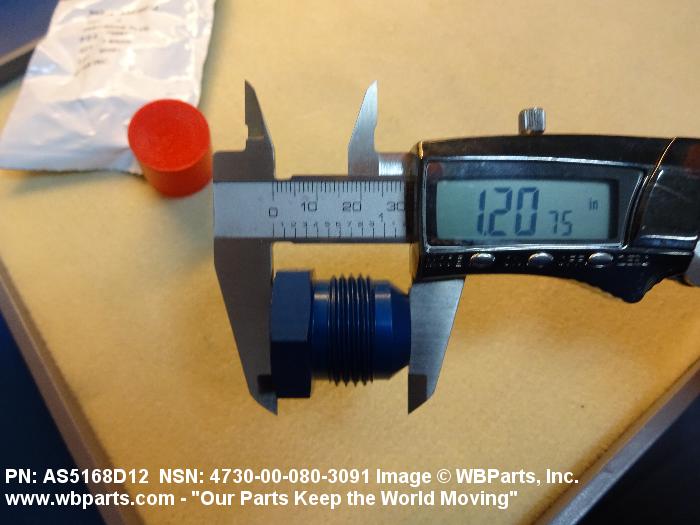

| OVERALL LENGTH | 1.203 INCHES MINIMUM AND 1.234 INCHES MAXIMUM |
| CONNECTION STYLE | J4 FLARED |
| THREAD SERIES DESIGNATOR | UN EXTERNAL |
| NOMINAL THREAD SIZE | 1.062 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 12 EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| SEAT ANGLE | 37.0 DEGREES |
| SPECIAL FEATURES | GRUMMAN AEROSPACE CORP SUPPORTS A10 AIRCRAFT |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 225.0 DEG FAHRENHEIT HYDRAULIC FLUID |
