NSN 4730-00-077-0965 ST7M3228, ST7M322-8, LEC200D8

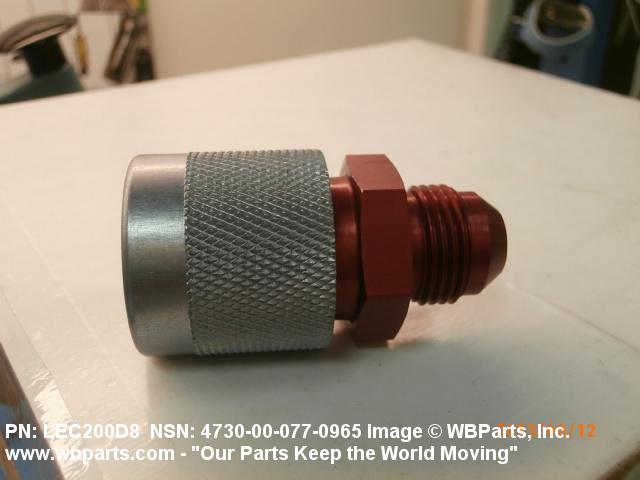

Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-077-0965 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: ST7M3228, ST7M322-8, LEC200D8, 3655511, 365551-1, 44501531, 4450153-1, 579R552H04, 4730-00-077-0965, 00-077-0965, 4730000770965, 000770965
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 AUG 1967 | 00-077-0965 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

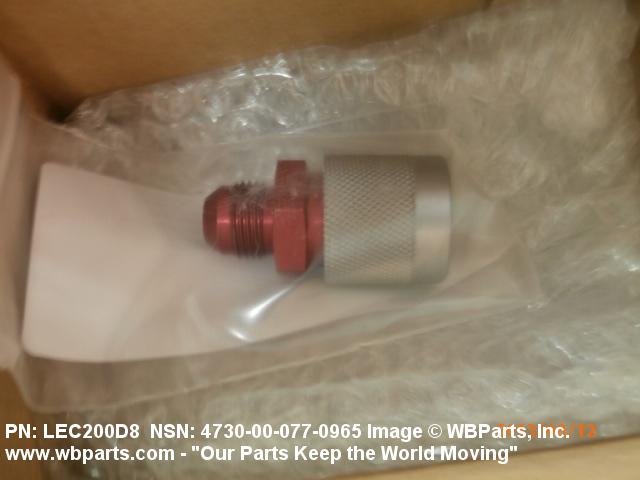

Drawings & Photos | NSN 4730-00-077-0965
Demand History | NSN 4730-00-077-0965
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-077-0965 | 2024-09-269 | 2 | US |
| 4730-00-077-0965 | 2024-09-269 | 2 | US |
| 4730-00-077-0965 | 2024-09-263 | 2 | US |
| 4730-00-077-0965 | 2024-08-232 | 2 | US |
| 579R552H04 | 2024-04-113 | 22 | DIBBS |
| LEC200D8 | 2024-04-113 | 22 | DIBBS |
| ST7M322-8 | 2024-04-113 | 22 | DIBBS |
| 579R552H04 | 2024-04-102 | 22 | DIBBS |
| LEC200D8 | 2024-04-102 | 22 | DIBBS |
| ST7M322-8 | 2024-04-102 | 22 | DIBBS |
| 4730-00-077-0965 | 2023-08-234 | 2 | US |
| 579R552H04 | 2023-05-138 | 13 | DIBBS |
| LEC200D8 | 2023-05-138 | 13 | DIBBS |
| ST7M322-8 | 2023-05-138 | 13 | DIBBS |
| 579R552H04 | 2021-05-123 | 10 | DIBBS |
| LEC200D8 | 2021-05-123 | 10 | DIBBS |
| ST7M322-8 | 2021-05-123 | 10 | DIBBS |
| 579R552H04 | 2021-04-112 | 10 | DIBBS |
| LEC200D8 | 2021-04-112 | 10 | DIBBS |
| ST7M322-8 | 2021-04-112 | 10 | DIBBS |
| 579R552H04 | 2020-11-327 | 7 | DIBBS |
| LEC200D8 | 2020-11-327 | 7 | DIBBS |
| ST7M322-8 | 2020-11-327 | 7 | DIBBS |
| 579R552H04 | 2020-11-310 | 7 | DIBBS |
| LEC200D8 | 2020-11-310 | 7 | DIBBS |
| ST7M322-8 | 2020-11-310 | 7 | DIBBS |
| 579R552H04 | 2020-10-300 | 8 | DIBBS |
| LEC200D8 | 2020-10-300 | 8 | DIBBS |
| ST7M322-8 | 2020-10-300 | 8 | DIBBS |
| 579R552H04 | 2020-10-289 | 8 | DIBBS |
| LEC200D8 | 2020-10-289 | 8 | DIBBS |
| ST7M322-8 | 2020-10-289 | 8 | DIBBS |
| 579R552H04 | 2020-03-90 | 23 | DIBBS |
| LEC200D8 | 2020-03-90 | 23 | DIBBS |
| ST7M322-8 | 2020-03-90 | 23 | DIBBS |
| 579R552H04 | 2020-03-79 | 23 | DIBBS |
| LEC200D8 | 2020-03-79 | 23 | DIBBS |
| ST7M322-8 | 2020-03-79 | 23 | DIBBS |
| 579R552H04 | 2019-12-357 | 12 | DIBBS |
| LEC200D8 | 2019-12-357 | 12 | DIBBS |
| ST7M322-8 | 2019-12-357 | 12 | DIBBS |
| 579R552H04 | 2019-12-346 | 12 | DIBBS |
| LEC200D8 | 2019-12-346 | 12 | DIBBS |
| ST7M322-8 | 2019-12-346 | 12 | DIBBS |
| 579R552H04 | 2019-10-298 | 11 | DIBBS |
| LEC200D8 | 2019-10-298 | 11 | DIBBS |
| ST7M322-8 | 2019-10-298 | 11 | DIBBS |
| 579R552H04 | 2019-10-283 | 11 | DIBBS |
| LEC200D8 | 2019-10-283 | 11 | DIBBS |
| ST7M322-8 | 2019-10-283 | 11 | DIBBS |
| 4730-00-077-0965 | 2019-04-94 | 1 | US |
| 4730-00-077-0965 | 2019-04-92 | 1 | US |
| ST7M3228 | 2018-05-130 | 4 | United States |
| LEC200D8 | 2016-12-343 | 15 | United States |
| LEC200D8 | 2016-11-322 | 15 | United States |
| LEC200D8 | 2016-06-179 | 2 | United States |
| 4730-00-077-0965 | 2016-06-174 | 71 | DIBBS |
| 4730-00-077-0965 | 2016-06-173 | 16 | United States |
| 4730-00-077-0965 | 2016-06-157 | 39 | DIBBS |
| 4730-00-077-0965 | 2016-03-91 | 20 | DIBBS |
| 4730-00-077-0965 | 2016-02-60 | 8 | DIBBS |
| 4730-00-077-0965 | 2016-02-47 | 8 | DIBBS |
| 4730-00-077-0965 | 2015-05-132 | 19 | DIBBS |
| 4730-00-077-0965 | 2015-04-120 | 19 | DIBBS |
| ST7M3228 | 2014-02-56 | 1 | US |
| 4730-00-077-0965 | 2014-01-17 | 1 | United States |
| 4730-00-077-0965 | 2013-07-206 | 4 | United States |
| 4730-00-077-0965 | 2013-07-198 | 4 | United States |
| 4730-00-077-0965 | 2013-06-163 | 4 | United States |
| 4730-00-077-0965 | 2012-05-125 | 39 | DIBBS |
| 4730-00-077-0965 | 2012-01-25 | 4 | US |
| 4730-00-077-0965 | 2011-09-271 | 22 | DIBBS |
| 4730-00-077-0965 | 2010-12-356 | 15 | DIBBS |
| 4730-00-077-0965 | 2010-12-356 | 17 | DIBBS |
| 4730-00-077-0965 | 2010-12-337 | 17 | DIBBS |
| 4730-00-077-0965 | 2010-06-176 | 18 | DIBBS |
| 4730-00-077-0965 | 2010-05-126 | 8 | DIBBS |
| 4730-00-077-0965 | 2010-04-102 | 6 | DIBBS |
| 4730-00-077-0965 | 2010-03-74 | 6 | DIBBS |
| 4730-00-077-0965 | 2009-05-150 | 3 | DIBBS |
| ST7M3228 | 2009-05-132 | 6 | US |
| 4730-00-077-0965 | 2009-04-113 | 8 | DIBBS |
Cross Reference | NSN 4730-00-077-0965
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 365551-1 | 00752 | EDO CORPORATION DIV EDO CORPORATION AP&T |
| 4450153-1 | 93346 | SENSOR AND ANTENNA SYSTEMS, LANSDALE, INC. |
| 579R552H04 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| LEC200D8 | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
| LEC200D8 | 92678 | EG AND G INC |
| ST7M322-8 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-077-0965
Related Products | NSN 4730-00-077-0965
Technical Data | NSN 4730-00-077-0965
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY 2024 |
| BODY MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,T4 FED SPEC SINGLE MATERIAL RESPONSE |
| BODY SURFACE TREATMENT | ANODIZE |
| BODY STYLE | 1 COUPLING HALF |

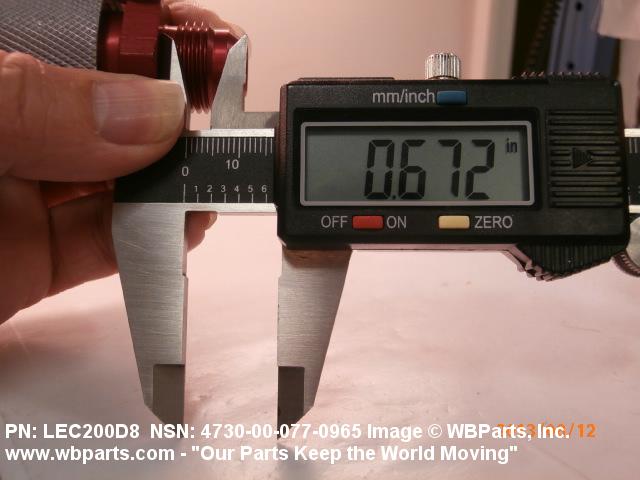

| FIRST LEG LENGTH | 0.642 INCHES MINIMUM AND 0.672 INCHES MAXIMUM |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 500.0 POUNDS PER SQUARE INCH ETHYLENE GLYCOL/WATER MIXTURE 500.0 POUNDS PER SQUARE INCH WATER 500.0 POUNDS PER SQUARE INCH OIL 500.0 POUNDS PER SQUARE INCH GAS |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 450.0 DEG FAHRENHEIT ETHYLENE GLYCOL/WATER MIXTURE 450.0 DEG FAHRENHEIT WATER 450.0 DEG FAHRENHEIT OIL 500.0 DEG FAHRENHEIT WATER |

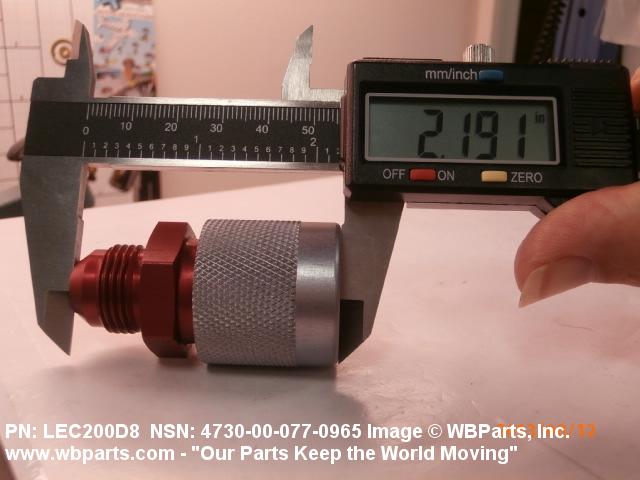

| OVERALL LENGTH | 2.141 INCHES MINIMUM AND 2.219 INCHES MAXIMUM |
| FIRST FLUID END CONNECTION TYPE | THREADED EXTERNAL TUBE |

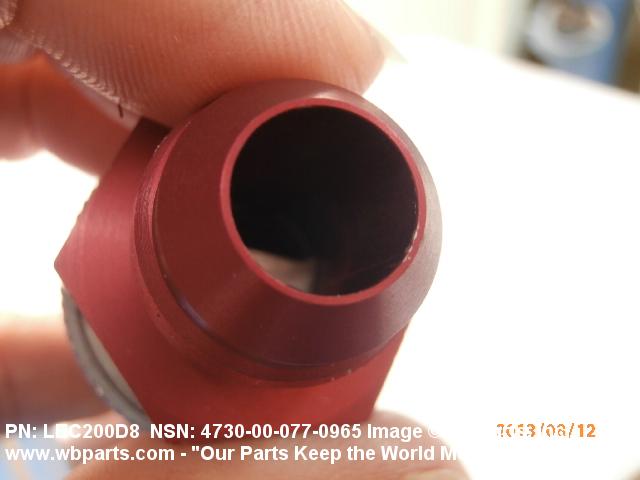

| FIRST END STYLE DESIGNATOR | D6 FLARED |
| FIRST END SEAT ANGLE | 37.0 DEGREES NOMINAL |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNF |

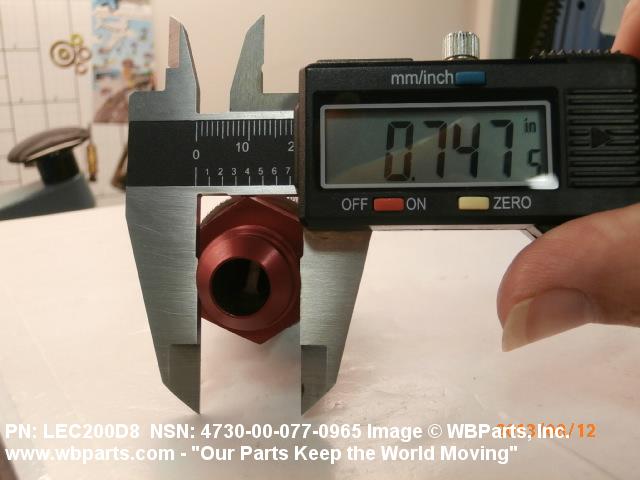

| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD CLASS | 3A |

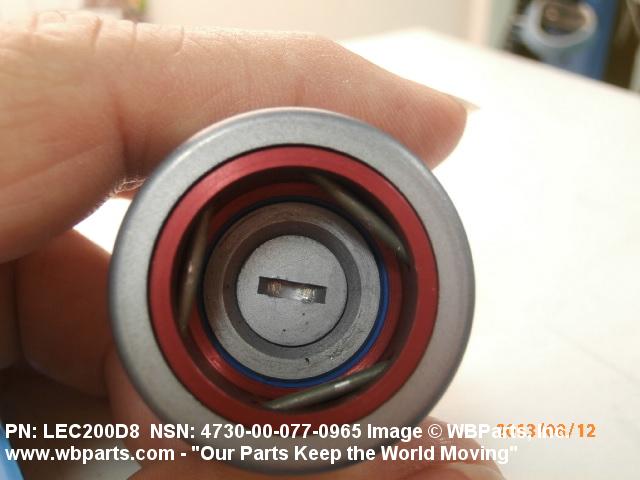

| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |
