NSN 4730-00-014-6846 ST48D1096, ST48D109-6, TB015519S48D

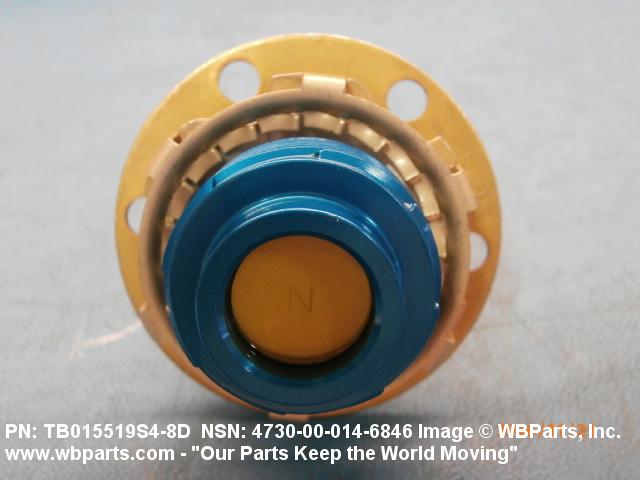

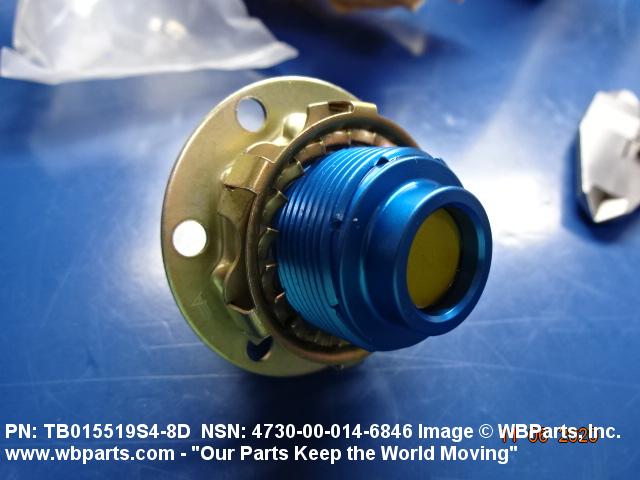

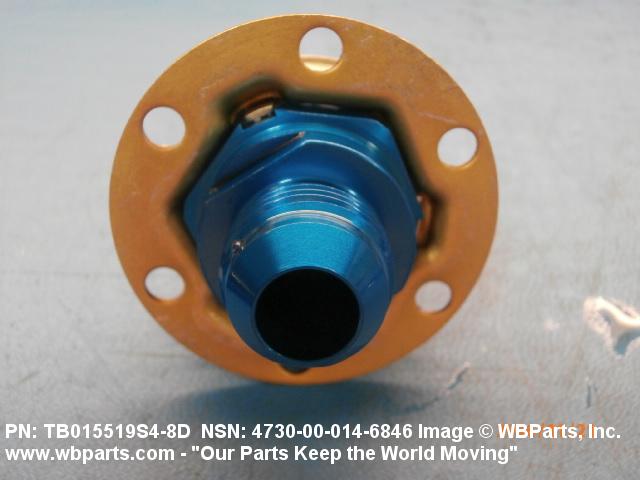

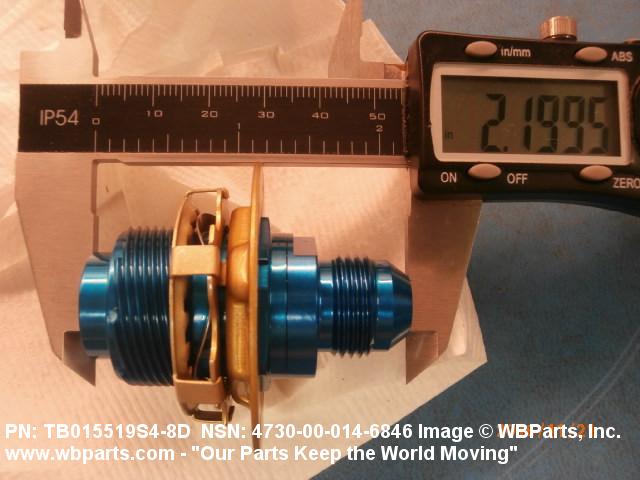

Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-014-6846 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: ST48D1096, ST48D109-6, TB015519S48D, TB015519-S4-8D, TB015519S4-8D, 015519S48D, 015519-S4-8D, 4410808AN1, 44108-08A-N1, 4730-00-014-6846, 00-014-6846, 4730000146846, 000146846
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 13 MAY 1968 | 00-014-6846 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

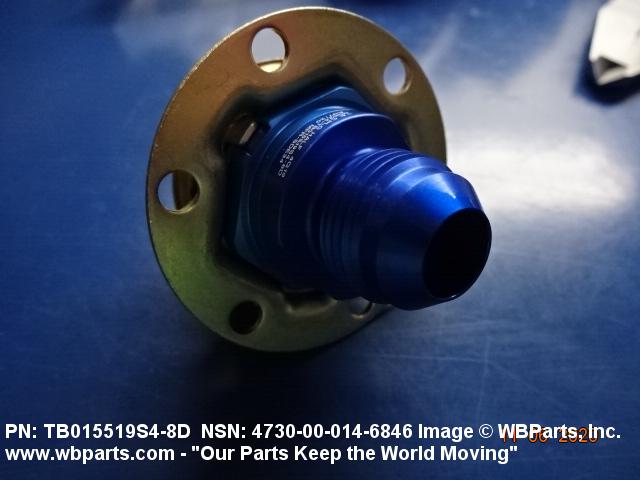

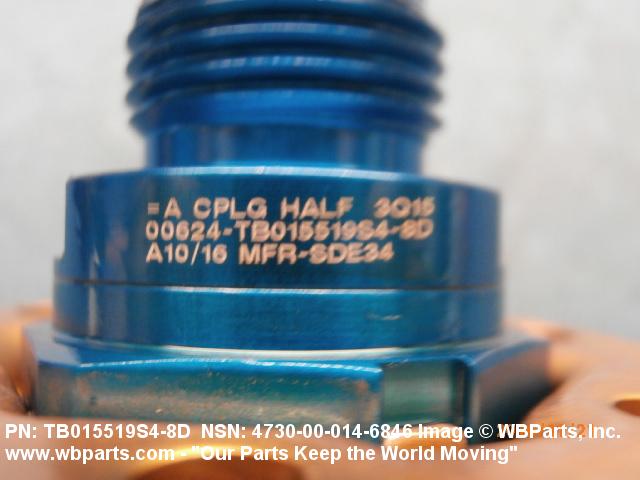

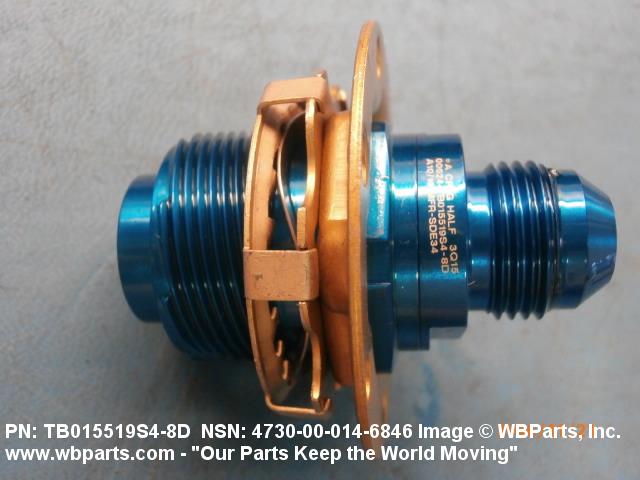

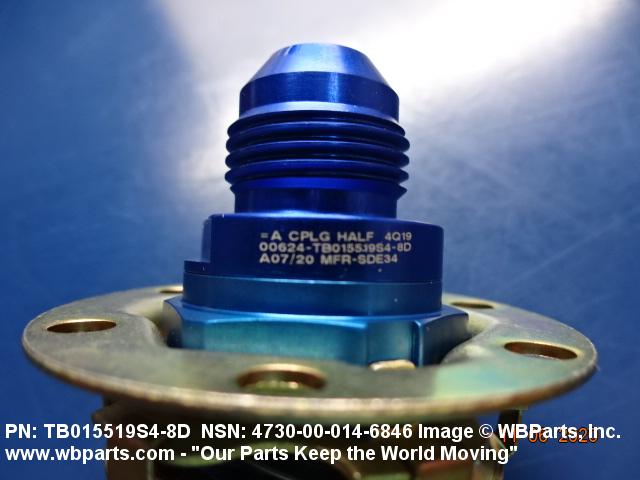

Drawings & Photos | NSN 4730-00-014-6846
Demand History | NSN 4730-00-014-6846
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 015519-S4-8D | 2024-10-289 | 62 | DIBBS |
| 44108-08A-N1 | 2024-10-289 | 62 | DIBBS |
| TB015519-S4-8D | 2024-10-289 | 62 | DIBBS |
| TB015519S4-8D | 2024-10-289 | 62 | DIBBS |
| 015519-S4-8D | 2024-10-277 | 62 | DIBBS |
| 44108-08A-N1 | 2024-10-277 | 62 | DIBBS |
| TB015519-S4-8D | 2024-10-277 | 62 | DIBBS |
| TB015519S4-8D | 2024-10-277 | 62 | DIBBS |
| 015519-S4-8D | 2024-08-214 | 81 | DIBBS |
| 44108-08A-N1 | 2024-08-214 | 81 | DIBBS |
| TB015519-S4-8D | 2024-08-214 | 81 | DIBBS |
| TB015519S4-8D | 2024-08-214 | 81 | DIBBS |
| 015519-S4-8D | 2024-07-203 | 81 | DIBBS |
| 44108-08A-N1 | 2024-07-203 | 81 | DIBBS |
| TB015519-S4-8D | 2024-07-203 | 81 | DIBBS |
| TB015519S4-8D | 2024-07-203 | 81 | DIBBS |
| 015519-S4-8D | 2023-12-341 | 81 | DIBBS |
| 44108-08A-N1 | 2023-12-341 | 81 | DIBBS |
| TB015519-S4-8D | 2023-12-341 | 81 | DIBBS |
| TB015519S4-8D | 2023-12-341 | 81 | DIBBS |
| TB015519S48D | 2023-10-277 | 1 | United States |
| 015519-S4-8D | 2023-04-103 | 45 | DIBBS |
| 44108-08A-N1 | 2023-04-103 | 45 | DIBBS |
| TB015519-S4-8D | 2023-04-103 | 45 | DIBBS |
| TB015519S4-8D | 2023-04-103 | 45 | DIBBS |
| 4730-00-014-6846 | 2022-08-214 | 2 | United States |
| 4730-00-014-6846 | 2022-05-146 | 2 | us |
| 015519-S4-8D | 2022-03-87 | 159 | DIBBS |
| 44108-08A-N1 | 2022-03-87 | 159 | DIBBS |
| TB015519-S4-8D | 2022-03-87 | 159 | DIBBS |
| TB015519S4-8D | 2022-03-87 | 159 | DIBBS |
| 015519-S4-8D | 2022-03-76 | 159 | DIBBS |
| 44108-08A-N1 | 2022-03-76 | 159 | DIBBS |
| TB015519-S4-8D | 2022-03-76 | 159 | DIBBS |
| TB015519S4-8D | 2022-03-76 | 159 | DIBBS |
| 015519-S4-8D | 2021-12-336 | 43 | DIBBS |
| 44108-08A-N1 | 2021-12-336 | 43 | DIBBS |
| TB015519-S4-8D | 2021-12-336 | 43 | DIBBS |
| TB015519S4-8D | 2021-12-336 | 43 | DIBBS |
| 4730-00-014-6846 | 2021-05-144 | 4 | US |
| 4730-00-014-6846 | 2020-10-302 | 3 | United States |
| TB015519S48D | 2020-10-282 | 3 | United States |
| 4730-00-014-6846 | 2020-10-281 | 1 | SV |
| TB015519S48D | 2020-09-253 | 2 | Germany |
| TB015519S48D | 2020-08-231 | 4 | Germany |
| 4730-00-014-6846 | 2020-04-94 | 10 | US |
| 4730-00-014-6846 | 2020-04-94 | 10 | US |
| 015519-S4-8D | 2020-03-86 | 29 | DIBBS |
| 44108-08A-N1 | 2020-03-86 | 29 | DIBBS |
| TB015519-S4-8D | 2020-03-86 | 29 | DIBBS |
| TB015519S4-8D | 2020-03-86 | 29 | DIBBS |
| 015519-S4-8D | 2020-03-69 | 31 | DIBBS |
| 44108-08A-N1 | 2020-03-69 | 31 | DIBBS |
| TB015519-S4-8D | 2020-03-69 | 31 | DIBBS |
| TB015519S4-8D | 2020-03-69 | 31 | DIBBS |
| 015519-S4-8D | 2020-02-58 | 31 | DIBBS |
| 44108-08A-N1 | 2020-02-58 | 31 | DIBBS |
| TB015519-S4-8D | 2020-02-58 | 31 | DIBBS |
| TB015519S4-8D | 2020-02-58 | 31 | DIBBS |
| TB015519S48D | 2020-02-43 | 2 | US |
| 4730-00-014-6846 | 2019-08-224 | 10 | United States |
| 4730-00-014-6846 | 2019-08-224 | 10 | United States |
| 015519S48D | 2019-02-44 | 1 | US |
| 4730-00-014-6846 | 2018-10-285 | 6 | United States |
| 4730-00-014-6846 | 2018-09-255 | 10 | US |
| TB015519S48D | 2018-05-131 | 1 | NZ |
| TB015519S48D | 2017-05-135 | 8 | United States |
| TB015519S48D | 2016-11-314 | 2 | us |
| TB015519-S4-8D | 2015-01-14 | 5 | Canada |
| 4730-00-014-6846 | 2011-09-245 | 17 | DIBBS |
| 4730-00-014-6846 | 2011-07-193 | 157 | DIBBS |
| 4730-00-014-6846 | 2010-09-272 | 431 | DIBBS |
| 4730-00-014-6846 | 2010-03-77 | 499 | DIBBS |
| 4730-00-014-6846 | 2008-04-99 | 610 | United States |
Cross Reference | NSN 4730-00-014-6846
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 015519-S4-8D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 015519-S4-8D | R1120 | SATAIR A/S |
| 44108-08A-N1 | 11362 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| ST48D109-6 | 04236 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN SPACE SYSTEMS |
| TB015519-S4-8D | F9023 | GREENE TWEED & CO FRANCE SAS |
| TB015519S4-8D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| TB015519S4-8D | F1297 | TMH-AMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-014-6846
Related Products | NSN 4730-00-014-6846
Technical Data | NSN 4730-00-014-6846
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY |
| SURFACE TREATMENT | ANODIZE BODY |

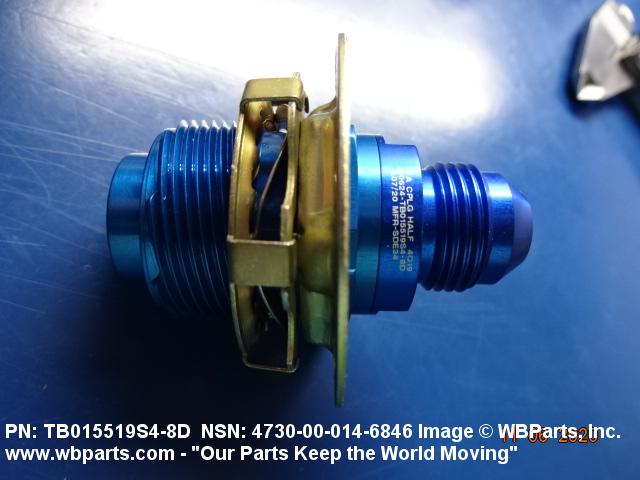

| STYLE DESIGNATOR | A1 MALE COUPLING HALF |

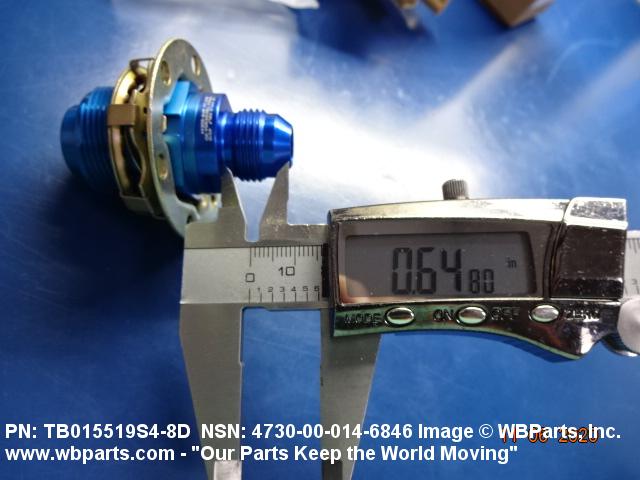

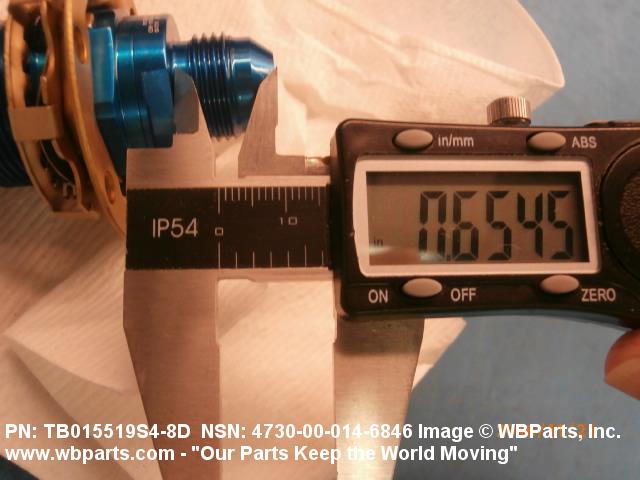

| LEG LENGTH | 0.650 INCHES NOMINAL |

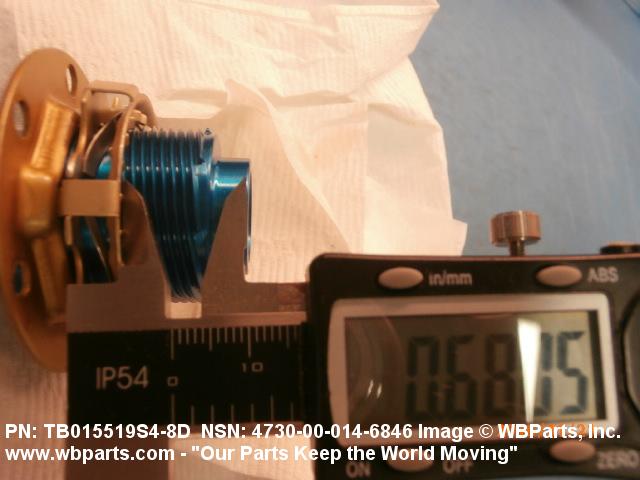

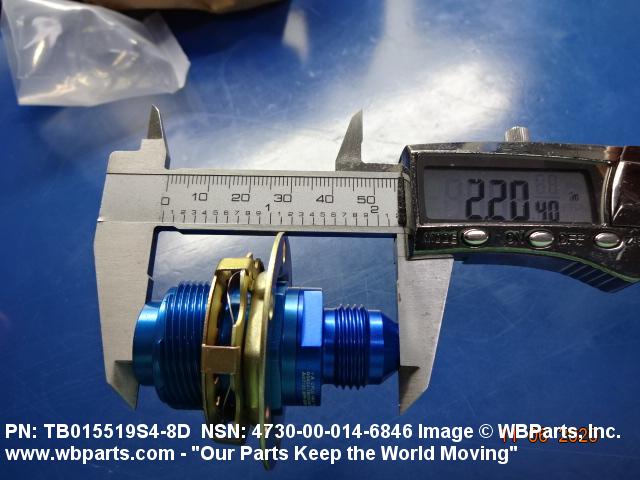

| OVERALL LENGTH | 2.203 INCHES MINIMUM AND 2.719 INCHES MAXIMUM |
| CONNECTION TYPE | THREADED EXTERNAL TUBE FIRST FLUID END CONNECTION EXTERNAL QUICK DISCONNECT ALL ENDS |
| CONNECTION STYLE | D6 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES |
| QUICK DISCONNECT METHOD | QUICK LEAD THREAD ALL ENDS |

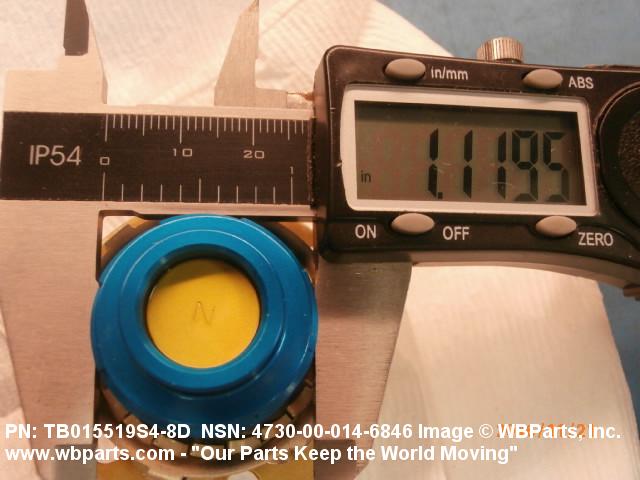

| QUICK DISCONNECT NOMINAL SIZE | 1.125 INCHES ALL ENDS |

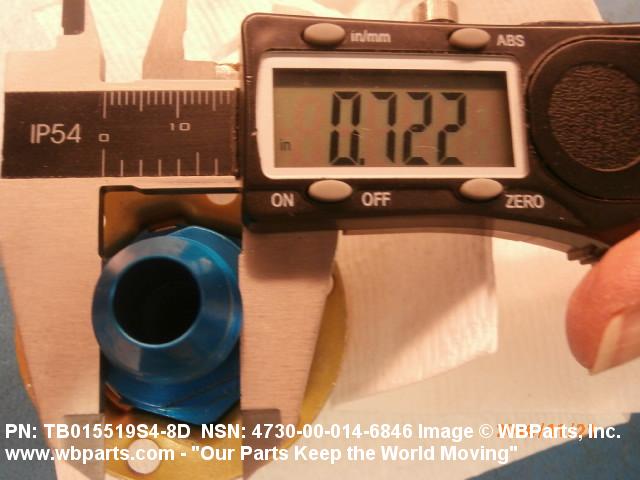

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES ALL ENDS |

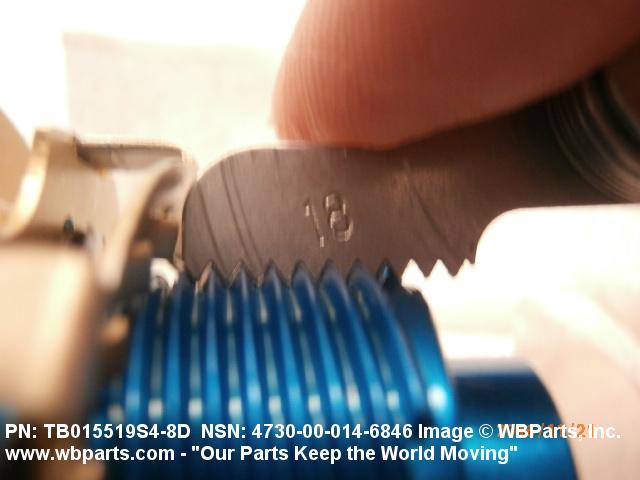

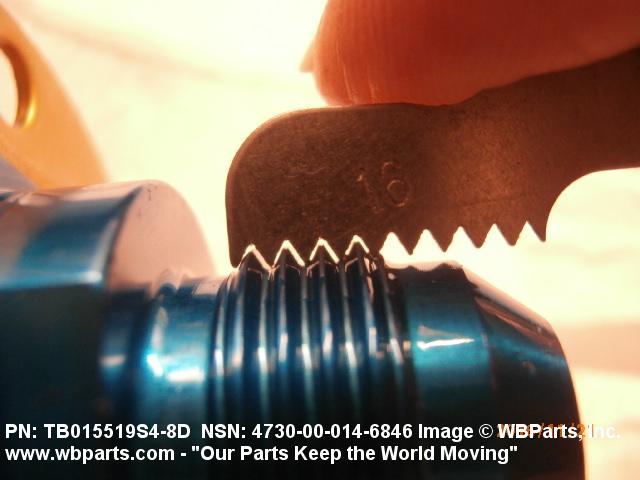

| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.750 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| FEATURES PROVIDED | SELF-SEALING |
| SPECIAL FEATURES | GRUMMAN A10 AIRCRAFT |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 148.0 DEG FAHRENHEIT WATER -67.2 DEG FAHRENHEIT WATER 148.0 DEG FAHRENHEIT HYDRAULIC FLUID, WATER BASE -67.2 DEG FAHRENHEIT HYDRAULIC FLUID, WATER BASE |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH WATER 3000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, WATER BASE |
Restrictions/Controls & Freight Information | NSN 4730-00-014-6846
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
