NSN 4730-00-009-0364 AE16171488, AE16171-4-8-8, AE16171884
Product Details | TUBE TEE
4730-00-009-0364 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: AE16171488, AE16171-4-8-8, AE16171884, AE16171-8-8-4, AP260T080804, AP360T080804, ST7M220, ST7M220T080804, TF360T080804, TF360T08-08-04, GT515AY080804, GT515AY08-08-04, R45111T040808, R45111T04-08-08, R45111T080804, R45111T5080804, R45111T5-080804, 4730-00-009-0364, 00-009-0364, 4730000090364, 000090364
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 JUL 1972 | 00-009-0364 | 03809 ( TEE, TUBE ) |

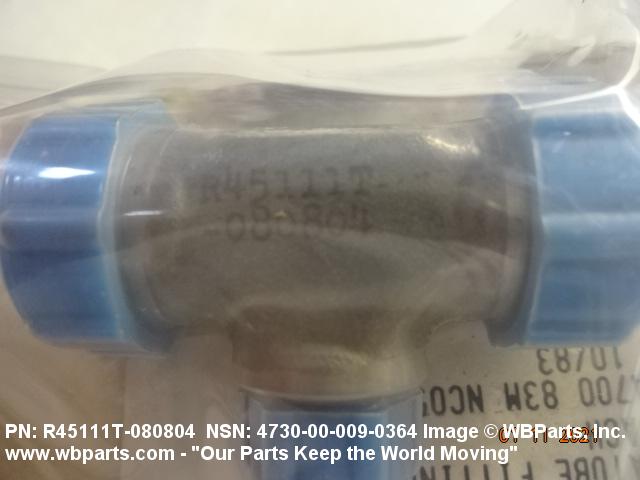

Drawings & Photos | NSN 4730-00-009-0364
Demand History | NSN 4730-00-009-0364
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AE16171-8-8-4 | 2020-12-363 | 8 | DIBBS |
| AP360T080804 | 2020-12-363 | 8 | DIBBS |
| R45111T5-080804 | 2020-12-363 | 8 | DIBBS |
| ST7M220T080804 | 2020-12-363 | 8 | DIBBS |
| TF360T08-08-04 | 2020-12-363 | 8 | DIBBS |
| 4730-00-009-0364 | 2020-12-357 | 2 | United States |
| AE16171-8-8-4 | 2020-12-352 | 8 | DIBBS |
| AP360T080804 | 2020-12-352 | 8 | DIBBS |
| R45111T5-080804 | 2020-12-352 | 8 | DIBBS |
| ST7M220T080804 | 2020-12-352 | 8 | DIBBS |
| TF360T08-08-04 | 2020-12-352 | 8 | DIBBS |
| AE16171-8-8-4 | 2020-06-168 | 2 | DIBBS |
| AP360T080804 | 2020-06-168 | 2 | DIBBS |
| R45111T5-080804 | 2020-06-168 | 2 | DIBBS |
| ST7M220T080804 | 2020-06-168 | 2 | DIBBS |
| TF360T08-08-04 | 2020-06-168 | 2 | DIBBS |
Cross Reference | NSN 4730-00-009-0364
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AE16171-4-8-8 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AE16171-8-8-4 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AP260T080804 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| AP360T080804 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| GT515AY08-08-04 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| R45111T04-08-08 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| R45111T080804 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| R45111T5-080804 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| ST7M220 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST7M220T080804 | 76301 | BOEING COMPANY, THE DBA BOEING |
| TF360T08-08-04 | 78570 | SMITHS TUBULAR SYSTEMS-LACONIA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-009-0364
Related Products | NSN 4730-00-009-0364
Technical Data | NSN 4730-00-009-0364
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 6AL-4V RES 143 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 135.0 DEG CELSIUS SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B63A INVERTED FLARE ALL ENDS |
| SEAT ANGLE | 8.5 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES 1ST END 0.500 INCHES 2ND END 0.250 INCHES 3RD END |
| THREAD SERIES DESIGNATOR | UNJS ALL ENDS |
| NOMINAL THREAD SIZE | 0.718 INCHES 1ST END 0.718 INCHES 2ND END 0.438 INCHES 3RD END |
| THREAD QUANTITY PER INCH | 20 1ST END 20 2ND END 24 3RD END |
| THREAD CLASS | 3A ALL ENDS |
| LEG LENGTH | 0.809 INCHES MINIMUM AND 0.839 INCHES MAXIMUM ALL ENDS |
Restrictions/Controls & Freight Information | NSN 4730-00-009-0364
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-009-0364
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
