NSN 4720-01-497-9934 12354735-1, 01-497-9934, 123547351
Product Details | AIR DUCT HOSE
4720-01-497-9934 A flexible, tubular item of light wall construction. It must have single or multiple layers of nonmetallic material, but may contain metal wire reinforcement, foil type liner, and/or woven or braided cover. It is designed to convey under low pressure gaseous material, such as air and fumes, and light weight solid materials, such as dust, powders, and fibers. For items with couplings, see HOSE ASSEMBLY, AIR DUCT. For items of sleeve section design rated for high pressure use, see SLEEVE, SEAL, COUPLING. Excludes hose, nonmetallic.
Part Alternates: 12354735-1, 4720-01-497-9934, 01-497-9934, 4720014979934, 123547351, 014979934
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 JUN 2002 | 01-497-9934 | 11116 ( HOSE, AIR DUCT ) |

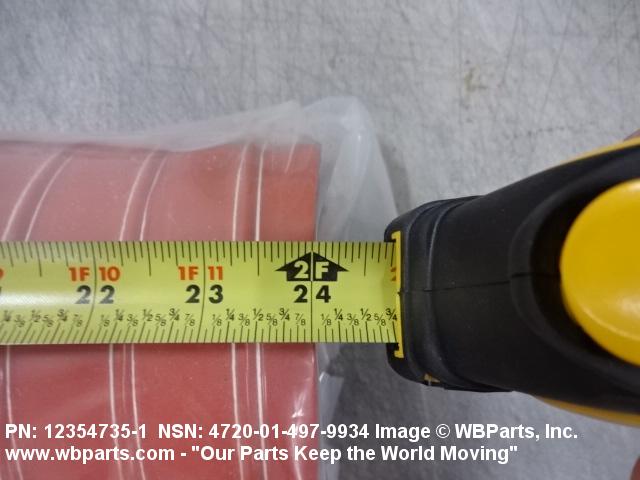

Drawings & Photos | NSN 4720-01-497-9934
Demand History | NSN 4720-01-497-9934
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 123547351 | 2023-11-333 | 2 | UA |
| 4720-01-497-9934 | 2020-01-10 | 1 | US |
| 4720-01-497-9934 | 2018-08-227 | 10 | Canada |
| 123547351 | 2009-09-271 | 77 | Canada |
| 4720-01-497-9934 | 2009-09-271 | 77 | Canada |
Cross Reference | NSN 4720-01-497-9934
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12354735-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4720-01-497-9934
Technical Data | NSN 4720-01-497-9934
| Characteristic | Specifications |
|---|---|
| MATERIAL | FIBERGLASS AND RUBBER SILICONE CLASS Q 1ST PLY FIBERGLASS 2ND PLY STEEL AND COPPER 3RD PLY |
| MEASURING METHOD AND LENGTH | 24.000 INCHES NOMINAL OVERALL |
Restrictions/Controls & Freight Information | NSN 4720-01-497-9934
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
