NSN 4720-00-998-0965 522295-16-8, 00-998-0965, 522295168
Product Details | AIR DUCT HOSE
4720-00-998-0965 A flexible, tubular item of light wall construction. It must have single or multiple layers of nonmetallic material, but may contain metal wire reinforcement, foil type liner, and/or woven or braided cover. It is designed to convey under low pressure gaseous material, such as air and fumes, and light weight solid materials, such as dust, powders, and fibers. For items with couplings, see HOSE ASSEMBLY, AIR DUCT. For items of sleeve section design rated for high pressure use, see SLEEVE, SEAL, COUPLING. Excludes hose, nonmetallic.
Part Alternates: 522295-16-8, 4720-00-998-0965, 00-998-0965, 4720009980965, 522295168, 009980965
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 NOV 1966 | 00-998-0965 | 11116 ( HOSE, AIR DUCT ) |

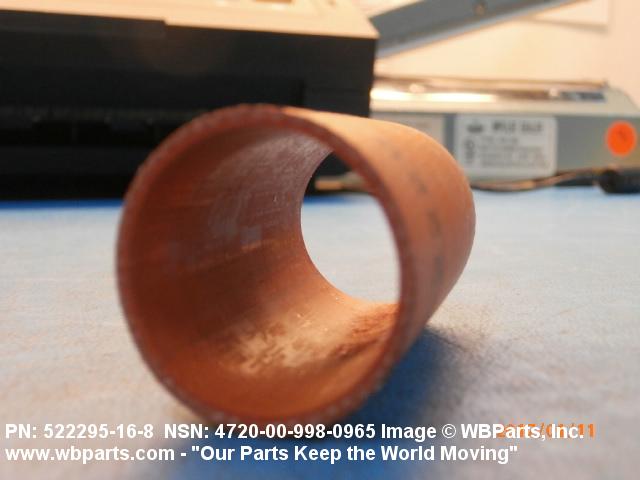

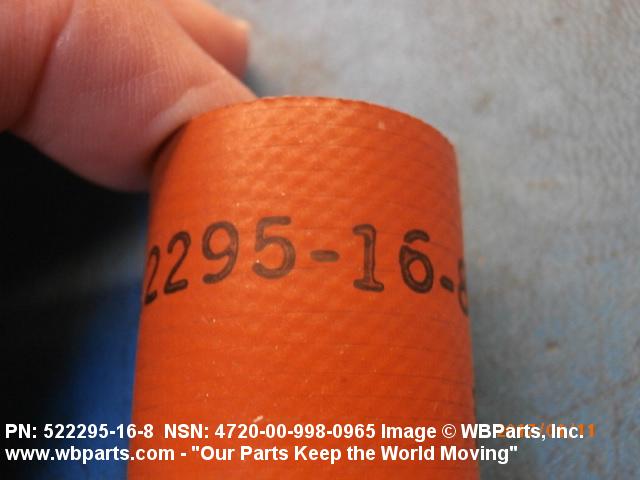

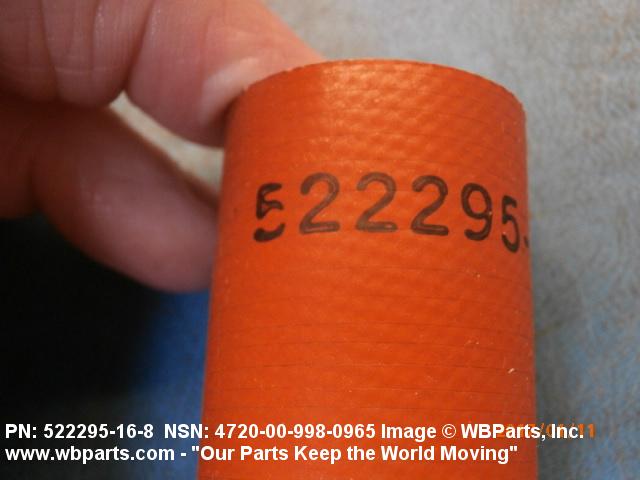

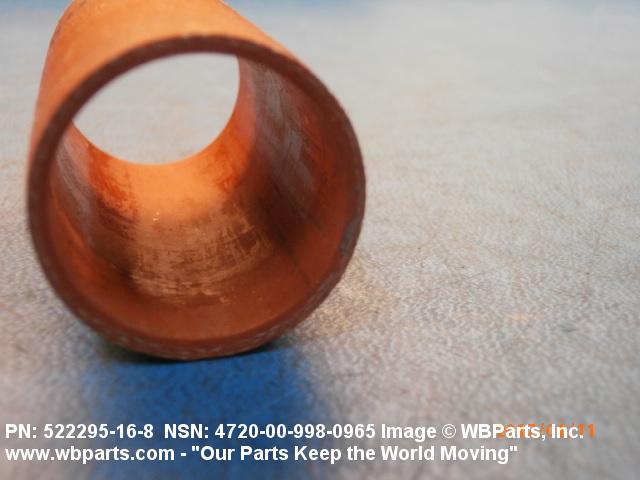

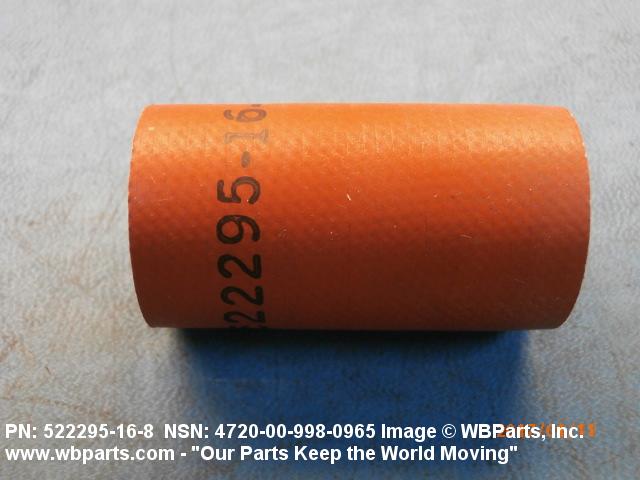

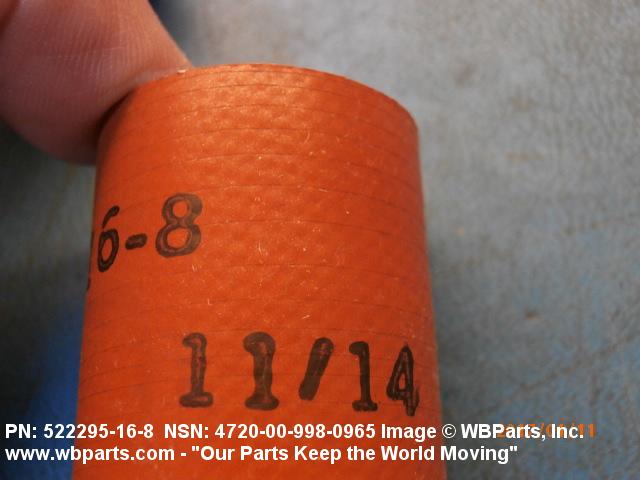

Drawings & Photos | NSN 4720-00-998-0965
Demand History | NSN 4720-00-998-0965
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 522295-16-8 | 2021-03-73 | 87 | DIBBS |
| 522295-16-8 | 2020-10-287 | 196 | DIBBS |
| 522295-16-8 | 2020-04-92 | 211 | DIBBS |
| 4720-00-998-0965 | 2020-02-34 | 20 | Turkey |
| 4720-00-998-0965 | 2017-01-03 | 2 | Spain |
| 4720-00-998-0965 | 2016-12-355 | 2 | Spain |
| 4720-00-998-0965 | 2016-12-351 | 2 | Spain |
| 4720-00-998-0965 | 2013-04-93 | 331 | DIBBS |
Cross Reference | NSN 4720-00-998-0965
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 522295-16-8 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-998-0965
Related Products | NSN 4720-00-998-0965
Technical Data | NSN 4720-00-998-0965
| Characteristic | Specifications |
|---|---|
| MATERIAL | FIBERGLASS AND RUBBER SILICONE CLASS Q SINGLE PLY |

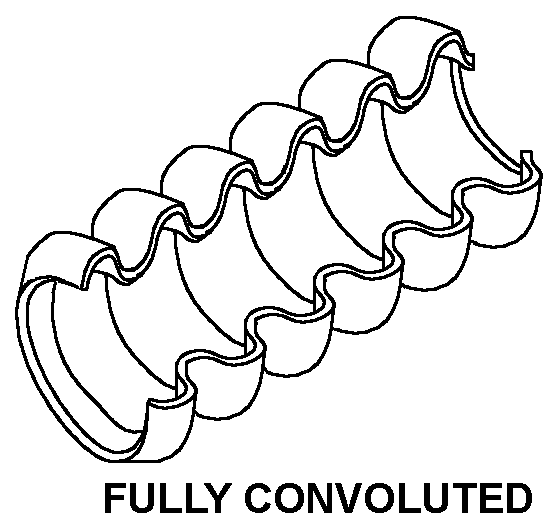

| STYLE DESIGNATOR | A2 FULLY CONVOLUTED |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |

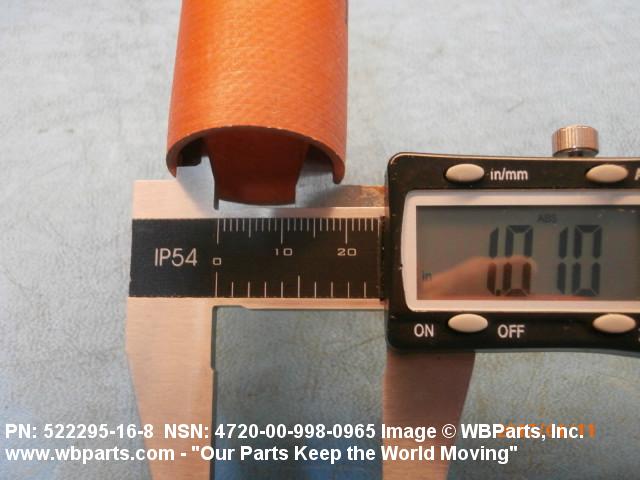

| INSIDE DIAMETER | 1.000 INCHES NOMINAL FIRST END |

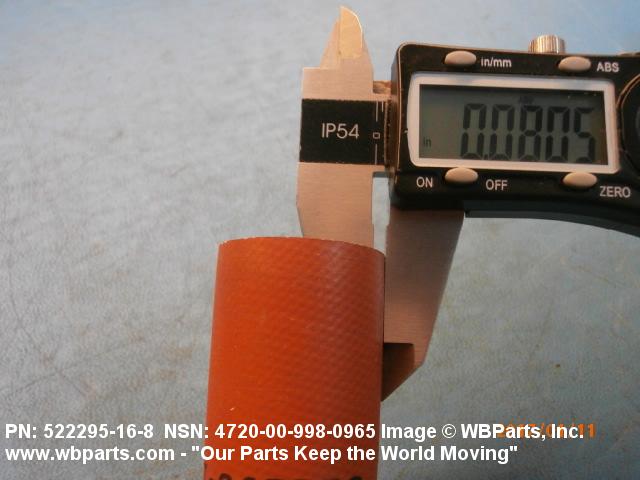

| WALL THICKNESS | 0.070 INCHES NOMINAL |

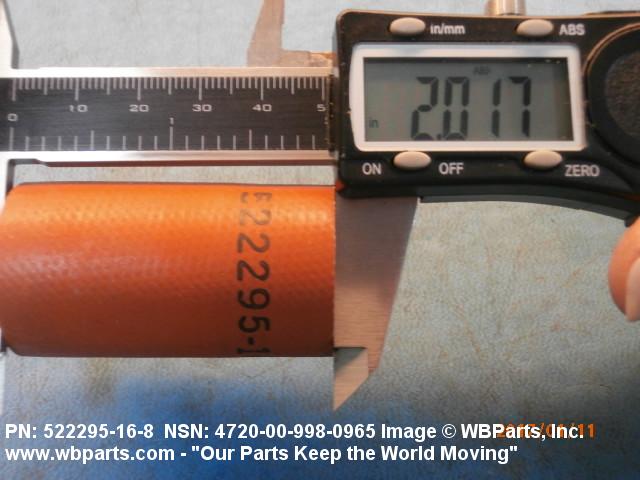

| MEASURING METHOD AND LENGTH | 2.000 INCHES NOMINAL OVERALL |
| CONNECTION TYPE | PLAIN FIRST END |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | 522295-16-8 |
Restrictions/Controls & Freight Information | NSN 4720-00-998-0965
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051035 | DUCTS:AIR SYSTEM |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-998-0965
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TP | SX:"TEMPERATURE AND PRESSURE CONTROLS, AIRCRAFT" |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
