NSN 4720-01-497-9939 H64319135, H643-1913-5, H6431913-5
Product Details | AIR DUCT HOSE ASSEMBLY
4720-01-497-9939 A length of HOSE, AIR DUCT with couplings on one or both ends. Excludes items which include a branch hose or fork hose, HOSE ASSEMBLY, NONMETALLIC.20242400027Safety and Rescue Equipment47200024Hose and Flexible Tubing
Part Alternates: H64319135, H643-1913-5, H6431913-5 , 51270672525, 512-7067252-5, 7067252, 4720-01-497-9939, 01-497-9939, 4720014979939, 014979939
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 JUN 2002 | 01-497-9939 | 18451 ( HOSE ASSEMBLY, AIR DUCT ) |
Drawings & Photos | NSN 4720-01-497-9939
Demand History | NSN 4720-01-497-9939
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-497-9939 | 2009-03-82 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4720-01-497-9939
Technical Data | NSN 4720-01-497-9939
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING ALL PLIES |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763, CL304, COND A, FIN 28 FED SPEC SINGLE MATERIAL RESPONSE ALL PLIES |

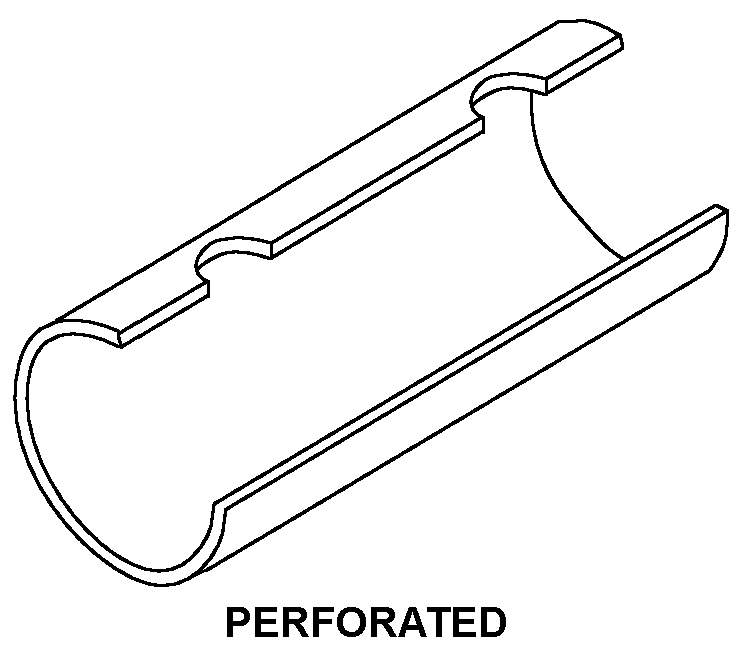

| STYLE DESIGNATOR | A7 PERFORATED |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 4.000 INCHES NOMINAL FIRST END |
| MEASURING METHOD AND LENGTH | 31.160 INCHES NOMINAL OVERALL |
| CONNECTION TYPE | PLAIN FIRST END |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL; ASSEMBLY ATTACHES TO VENT DUCT, HAS ONE END CLOSED WITH HANDLE TO ALLOW OPEN/CLOSE OF AIR OUTLETS; INCLUDES AIR DUCT, MOUNTING BRACKET, BEARINGS, BUSHINGS, AND HANDLE |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | SHIP, VENTILATION |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BRANCH VENTILATION ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 4720-01-497-9939
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-497-9939
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
