NSN 4720-01-130-8572 AD13676040, AD1367-6-040, 01-130-8572
Product Details | AIR DUCT HOSE
4720-01-130-8572 A flexible, tubular item of light wall construction. It must have single or multiple layers of nonmetallic material, but may contain metal wire reinforcement, foil type liner, and/or woven or braided cover. It is designed to convey under low pressure gaseous material, such as air and fumes, and light weight solid materials, such as dust, powders, and fibers. For items with couplings, see HOSE ASSEMBLY, AIR DUCT. For items of sleeve section design rated for high pressure use, see SLEEVE, SEAL, COUPLING. Excludes hose, nonmetallic.
Part Alternates: AD13676040, AD1367-6-040, 4720-01-130-8572, 01-130-8572, 4720011308572, 011308572
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 APR 1982 | 01-130-8572 | 11116 ( HOSE, AIR DUCT ) |
Drawings & Photos | NSN 4720-01-130-8572
Cross Reference | NSN 4720-01-130-8572
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AD1367-6-040 | 21868 | HBD INDUSTRIES INC DIV HBD/THERMOID INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4720-01-130-8572
Technical Data | NSN 4720-01-130-8572
| Characteristic | Specifications |
|---|---|

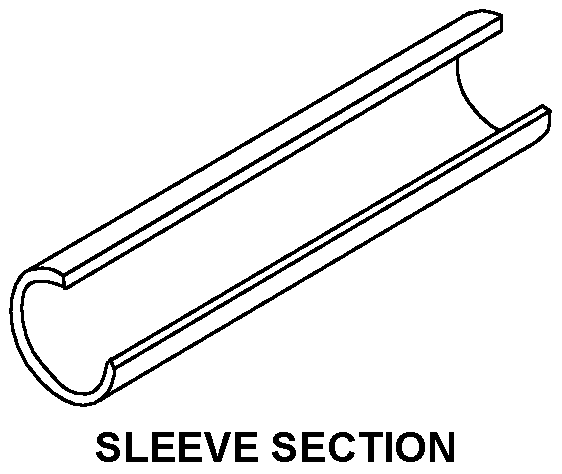

| STYLE DESIGNATOR | A5 SLEEVE SECTION |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 1.500 INCHES NOMINAL FIRST END |
| MEASURING METHOD AND LENGTH | 10.000 INCHES NOMINAL OVERALL |
| CONNECTION TYPE | PLAIN FIRST END |
Restrictions/Controls & Freight Information | NSN 4720-01-130-8572
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051035 | DUCTS:AIR SYSTEM |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
