NSN 4720-00-287-4834 NAS5212015, NAS521-20-15, NAS5212016
Product Details | AIR DUCT HOSE
4720-00-287-4834 A flexible, tubular item of light wall construction. It must have single or multiple layers of nonmetallic material, but may contain metal wire reinforcement, foil type liner, and/or woven or braided cover. It is designed to convey under low pressure gaseous material, such as air and fumes, and light weight solid materials, such as dust, powders, and fibers. For items with couplings, see HOSE ASSEMBLY, AIR DUCT. For items of sleeve section design rated for high pressure use, see SLEEVE, SEAL, COUPLING. Excludes hose, nonmetallic.
Part Alternates: NAS5212015, NAS521-20-15, NAS5212016, NAS521-20-16, NAS52120480, NAS521-20-480, NAS522 , S232944110480, S2329441-10-480, L0RA10480, L0RA10-480, 250C1, 31393, 3-1393, 3139320480, 3-1393-20-480, 4720-00-287-4834, 00-287-4834, 4720002874834, 002874834
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-287-4834 | 11116 ( HOSE, AIR DUCT ) |

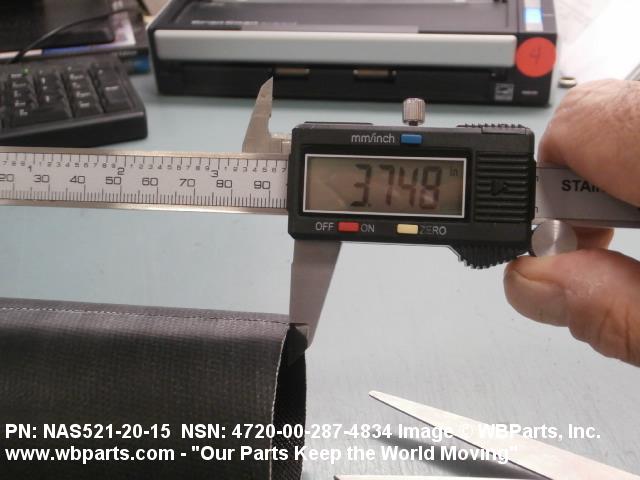

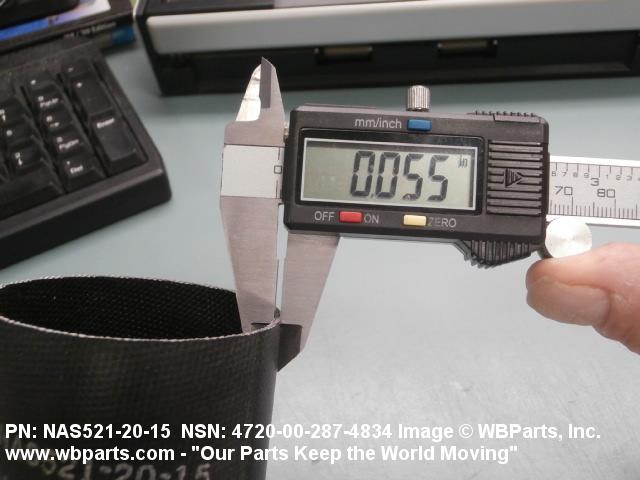

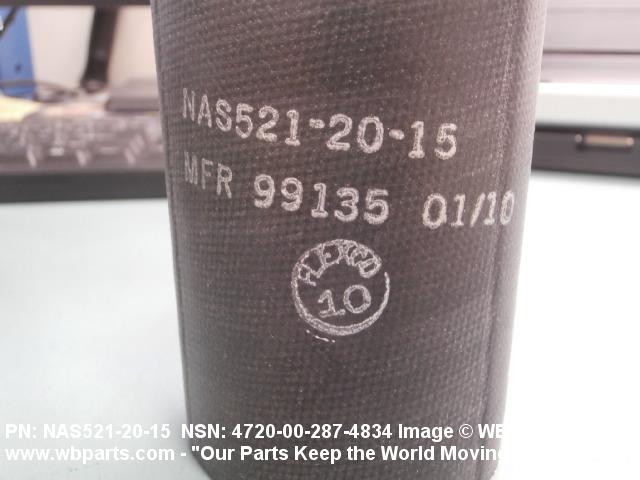

Drawings & Photos | NSN 4720-00-287-4834
Demand History | NSN 4720-00-287-4834
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-287-4834 | 2022-09-257 | 425 | DIBBS |
| 4720-00-287-4834 | 2022-08-228 | 425 | DIBBS |
| 4720-00-287-4834 | 2022-05-129 | 927 | DIBBS |
| 4720-00-287-4834 | 2022-04-118 | 927 | DIBBS |
| 4720-00-287-4834 | 2022-04-107 | 497 | DIBBS |
| 4720-00-287-4834 | 2022-04-94 | 497 | DIBBS |
| 4720-00-287-4834 | 2022-03-82 | 497 | DIBBS |
| 4720-00-287-4834 | 2020-04-121 | 14 | DIBBS |
| 4720-00-287-4834 | 2020-03-86 | 12 | DIBBS |
| 4720-00-287-4834 | 2020-03-70 | 9 | DIBBS |
| 4720-00-287-4834 | 2019-06-178 | 9 | DIBBS |
| S232944110480 | 2014-03-70 | 10 | Austria |
| 4720-00-287-4834 | 2014-02-42 | 10 | Austria |
| 4720-00-287-4834 | 2013-10-281 | 38 | DIBBS |
| 4720-00-287-4834 | 2013-07-195 | 30 | DIBBS |
| 4720-00-287-4834 | 2013-06-181 | 21 | DIBBS |
| 4720-00-287-4834 | 2012-02-40 | 30 | DIBBS |
Cross Reference | NSN 4720-00-287-4834
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 250C1 | 76680 | FEDERAL-MOGUL CORP CHASSIS PRODUCTS DIV |
| 3-1393 | 70628 | ARROWHEAD PRODUCTS CORPORATION |
| 3-1393-20-480 | 70628 | ARROWHEAD PRODUCTS CORPORATION |
| L0RA10-480 | 21868 | HBD INDUSTRIES INC DIV HBD/THERMOID INC |
| NAS521-20-15 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS521-20-16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS521-20-480 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS522 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| S2329441-10-480 | 18355 | BOEING COMPANY, THE DBA BOEING |
| S2329441-10-480 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-287-4834
Related Products | NSN 4720-00-287-4834
Technical Data | NSN 4720-00-287-4834
| Characteristic | Specifications |
|---|---|
| MATERIAL | FIBERGLASS AND RUBBER CHLOROPRENE CLASS CR SINGLE PLY |
| STYLE DESIGNATOR | A5 SLEEVE SECTION |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 2.500 INCHES NOMINAL FIRST END |
| MEASURING METHOD AND LENGTH | 120.000 INCHES NOMINAL OVERALL |
| CONNECTION TYPE | PLAIN BOTH ENDS |
| MAXIMUM OPERATING PRESSURE | 30.0 POUNDS PER SQUARE INCH |
| FEATURES PROVIDED | OZONE RESISTANT |
| (NON-CORE DATA) TEMP RANGE | -65.0 TO 325.0 DEG FAHRENHEIT |
Restrictions/Controls & Freight Information | NSN 4720-00-287-4834
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051035 | DUCTS:AIR SYSTEM |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-287-4834
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LG : Length |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LG : Length |
