NSN 4320-01-247-3806 L51201264, L51201-264, PVW34LDFYCNSNTC264A
Product Details | AXIAL PISTONS PUMP
4320-01-247-3806 A positive displacement device which utilizes the reciprocating motion of a multiple number of parallel pistons arranged axially in a cylinder barrel as a means of transferring a liquid from one place to another. The pistons are actuated by revolving the cylinder barrel at an angle to the drive shaft axis or by a tilting box when the cylinder barrel revolves on the drive shaft. The piston displacement may be fixed or variable. It is designed to be driven by a prime mover which is not an integral part of the pump.20216500058Aircraft Hydraulic, Vacuum, and De-icing System Components43200020Power and Hand Pumps
Part Alternates: L51201264, L51201-264, PVW34LDFYCNSNTC264A, PVW-34-LDFY-CNSN-T-C264A, PVWH34LDFYCNSNTHCP, PVWH-34-LDFY-CNSN-TH-CP, 4320-01-247-3806, 01-247-3806, 4320012473806, 012473806
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 06 JAN 1987 | 01-247-3806 | 14791 ( PUMP, AXIAL PISTONS ) |

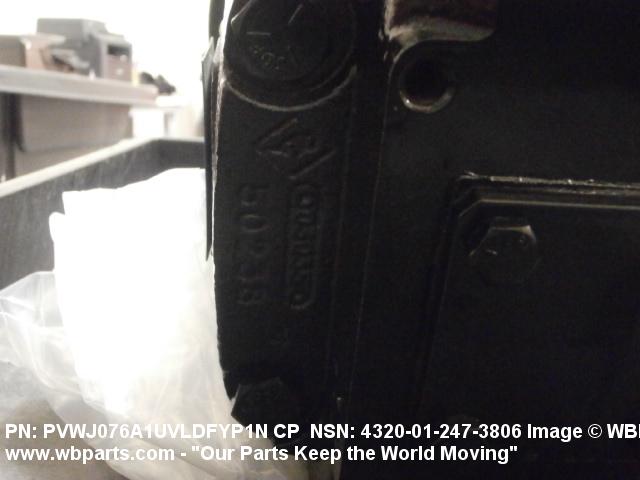

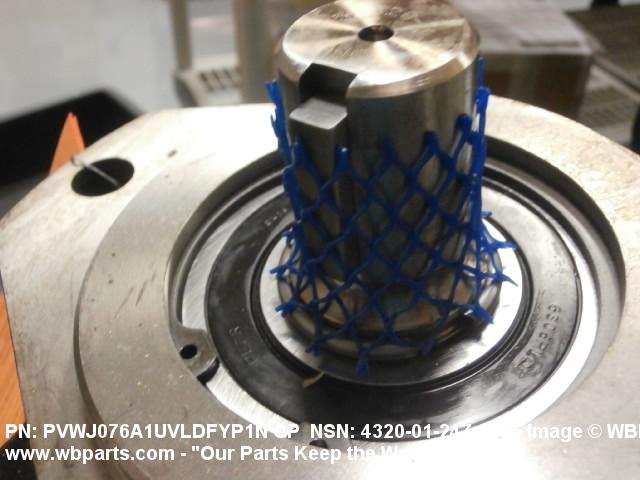

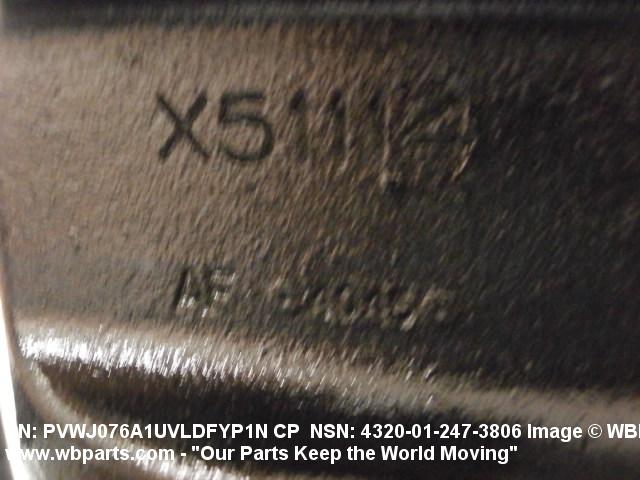

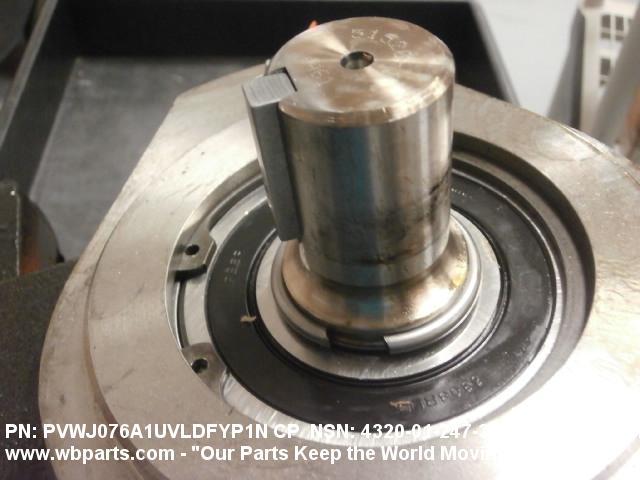

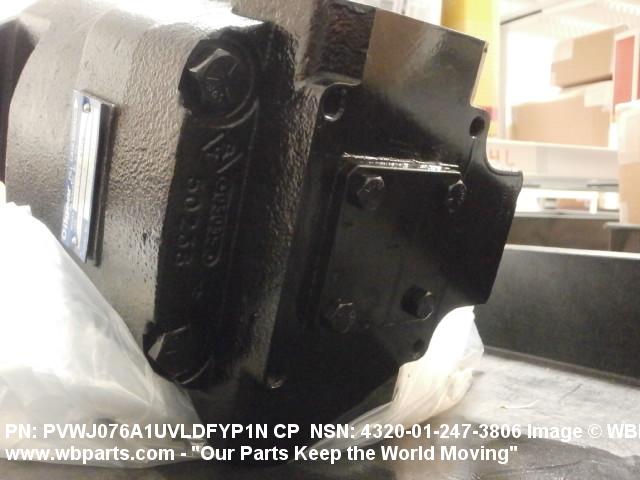

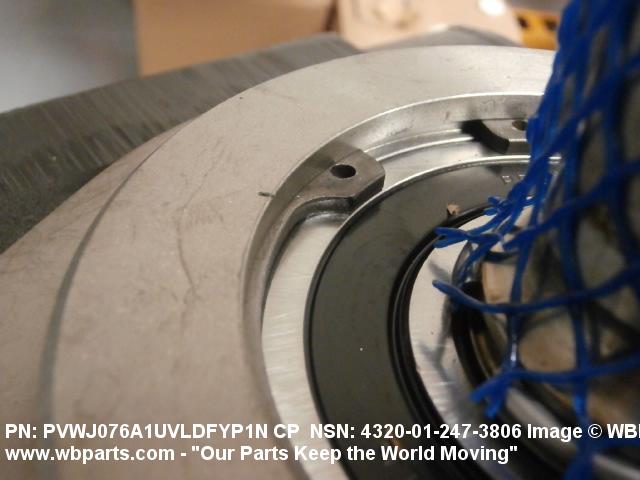

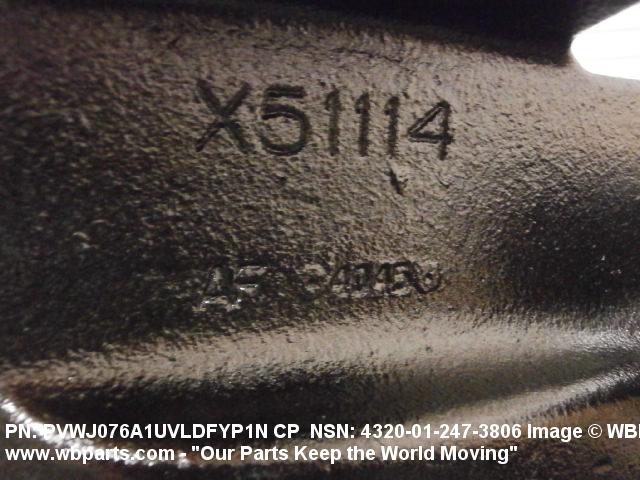

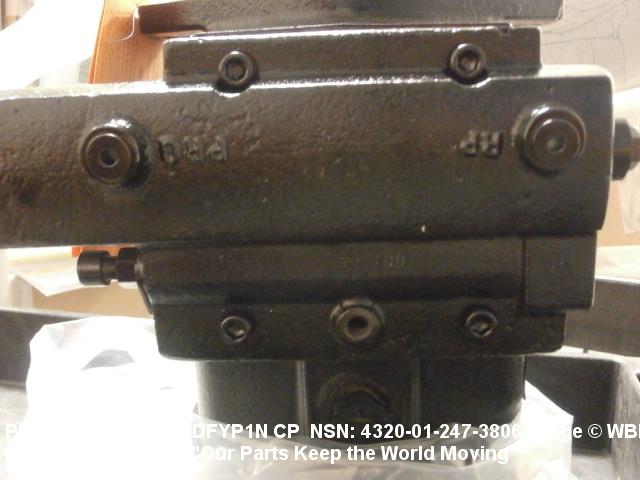

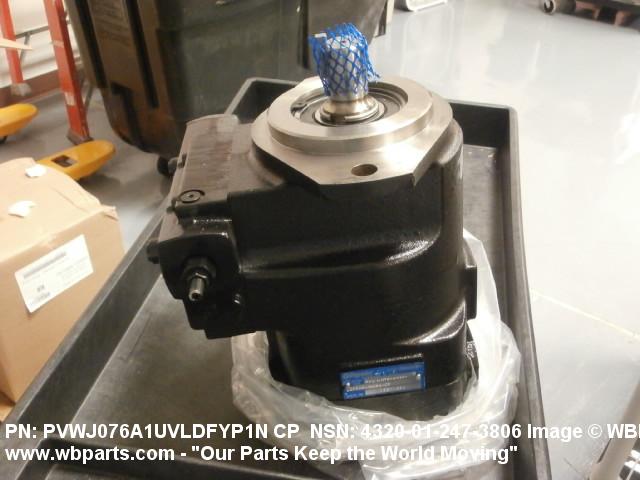

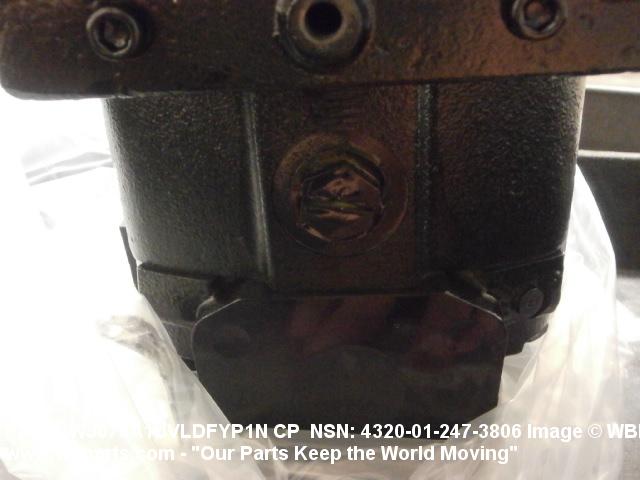

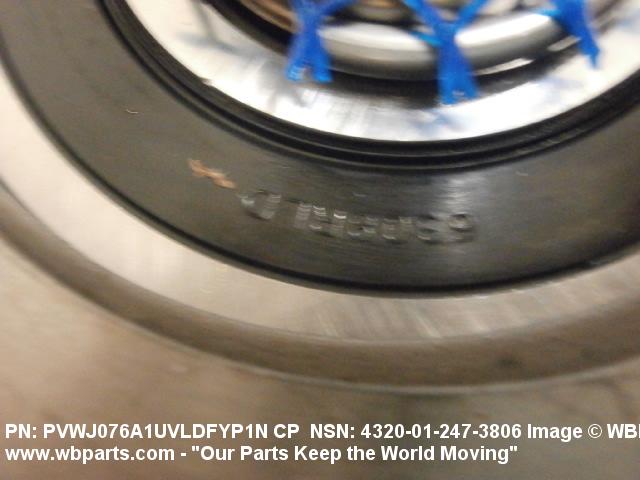

Drawings & Photos | NSN 4320-01-247-3806
Demand History | NSN 4320-01-247-3806
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-01-247-3806 | 2018-06-156 | 5 | US |
| 4320-01-247-3806 | 2017-06-158 | 2 | United States |
| 4320-01-247-3806 | 2015-04-98 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-01-247-3806
Technical Data | NSN 4320-01-247-3806
| Characteristic | Specifications |
|---|---|
| MAXIMUM DISCHARGE FLOW RATE | 34.0 GALLONS PER MINUTE |
| OPERATING SPEED AT RATED CAPACITY | 1800.0 REVOLUTIONS PER MINUTE |
| PUMPING ELEMENT OPERATING POSITION | HORIZONTAL |
| PUMP ROTATION DIRECTION | COUNTERCLOCKWISE |
| PUMP RECIPROCATING DESIGN | SINGLE ACTING |
| CYLINDER QUANTITY | 9 |
| PUMPING ELEMENT TYPE | PISTON |
| RECIPROCATING STROKE TYPE | VARIABLE |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | THREADED INTERNAL |
| DISCHARGE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.625-12 UNF |
| DRIVE CONNECTION TYPE | RIGID COUPLED |
| DRIVE SHAFT TYPE | MACHINE KEYWAY |
| DRIVE SHAFT END DIAMETER | 1.250 INCHES NOMINAL |
| DRIVE SHAFT LENGTH | 2.320 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | USED ON SMALL BOAT HANDLING EQUIPMENT ONBOARD VARIOUS COAST GUARD VESSELS |
| III CUBIC MEASURE | 1.0000 CUBIC FEET |
| MANUFACTURERS CODE | 44674 |
| DESIGN CONTROL REFERENCE | L51201-264 |
Restrictions/Controls & Freight Information | NSN 4320-01-247-3806
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4320-01-247-3806
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
