NSN 4320-01-109-2361 45500018, 4550-0018, 4550-0018-1
Product Details | AXIAL PISTONS PUMP
4320-01-109-2361 A positive displacement device which utilizes the reciprocating motion of a multiple number of parallel pistons arranged axially in a cylinder barrel as a means of transferring a liquid from one place to another. The pistons are actuated by revolving the cylinder barrel at an angle to the drive shaft axis or by a tilting box when the cylinder barrel revolves on the drive shaft. The piston displacement may be fixed or variable. It is designed to be driven by a prime mover which is not an integral part of the pump.20216500058Aircraft Hydraulic, Vacuum, and De-icing System Components43200020Power and Hand Pumps
Part Alternates: 45500018, 4550-0018, 4550-0018-1, 830001, 4320-01-109-2361, 01-109-2361, 4320011092361, 011092361, 455000181
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 12 MAR 1981 | 01-109-2361 | 14791 ( PUMP, AXIAL PISTONS ) |

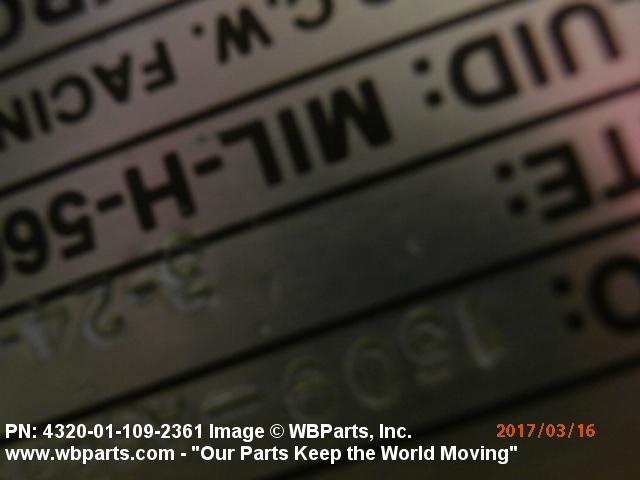

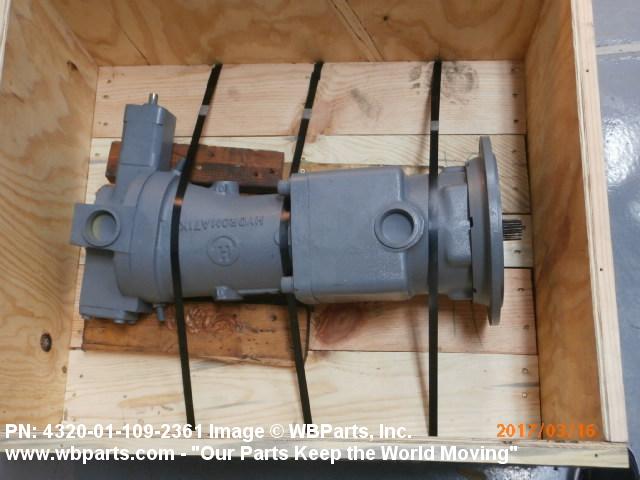

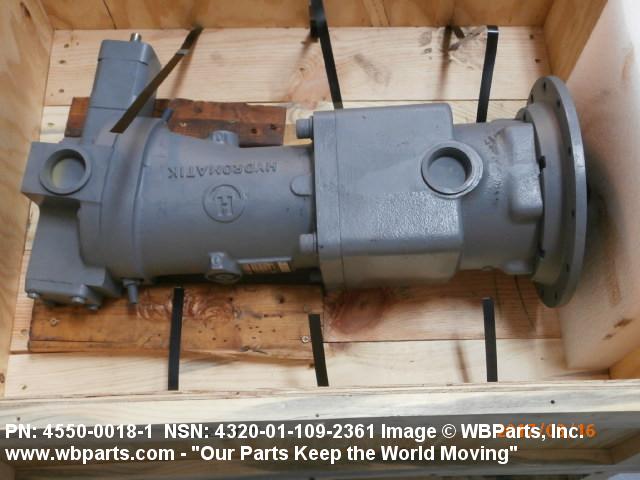

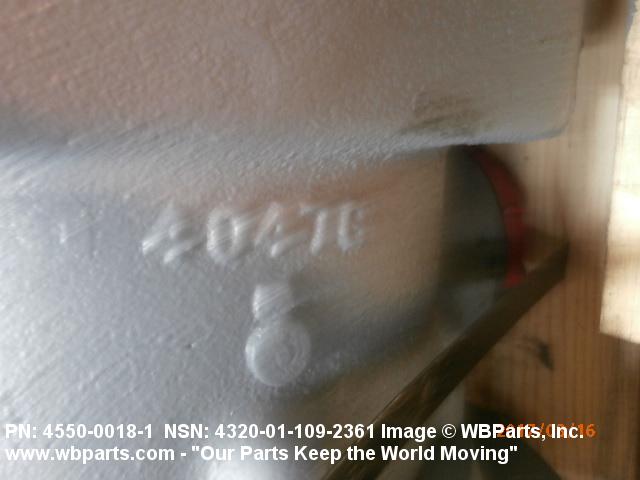

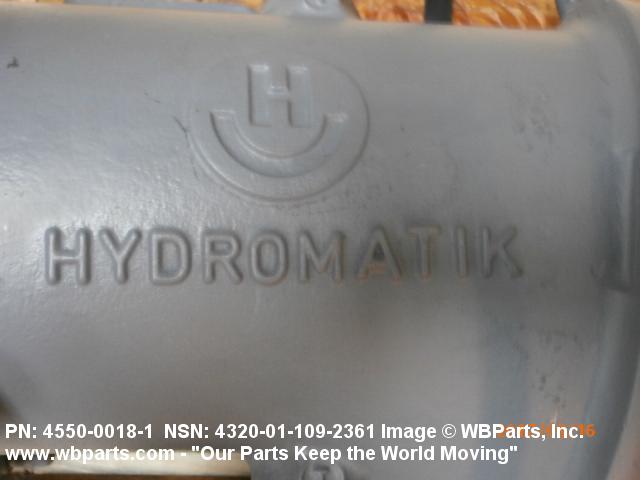

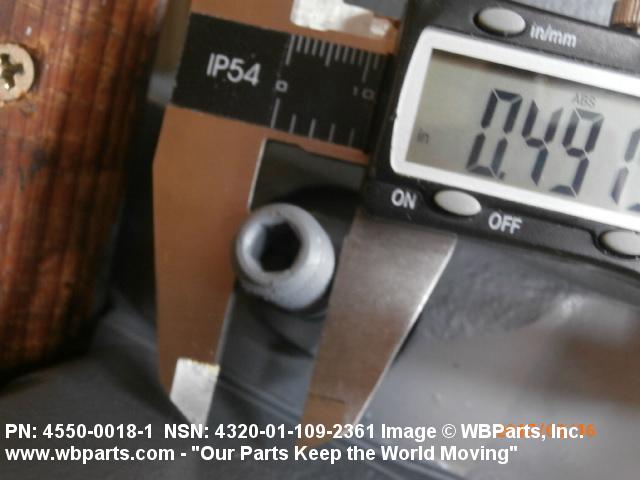

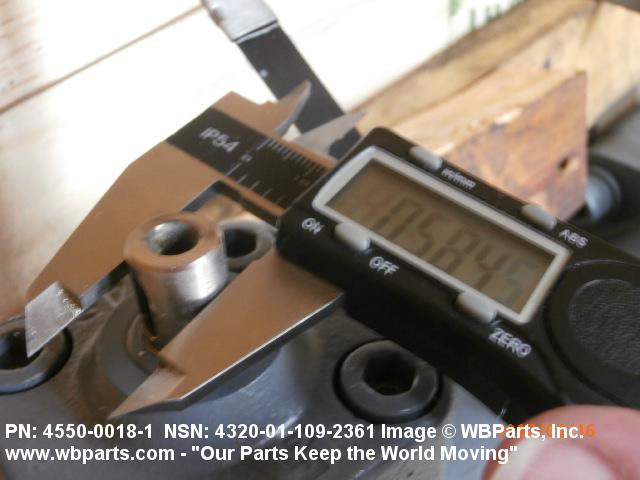

Drawings & Photos | NSN 4320-01-109-2361
Demand History | NSN 4320-01-109-2361
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-01-109-2361 | 2024-07-184 | 1 | United Kingdom |
| 4320-01-109-2361 | 2024-05-150 | 20 | TW |
| 4320-01-109-2361 | 2024-03-74 | 1 | United Kingdom |
| 4320-01-109-2361 | 2023-08-243 | 1 | United States |
| 4320-01-109-2361 | 2023-01-17 | 2 | Taiwan |
| 4320-01-109-2361 | 2022-12-361 | 1 | Taiwan |
| 4320-01-109-2361 | 2022-12-347 | 2 | Taiwan |
| 4320-01-109-2361 | 2022-09-273 | 1 | US |
| 4320-01-109-2361 | 2020-12-352 | 1 | TW |
| 4320-01-109-2361 | 2020-02-37 | 1 | Indonesia |
| 4320-01-109-2361 | 2020-01-21 | 1 | Indonesia |
| 4320-01-109-2361 | 2019-10-277 | 20 | US |
| 4320-01-109-2361 | 2018-12-351 | 2 | Taiwan |
| 4320-01-109-2361 | 2018-01-19 | 1 | South Korea |
| 455000181 | 2017-06-163 | 1 | US |
| 4320-01-109-2361 | 2017-03-76 | 1 | KR |
| 455000181 | 2017-01-19 | 1 | Thailand |
| 455000181 | 2016-07-196 | 1 | Singapore |
| 455000181 | 2016-07-196 | 1 | Singapore |
| 4320-01-109-2361 | 2013-06-175 | 2 | KE |
| 455000181 | 2012-08-228 | 3 | Taiwan |
| 455000181 | 2011-05-138 | 3 | US |
| 4320-01-109-2361 | 2010-06-170 | 2 | United States |
| 4320-01-109-2361 | 2009-05-142 | 3 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-01-109-2361
Technical Data | NSN 4320-01-109-2361
| Characteristic | Specifications |
|---|---|
| MEDIA FOR WHICH DESIGNED | HYDROCARBON FUELS AND OILS |
| PUMPING ELEMENT OPERATING POSITION | HORIZONTAL |
| PUMP ROTATION DIRECTION | COUNTERCLOCKWISE |
| PUMP RECIPROCATING DESIGN | SINGLE ACTING |
| PUMPING ELEMENT TYPE | PISTON |
| RECIPROCATING STROKE TYPE | VARIABLE |
| VOLUME CONTROL TYPE | PRESSURE COMPENSATION |
| INTAKE CONNECTION QUANTITY | 1 |
| INTAKE CONNECTION TYPE | THREADED INTERNAL |
| INTAKE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.875-12 UNJ |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | THREADED INTERNAL |
| DISCHARGE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.312-12 UNJ |
| DRIVE CONNECTION TYPE | CLOSE COUPLED |
| DRIVE SHAFT TYPE | SPLINED, INVOLUTE INTERNAL |
| DRIVE SHAFT END DIAMETER | 1.262 INCHES MINIMUM AND 1.267 INCHES MAXIMUM |
| DRIVE SHAFT LENGTH | 1.565 INCHES MINIMUM AND 1.750 INCHES MAXIMUM |
| SPECIAL FEATURES | REMOTE COMPENSATOR CONNECTION PORTS X1 AND A1 PER MS33649-8. WITH FULL FLOW BOOST PUMP; INTAKE PER MS33649-32,DISCHARGE PER MS33649-24 |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY THE SOURCE CONTROL DWG NO. |
| III END ITEM IDENTIFICATION | 4920-00-618-8993 |
| MANUFACTURERS CODE | 05172 |
| MFR SOURCE CONTROLLING REFERENCE | 4550-0018 |
| MANUFACTURERS CODE | 27005 |
| DESIGN CONTROL REFERENCE | 830001 |
Restrictions/Controls & Freight Information | NSN 4320-01-109-2361
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127600 | PUMPS CIRC/FUEL I/C ENG |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
