NSN 4320-00-062-0511 CO1910, CO19-10, 55113
Product Details | AXIAL PISTONS PUMP
4320-00-062-0511 A positive displacement device which utilizes the reciprocating motion of a multiple number of parallel pistons arranged axially in a cylinder barrel as a means of transferring a liquid from one place to another. The pistons are actuated by revolving the cylinder barrel at an angle to the drive shaft axis or by a tilting box when the cylinder barrel revolves on the drive shaft. The piston displacement may be fixed or variable. It is designed to be driven by a prime mover which is not an integral part of the pump.20216500058Aircraft Hydraulic, Vacuum, and De-icing System Components43200020Power and Hand Pumps
Part Alternates: CO1910, CO19-10, 55113, 4320-00-062-0511, 00-062-0511, 4320000620511, 000620511
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 15 JUN 1967 | 00-062-0511 | 14791 ( PUMP, AXIAL PISTONS ) |

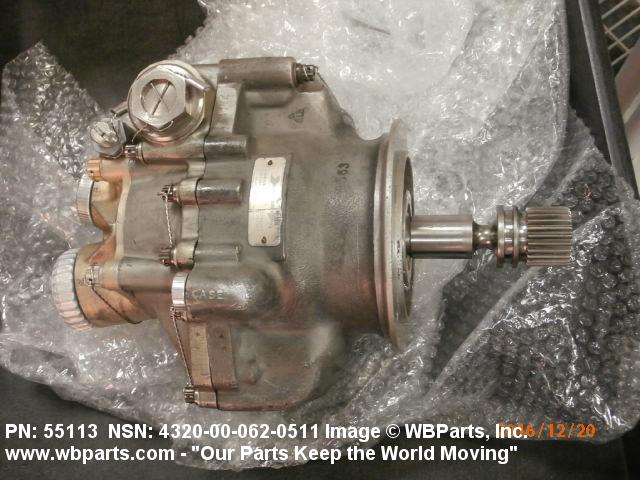

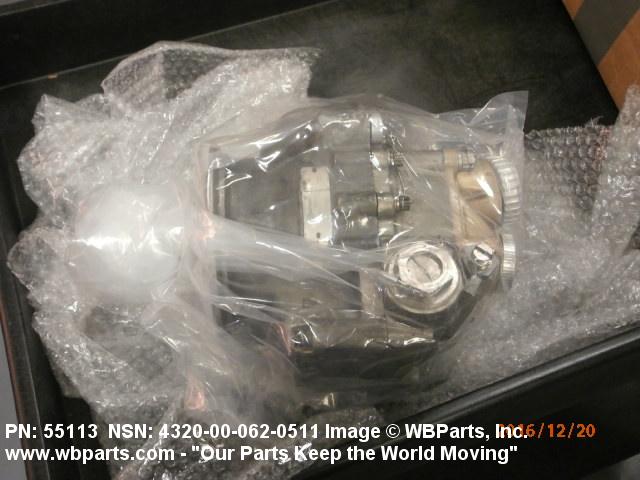

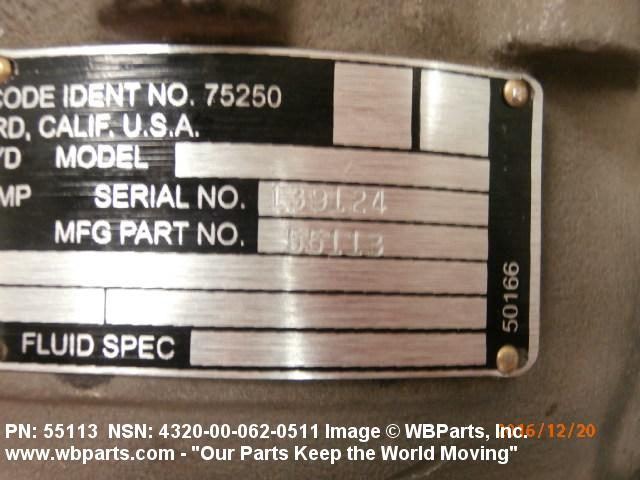

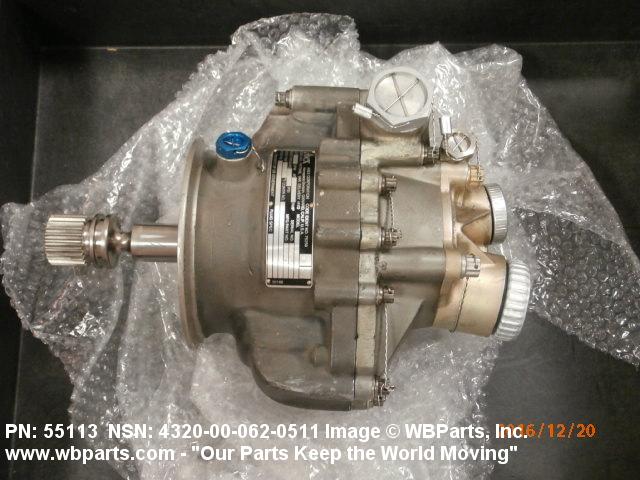

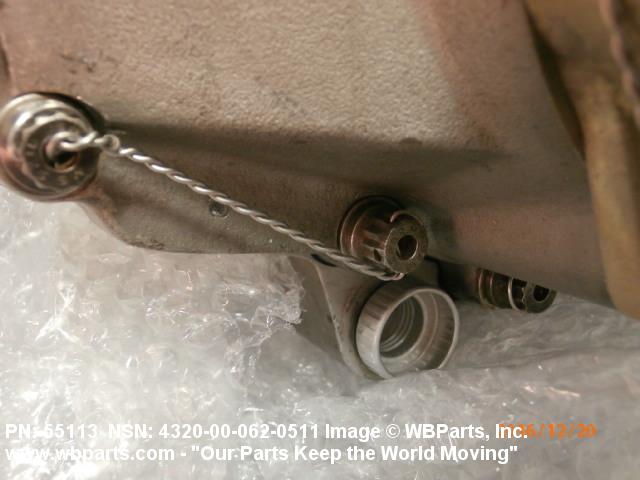

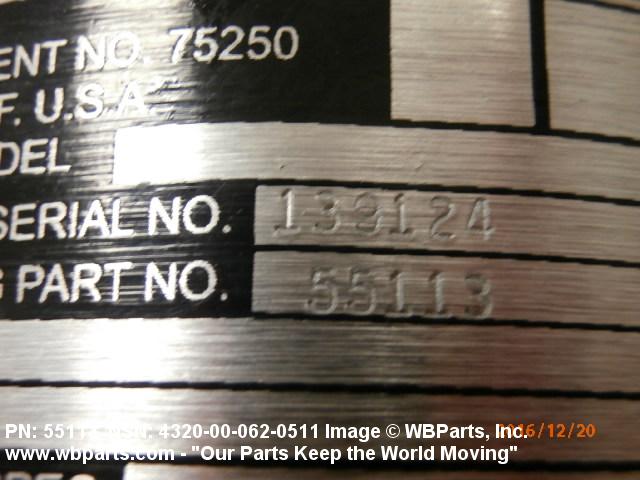

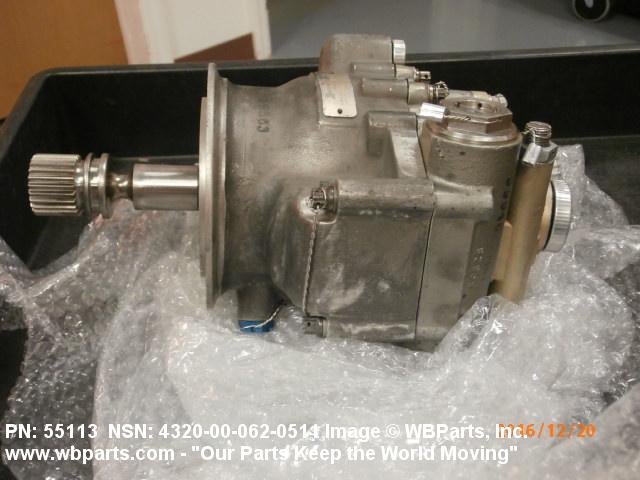

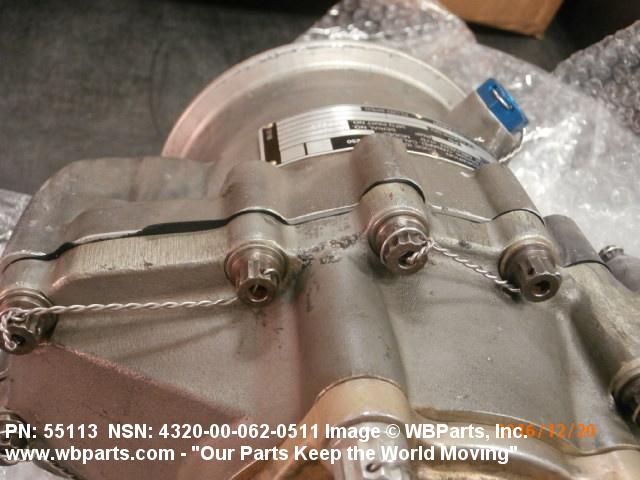

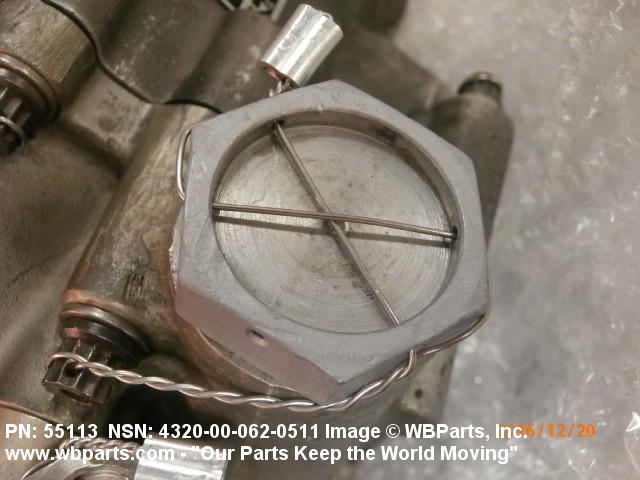

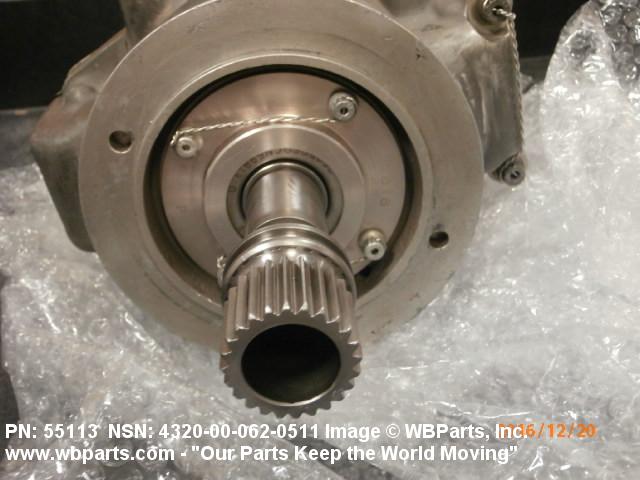

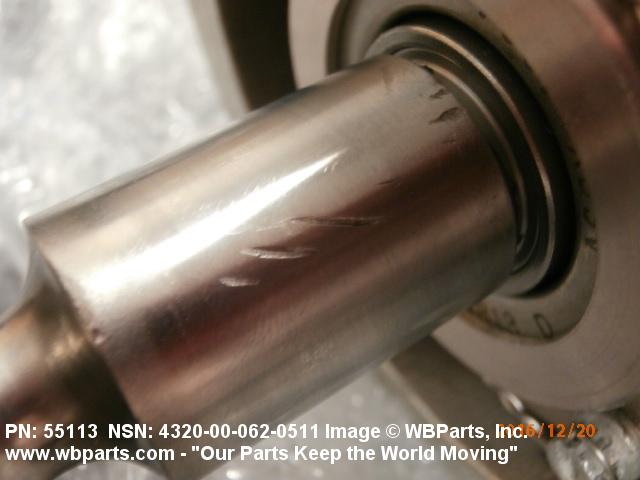

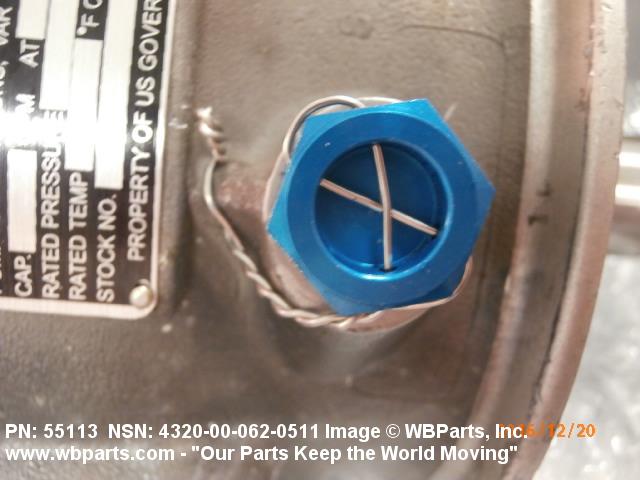

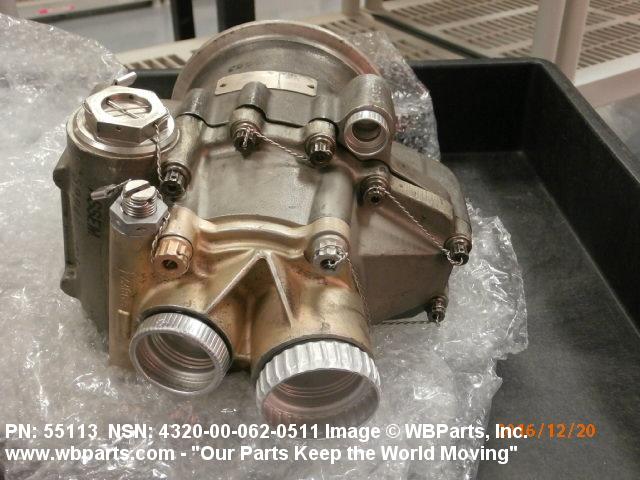

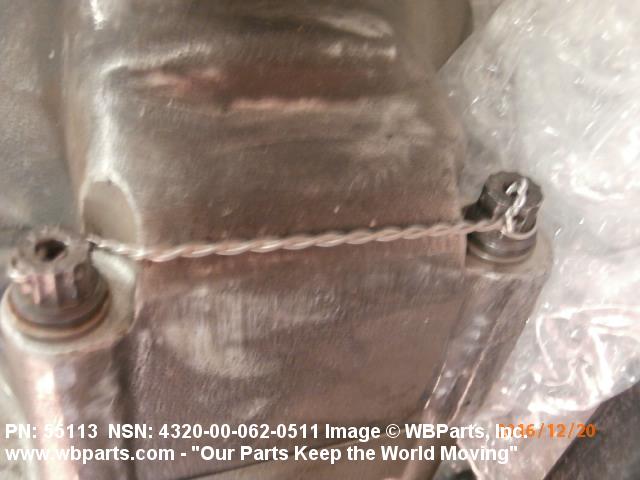

Drawings & Photos | NSN 4320-00-062-0511
Demand History | NSN 4320-00-062-0511
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-00-062-0511 | 2023-05-130 | 1 | United States |
| 4320-00-062-0511 | 2022-12-340 | 1 | US |
| 4320-00-062-0511 | 2022-12-340 | 1 | US |
| 4320-00-062-0511 | 2019-10-297 | 1 | United States |
| 4320-00-062-0511 | 2016-11-333 | 1 | United States |
| 4320-00-062-0511 | 2016-07-211 | 1 | United States |
| 4320-00-062-0511 | 2015-03-89 | 1 | United States |
| 4320-00-062-0511 | 2013-08-225 | 1 | MANUAL |
| 4320-00-062-0511 | 2013-08-225 | 1 | MANUAL |
| 4320-00-062-0511 | 2013-08-225 | 1 | MANUAL |
| 4320-00-062-0511 | 2013-08-225 | 1 | MANUAL |
| 55113 | 2013-08-225 | 1 | US |
| 55113 | 2013-08-225 | 1 | US |
| 55113 | 2013-08-225 | 1 | US |
| 55113 | 2013-08-225 | 1 | US |
| 4320-00-062-0511 | 2012-01-03 | 1 | Poland |
| 4320-00-062-0511 | 2011-12-364 | 1 | Poland |
| 55113 | 2011-07-192 | 1 | Singapore |
| 4320-00-062-0511 | 2010-04-111 | 1 | Indonesia |
| 4320-00-062-0511 | 2009-07-188 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4320-00-062-0511
Related Products | NSN 4320-00-062-0511
Technical Data | NSN 4320-00-062-0511
| Characteristic | Specifications |
|---|---|
| MAXIMUM DISCHARGE FLOW RATE | 50.0 GALLONS PER MINUTE |
| DISCHARGE PRESSURE | 3100.0 POUNDS PER SQUARE INCH GAGE |
| OPERATING SPEED AT RATED CAPACITY | 5800.0 REVOLUTIONS PER MINUTE |
| MEDIA FOR WHICH DESIGNED | HYDROCARBON FUELS AND OILS |
| PUMP ROTATION DIRECTION | COUNTERCLOCKWISE |
| CYLINDER QUANTITY | 9 |
| PUMPING ELEMENT TYPE | PISTON |
| RECIPROCATING STROKE TYPE | VARIABLE |
| VOLUME CONTROL TYPE | PRESSURE COMPENSATION |
| INTAKE CONNECTION QUANTITY | 1 |
| INTAKE CONNECTION TYPE | THREADED INTERNAL |
| INTAKE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.625-12 UN |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | THREADED INTERNAL |
| DISCHARGE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.312-12 UN |
| DRIVE CONNECTION TYPE | RIGID COUPLED |
| DRIVE SHAFT TYPE | SPLINED, STRAIGHT EXTERNAL |

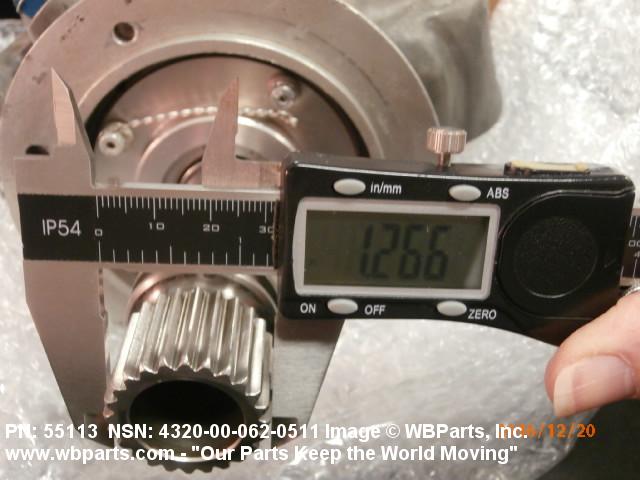

| DRIVE SHAFT END DIAMETER | 1.265 INCHES NOMINAL |
| MANUFACTURERS CODE | 93835 |
| DESIGN CONTROL REFERENCE | 55113 |
Restrictions/Controls & Freight Information | NSN 4320-00-062-0511
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-062-0511
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | HS | SX:AIRCRAFT HYDRAULIC SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | FB | FIGHTERAIRCRAFT(F-16N) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
