NSN 4320-00-163-3434 SD00558, PV22P0103UL06US6, PV22P010-3UL06US6
Product Details | AXIAL PISTONS PUMP
4320-00-163-3434 A positive displacement device which utilizes the reciprocating motion of a multiple number of parallel pistons arranged axially in a cylinder barrel as a means of transferring a liquid from one place to another. The pistons are actuated by revolving the cylinder barrel at an angle to the drive shaft axis or by a tilting box when the cylinder barrel revolves on the drive shaft. The piston displacement may be fixed or variable. It is designed to be driven by a prime mover which is not an integral part of the pump.20216500058Aircraft Hydraulic, Vacuum, and De-icing System Components43200020Power and Hand Pumps
Part Alternates: SD00558, PV22P0103UL06US6, PV22P010-3UL06US6, 4320-00-163-3434, 00-163-3434, 4320001633434, 001633434
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 13 NOV 1971 | 00-163-3434 | 14791 ( PUMP, AXIAL PISTONS ) |

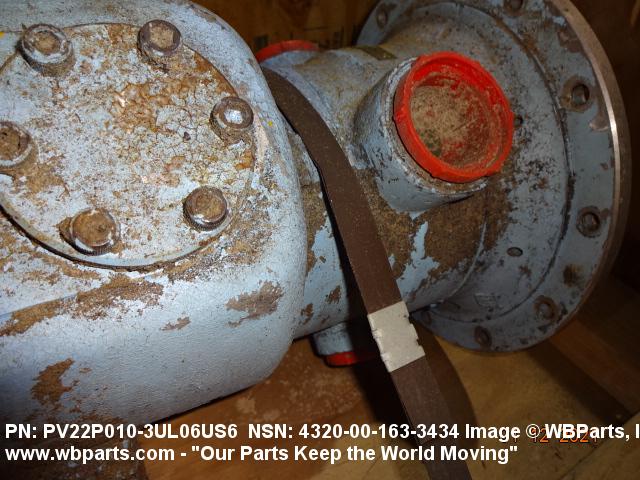

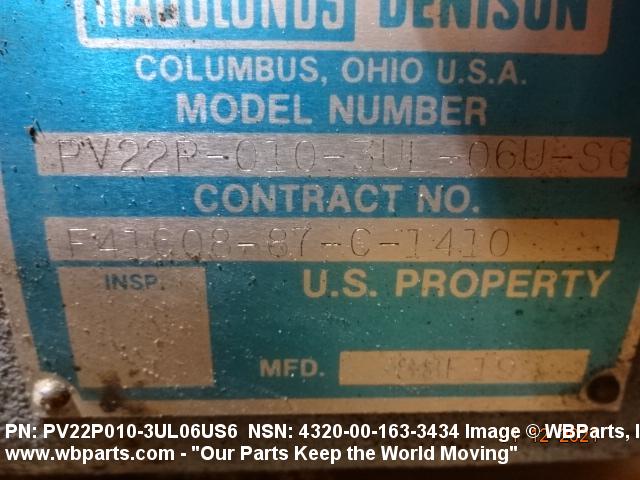

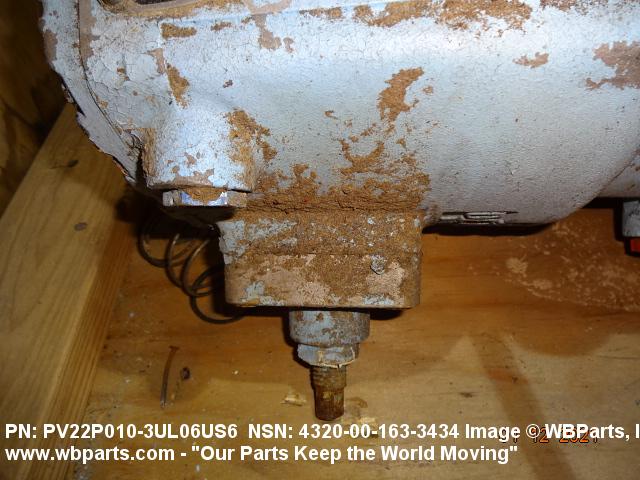

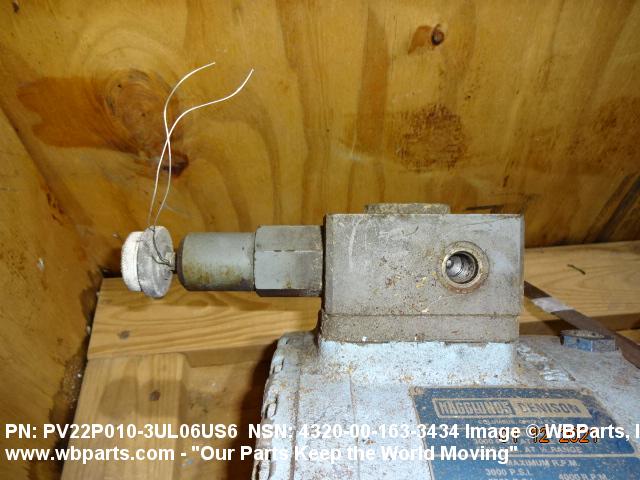

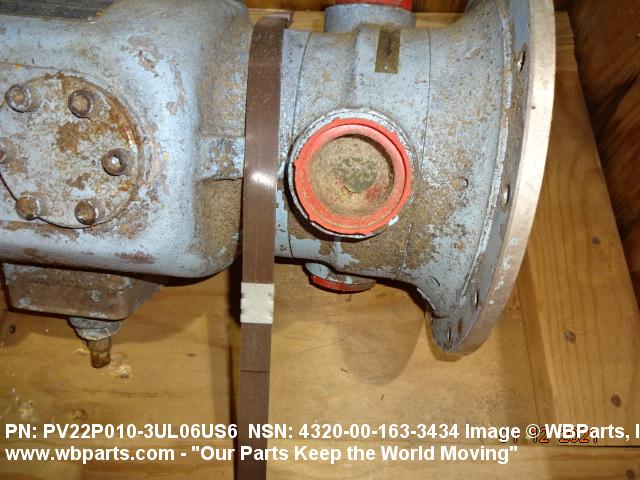

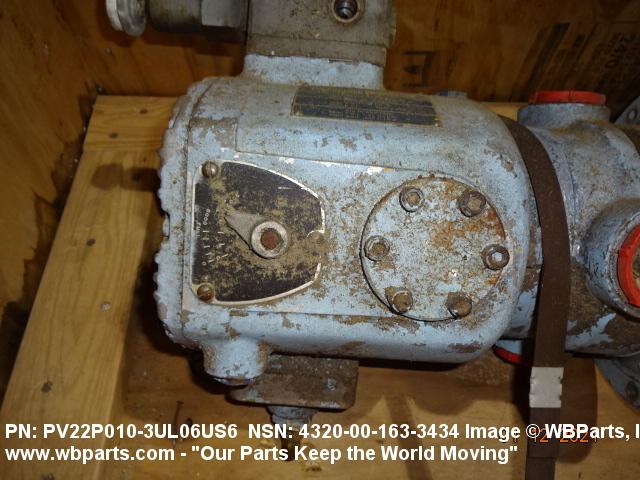

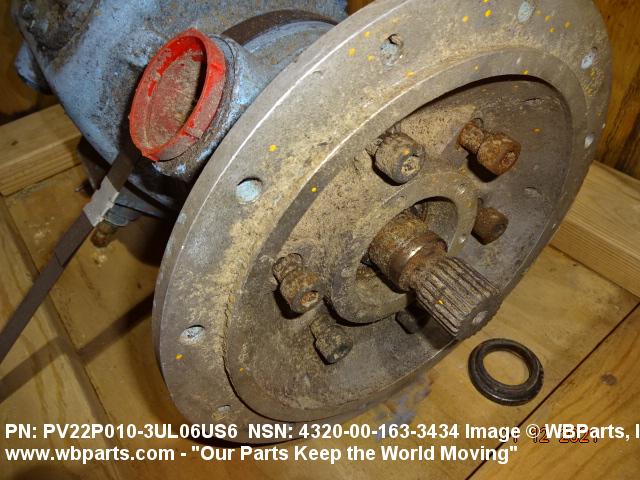

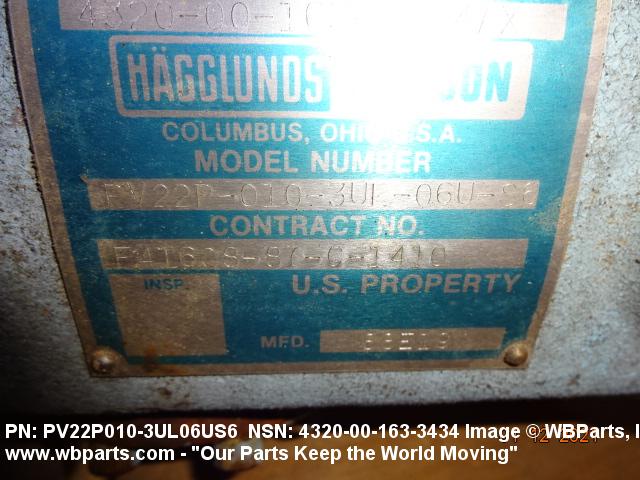

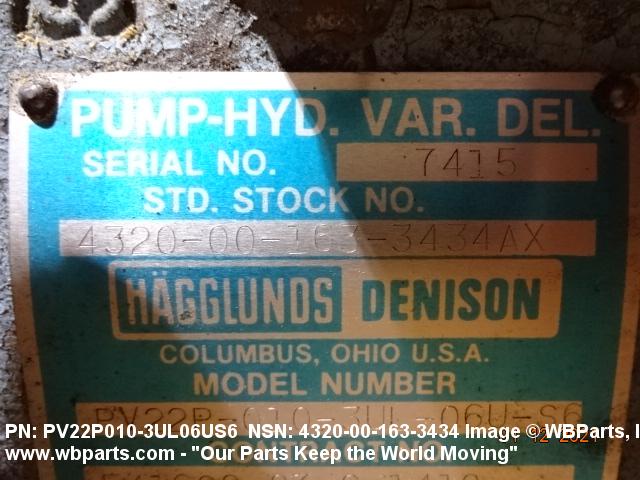

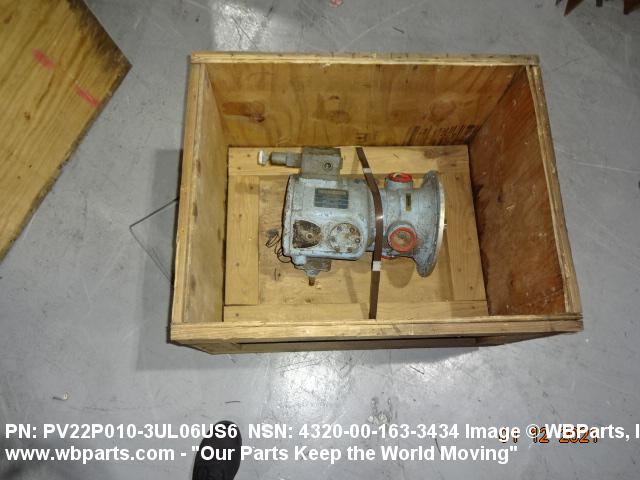

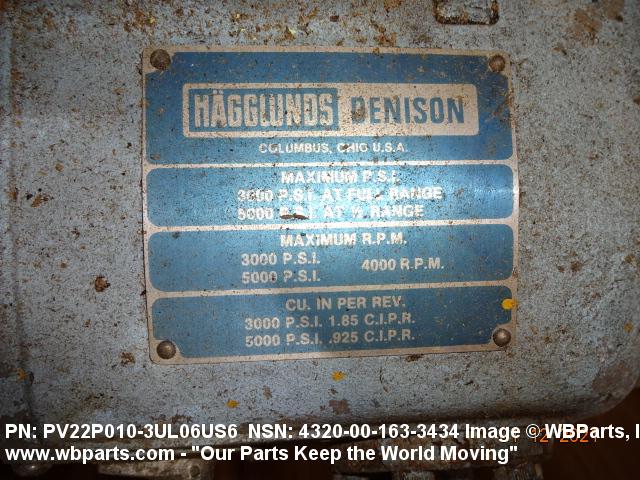

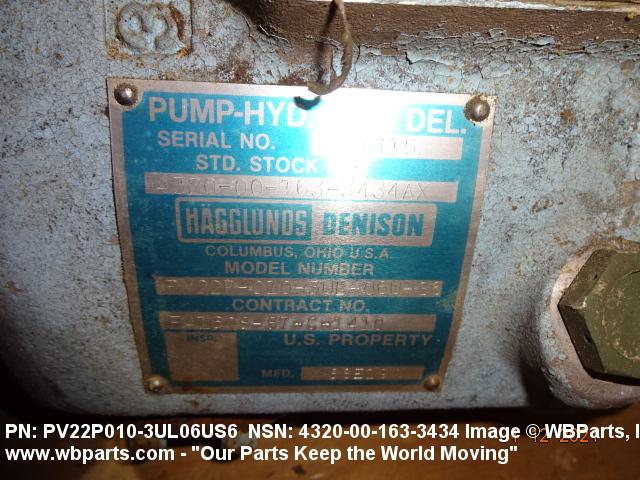

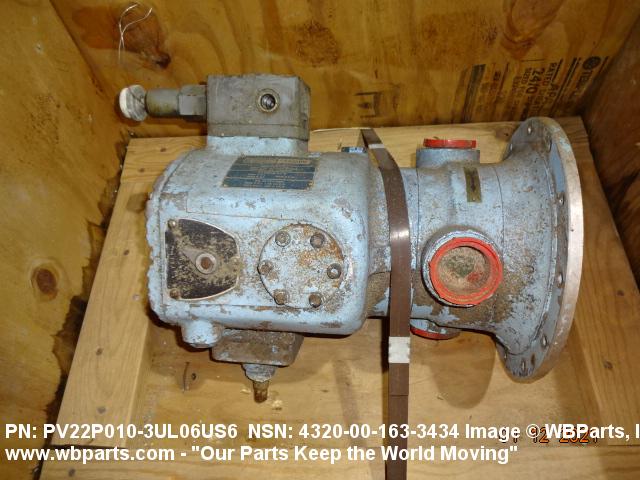

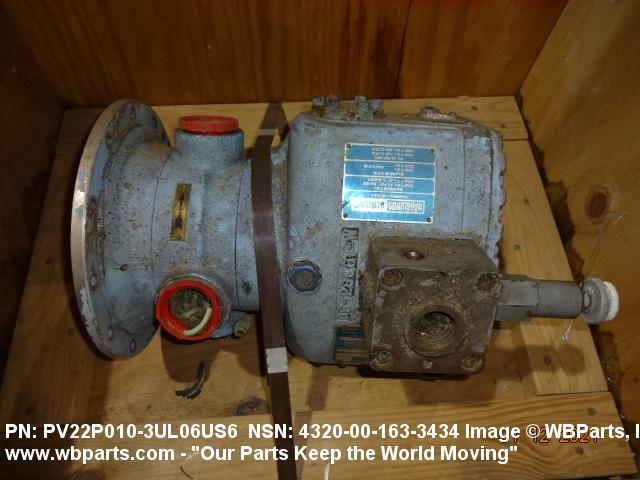

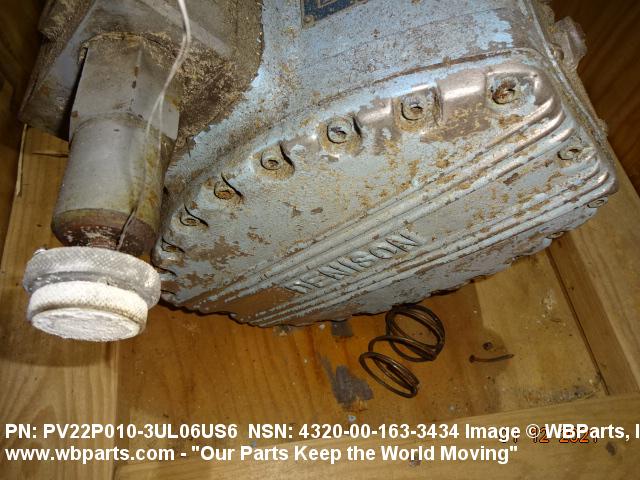

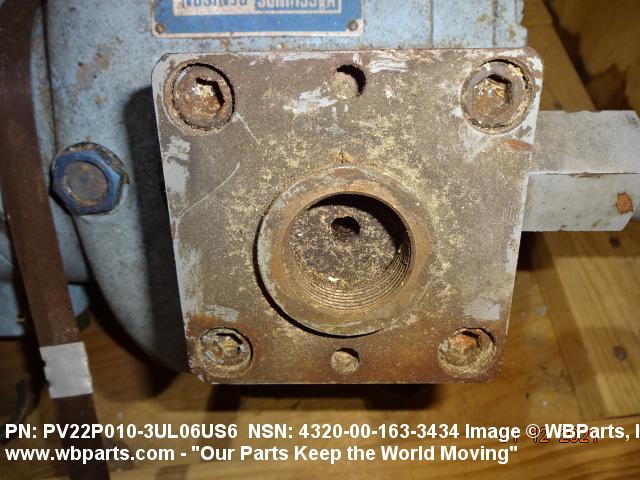

Drawings & Photos | NSN 4320-00-163-3434
Demand History | NSN 4320-00-163-3434
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-00-163-3434 | 2020-11-322 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-00-163-3434
Technical Data | NSN 4320-00-163-3434
| Characteristic | Specifications |
|---|---|
| MAXIMUM DISCHARGE FLOW RATE | 10.0 GALLONS PER MINUTE |
| DISCHARGE PRESSURE | 3000.0 POUNDS PER SQUARE INCH GAGE |
| OPERATING SPEED AT RATED CAPACITY | 1200.0 REVOLUTIONS PER MINUTE |
| MEDIA FOR WHICH DESIGNED | HYDROCARBON FUELS AND OILS |
| PUMPING ELEMENT OPERATING POSITION | HORIZONTAL |
| PUMP ROTATION DIRECTION | COUNTERCLOCKWISE |
| PUMP RECIPROCATING DESIGN | SINGLE ACTING |
| CYLINDER QUANTITY | 9 |
| PUMPING ELEMENT TYPE | PISTON |
| RECIPROCATING STROKE TYPE | FIXED |
| VOLUME CONTROL TYPE | PRESSURE COMPENSATION |
| CONTROL LOCATION | CENTER |
| INTAKE CONNECTION QUANTITY | 1 |

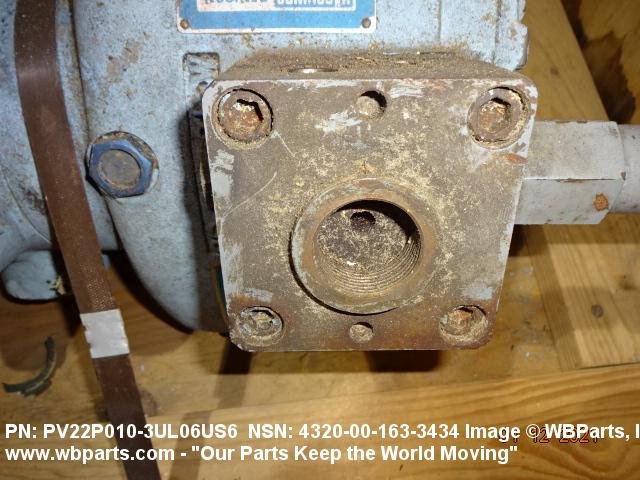

| INTAKE CONNECTION TYPE | THREADED INTERNAL |
| INTAKE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.313-12 UNF |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | THREADED INTERNAL |
| DISCHARGE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.313-12 UNF |
| DRIVE CONNECTION TYPE | CLOSE COUPLED |

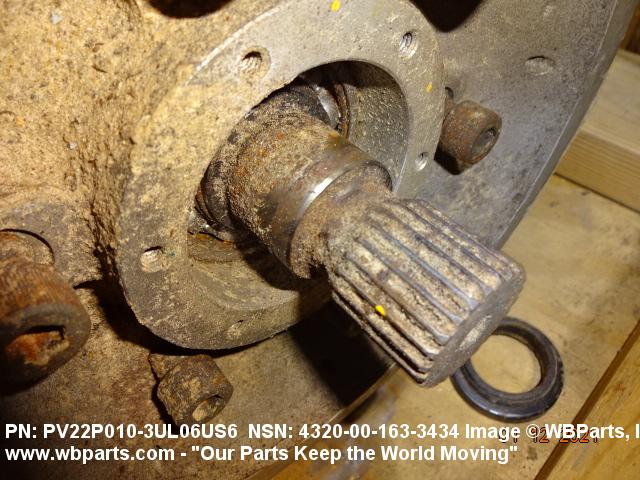

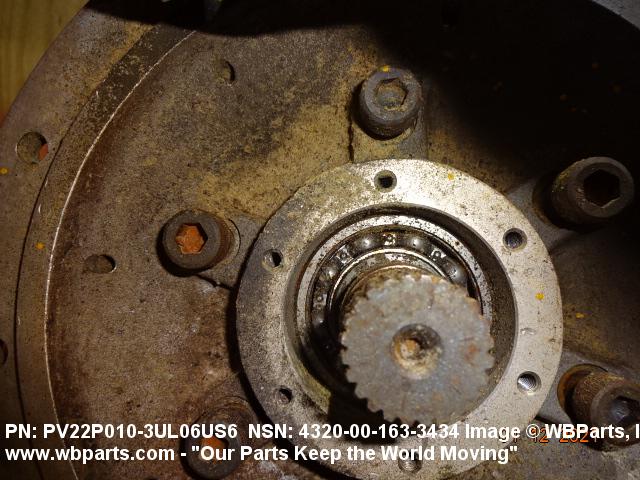

| DRIVE SHAFT TYPE | SPLINED, INVOLUTE EXTERNAL |
| DRIVE SHAFT LENGTH | 1.267 INCHES MAXIMUM |
| MANUFACTURERS CODE | 9F512 |
| DESIGN CONTROL REFERENCE | PV22P010-3UL06US6 |
Restrictions/Controls & Freight Information | NSN 4320-00-163-3434
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-163-3434
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | JX | TG:AIRCRAFT MAINTENANCE EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
