NSN 4210-01-273-4727 M2460625018, M24606-250-18, MILH24606
Product Details | FIRE FIGHTING NONMETALLIC HOSE ASSEMBLY
4210-01-273-4727 A length of nonmetallic hose with fire fighting fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC.
Part Alternates: M2460625018, M24606-250-18, MILH24606, MIL-H-24606, MIL-H-24606-250 -18, MILH2460625018, 4210-01-273-4727, 01-273-4727, 4210012734727, 012734727
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 25 FEB 1988 | 01-273-4727 | 51354 ( HOSE ASSEMBLY, NONMETALLIC, FIRE FIGHTING ) |

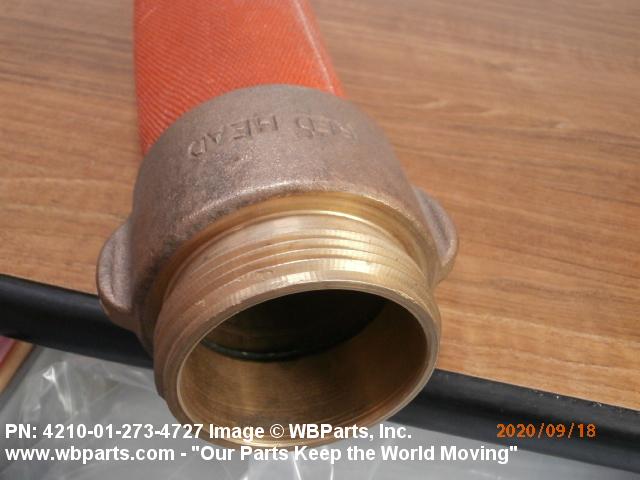

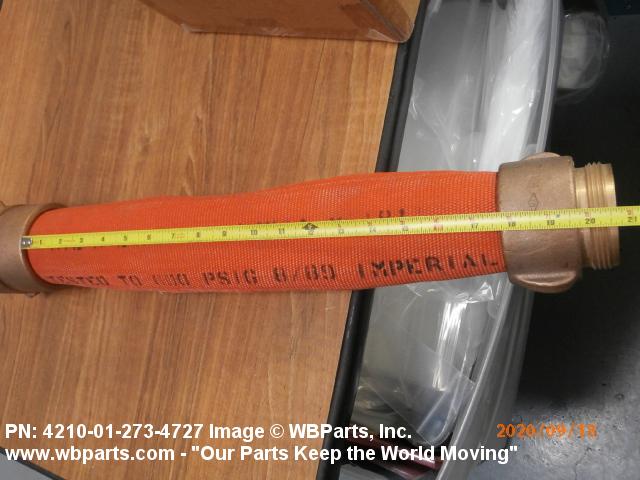

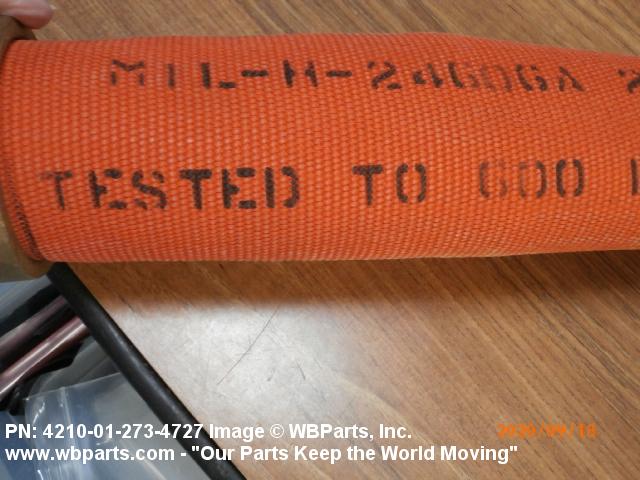

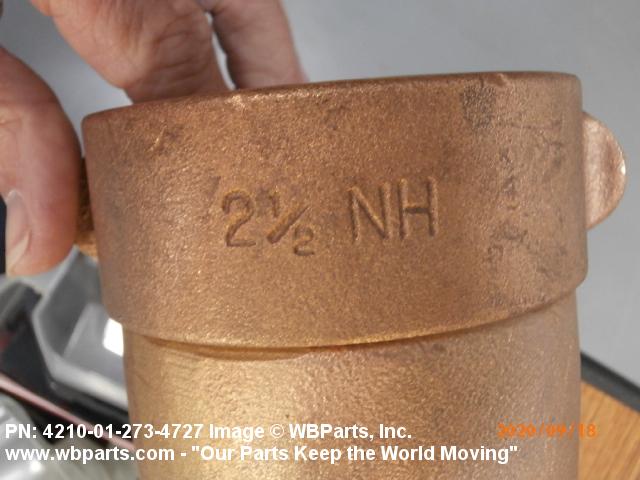

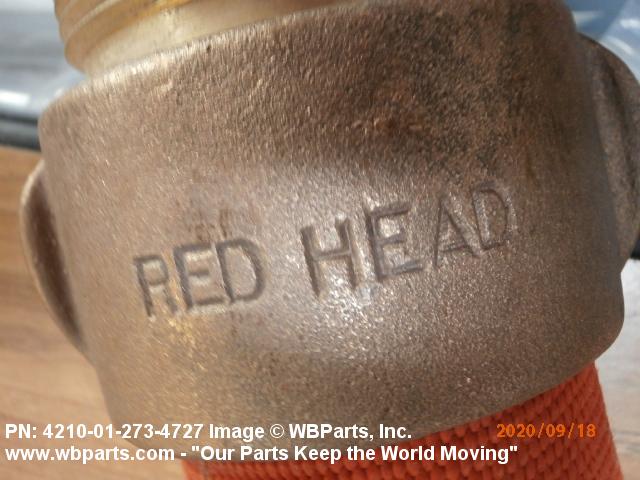

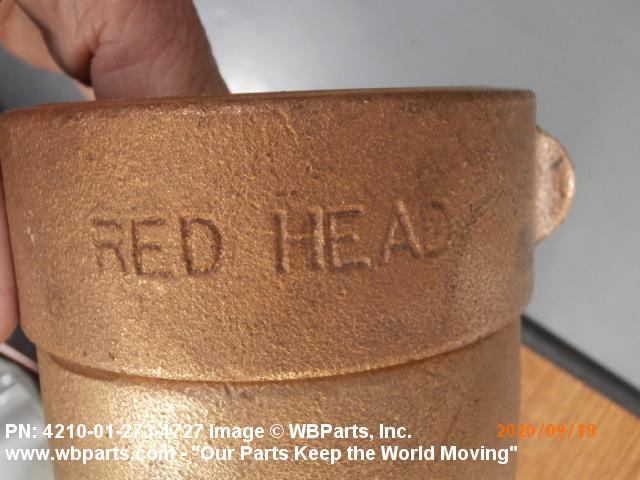

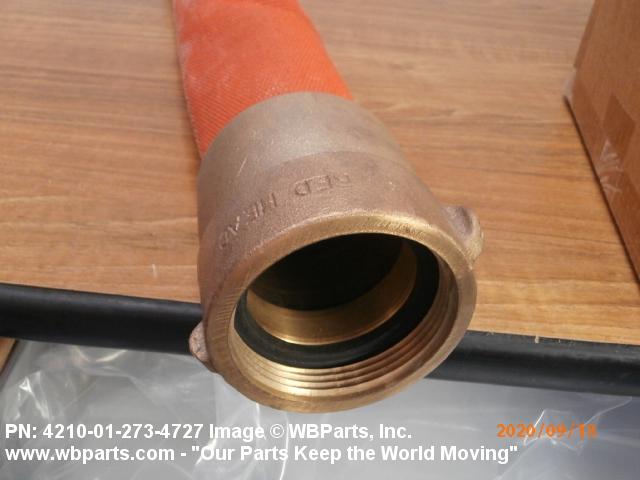

Drawings & Photos | NSN 4210-01-273-4727
Demand History | NSN 4210-01-273-4727
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4210-01-273-4727 | 2024-03-64 | 10 | US |
| 4210-01-273-4727 | 2023-06-160 | 20 | PK |
| 4210-01-273-4727 | 2021-04-95 | 1 | US |
| 4210-01-273-4727 | 2020-07-209 | 1 | United States |
| 4210-01-273-4727 | 2020-07-209 | 1 | United States |
| 4210-01-273-4727 | 2019-06-163 | 1 | DIBBS-RFPs |
| 4210-01-273-4727 | 2018-12-344 | 210 | DIBBS |
| 4210-01-273-4727 | 2018-09-262 | 1 | US |
| 4210-01-273-4727 | 2018-06-162 | 2 | United States |
| MILH24606 | 2017-01-01 | 1 | US |
| 4210-01-273-4727 | 2015-06-166 | 224 | DIBBS |
| 4210-01-273-4727 | 2014-08-226 | 549 | DIBBS |
| 4210-01-273-4727 | 2012-06-164 | 323 | DIBBS |
| 4210-01-273-4727 | 2011-09-256 | 4 | DIBBS |
| 4210-01-273-4727 | 2010-11-322 | 462 | DIBBS |
| 4210-01-273-4727 | 2010-02-33 | 462 | DIBBS |
| 4210-01-273-4727 | 2009-11-313 | 293 | DIBBS |
Cross Reference | NSN 4210-01-273-4727
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24606-250-18 | 30951 | SNAP-TITE HOSE INC. DBA NATIONAL FIRE HOSE DIVISION |
| M24606-250-18 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24606-250-18 | 8V320 | ALL-AMERICAN HOSE LLC DIV PONN FIRE HOSE |
| MIL-H-24606 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-24606-250 -18 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4210-01-273-4727
Related Products | NSN 4210-01-273-4727
Technical Data | NSN 4210-01-273-4727
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | WATER |
| INSIDE SURFACE CONDITION | SMOOTH |

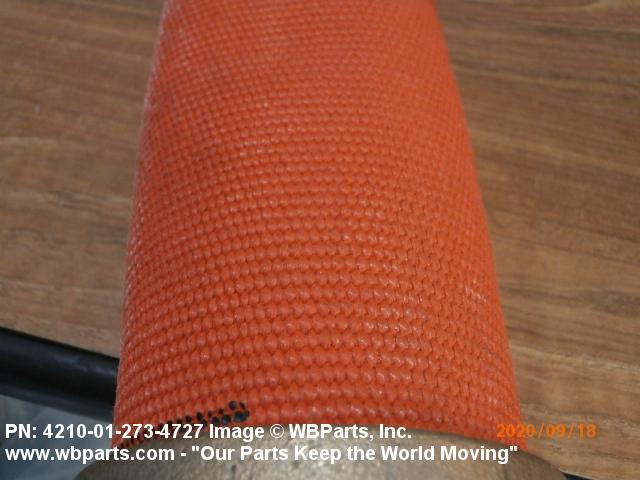

| LAYER COMPOSITION AND LOCATION | 1ST LAYER MOLDED RUBBER, SYNTHETIC 2ND LAYER RUBBER IMPREGNATED POLYAMIDE FABRIC OUTER LAYER RUBBER IMPREGNATED POLYAMIDE FABRIC |
| OUTER COVERING ENVIRONMENTAL PROTECTION | ABRASION RESISTANT AND OZONE RESISTANT |

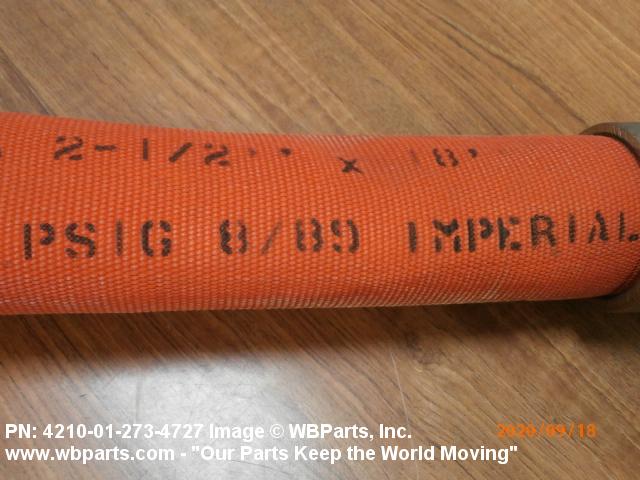

| EXTERIOR COLOR | ORANGE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 2.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | ANY ACCEPTABLE |

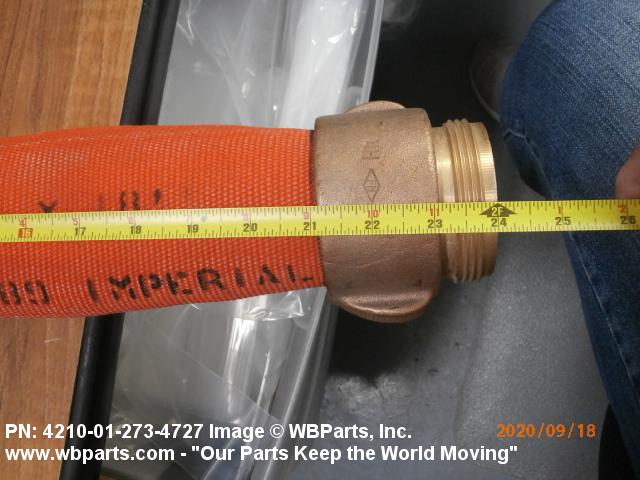

| MEASURING METHOD AND LENGTH | 18.000 INCHES NOMINAL OVERALL |
| MINIMUM INSIDE BENDING RADIUS | ANY ACCEPTABLE |
| FIRST END CONNECTION TYPE | INTERNAL QUICK DISCONNECT |
| FIRST END STYLE DESIGNATOR | H5 PUSH |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING BRASS |

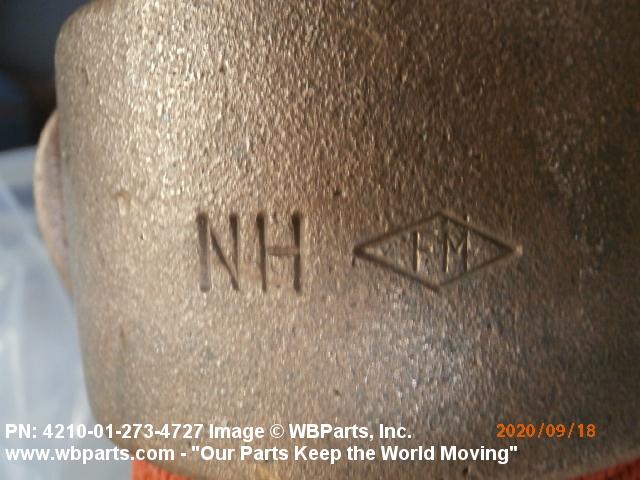

| FIRST END THREAD SERIES DESIGNATOR | NH |

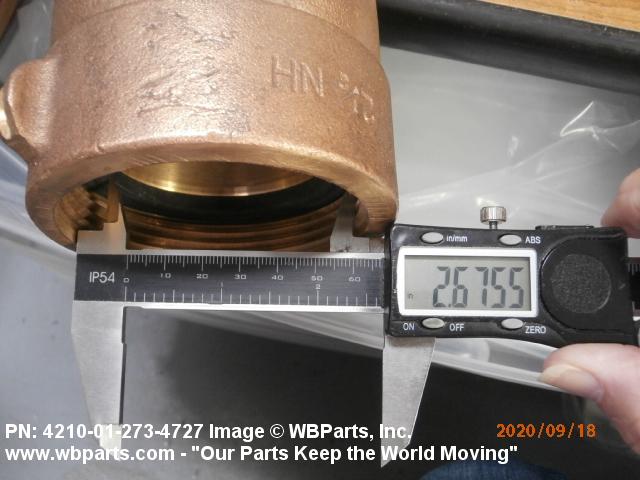

| FIRST END NOMINAL THREAD SIZE | 2.500 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 7-1/2 |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END QUICK DISCONNECT NOMINAL SIZE | 2.500 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | EXTERNAL QUICK DISCONNECT |
| SECOND END STYLE DESIGNATOR | H6 PUSH |
| SECOND END CONNECTION DESIGN | STRAIGHT |
| SECOND END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| SECOND END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING BRASS |
| SECOND END THREAD SERIES DESIGNATOR | NH |

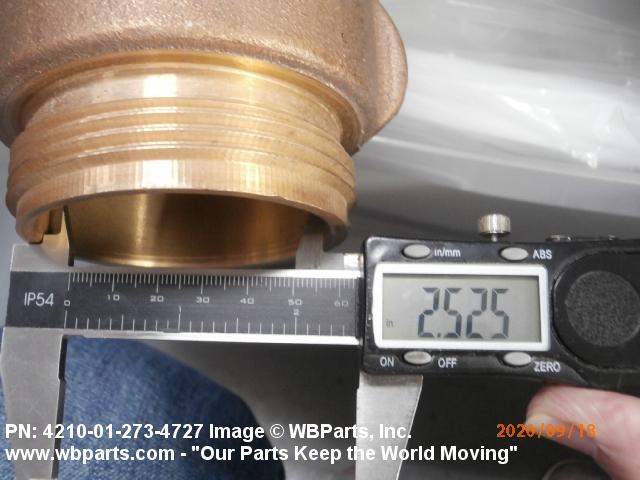

| SECOND END NOMINAL THREAD SIZE | 2.500 INCHES |
| SECOND END THREAD QUANTITY PER INCH | 7-1/2 |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END QUICK DISCONNECT NOMINAL SIZE | 2.500 INCHES |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| HYDROSTATIC TEST PRESSURE | 600.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 900.0 POUNDS PER SQUARE INCH |
| SPECIFICATION/STANDARD DATA | 81349-MIL-H-24606 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-H-24606 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24606-250-18 |
Restrictions/Controls & Freight Information | NSN 4210-01-273-4727
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 634 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4210-01-273-4727
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
