NSN 4210-01-131-0249 M24606150, M24606-150, MILH24606

Product Details | FIRE FIGHTING NONMETALLIC HOSE ASSEMBLY

4210-01-131-0249 A length of nonmetallic hose with fire fighting fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC.

Part Alternates: M24606150, M24606-150, MILH24606, MIL-H-24606, ZZH451, ZZ-H-451, 14-SN6-D 1 1-2 IN, 14SN6D112IN, 40D615, 40ND615, 7391732X1ITEM5, 73917-32X1ITEM5, 4210-01-131-0249, 01-131-0249, 4210011310249, 011310249

Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
42	02 MAY 1982	01-131-0249	51354 ( HOSE ASSEMBLY, NONMETALLIC, FIRE FIGHTING )

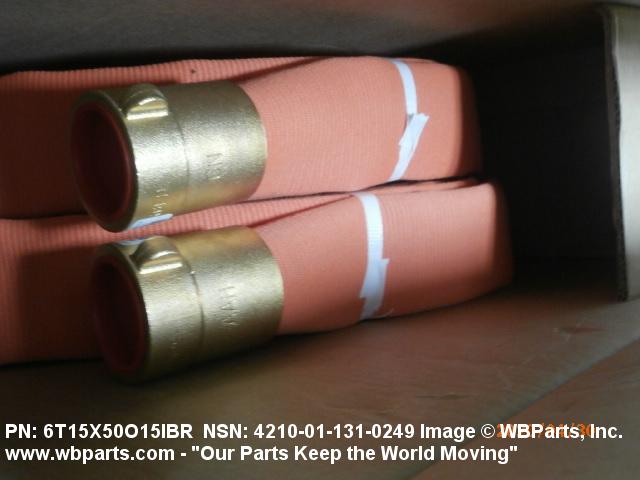

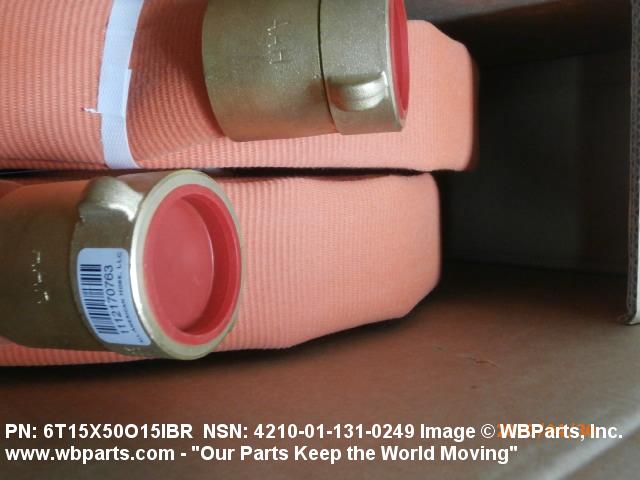

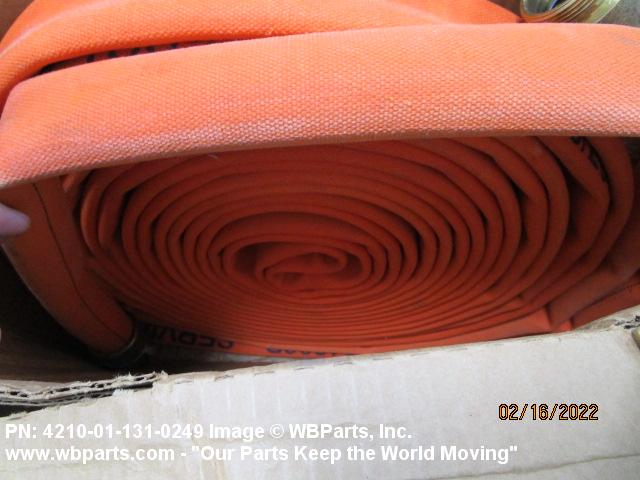

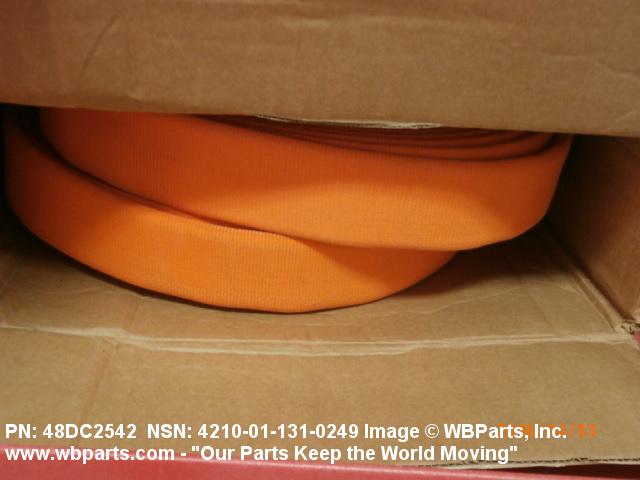

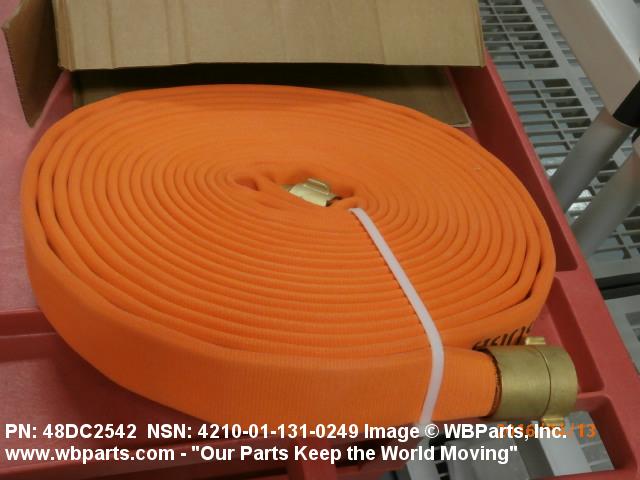

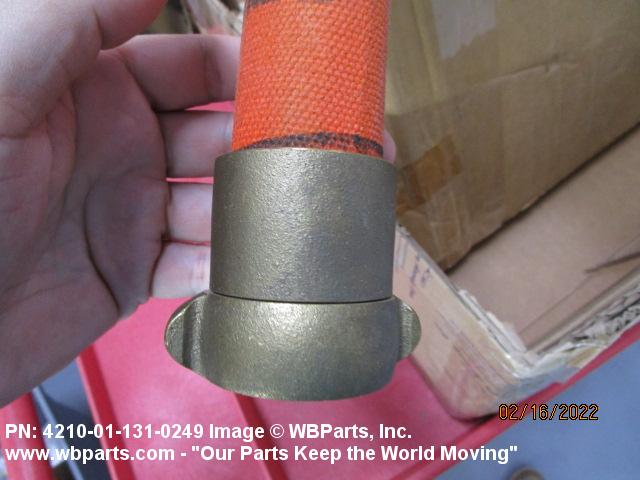

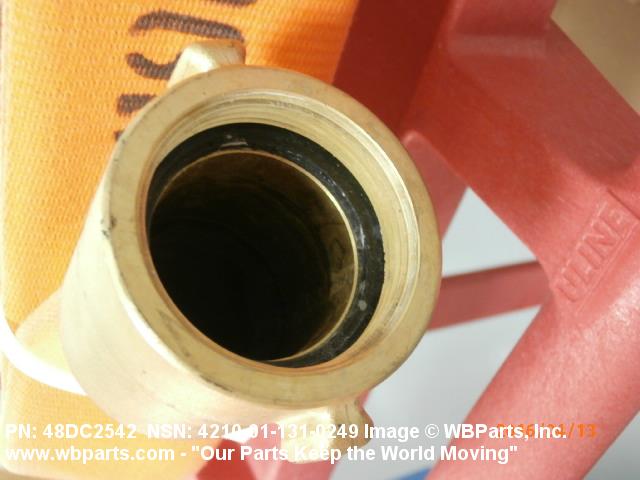

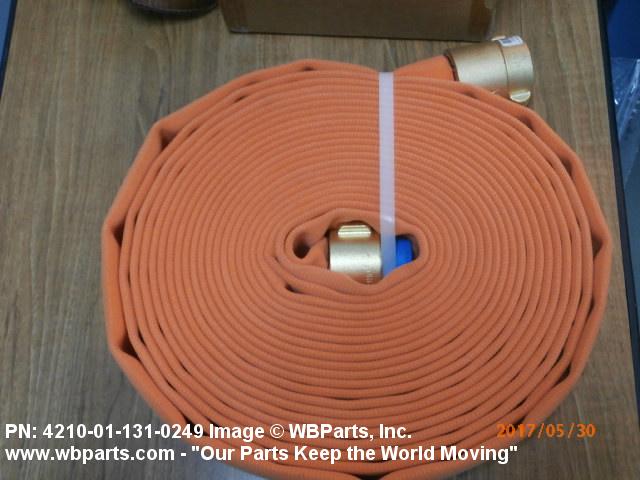

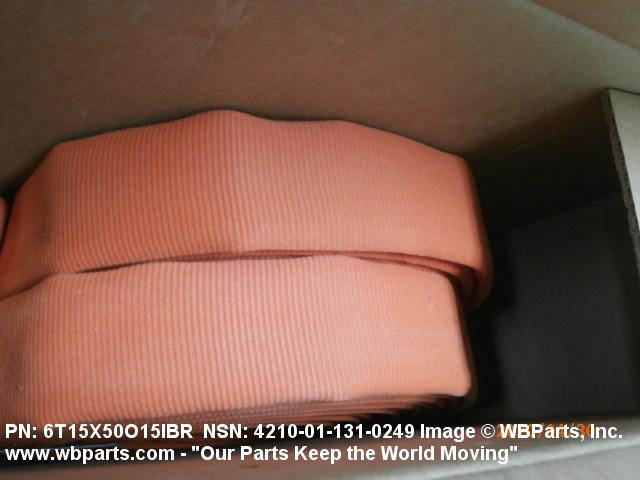

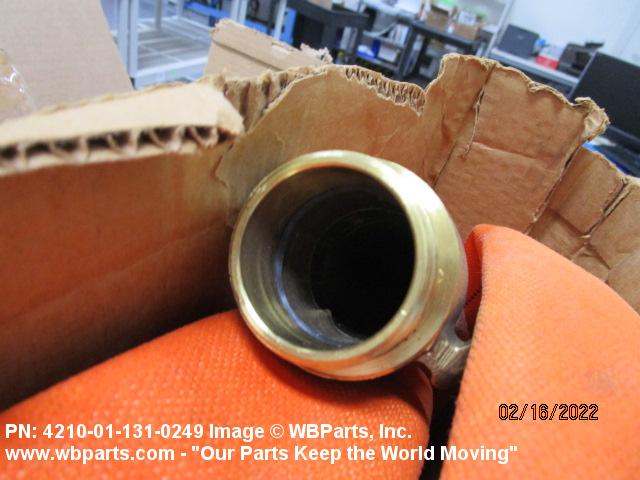

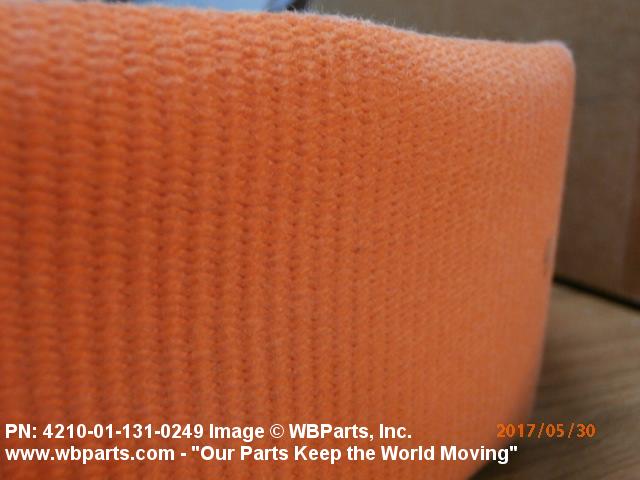

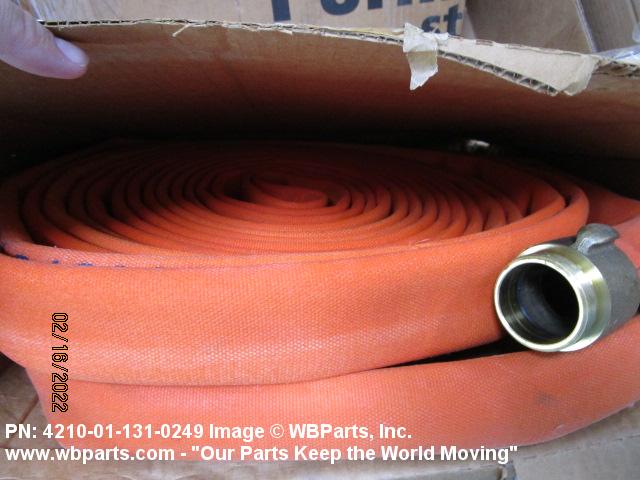

Drawings & Photos | NSN 4210-01-131-0249

Part Number	Request Date	QTY	Origin
4210-01-131-0249	2024-06-179	10	US
4210-01-131-0249	2024-06-157	3	TW
4210-01-131-0249	2024-05-136	1	United States
4210-01-131-0249	2024-01-23	4478	DIBBS
4210-01-131-0249	2024-01-09	30	US
4210-01-131-0249	2023-09-256	3836	DIBBS
4210-01-131-0249	2023-08-241	3836	DIBBS
4210-01-131-0249	2023-08-238	60	US
4210-01-131-0249	2023-04-103	2	UM
4210-01-131-0249	2022-10-299	180	Taiwan
M24606150	2022-02-42	60	US
4210-01-131-0249	2022-02-34	60	UK
4210-01-131-0249	2021-12-342	2	United States
4210-01-131-0249	2021-04-95	1	US
4210-01-131-0249	2021-01-11	1	United States
4210-01-131-0249	2020-10-300	145	US
4210-01-131-0249	2020-03-63	6	United States
4210-01-131-0249	2019-08-221	10	United States
4210-01-131-0249	2018-09-262	1	US
4210-01-131-0249	2018-07-200	1	US
4210-01-131-0249	2018-05-145	238	GR
4210-01-131-0249	2018-03-85	10	VE
4210-01-131-0249	2018-01-17	30	US
4210-01-131-0249	2018-01-10	8	United States
4210-01-131-0249	2017-04-100	5	United States
4210-01-131-0249	2017-04-95	2	United States
4210-01-131-0249	2017-03-82	2	United States
4210-01-131-0249	2017-01-25	1	DIBBS-RFPs
4210-01-131-0249	2017-01-13	1	US
4210-01-131-0249	2017-01-12	1	US
4210-01-131-0249	2017-01-10	10	MANUAL
ZZH451	2017-01-10	10	US
MILH24606	2017-01-01	1	US
4210-01-131-0249	2016-12-356	1	DIBBS-RFPs
4210-01-131-0249	2016-12-341	805	US
4210-01-131-0249	2016-07-211	1575	DIBBS
4210-01-131-0249	2016-02-41	3	United States
4210-01-131-0249	2013-11-330	22	Taiwan
4210-01-131-0249	2013-02-34	10	Taiwan
4210-01-131-0249	2013-01-17	1	MANUAL
4210-01-131-0249	2012-03-87	15	US
4210-01-131-0249	2011-08-230	15	US
4210-01-131-0249	2011-07-195	10	United States
4210-01-131-0249	2011-07-195	15	United States
4210-01-131-0249	2011-06-172	10	United States
4210-01-131-0249	2011-06-172	20	United States
4210-01-131-0249	2011-05-138	1601	DIBBS
4210-01-131-0249	2011-01-20	10	US
4210-01-131-0249	2011-01-07	2501	DIBBS
4210-01-131-0249	2010-10-277	20	TW
4210-01-131-0249	2010-07-210	1026	DIBBS
4210-01-131-0249	2010-03-74	1001	DIBBS
4210-01-131-0249	2010-02-40	1001	DIBBS
4210-01-131-0249	2010-02-35	1541	DIBBS
4210-01-131-0249	2010-02-32	1541	DIBBS

Cross Reference | NSN 4210-01-131-0249

Part Number	Cage Code	Manufacturer
14-SN6-D 1 1-2 IN	30951	SNAP-TITE HOSE INC. DBA NATIONAL FIRE HOSE DIVISION
40D615	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
40ND615	1JL20	IMPERIAL FIRE HOSE COMPANY INC DIV IMPERIAL FIRE HOSE
73917-32X1ITEM5	96169	ELECTRIC BOAT CORPORATION
M24606-150	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-H-24606	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILH24606	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
ZZ-H-451	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4210-01-131-0249

Compare

Related Products | NSN 4210-01-131-0249

4210-01-131-2675, 4210-01-131-3290, 4210-01-131-4706, 4210-01-131-6108, 4210-01-131-8245

Technical Data | NSN 4210-01-131-0249

Characteristic	Specifications
INNER CONVEYING TUBE MATERIAL	RUBBER, SYNTHETIC
MEDIA FOR WHICH DESIGNED	WATER
INSIDE SURFACE CONDITION	SMOOTH
LAYER COMPOSITION AND LOCATION	1ST LAYER WOVEN POLYESTER FIBER CORD OUTER LAYER RUBBER IMPREGNATED BRAIDED POLYAMIDE CORD
OUTER COVERING ENVIRONMENTAL PROTECTION	ABRASION RESISTANT AND COLD RESISTANT AND WEATHERPROOF
EXTERIOR COLOR	ORANGE
CROSS-SECTIONAL SHAPE STYLE	1 ROUND
INSIDE DIAMETER	1.500 INCHES NOMINAL
OUTSIDE DIAMETER	ANY ACCEPTABLE
MEASURING METHOD AND LENGTH	600.000 INCHES NOMINAL EXCLUDING END FITTINGS
MINIMUM INSIDE BENDING RADIUS	NOT RATED

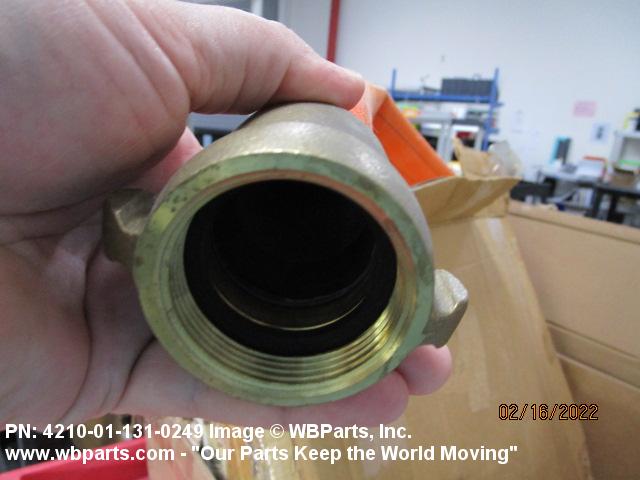

FIRST END CONNECTION TYPE	THREADED INTERNAL HOSE

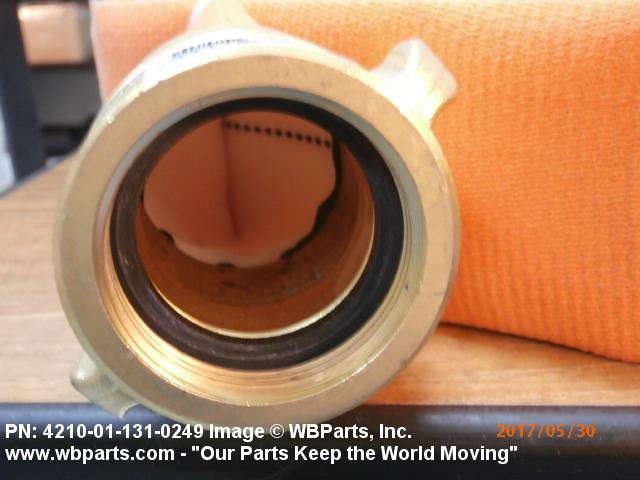

FIRST END STYLE DESIGNATOR	C5 SWIVEL NUT, GASKET SEAL
FIRST END CONNECTION DESIGN	STRAIGHT
FIRST END SWIVEL ACTION CAPABILITY	INCLUDED
FIRST END FITTING/COMPONENT AND MATERIAL	COMPLETE FITTING BRASS

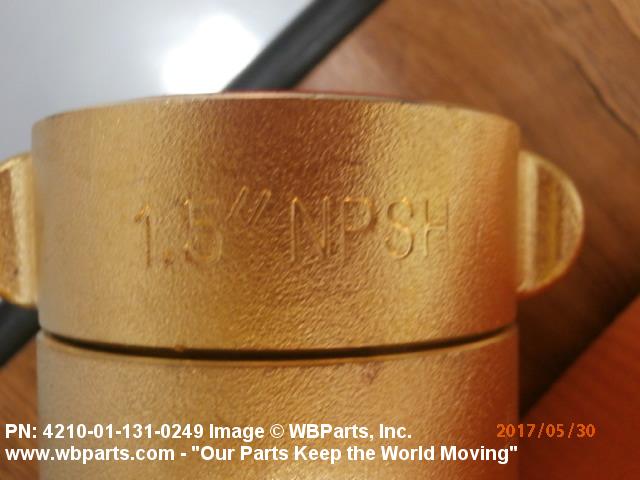

FIRST END THREAD SERIES DESIGNATOR	NPSH
FIRST END NOMINAL THREAD SIZE	1.500 INCHES
FIRST END THREAD DIRECTION	RIGHT-HAND
SECOND END RELATIONSHIP WITH FIRST END	NOT IDENTICAL

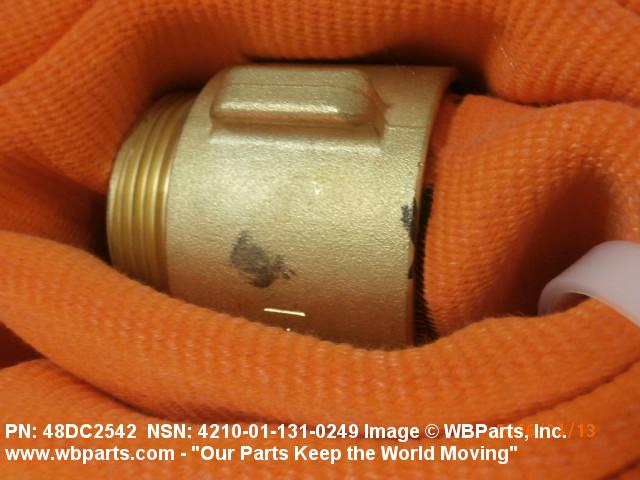

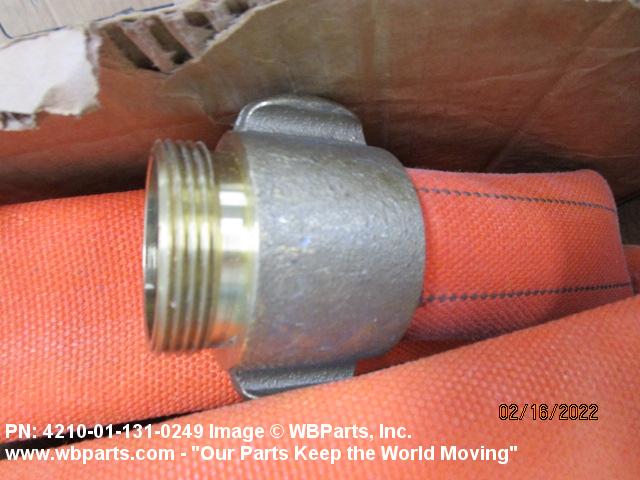

SECOND END CONNECTION TYPE	THREADED EXTERNAL HOSE
SECOND END STYLE DESIGNATOR	D5 PLAIN
SECOND END CONNECTION DESIGN	STRAIGHT
SECOND END SWIVEL ACTION CAPABILITY	NOT INCLUDED
SECOND END FITTING/COMPONENT AND MATERIAL	COMPLETE FITTING BRASS
SECOND END THREAD SERIES DESIGNATOR	NPSH
SECOND END NOMINAL THREAD SIZE	1.500 INCHES
SECOND END THREAD DIRECTION	RIGHT-HAND
TEMP RATING	NOT RATED
MAXIMUM OPERATING PRESSURE	NOT RATED
HYDROSTATIC TEST PRESSURE	600.0 POUNDS PER SQUARE INCH
BURST TEST PRESSURE	NOT RATED
SPECIAL FEATURES	FURNISHED WITH THREE GASKETS

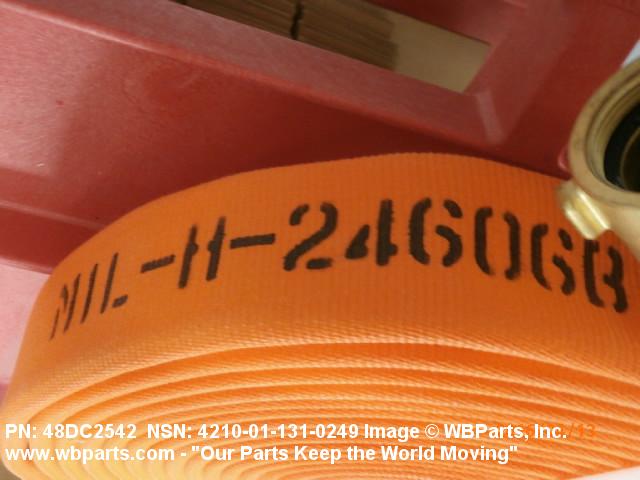

SPECIFICATION/STANDARD DATA	81349-MIL-H-24606 GOVERNMENT SPECIFICATION
NONDEFINITIVE SPEC/STD DATA	50FT LENGTH AND 150 SIZE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-H-24606
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M24606-150

Restrictions/Controls & Freight Information | NSN 4210-01-131-0249

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051140	HOSE:NOI TUBING
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	634	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4210-01-131-0249

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Z EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Z EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Z EA : Each
